Customization:	Available
Condition:	New
Certification:	CE

Send Inquiry

Product Description

i

Basic Information

Application

Adult

Nature

Specialized Equipment

Material

Metal

Focal Point

0.6 mm / 1.2 mm

Target Angle

12

Anode Heat Capacity

300 Khu

Kv

150 Kv

Filter out

2.4 mm Al

Fluoroscopy

40 ~ 150 Kv

Power Supply

380 VAC

Power

65 Kw

Photography

10 ~ 1000 Ma

Transport Package

Wooden Box

Origin

China

Imaging Diagnostic Xray Medical Equipment

Imaging Diagnostic Xray Medical Equipment

Imaging Diagnostic Xray Medical Equipment

★

Product Description

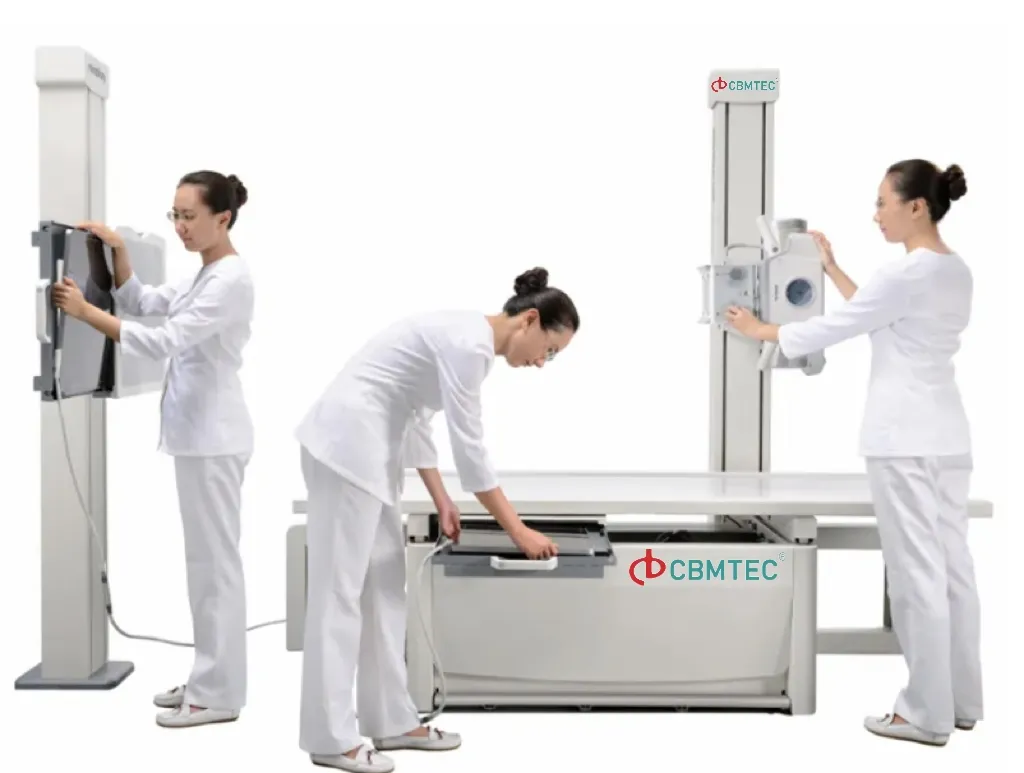

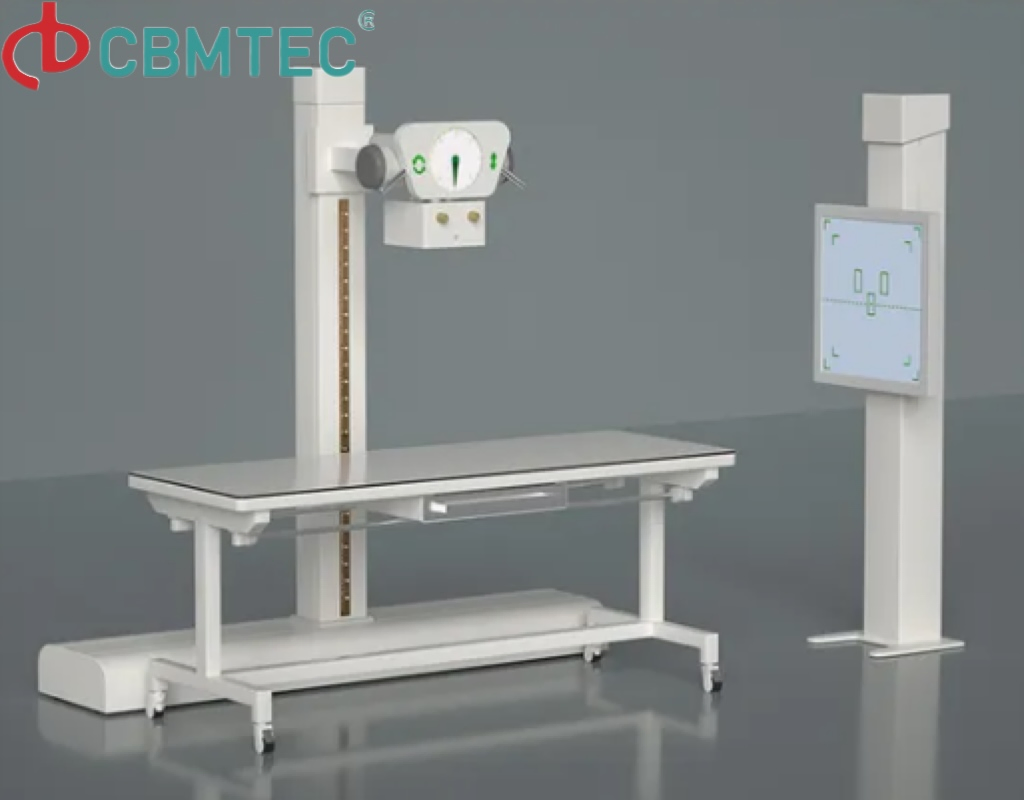

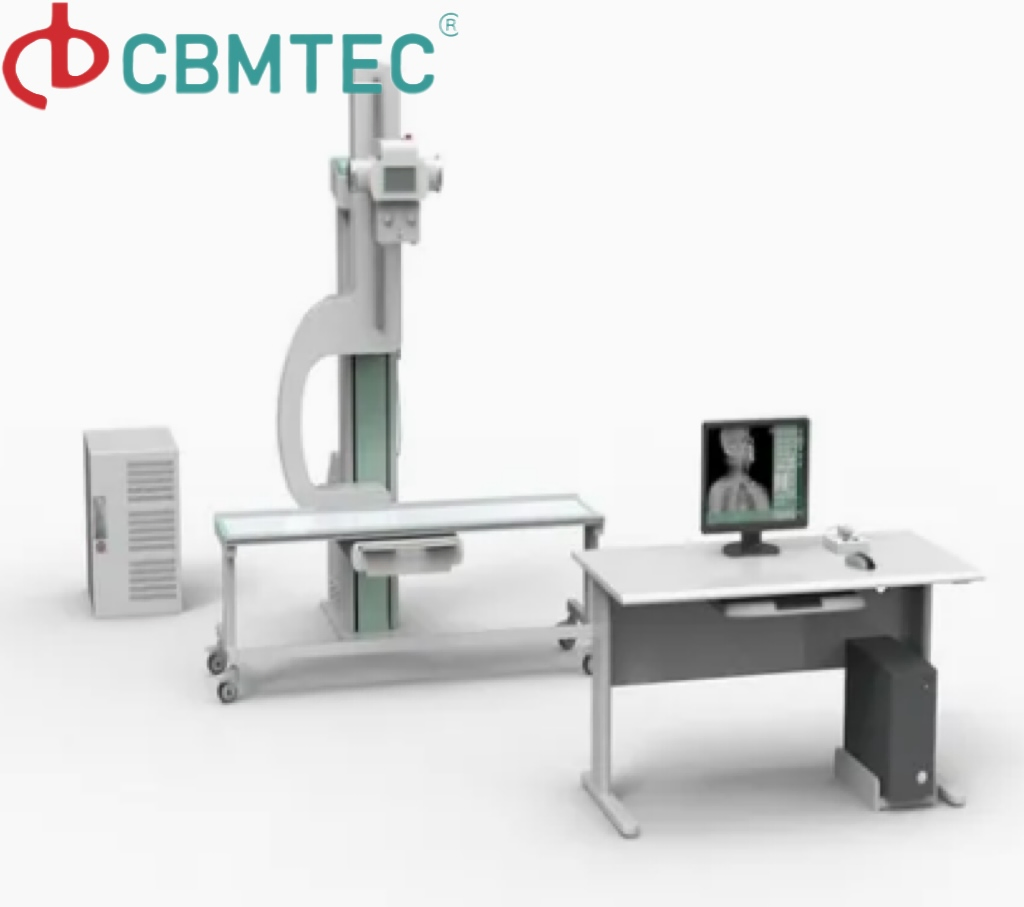

SY-D047A-3 Hospital Imaging DR X-Ray Machine System Medical 50kw High Frequency Digital X-ray Equipment for Radiography

Main Features:

High Frequency High Voltage X-ray Generator
X-ray Tube Assembly
Collimator
Digital Detector Rayence 1717SGC/SCC
DR Machine Frame
Radiography Table
Computer and LCD DCSM1F/ML2002
Synchronous box
High Voltage Cable 75kV (length: 8m)
Grid (Brand:JPI) 100cm and 180cm

Digital X-Ray Equipment's Generator Specification:

Power	AC380V ± 38V
Radiography Tube Voltage	40kV ~ 150kV
Radiography Tube Current	10mA ~ 630mA
Time	2ms ~ 6300ms
Allowed Internal Resistance	380V: 0.5Ω
Allowed Frequency Variation	50Hz/60Hz ± 1Hz
Working Frequency	≥30kHz

Digital X-Ray Equipment's Tube Specification:

Focus	0.6mm/1.2mm
Rotating Speed	2800rpm
Peek Tube Voltage	150kV
Small Focus	20kW
Large Focus	50kW

Digital X-Ray Equipment's Flat Panel Detector Specification:

Scanning Area	17 × 17 inches
Spatial Resolution	not less than 3.9lp/mm
Total Pixel Matrix	3,328(h) × 3,328(v)
Pixel Pitch	127 μm
Image Preview Time	not more than 2s

P

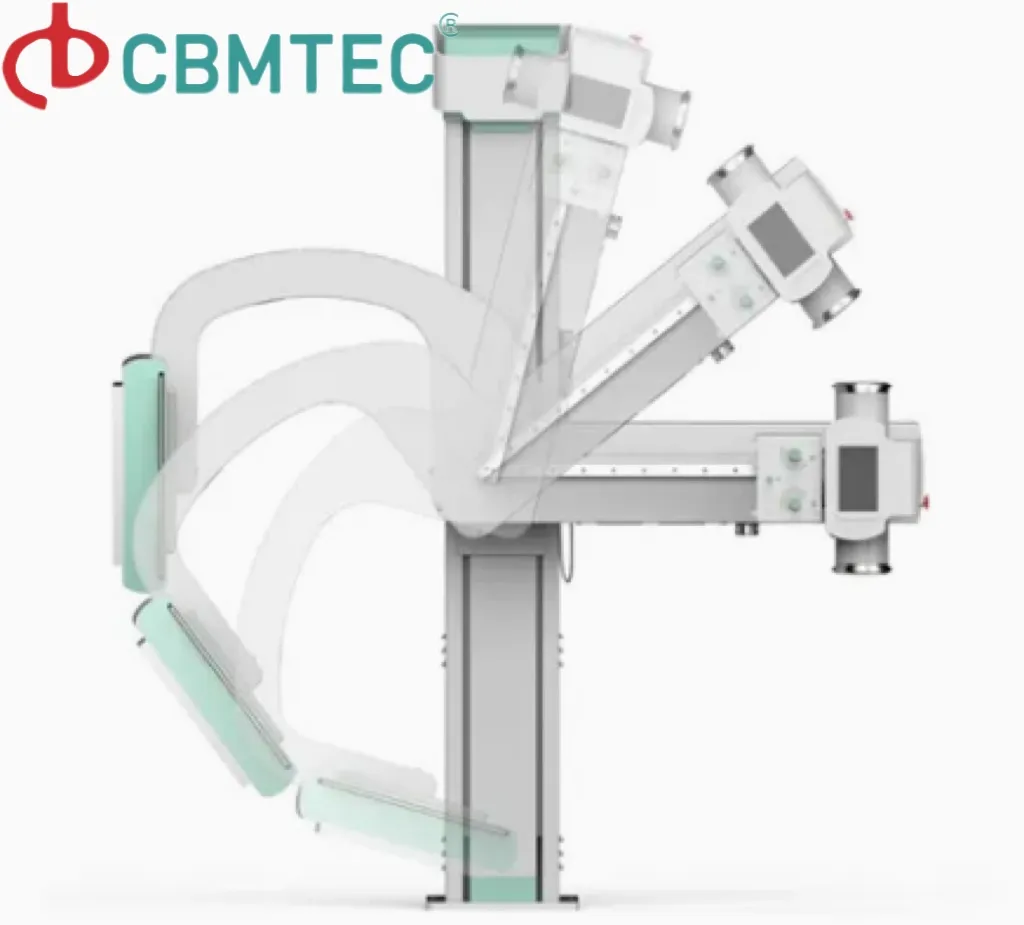

Product Show

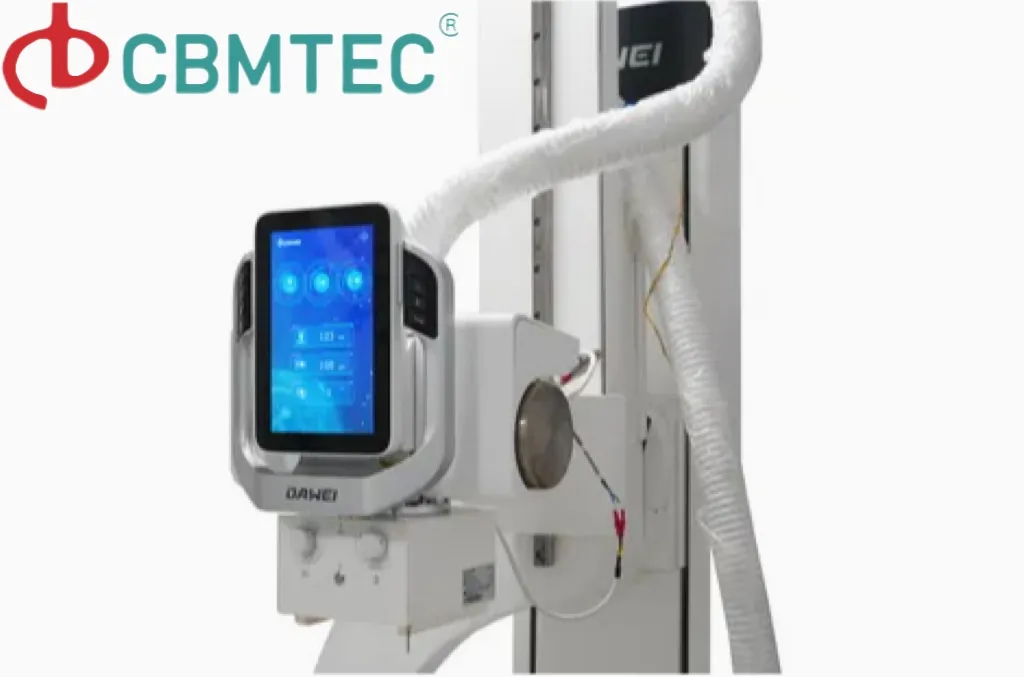

Product Show 1

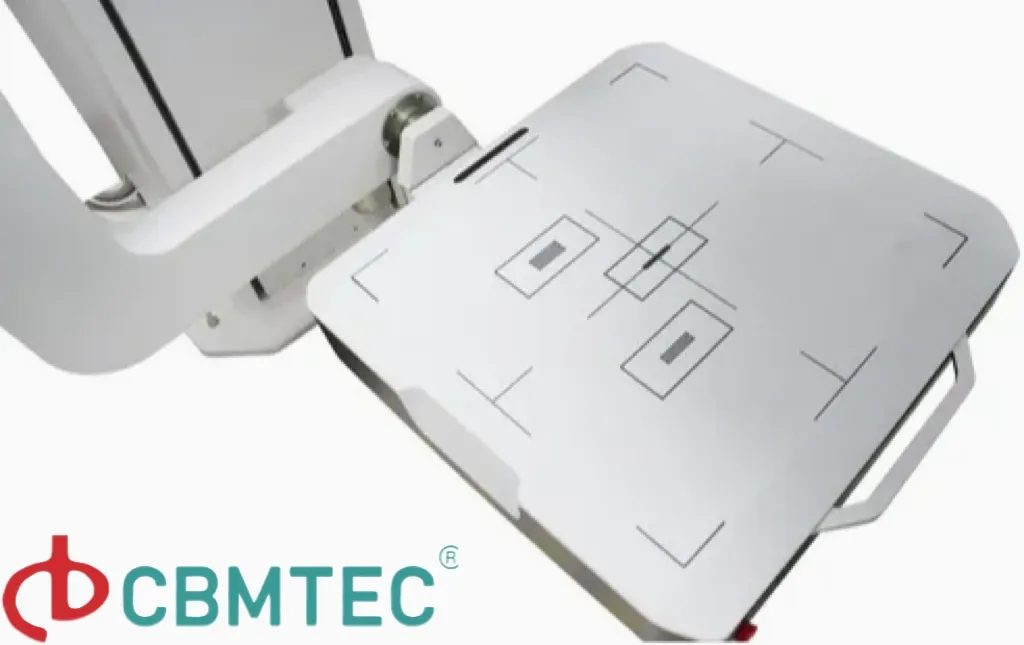

Product Show 2

Product Show 3

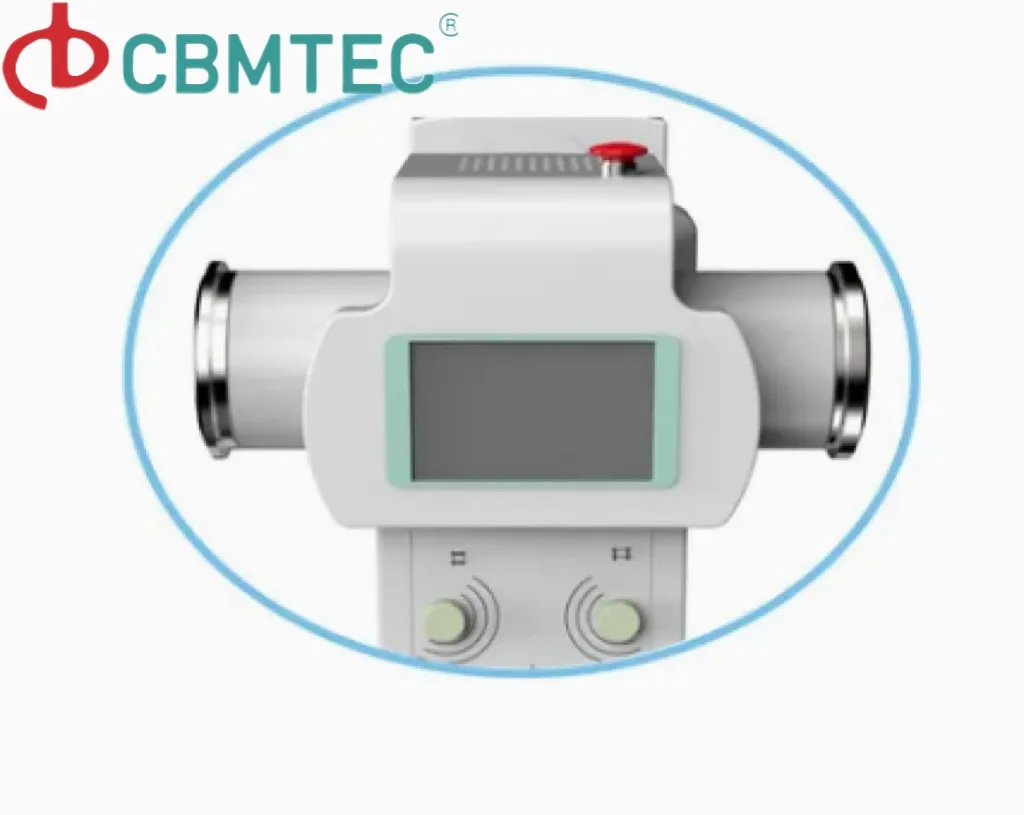

Product Show 4

Product Show 5

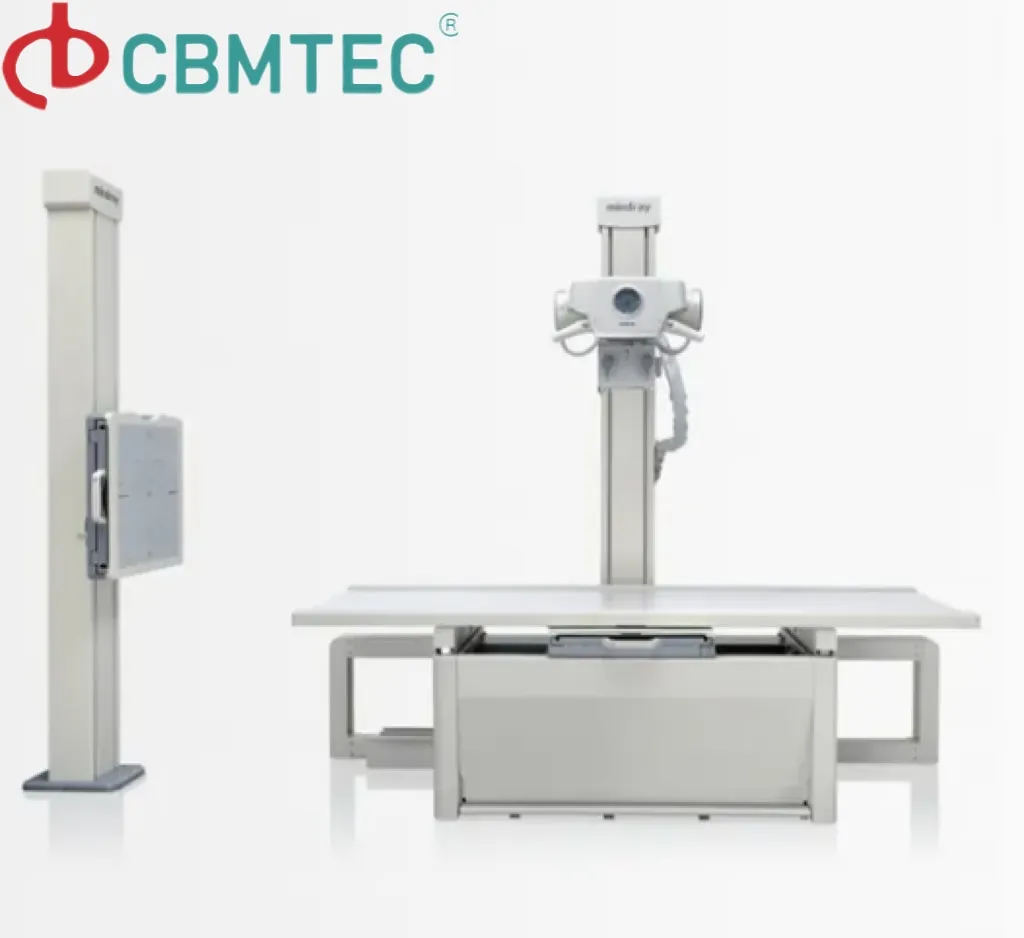

Product Show 6

L

Packing & Shipping

Packing 1

Packing 2

Packing 3

E

Exhibition

Exhibition Show

?

Frequently Asked Questions

What is the peak tube voltage of this DR X-ray system?

The system supports a peak tube voltage of up to 150kV, suitable for a wide range of radiography applications.

What is the size and resolution of the flat panel detector?

The detector has a scanning area of 17 x 17 inches with a spatial resolution of no less than 3.9lp/mm and a pixel pitch of 127μm.

How long does it take to preview an image?

The image preview time is highly efficient, taking no more than 2 seconds after exposure.

What are the power requirements for this equipment?

The equipment requires a power supply of AC 380V ± 38V with a frequency variation allowance of 50Hz/60Hz ± 1Hz.

What type of packaging is used for transport?

The product is securely packed in a high-quality wooden box to ensure safety during international and domestic transport.

Does the system include a radiography table?

Yes, the standard system comes complete with a radiography table, DR machine frame, and all necessary assembly components.
