Capture up to 2971fps for precise motion analysis.
2.2 Megapixel resolution with advanced denoising.
Lightning-fast data transfer without latency.

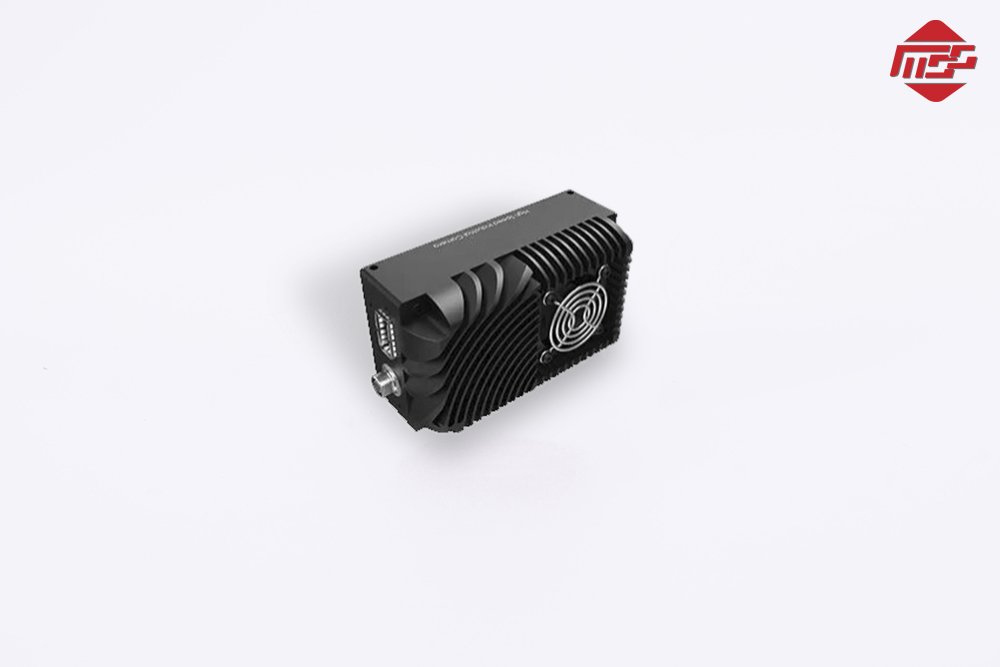

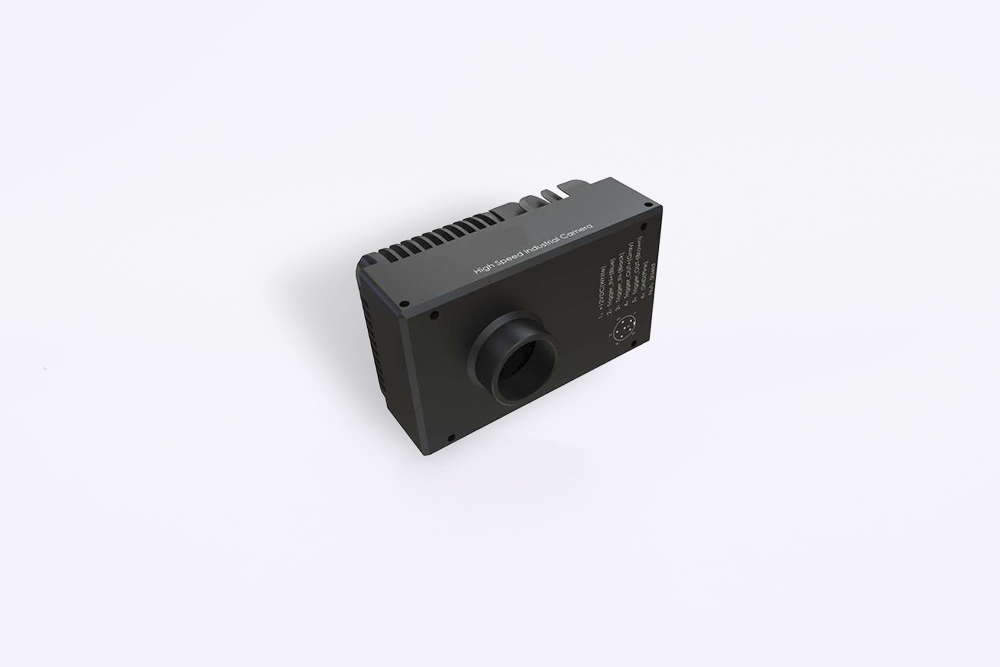

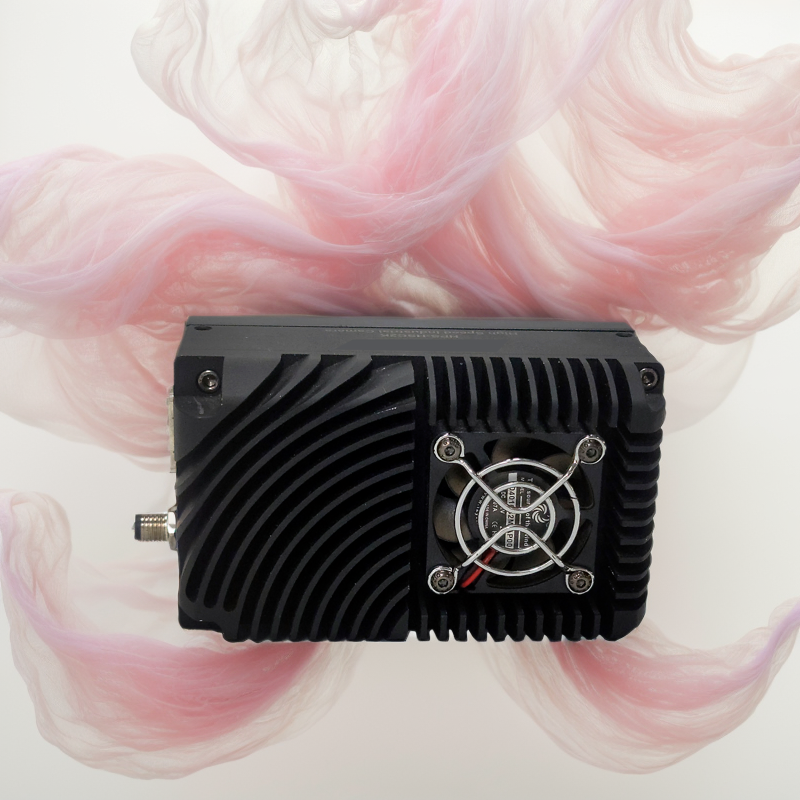

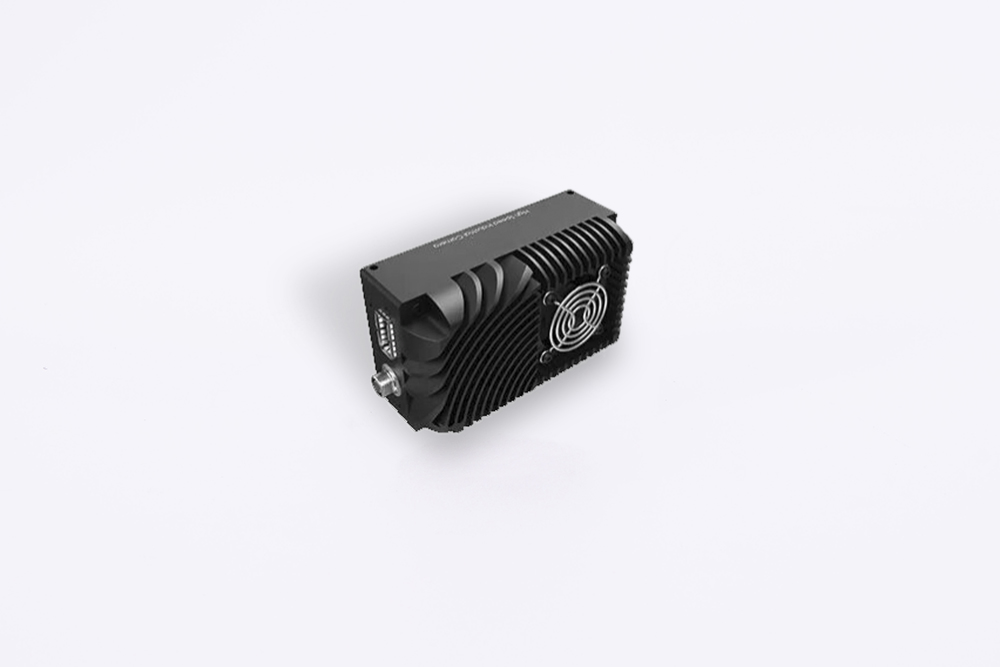

The MSS High-Speed Industrial Camera is a cutting-edge solution for capturing images with unparalleled speed and precision. Designed to meet the rigorous demands of industrial applications, this camera features an ultra-high-speed image acquisition system that delivers exceptional performance.
Experience the highest level of picture quality available, with capabilities of 1490fps @2048*1080 8 bit or 2971fps @1024*1024 8 bit resolution. The standard C-mount ensures seamless integration with a wide range of professional lenses and accessories.
| Model | HPS-HSC2K / MSS-C-ITD3L | Resolution | 2048x1080 (Pixel: 6μmx6μm) |
| Sensor Format | 1" (12.3mm x 6.5mm) | Data Transfer Rate | 1490 fps @2.2MP; 2971 fps @1MP |
| Dynamic Range | 53dB (Linear) / ≥90dB (HDR) | Shutter Mode | Global Shutter, Auto/Ext/Software Trigger |
| Image Processing | FPN Denoising, Gamma/Lens Correction, ROI, Binning | Data Interface | 40G Ethernet Fiber Interface |
| Digital I/O | Isolated Trigger I/O, 8-PIN expansion (SPI/GPI) | Power Supply | 12VDC, Typical 17W |
| Environment | Op: 0~45ºC; Storage: -20~60ºC | Weight | 440g |
The camera can achieve up to 1490 fps at 2.2 megapixel resolution and up to 2971 fps at 1 megapixel resolution (8-bit).

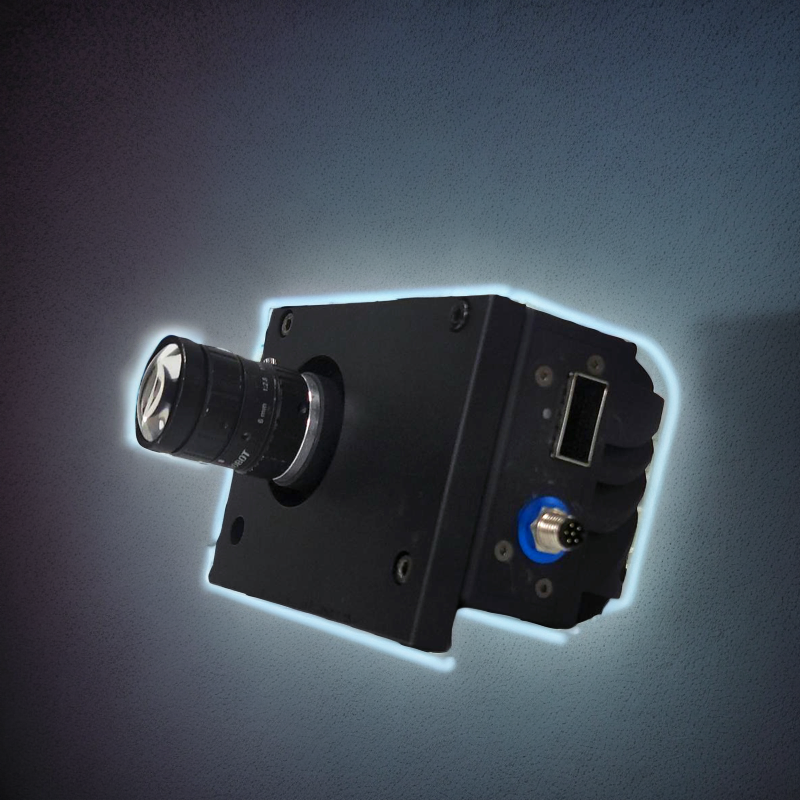

The camera is equipped with a standard C-mount, making it compatible with a wide variety of industrial lenses.
Data is transmitted via a 40G Ethernet optical fiber interface, ensuring stable and ultra-fast data transfer for high-speed imaging.
Yes, it includes an integrated module for FPN denoising, PRNU correction, gamma correction, lens correction, and ROI adjustments.
The camera operates on a 12VDC power supply with a typical power consumption of approximately 17W.
Yes, the camera comes with a complete SDK and comprehensive software support to help optimize your industrial workflow.
