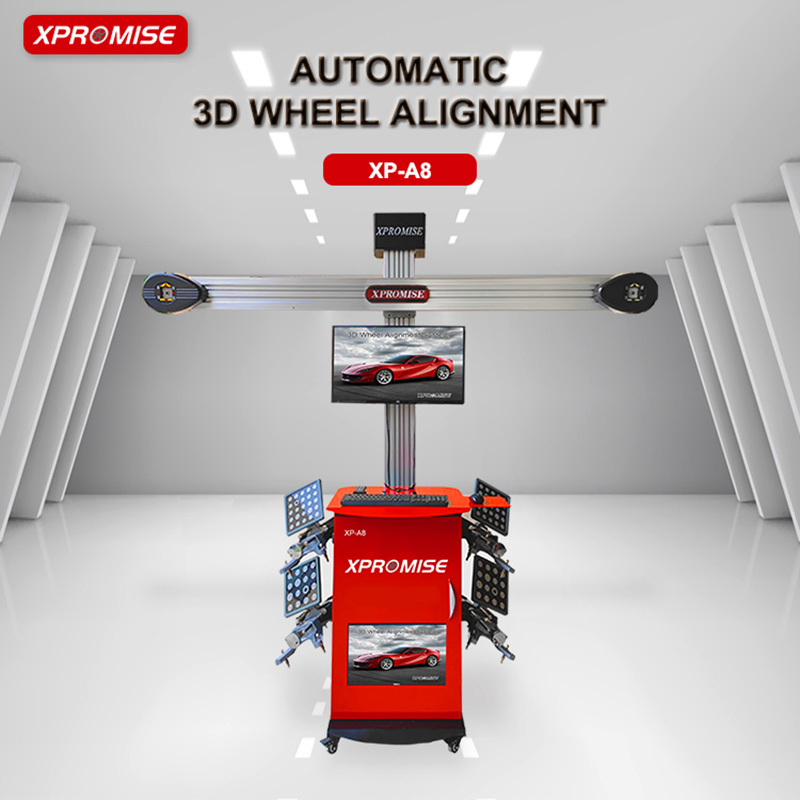

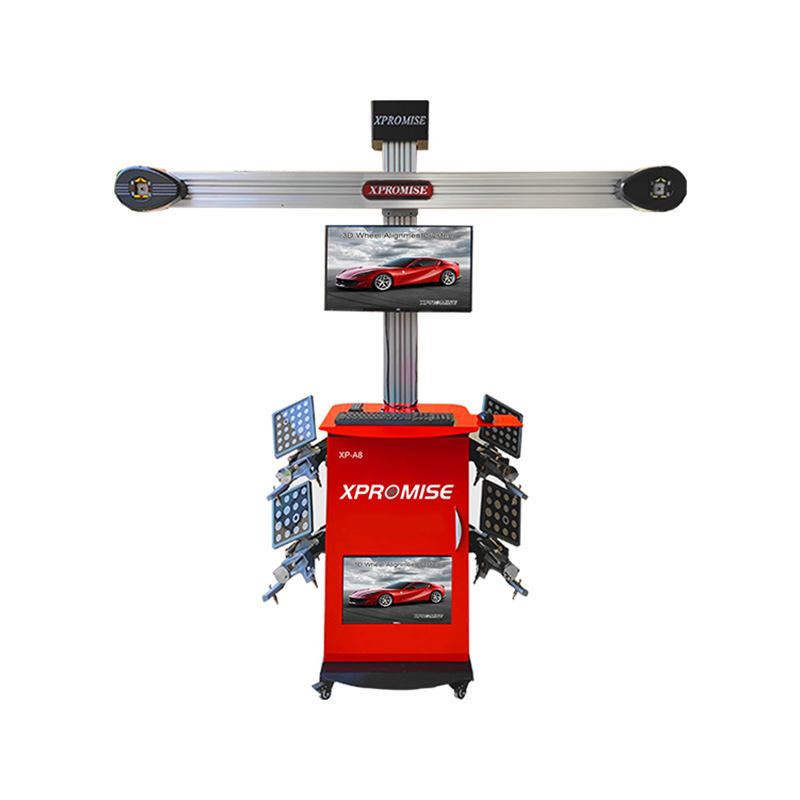

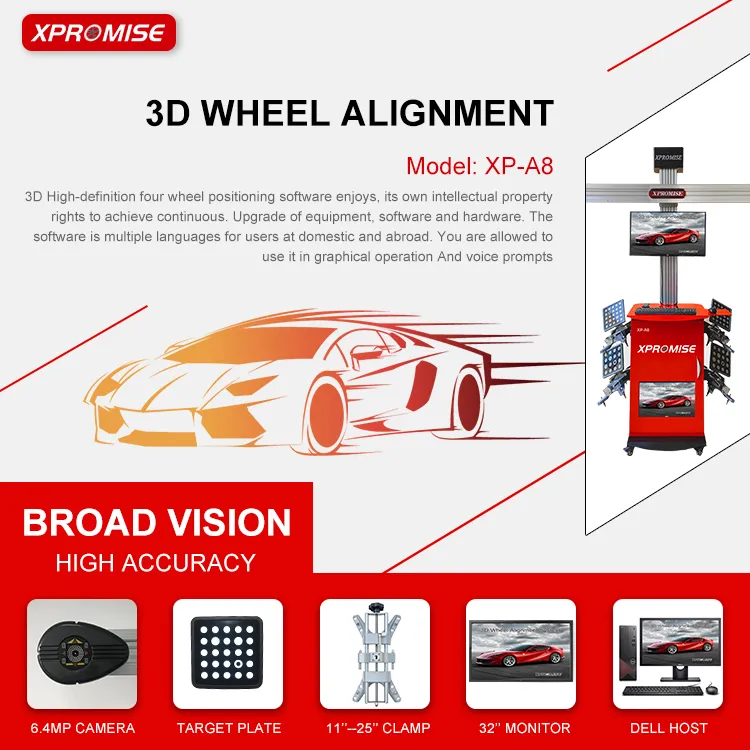

Professional 3D Wheel Alignment Machine Vehicle Repair Equipment

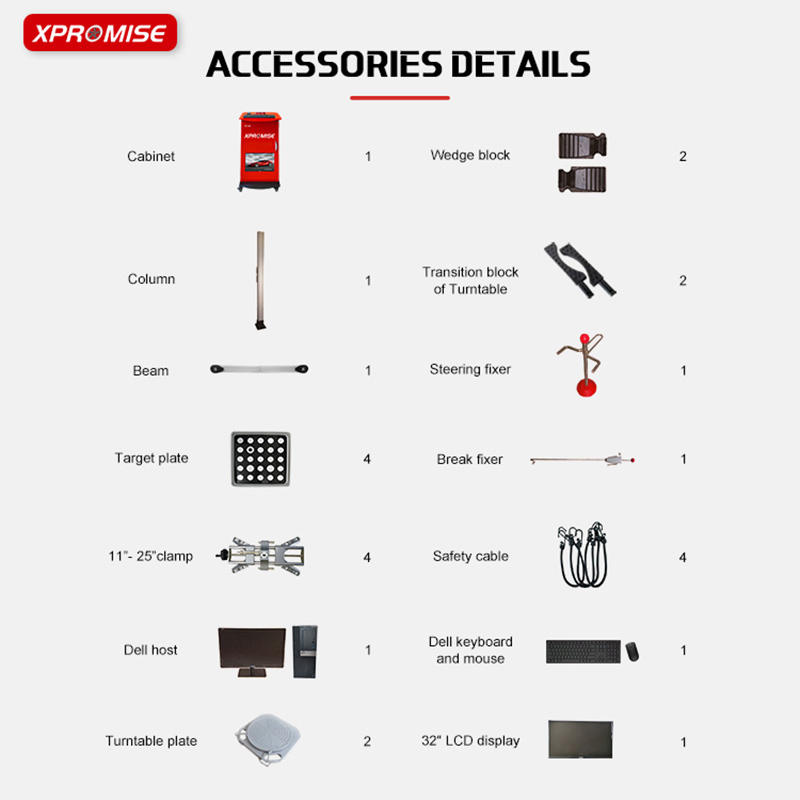

Compact cabinet, Economic standard installation column, Computer system, Target plates, Pylon bracket, Brake fixer, Steering wheel fixer, Wedge block, Turntable, and Transition blocks.

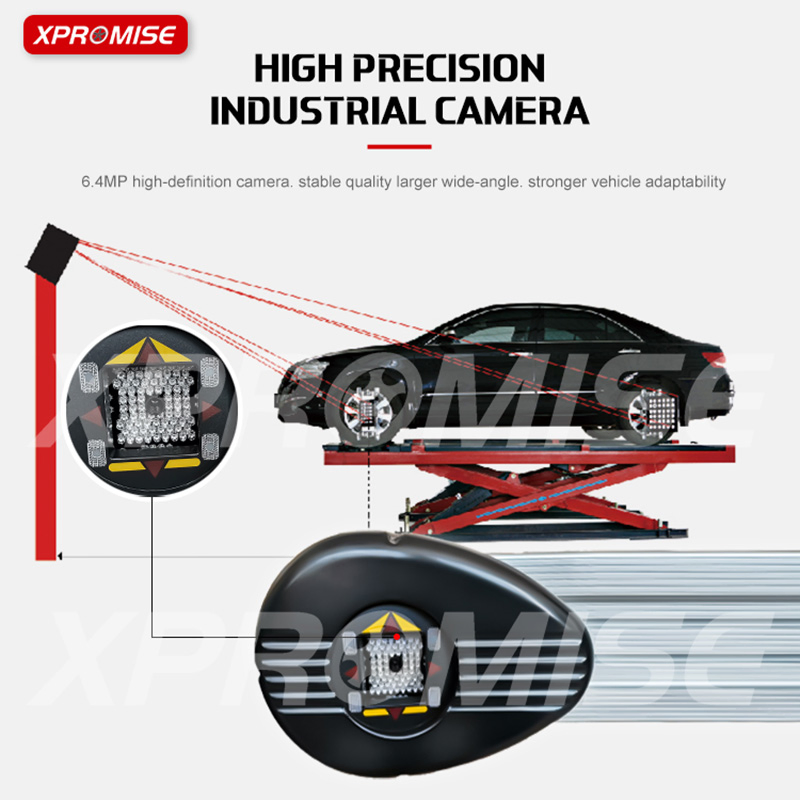

6.4MP Industrial Camera

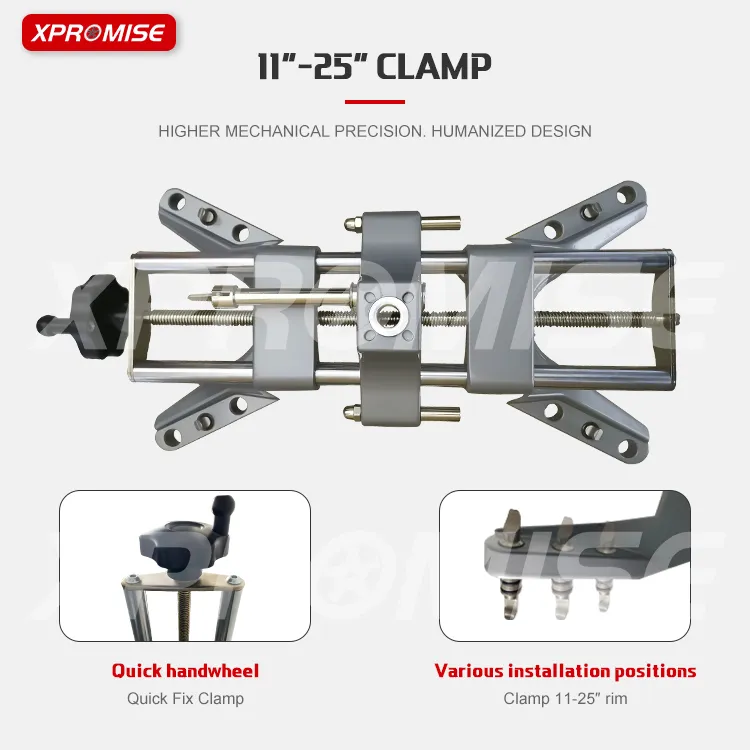

11"-25" Precision Clamp

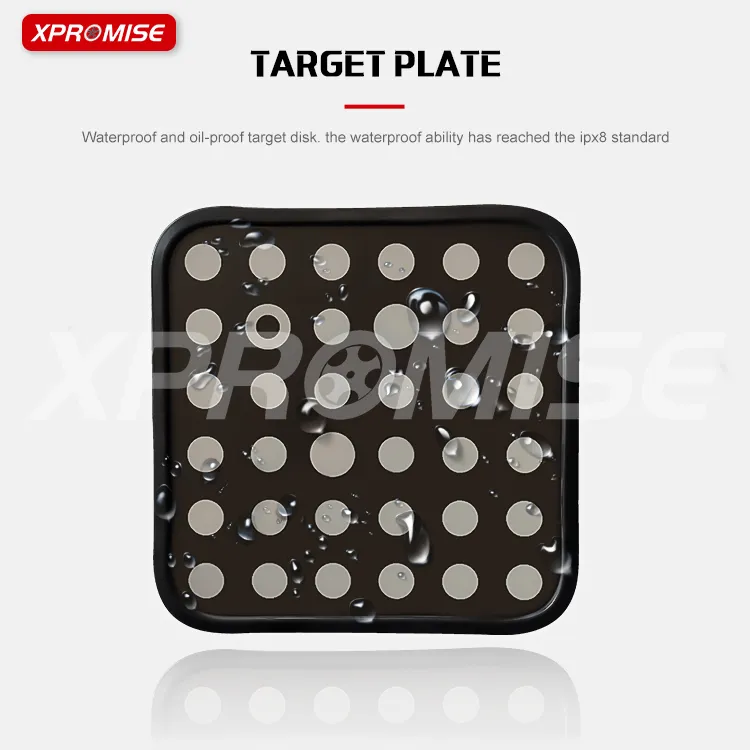

IPX8 Waterproof Target

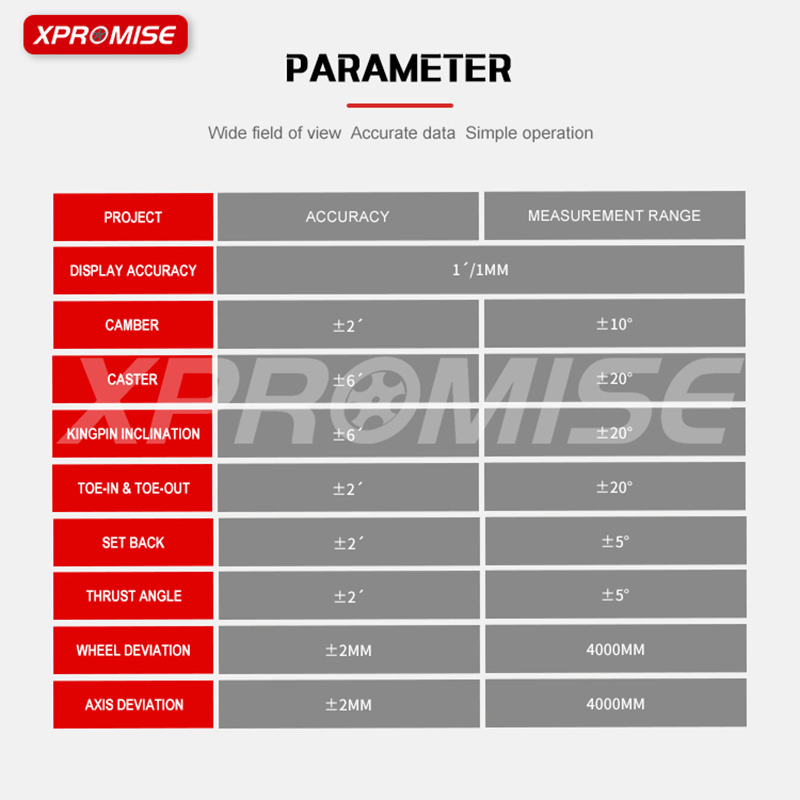

| Measurement Item | Accuracy | Range |
|---|---|---|
| Display Accuracy | 1´/1mm | - |
| Camber | ±2´ | ±10° |
| Caster | ±6´ | ±20° |
| Kingpin Inclination | ±6´ | ±20° |
| Toe-in & Toe-out | ±2´ | ±20° |
| Thrust Angle | ±2´ | ±5° |
| Wheel Deviation | ±2mm | 4000mm |
Basic Functions: Camber, Caster, Kingpin Inclination, Toe angle, Set back, Thrust Angle.
Extended Functions: Axis deviation, Wheel deviation, Mono wheel measurement, Auto lift measurement, Steering wheel square, Platform levelness detection.

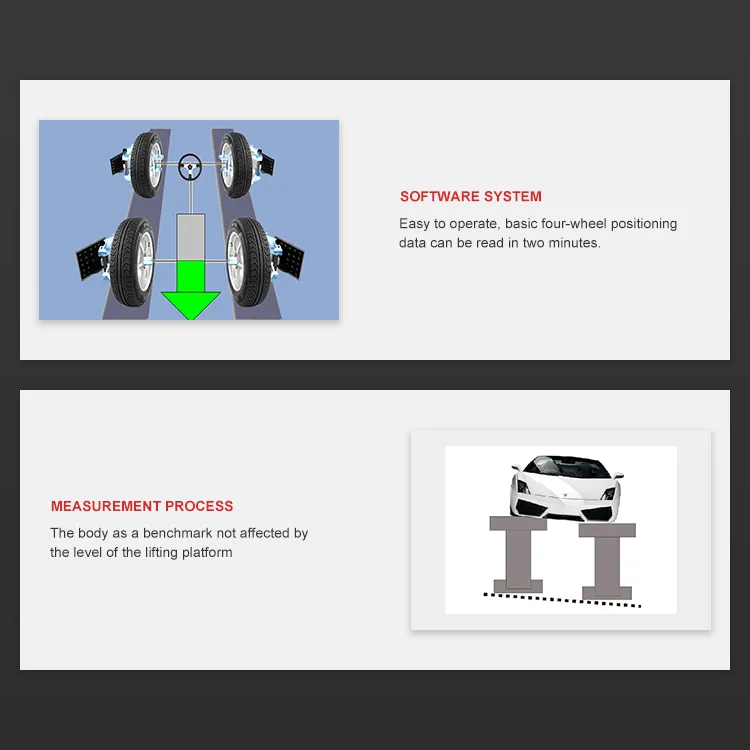

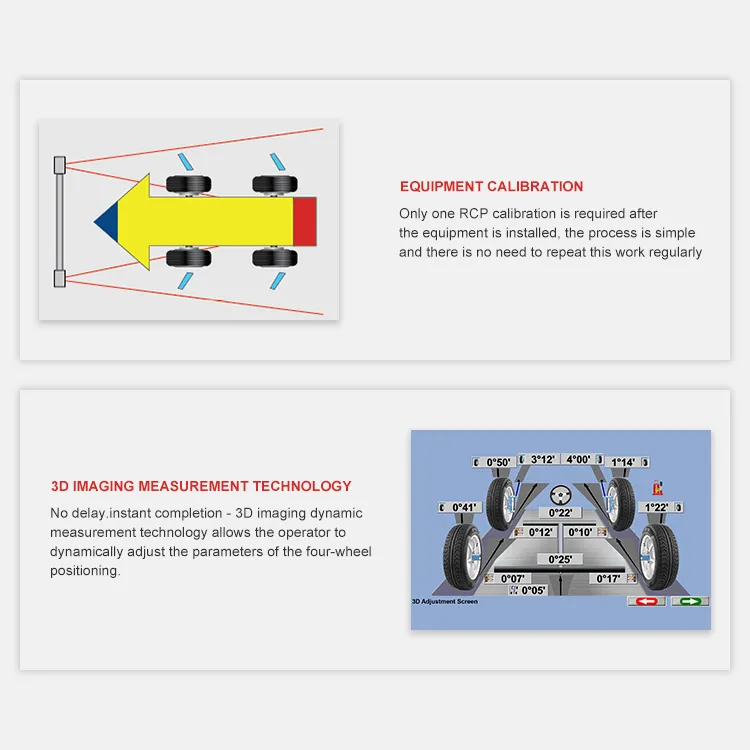

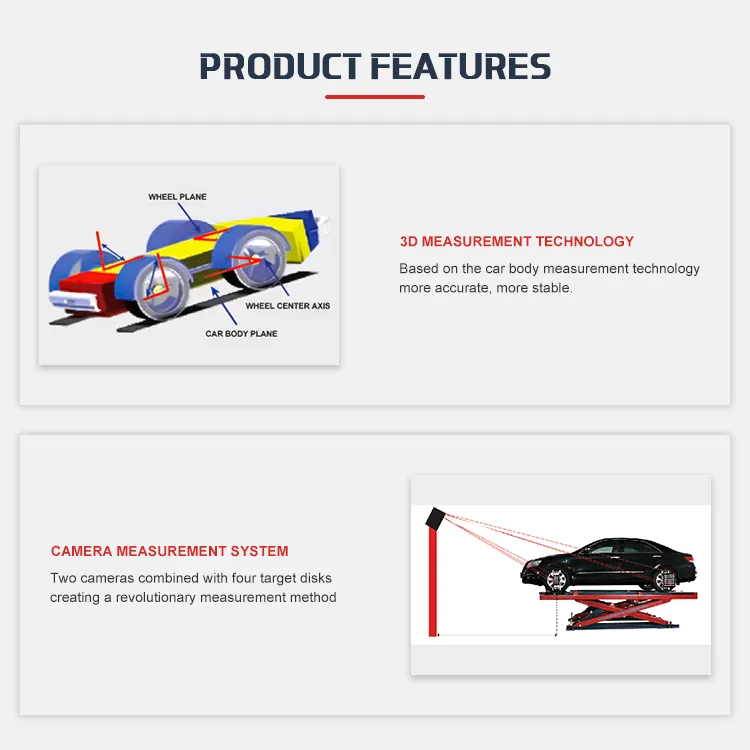

The V3D1 imaging technology provides a horizontal test reference plane quickly and accurately without needing rims compensation or lifting the vehicle body. The patented "V.O.D.I." system guides the operator through the process, meaning they don't even need to look at the computer screen constantly.

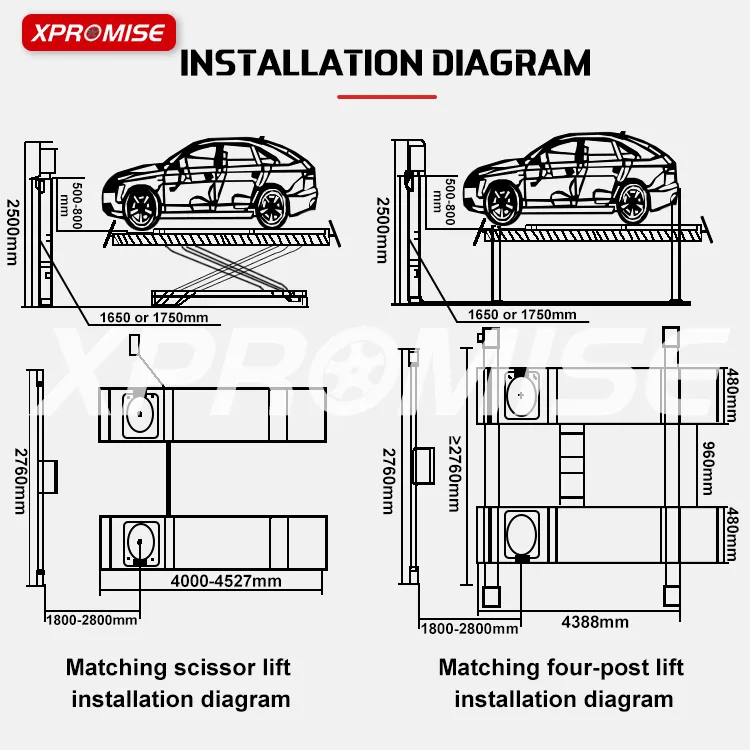

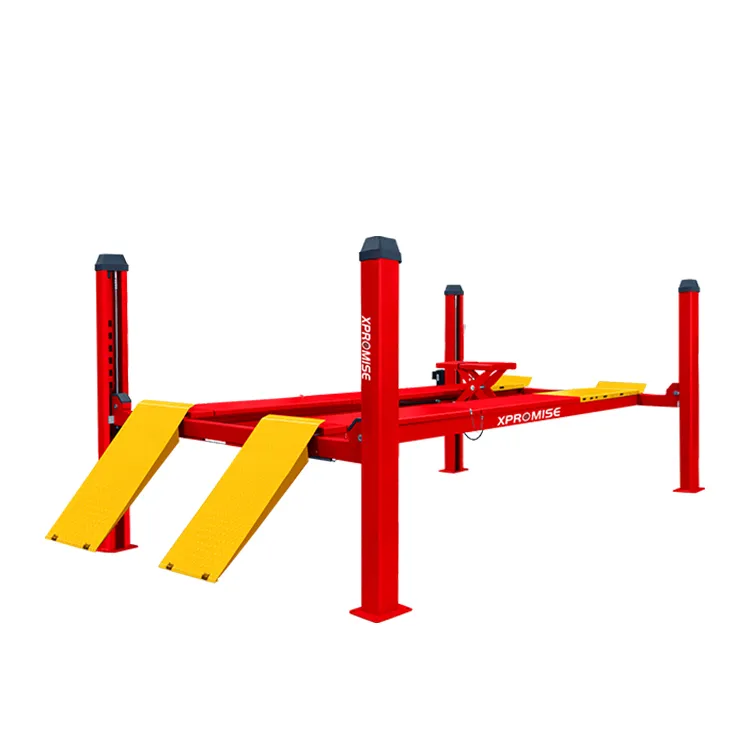

Compatible Car Lift

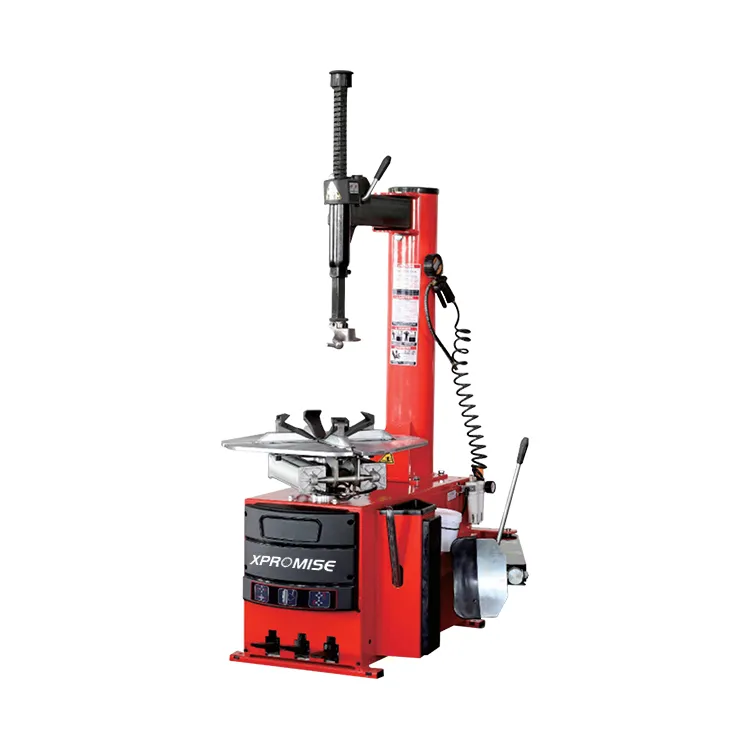

Tire Changer Machine

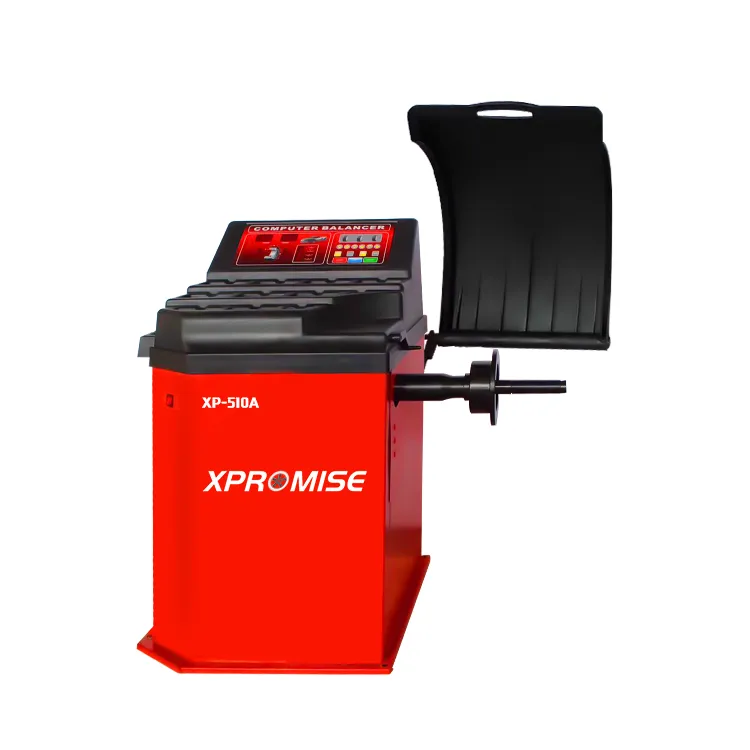

Wheel Balancer Machine
| Trade Terms | FOB / CFR |
| MOQ | 3 Units |
| Payment Terms | T/T (30% prepayment, 70% against BL copy) |
| Lead Time | 25-30 Days |
| Warranty | 1 Year after port of destination |
| Supply Capacity | 1000 Units / Month |
