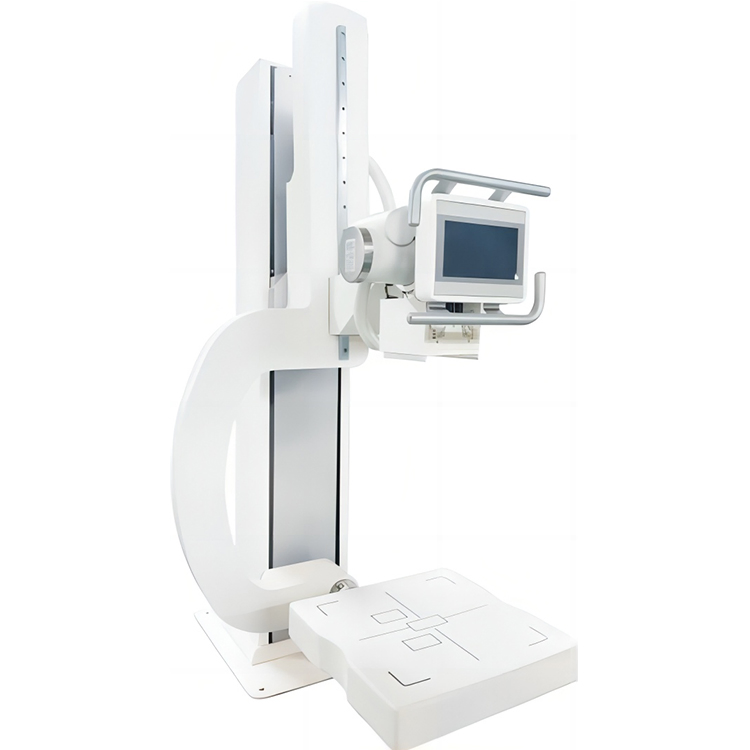

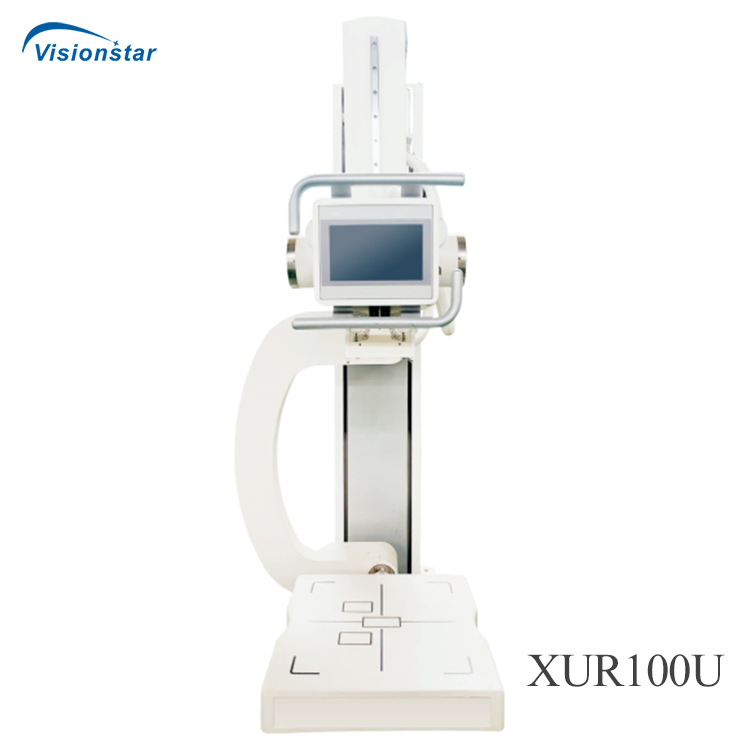

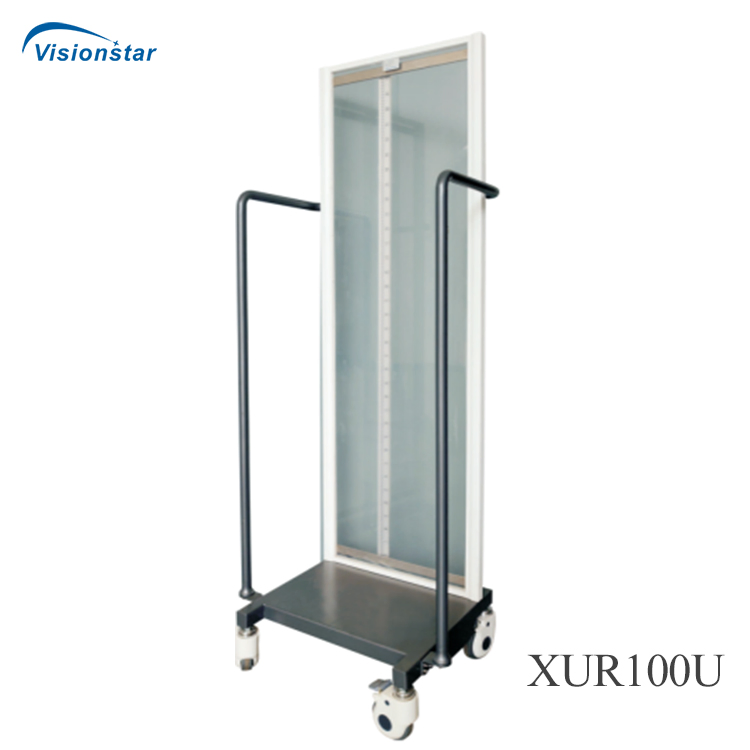

Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System
Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System
Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System
Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System
Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System
1 / 5
Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System
Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System
Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System
Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System
Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System

Xur100u Hospital Small Space Occupation High Freqency Radiography Photography Dr Dynamic UC Arm Digital X-ray System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
XUR100U
Certification
CE, ISO13485
Group
All Age
Detector Type
CSL Monolithic Amorphous Silicon
Panel Size
430mm*430mm (17*17 Inch)
Pixel Matrix
3072X3072
Max Output Power
65kw
Input Power
380 VAC Single Phase
Origin
China
HS Code
90185000
Product Description
XUR100U System
XUR100U Hospital Small Space Occupation High Frequency Radiography Photography DR Dynamic UC Arm Digital X-Ray System
Excellent Performance: 17"x17" high resolution amorphous silicon flat panel detector with ultra-low dose and noise.
Intelligent Control: High-frequency X-ray generator with precise dose control and rapid image acquisition (3s).
UC Arm Design: Digital intelligent control UC arm, smooth movement, and shooting without dead angles.
Space Efficient: Extremely cost-effective with small space occupation and low installation requirements.
Multi-functional: Digital photography, fluoroscopy, and whole body long bone splicing functions.
Feature Image 1
Feature Image 2
Technical Specifications
Technical ParameterSpecification
Spatial ResolutionPhotography 3.7LP/MM; X-rayed 2.0LP/MM
Pixel Gray ScalePhotography 17 Bit; X-rayed 16 Bit
Image Acquisition Time3s
Output Voltage40~150kV
Tube Current Range10~800mA
Fluoroscopic Voltage40~125kV
Continuous Fluoroscopic Current0.5~6mA
Focus Size0.6mm/1.2mm
Automatic ExposureSupport AEC, APR
Professional Display
Radiology Catalog

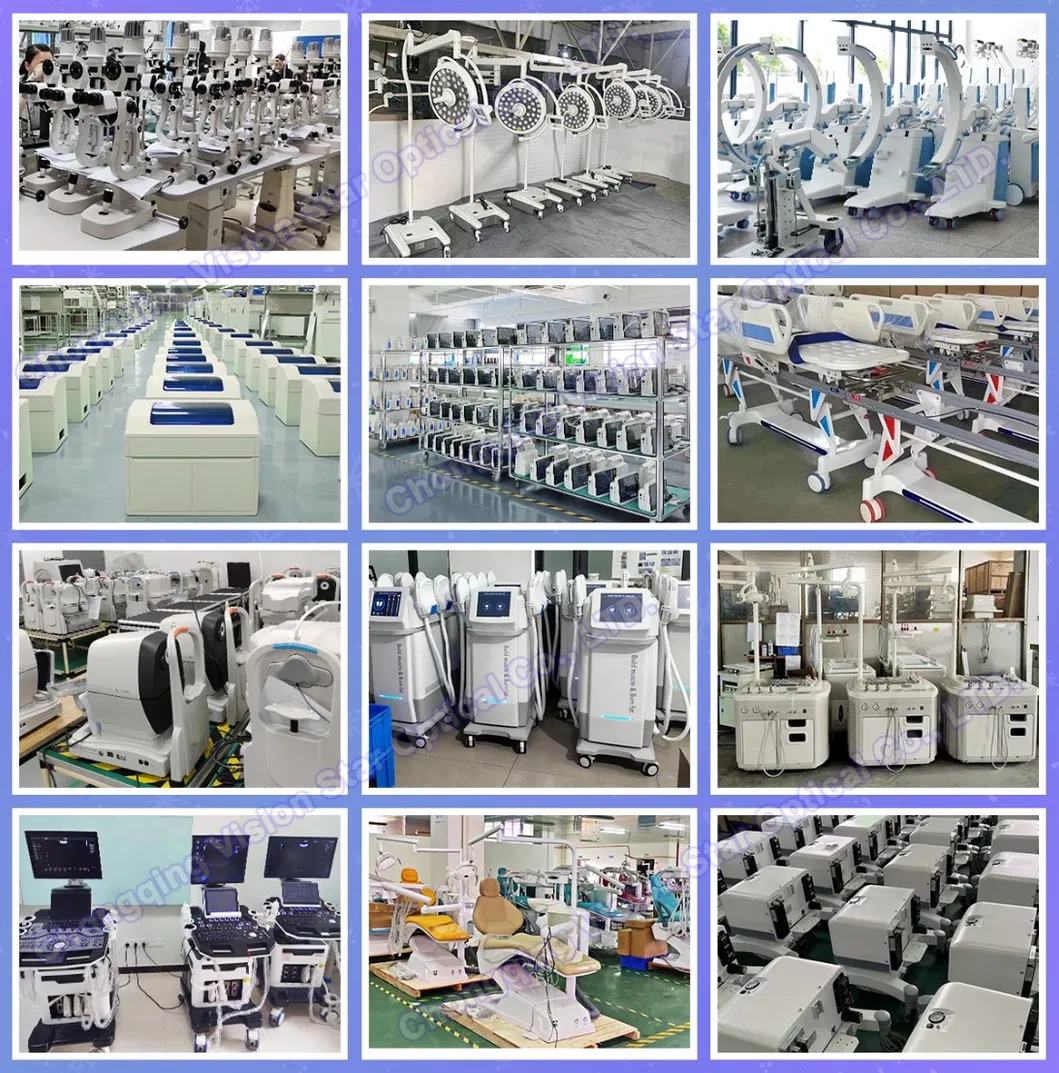

Production Facility
Product List

Certificates

Certificates

Our Team

Team Support
Frequently Asked Questions
What are the main advantages of the UC arm design?
The UC arm design provides flexible full-angle rotation, allowing for shooting without dead angles in a compact space, making it ideal for clinics with limited installation areas.
What is the detector size and imaging quality?
It uses a large 17"x17" (430mm x 430mm) amorphous silicon flat panel detector, providing high-resolution images with 3072x3072 matrix and 16/17-bit gray scale.
Does this system support fluoroscopy?
Yes, the XUR100U supports both digital photography and digital fluoroscopy, including pulse fluoroscopy and contrast functions.
How fast is the image processing?
The system features rapid image acquisition and transmission, with images displayed on the screen within 3 seconds of exposure.
Can this machine be used for full-length orthopedic imaging?
Yes, it includes a whole body long bone splicing function, which is essential for detailed orthopedic examinations.
What are the power requirements for installation?
The system requires a 380 VAC single-phase power supply and is designed for easy installation in standard medical environments.
