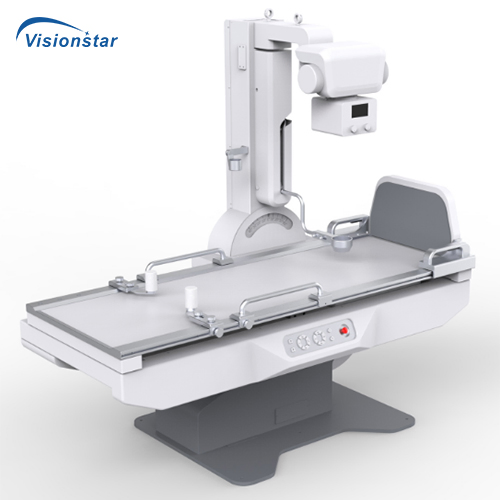

Xdf50kw Medical Dr Machine Dynamic Digital Radiography and Fluoroscopy System

1 / 5

Xdf50kw Medical Dr Machine Dynamic Digital Radiography and Fluoroscopy System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

XDF50KW

Power Output

50kw

Current

10-630mA

Voltage

40kv-150kv

mAs

0.1-630mas

Exposure Time

1-6300ms

Focus Size

0.6/1.2

Detector Type

Flat Panel Detector

Vision Size

17X17

A/D Conversion

16 Bits

Spatial Resolution

3.6 Lp/mm

Origin

China

HS Code

90185000

Production Capacity

100

Product Description

Dynamic Digital Radiography System Header

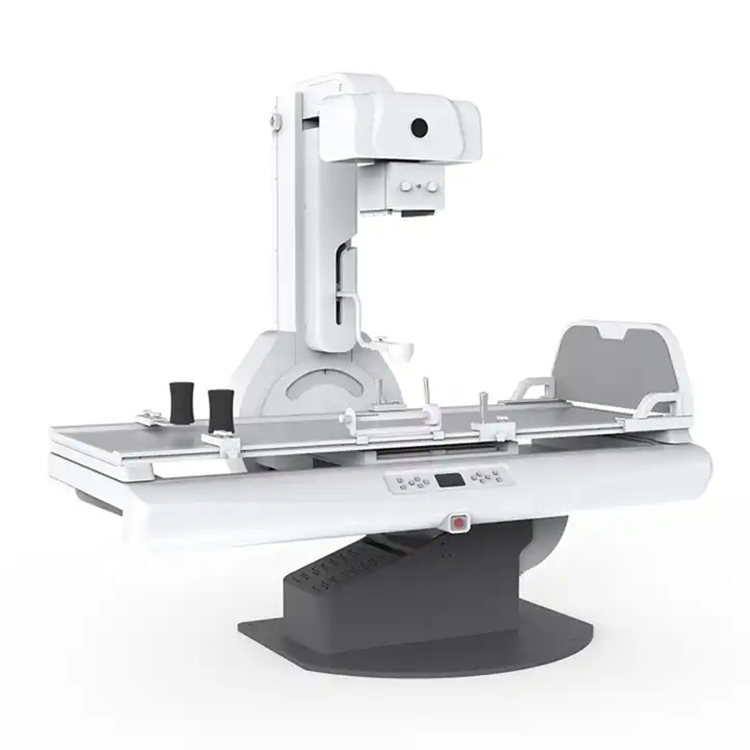

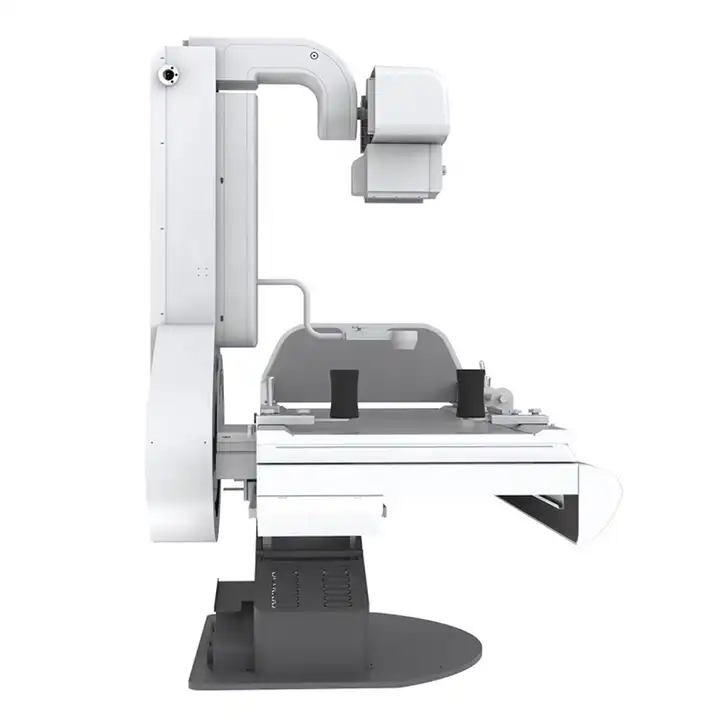

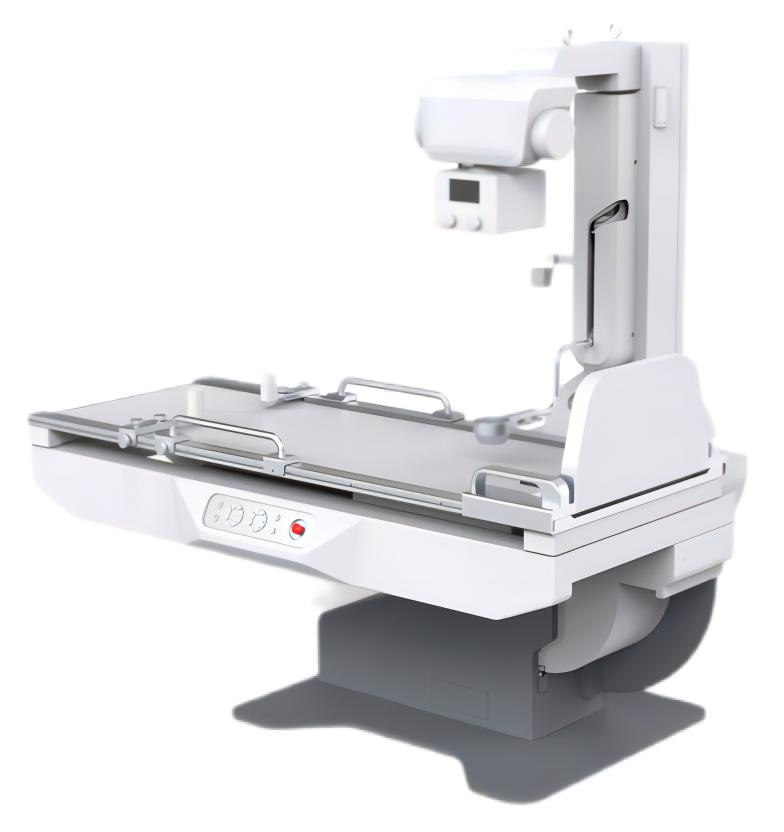

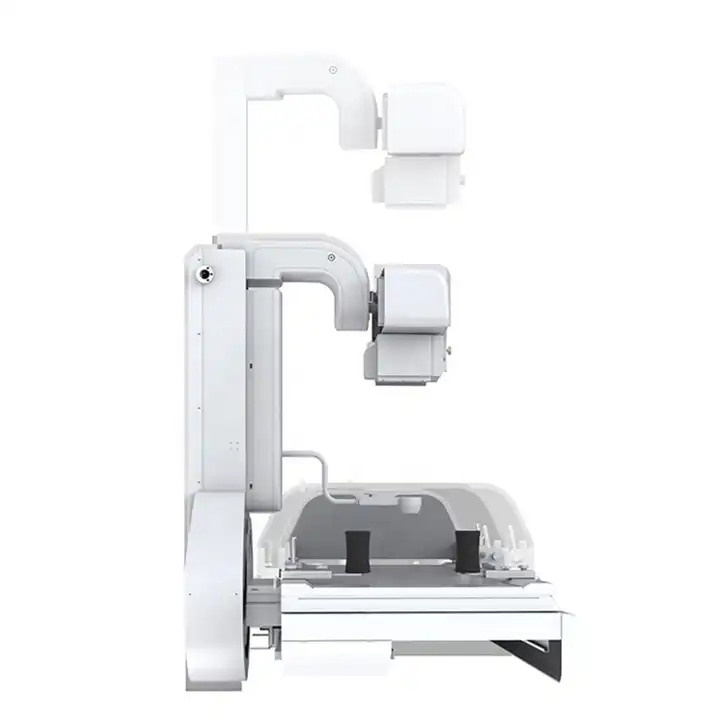

XDF50KW Dynamic Digital Radiography/Fluoroscopy System

50kW Power Output

High-Performance X-ray Tube

Motor-driven Radiography/Fluoroscopy Table

Precision Collimator

All-in-one PC Workstation

Advanced Dynamic Flat Panel Detector

Professional Image Processing Software

Integrated Grid System

Technical Comparison Data

Technical Data	XDF50KW	XDF65KW	XDF80KW
Power Output	50kW	65kW	80kW
Current	10-630mA	10-800mA	10-1000mA
Voltage	40kV-150kV	40kV-150kV	40kV-150kV
mAs	0.1-630mAs	0.1-800mAs	0.1-1000mAs
Exposure time	1-6300ms	1-6300ms	1-6300ms
Focus Size	0.6/1.2	0.6/1.2	0.6/1.2
Detector Type	Dynamic Flat Panel Detector
Vision Size	17*17"
A/D Conversion	16 bits
Spatial Resolution	3.6 lp/mm
Pixel Size	3072X3072
Maximum fps	30

Facility & Quality Standards

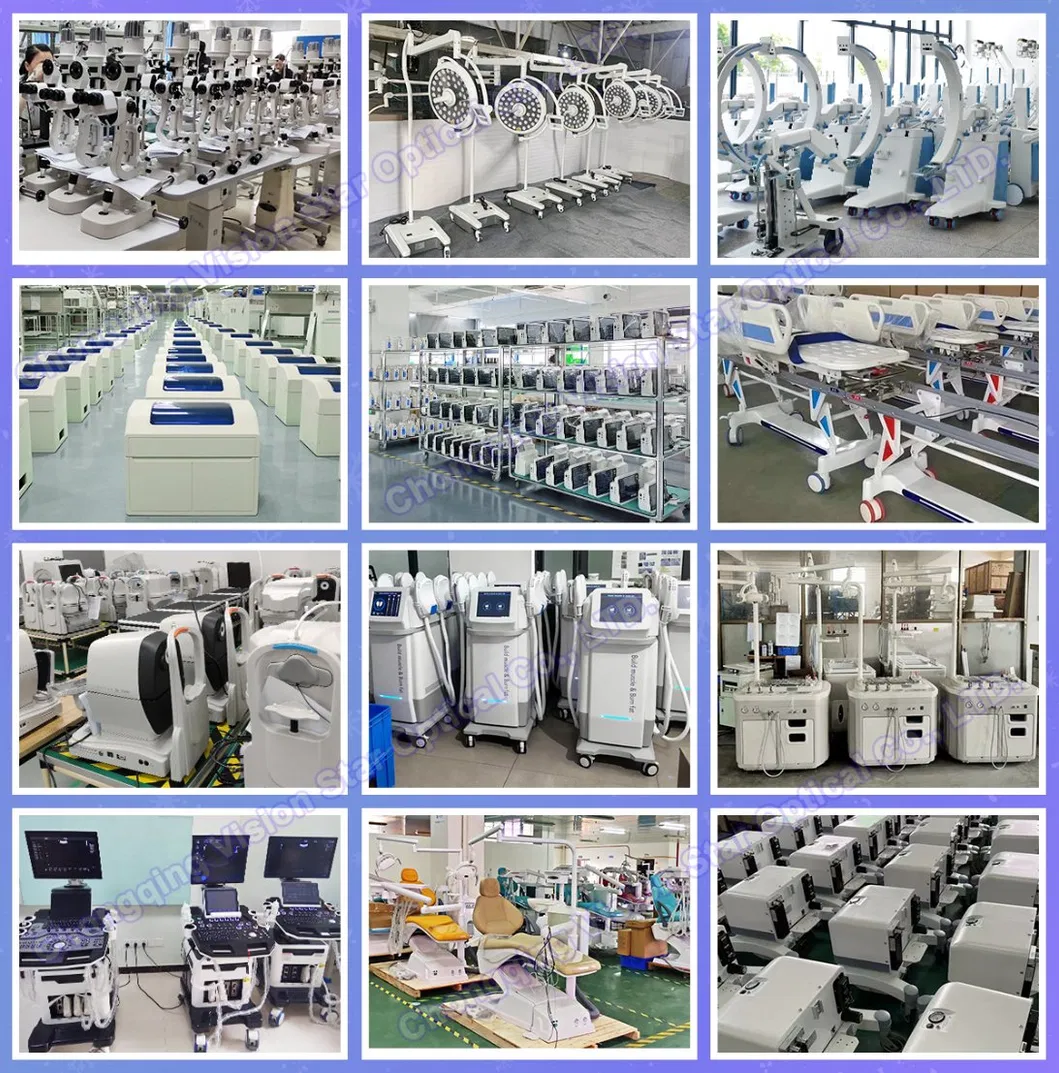

Production Facility

Certificates & Team

Frequently Asked Questions

Q: What is the primary use of the XDF50KW system? A: The XDF50KW is a versatile system designed for both Dynamic Digital Radiography and Fluoroscopy, allowing for high-definition imaging of various anatomical structures.

Q: What type of detector technology does this system utilize? A: It utilizes a 17x17 inch Dynamic Flat Panel Detector with 16-bit A/D conversion and a 3072x3072 pixel size for superior image clarity.

Q: Is the examination table motorized? A: Yes, the system includes a motor-driven radiography/fluoroscopy table to facilitate easy and precise patient positioning during examinations.

Q: What is the spatial resolution of the XDF50KW? A: The system provides a high spatial resolution of 3.6 lp/mm, ensuring detailed visualization for diagnostic accuracy.

Q: Can the power output be upgraded? A: While the XDF50KW features a 50kW output, the series also offers XDF65KW (65kW) and XDF80KW (80kW) models to suit different clinical requirements.

Q: What is the maximum frame rate for dynamic imaging? A: The system supports dynamic imaging with a maximum of 30 frames per second (fps).
