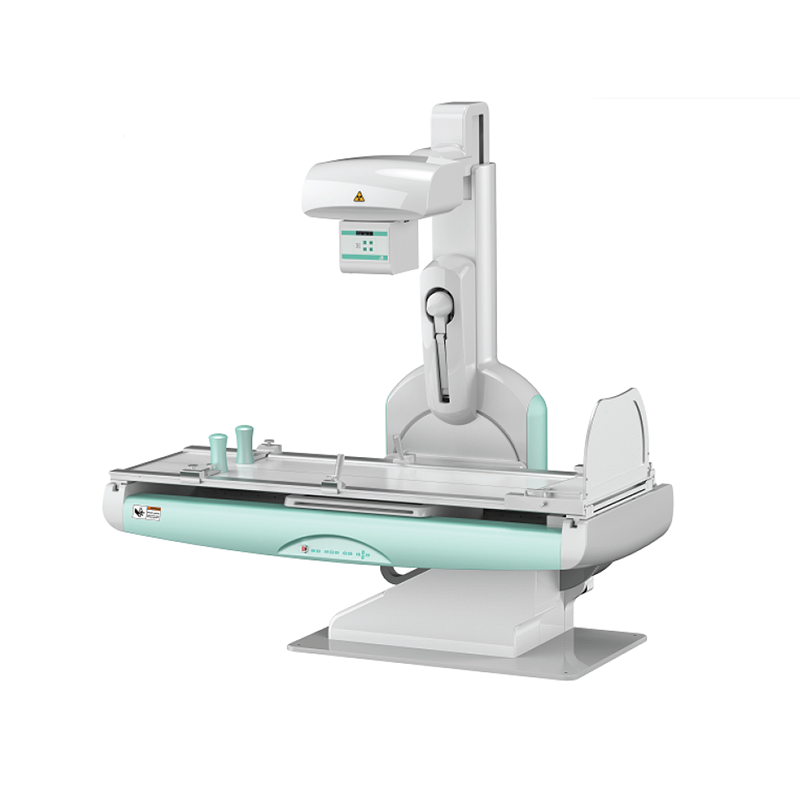

| Item | Model | Quantity | Brand |
|---|---|---|---|
| Console | KZT70 | 1pc | Self-produced |
| Generator | FSQ65 | 1pc | Self-produced |
| X-ray tuble assembly | E7254FX | 1pc | Canon |
| Collimator | XSQ40 | 1pc | Self-produced |
| Diagnostic Table | ZDC40 | 1pc | Self-produced |
| Gird | 1.0/1.8m | 2pc | JPI |
| Ionization chamber | SSMC601 | 1pc | Clermond |
| Flat panel detector | DRF-1717RF | 1pc | Self-produced |
| Digital workstation | DRA80 | 1set | Self-produced |
| Category | Item | Technical Parameters |
|---|---|---|
| Power supply | Voltage | 380V±38V |
| Frequency | 50Hz±1Hz | |
| Capacity | ≥105kVA | |
| Internal resistance | ≤0.11Ω | |
| Generator | Output power | 65kW |
| Inverter frequency | 440kHz | |
| Tube voltage | 40kV~150kV | |
| Tube current | 10mA~800mA | |
| Exposure time | 1ms~10000ms | |
| X-ray tube | Anode capacity | 285KJ(400kHU) |
| Rotating speed | 9700rpm(180 Hz) | |
| Tube focus | 1.2mm /0.6mm | |
| Detector | Effective area | 434mm(H)×434mm(V) |
| Phase matrix | 2816(H)×2816(V) |
We are a very dynamic medical equipment company. With customer first, quality guarantee, excellent service, we provide best medical solutions to customers and win good reputation. All supplied product had been approved with ISO 13485, CE certificate. Medical Equipment Industry related to human health, worthy of whole efforts on it. Our working principle: dedicated the whole lifetime to provide the most cost-effective medical solutions to worldwide and provide one-stop solution medical equipment procurement service. Imaging equipment, Operating Room Equipment, ICU equipment, Hospital furniture, Dental & E.N.T. Equipment, Laboratory Products, first-air devices, homecare equipment and medical consumable materials are our product range.
