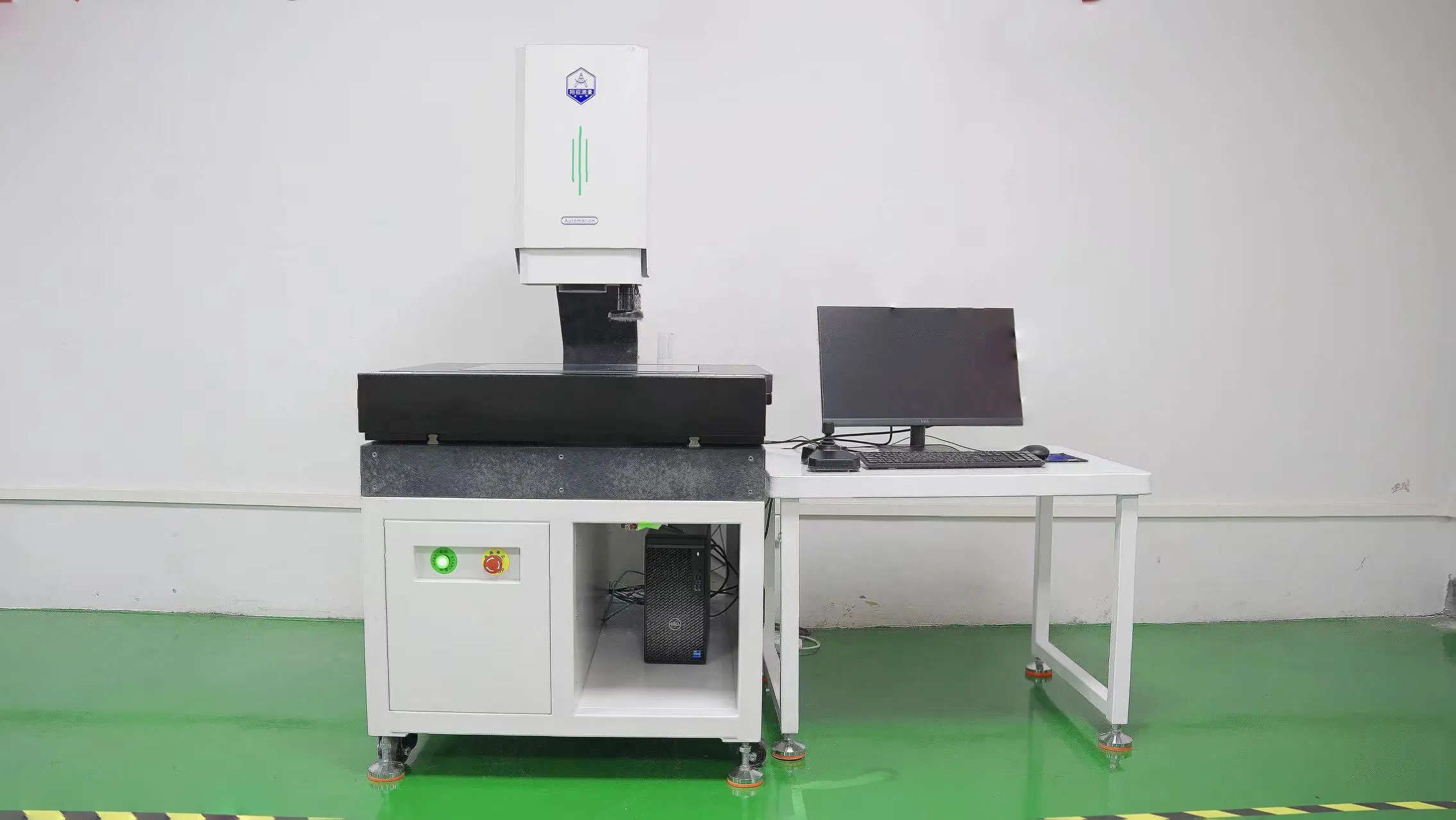

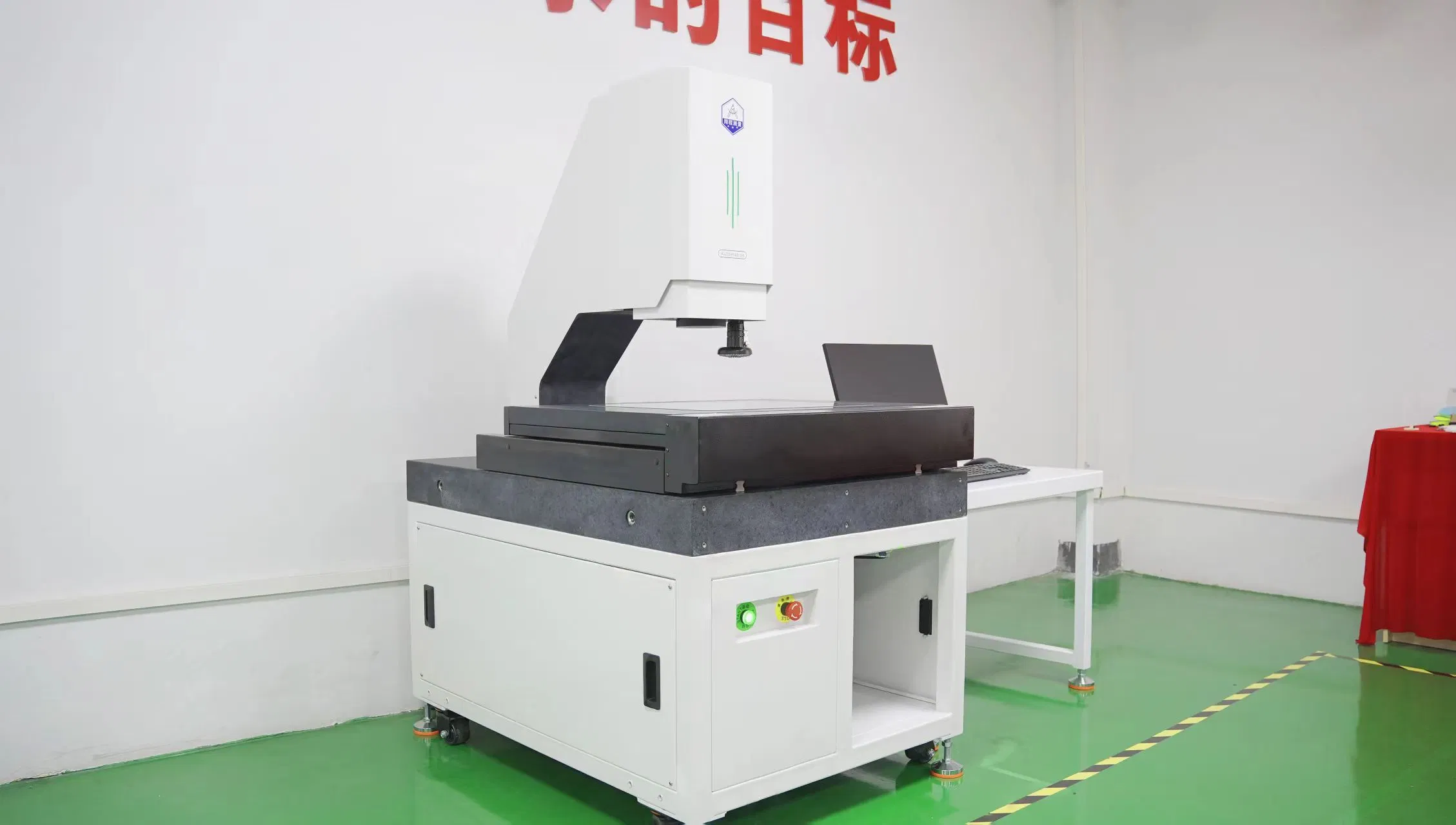

| Model NO. | XCP-3020 | Type | 3D Video Measuring System |
| Operate Method | Automated | Instrument Material | 00 Grade Natural Marble Base, Column, Work Surface |
| Measuring Stroke | 300*200*200mm | Self Weight | Approx 400kg |
| Linear Accuracy | 2+L/200 Um | Surface Lighting | 3 Ring 8 Zone Multi-Angle Programmed Light Source |
| Control System | DC3000 | Resolution | 0.001mm (0.0005mm Optional) |
| Optical Mag. | 30X to 200X | Power Supply | Voltage AC 220V 50/60Hz |

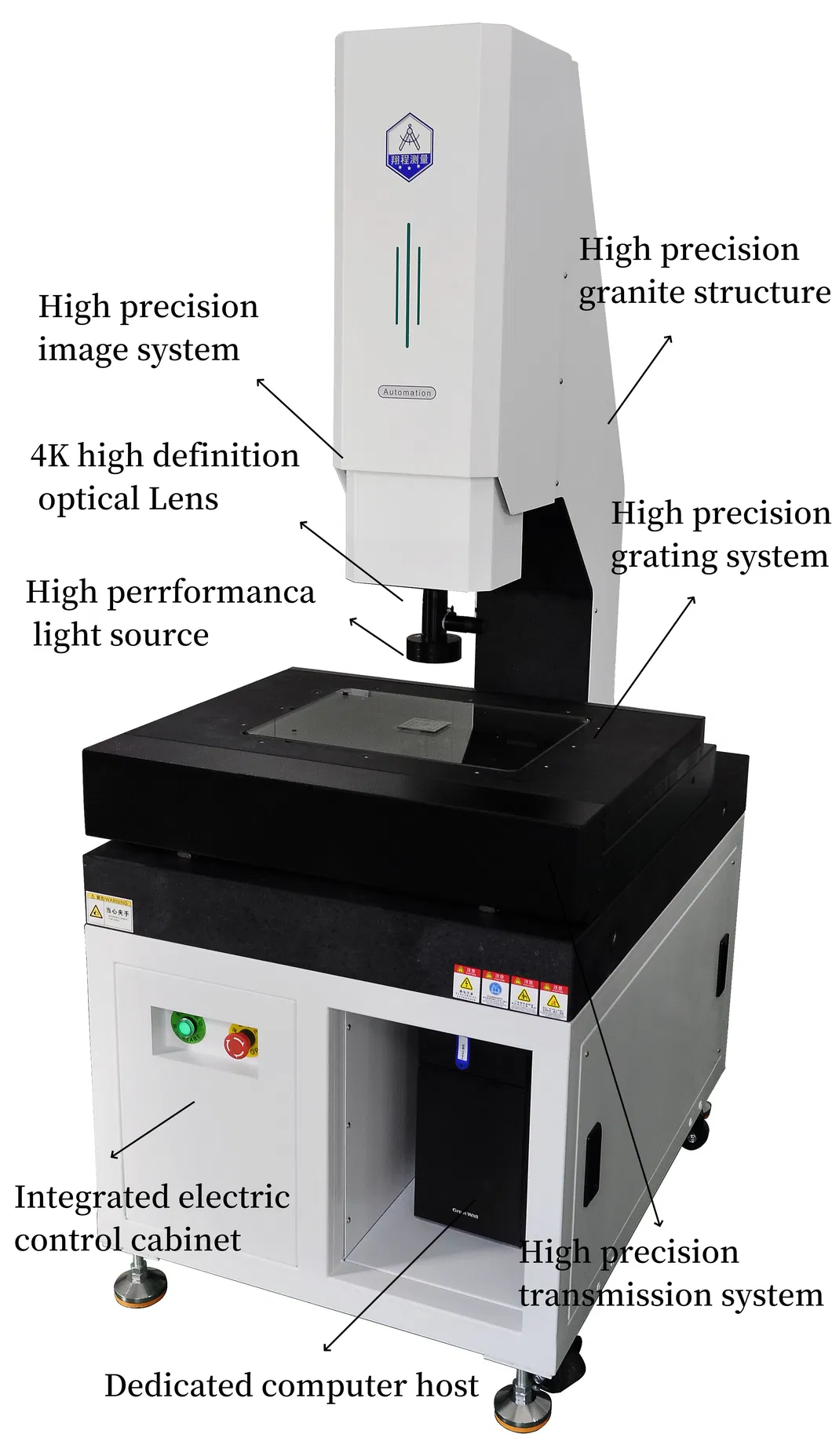

Equipped with precision air source filter, the accuracy of oil and water filtration can reach 0.1um, and the filtration rate can reach 99.93%, which ensures the safe and reliable operation of the air float guide rail. The layout of granite air float guide rail is strictly in accordance with the principle of surface, line and point positioning, ensuring the stability of the accuracy of the measuring machine.

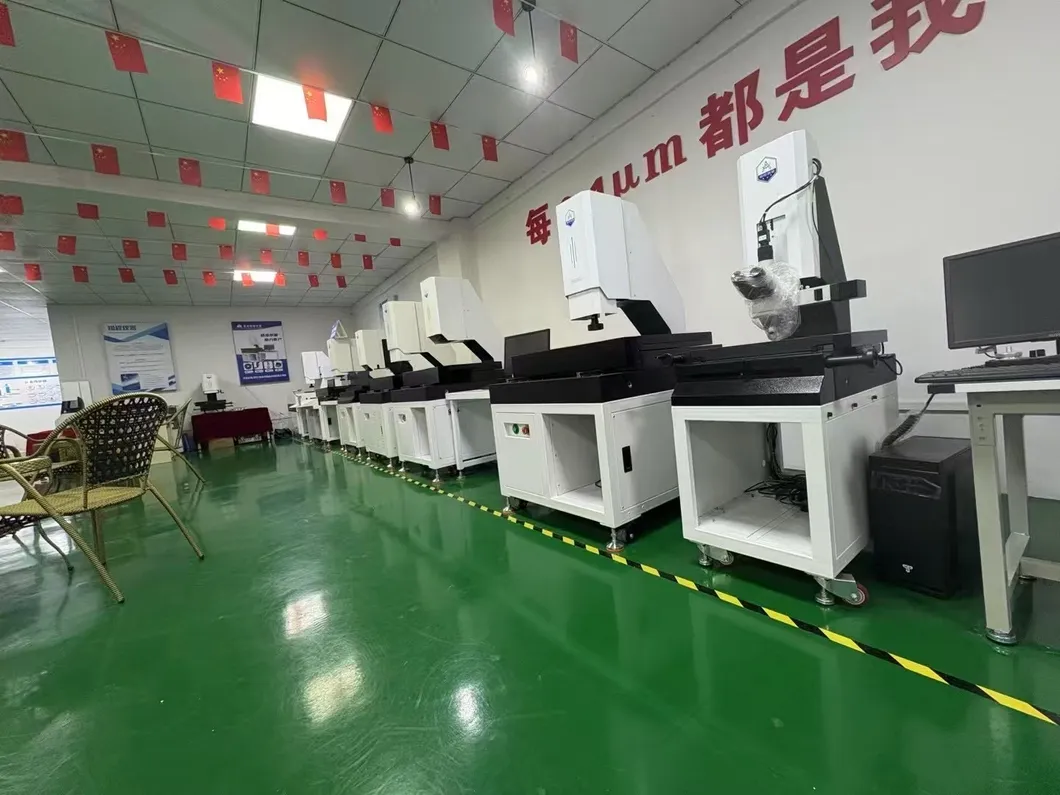

We are a national surveying and mapping directly affiliated enterprise and a high-tech company specializing in instrument research, development, production, and sales. With more than 20 years of experience in manufacturing instruments and equipment, we integrate R&D with production, specializing in fully automatic gantry image measuring instruments, projectors, and more.
| Parameter Model | XCP-3020 | XCP-4030 | XCP-5040 |
|---|---|---|---|
| Platform Size (mm) | 630 X 400 | 750 X 500 | 860 X 600 |
| Glass Table Size (mm) | 340 X 240 | 440 X 340 | 540 X 440 |
| Travel X/Y/Z (mm) | 300/200/200 | 400/300/200 | 500/400/200 |
| Instrument Precision (μm) | (2+L)/200 | ||
| Total Video Magnification | 30-200X | ||
| Weight (Kg) | 300 | 400 | 500 |

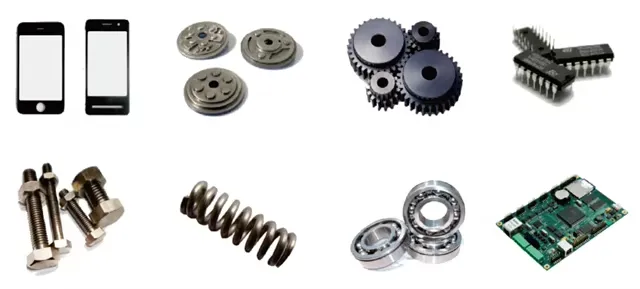

Our systems are widely used in industries such as machinery, electronics, molds, plastics, die cutting, metals, rubber, precision metals, precision stamping, interconnecting parts, connectors, wiring terminals, mobile phones, home appliances, computers, liquid crystal televisions, printed circuit boards (PCBs), automobiles, watches and clocks.
