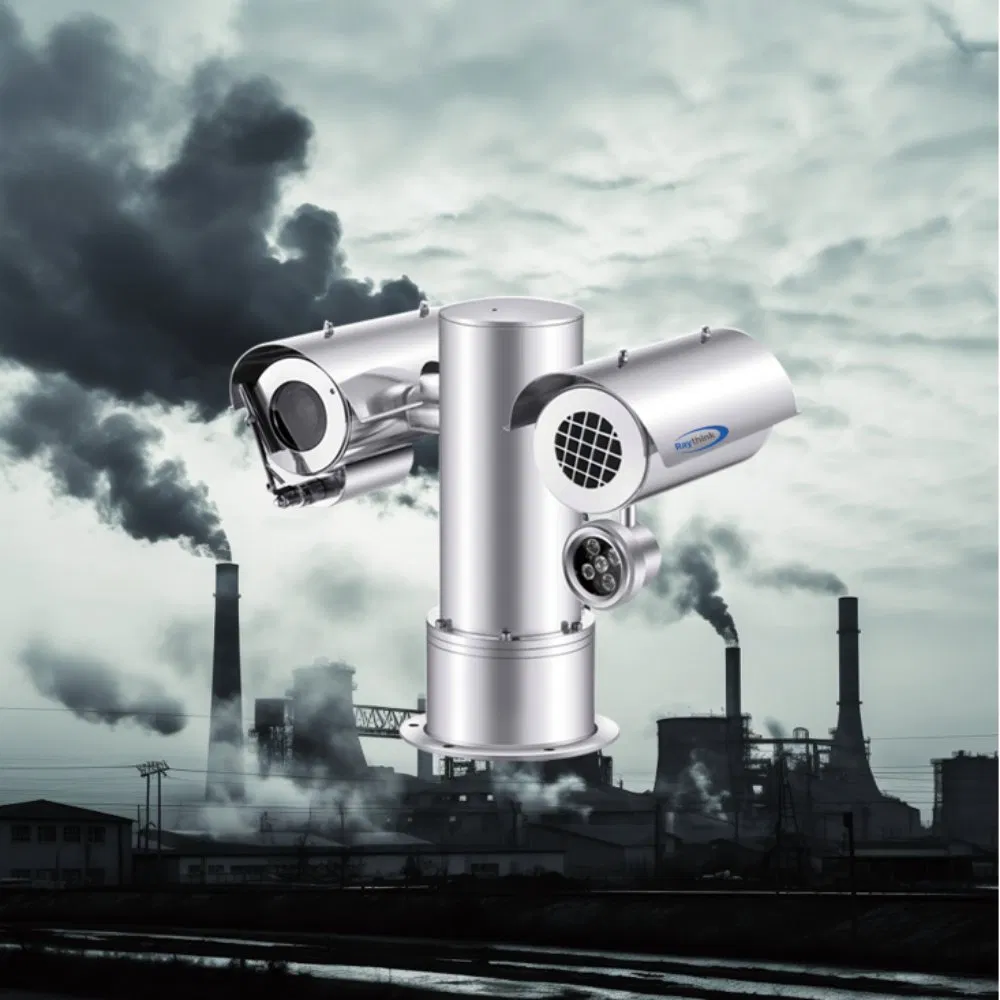

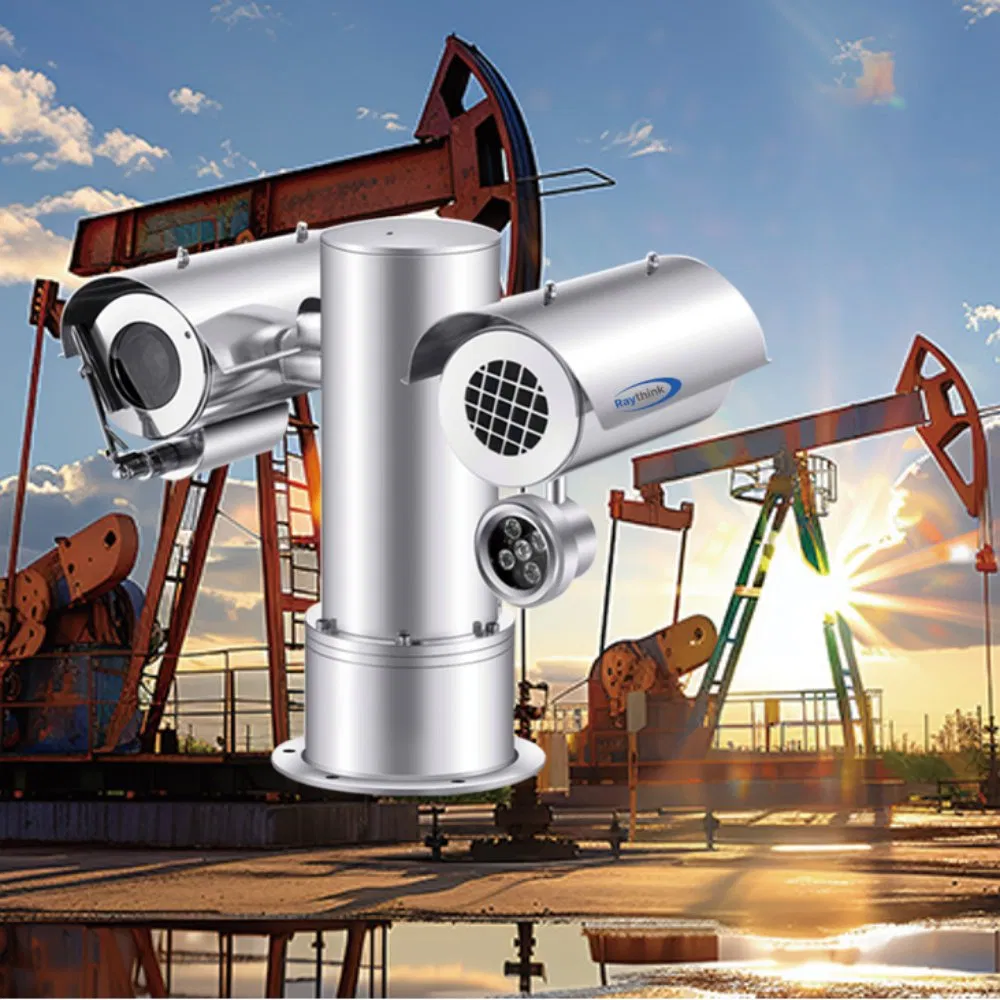

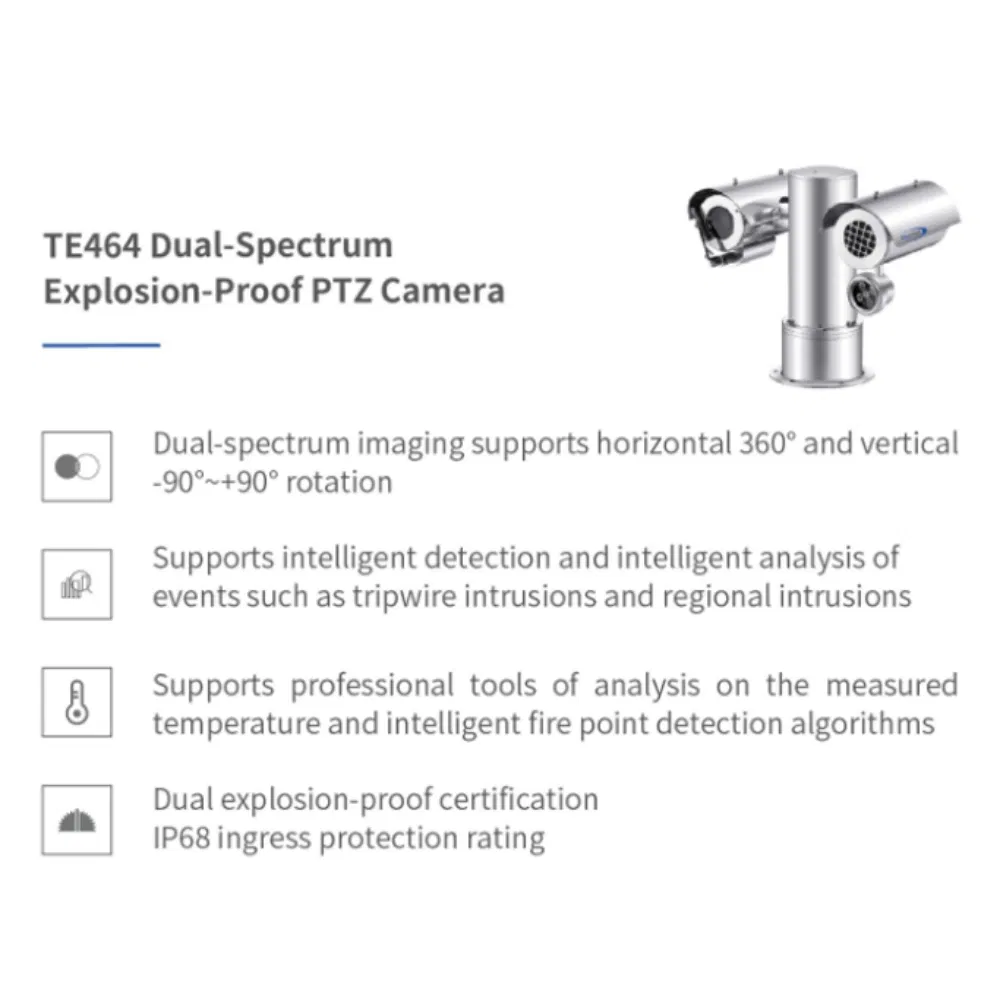

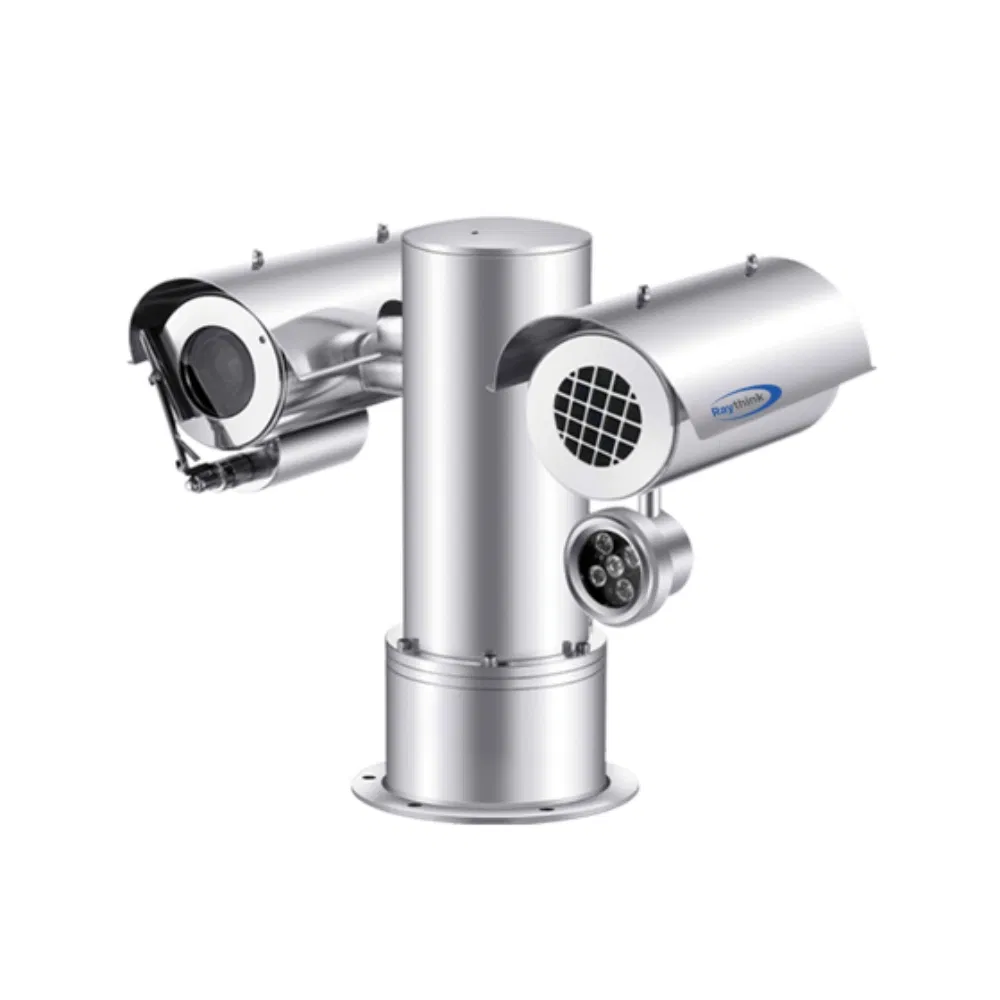

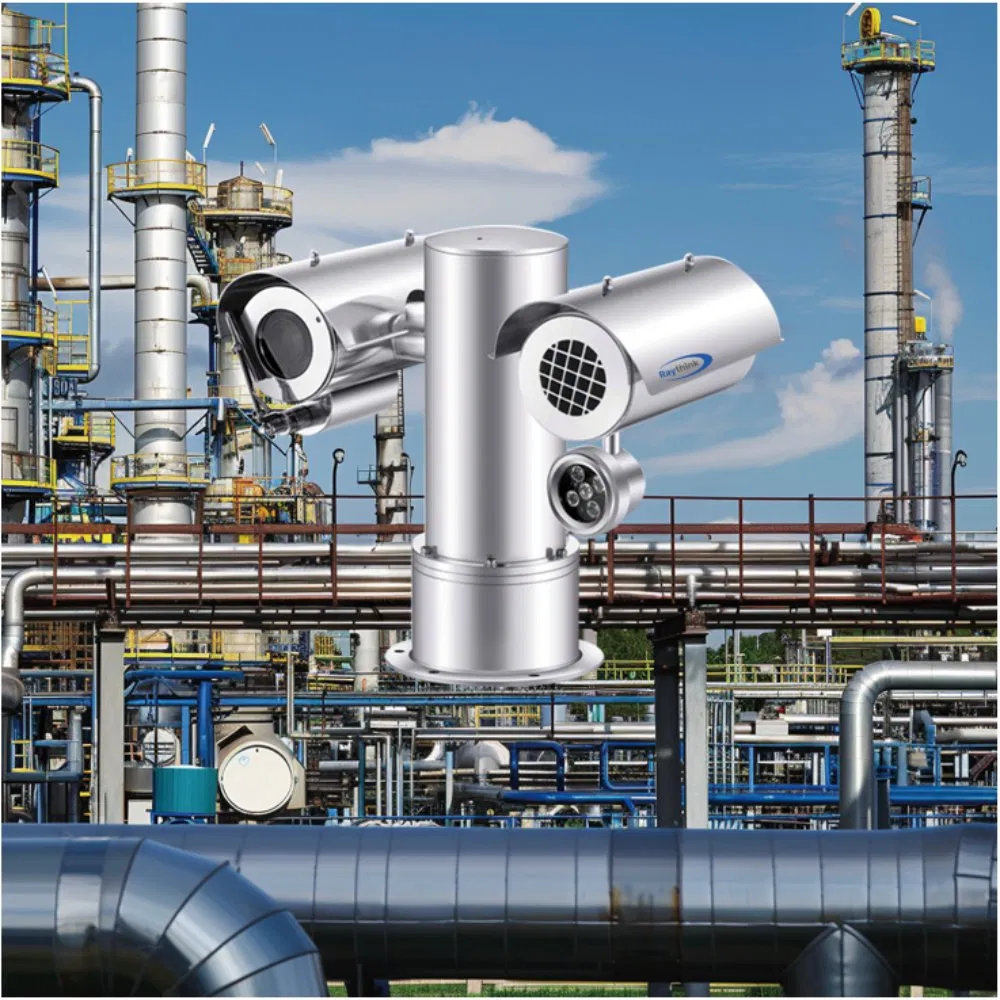

TE464G is a high-performance dual-spectrum gas cloud imaging camera featuring an advanced uncooled infrared detector with a thermal sensitivity of less than 20mK. It holds dual explosion-proof certifications and has a stainless steel body with an IP68 ingress protection rating.
The device supports multiple protocols including Modbus TCP, ONVIF, and GB28181, and supports secondary development. It can detect methane, propane, ethylene and other gases, and has significant applications in industries such as petroleum extraction and coal processing.
| Thermal Imaging | |
|---|---|
| Detector Type | VOx uncooled FPA detector |
| Spectral Band | 7~8.5μm |
| NETD | ≤20mK(@25°C,F#1.0,25Hz) |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Focal Length | 25mm electric focusing lenses |
| Visible Light Parameters | |
| Sensor | 4MP 1/1.8" Progressive Scan CMOS |
| Focal Length | 6.5~130mm, 20x Zoom |
| Gas & Temperature Detection | |
| Gases Detectable | Methane, ethane, propane, butane, pentane, hexane, heptane, octane, ethylene oxide, propylene oxide, ethylene, propylene, 1-butene, methanol, ethanol, butanol, etc. |
| Measurement Range | -20ºC~+550ºC |
| Accuracy | ±2°C or ±2% |
| General | |
| IP Grade | IP68, Ex d IIC T6 Gb |
| Power | AC85~220V, Max 100W |
| Weight | 27kg |

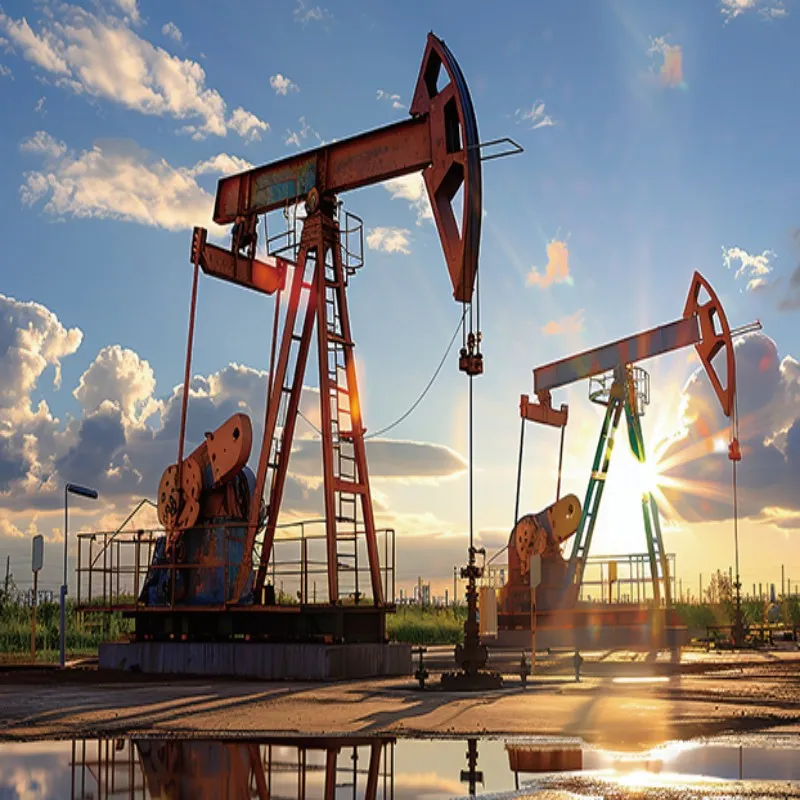

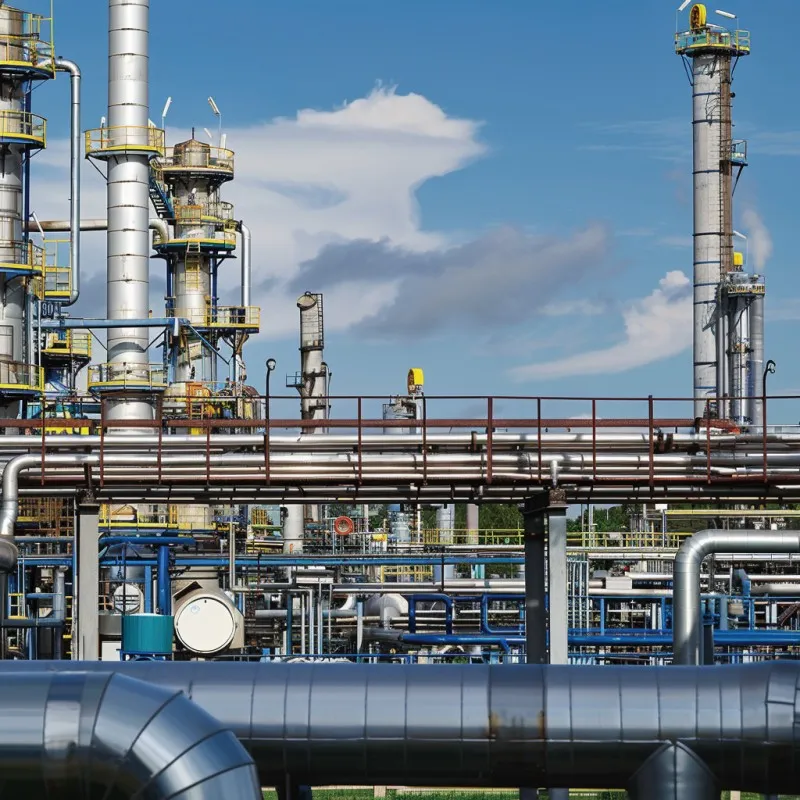

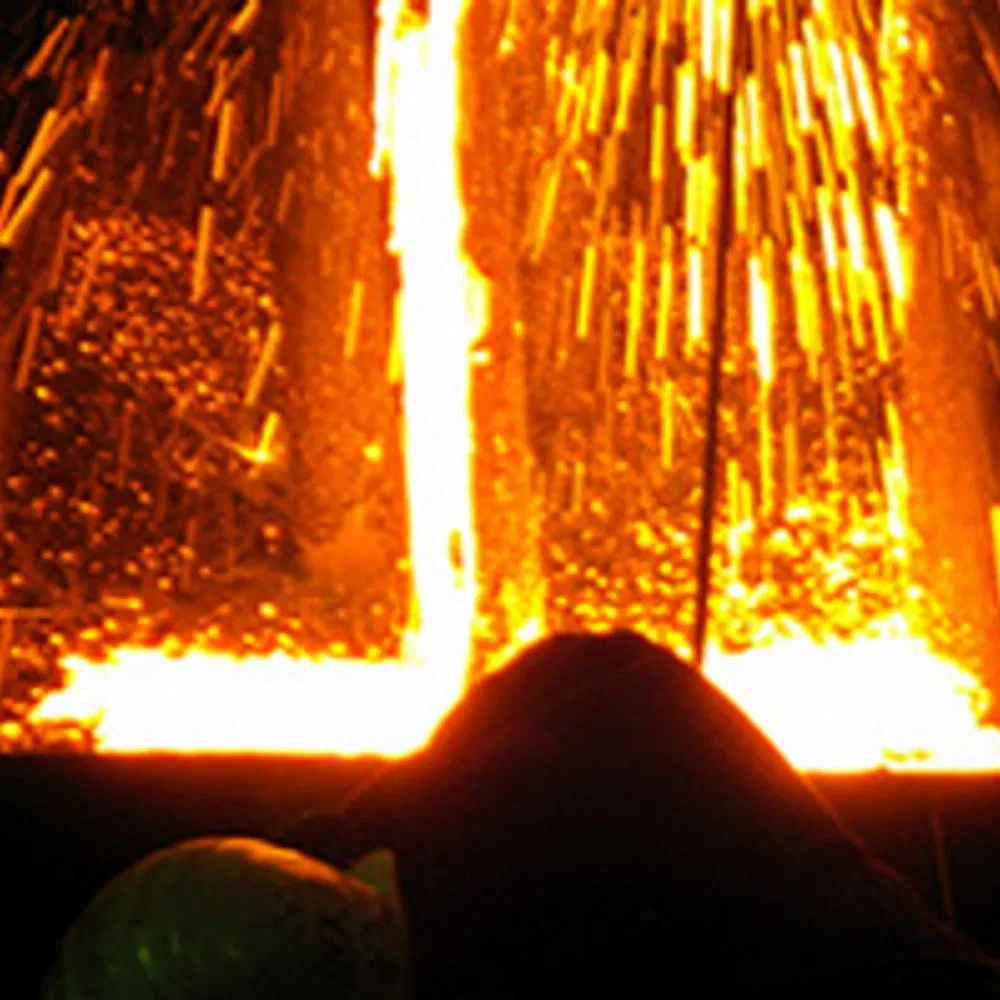

Industrial Chemicals | Emergency Response | Coal Processing | Petroleum Extraction
