Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use
Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use
Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use
Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use
Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use
1 / 5
Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use
Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use
Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use
Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use
Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use

Sy-D042-2 Good Quality Dental Image Sensor Imaging System for Human Use Veterinary Use

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Sy-D042-2
Type
X-Ray Equipment
Material
Metal
External Dimension
36.73 mm*24.35mm
Technology
CMOS
Theoretical Resolution
26.3lp/mm
Real Resolution
>20lp/mm
Pixel Size
19μm
USB Cable Length
3 M
Transport Package
Carton
Origin
China
Product Description

Sy-D042-2 Dental Image Sensor Imaging System for Human and Veterinary Use

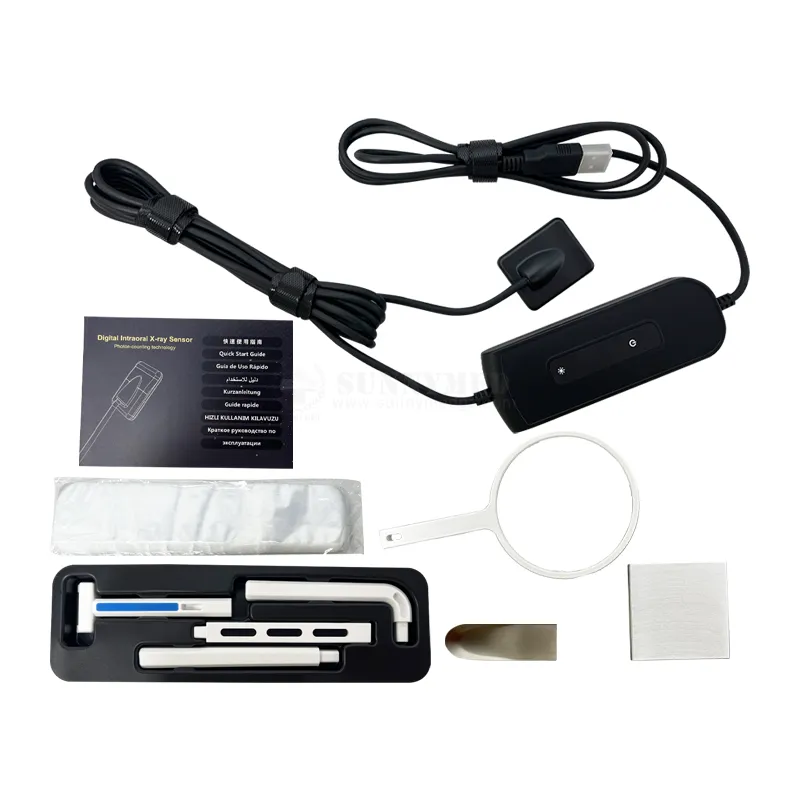

Dental Image Sensor
Advanced Improved Technology The sensor has been designed according to the oral cavity shape of patient. Its rounded corners and smooth edges make patients comfortable and dentists easy to position.
Without Controlling Box The embedded electronics design makes everything located in the sensor case. No need for a controller box; just plug the USB connector into the computer for easy and convenient use.
High Resolution and Quick Imaging Operates in USB 2.0 full-speed mode. CMOS technology coupled with a theoretical resolution of 26.3lp/mm allows high-resolution images to appear instantaneously on the screen after exposure.
Humanized Management Software Select exposure programs according to teeth. Includes functions for magnifying, measuring length, area, and angles, alongside a patient records management system.
Technical Specifications
Specifications Size 1 Size 2
External dimension36.73mm × 24.35mm42.80mm × 30.49mm
TechnologyCMOSCMOS
Theoretical resolution26.3lp/mm26.3lp/mm
Real resolution>20lp/mm20lp/mm
Pixel size19μm19μm
Gray scale4096 (12bit)4096 (12bit)
Active surface30.02mm × 19.95mm36.00mm × 25.99mm
USB cable length3 meters3 meters
Product Display

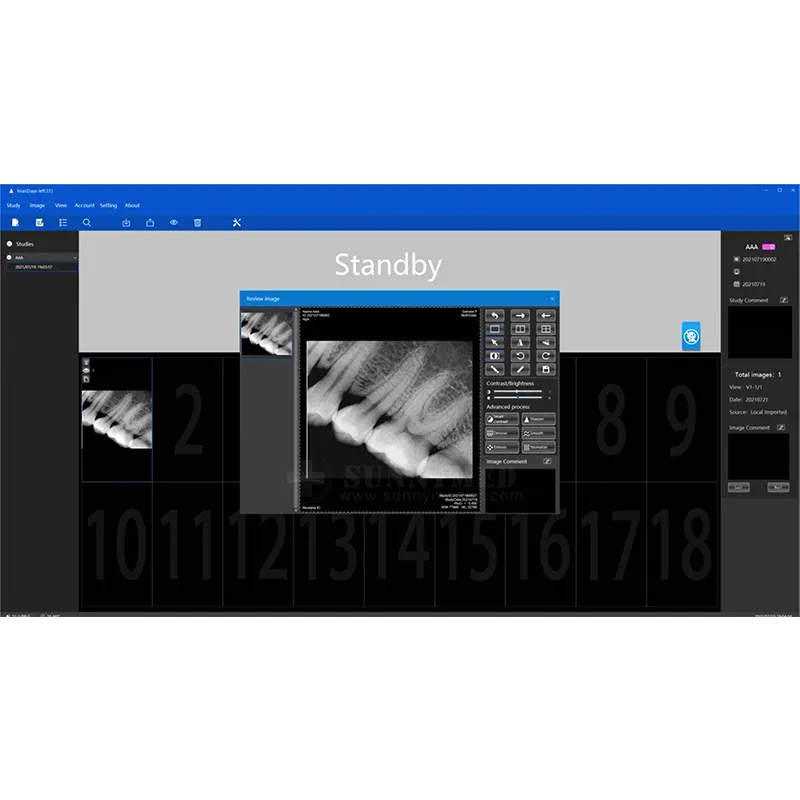

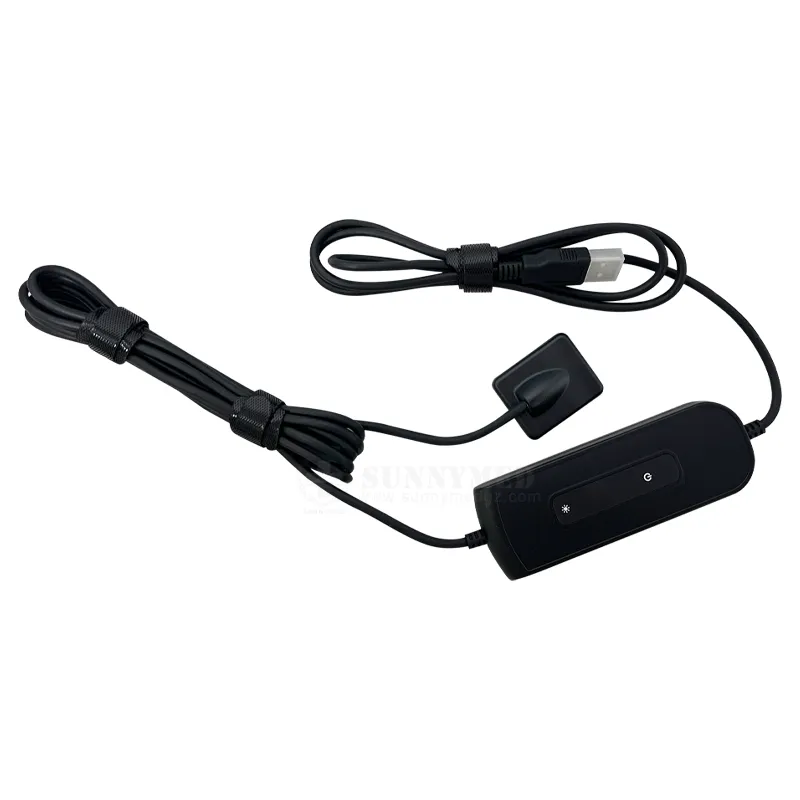

Sensor Detail 1 Sensor Detail 2 Sensor Detail 3 Sensor Detail 4
Packaging & Shipping

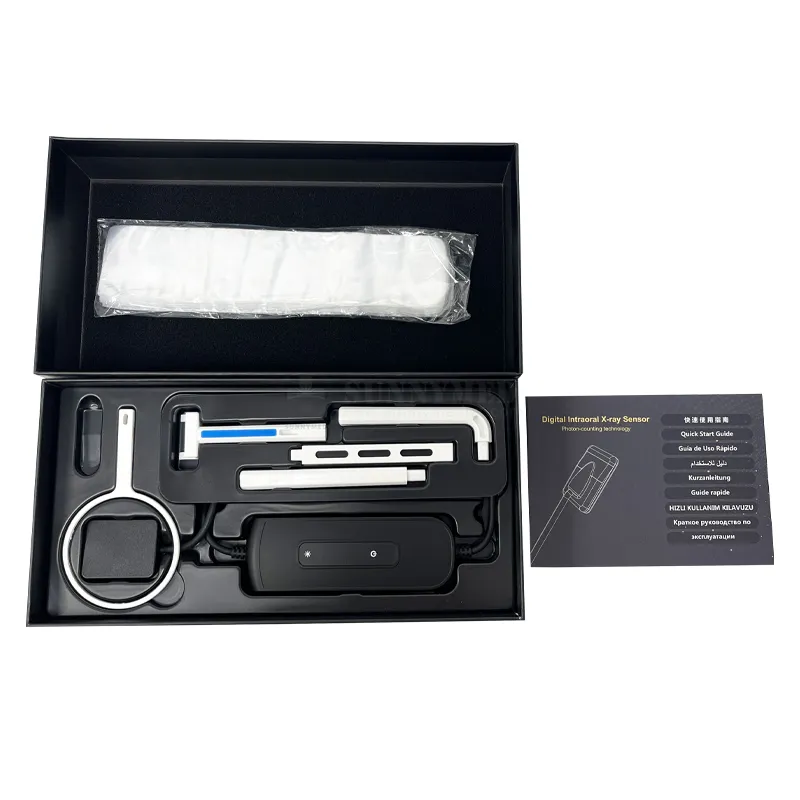

Packaging
Order Process
Quality Inspection
Global Distribution
Frequently Asked Questions
How can I purchase this dental imaging system?
You can place an order directly online through our platform or contact our sales team to assist you with the procurement process.
What payment methods do you support?
We accept various payment methods including Trade Assurance, Credit Card, T/T (Bank Transfer), Western Union, and L/C.
What is the expected delivery time for an order?
For ready-to-ship stock, items are dispatched within 24 hours. OEM orders typically require 2-7 working days for processing.
Do you provide guidance on how to use the sensor?
Yes, we provide comprehensive video tutorials covering installation, operation, and maintenance. We also offer real-time online video training at your convenience.
What is the warranty period and after-sales policy?
The product comes with a warranty ranging from 12 to 60 months. Our after-sales team is committed to replying to any inquiries within 8 hours.
Is this sensor suitable for veterinary clinics?
Absolutely. The Sy-D042-2 imaging system is designed for high-quality dental imaging in both human medical and veterinary applications.
