Basic Information
Nature
Specialized Equipment
Focal Point
0.6 mm / 1.2 mm
Anode Heat Capacity
300 Khu
Transport Package
Wooden Box
Product Description
SY-D047A-3 Hospital Imaging DR X-Ray Machine System Medical 50kw High Frequency Digital X-ray Equipment for Radiography
Key Features
High Frequency High Voltage X-ray Generator

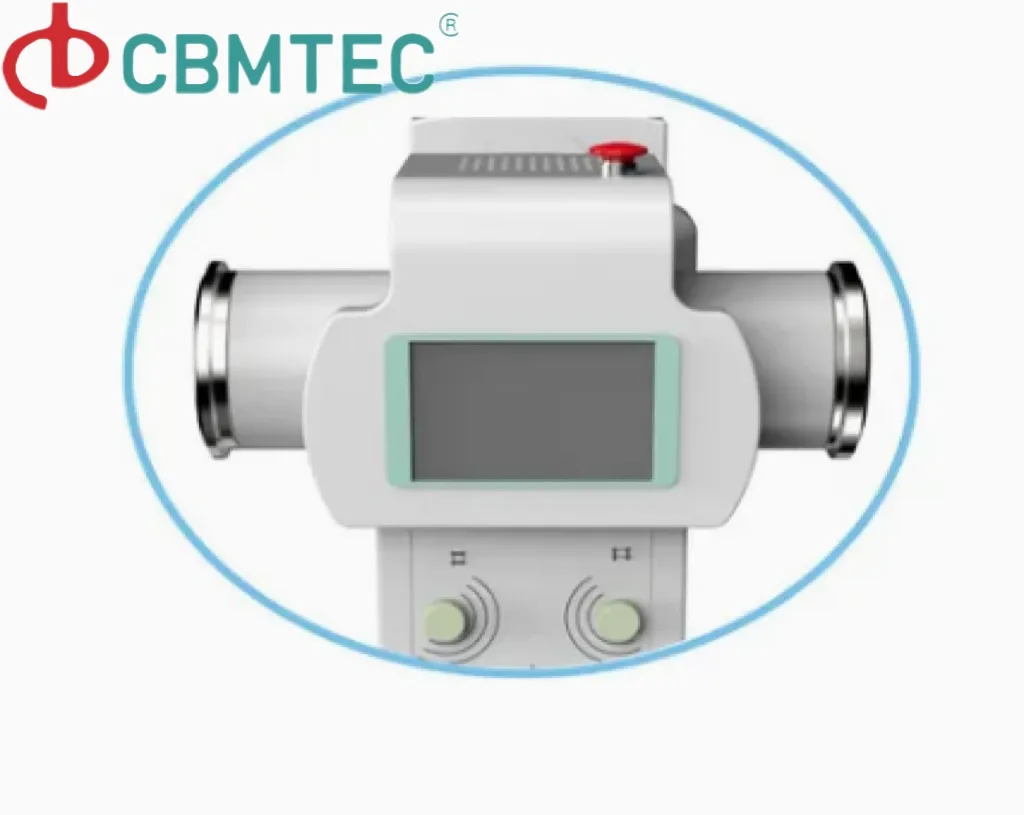

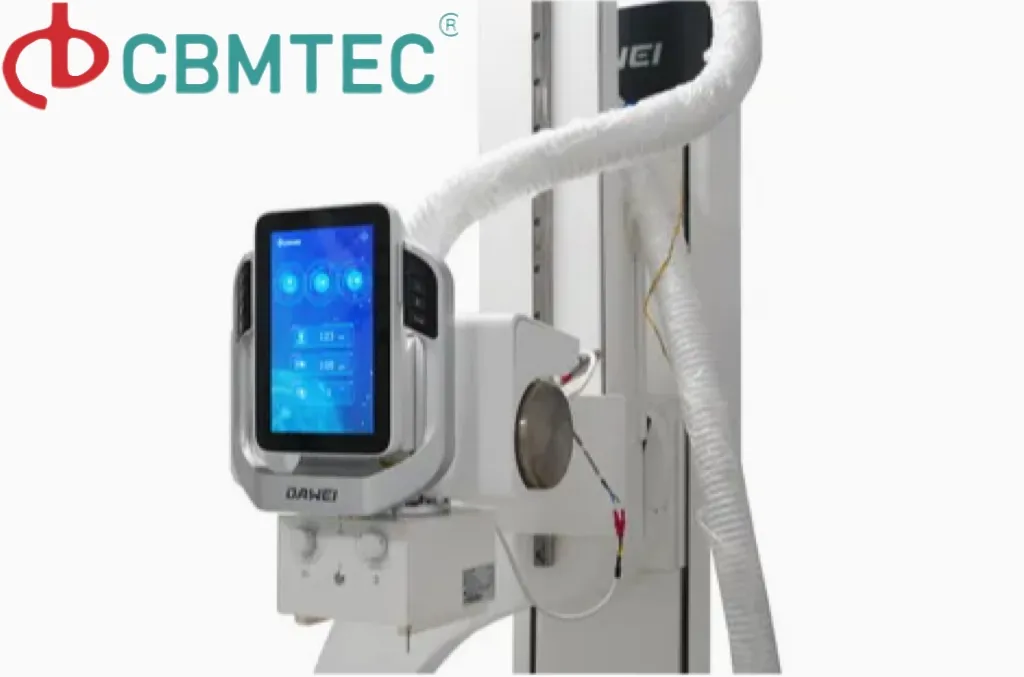

X-ray Tube Assembly
Collimator
Digital Detector Rayence 1717SGC/SCC
DR Machine Frame
Radiography Table
Computer and LCD DCSM1F/ML2002
Synchronous box
High Voltage Cable 75kV (length: 8m)
Grid (Brand:JPI) 100cm and 180cm
Generator Specifications
| Power | AC380V ± 38V |
| Radiography Tube Voltage | 40kV ~ 150kV |
| Radiography Tube Current | 10mA ~ 630mA |
| Time | 2ms ~ 6300ms |
| Allowed Internal Resistance | 380V: 0.5Ω |
| Allowed Frequency Variation | 50Hz/60Hz ± 1Hz |
| Working Frequency | ≥30kHz |
Tube Specifications
| Focus | 0.6mm/1.2mm |
| Rotating Speed | 2800rpm |
| Peek Tube Voltage | 150kV |
| Small Focus | 20kW |
| Large Focus | 50kW |

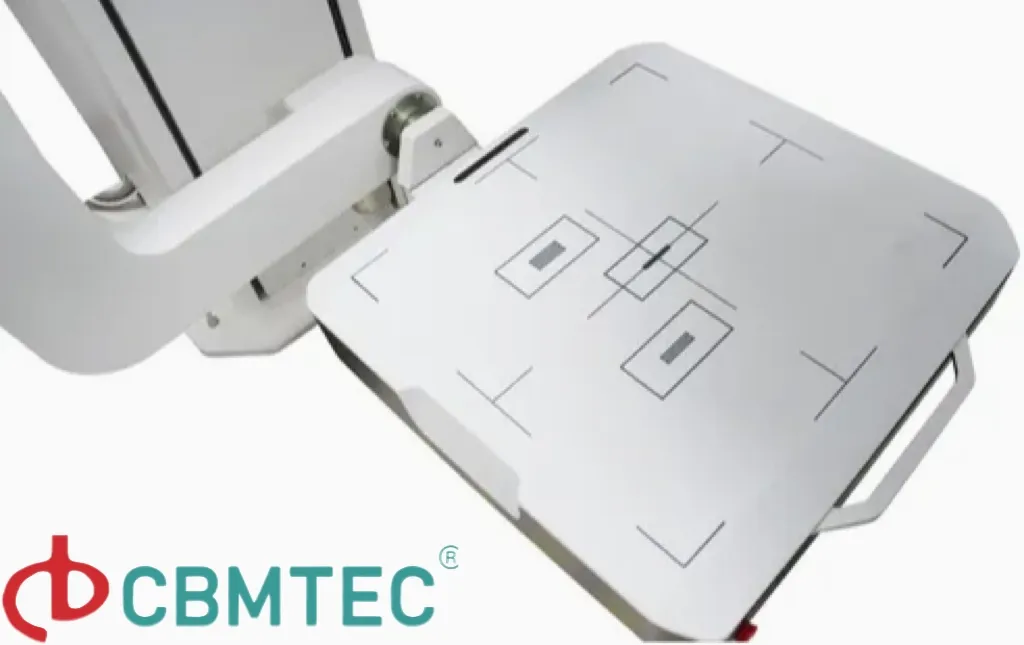

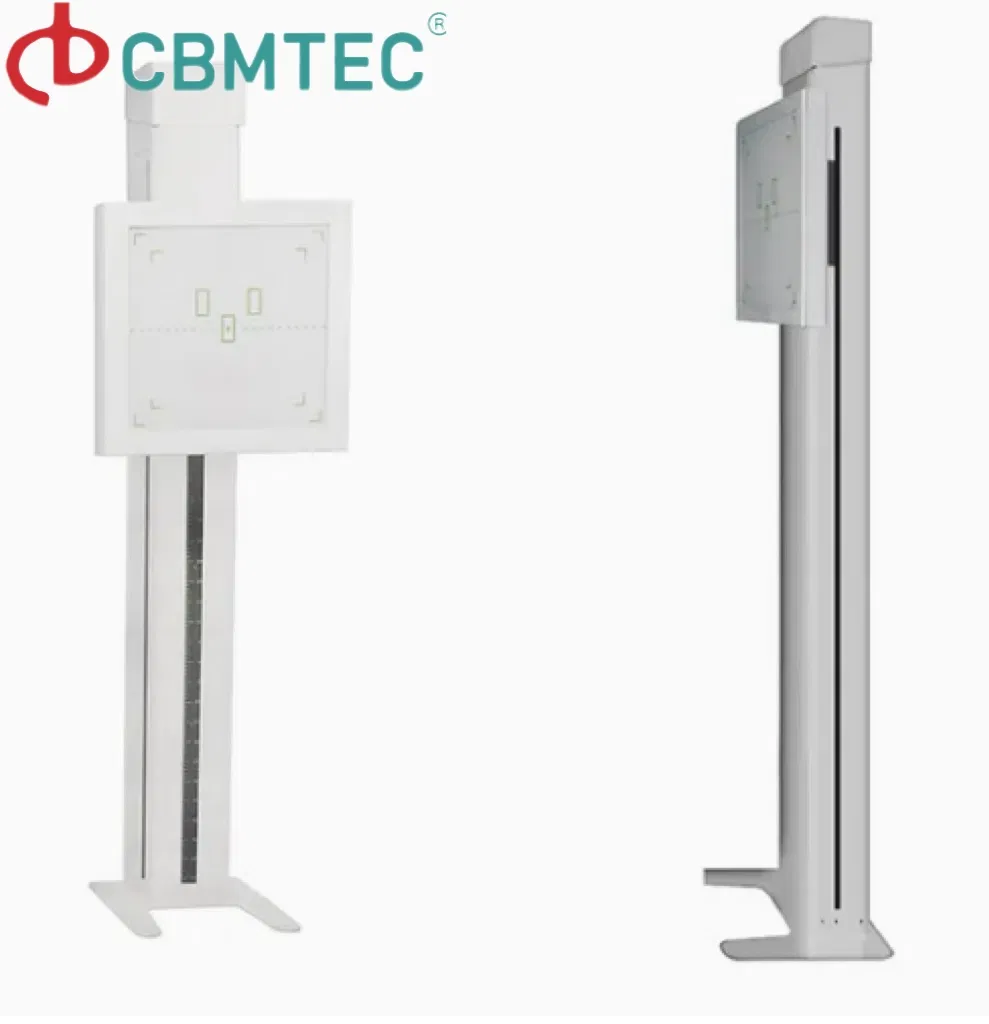

Flat Panel Detector Specifications
| Scanning Area | 17 × 17 inches |
| Spatial Resolution | not less than 3.9lp/mm |
| Total Pixel Matrix | 3,328(h) × 3,328(v) |
| Pixel Pitch | 127 |
| Image Preview Time | not more than 2s |

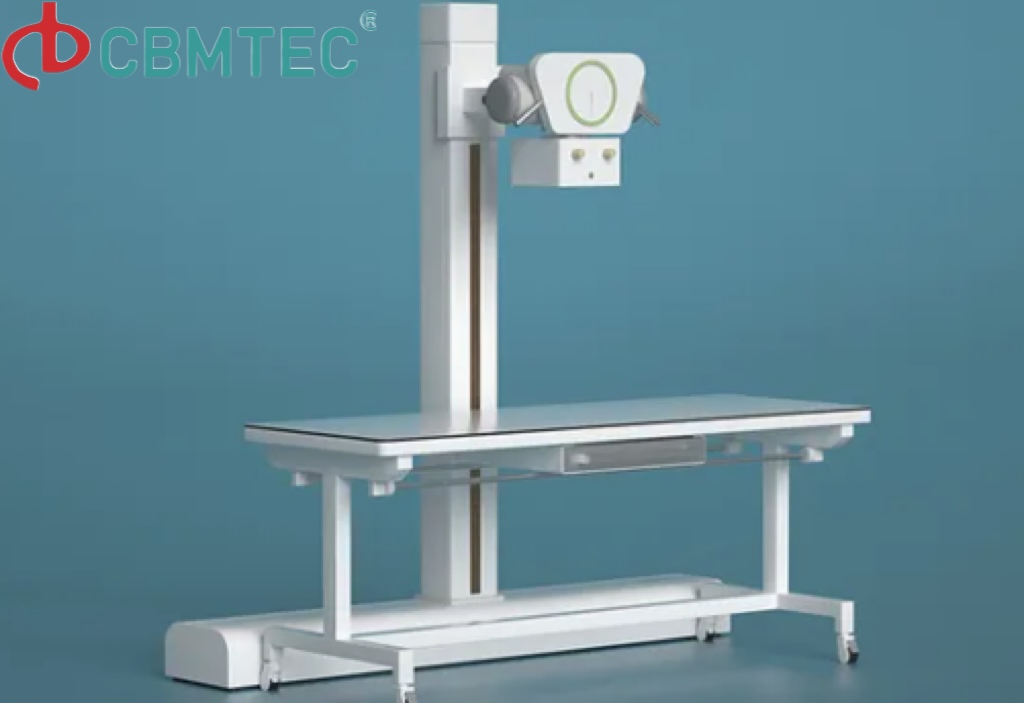

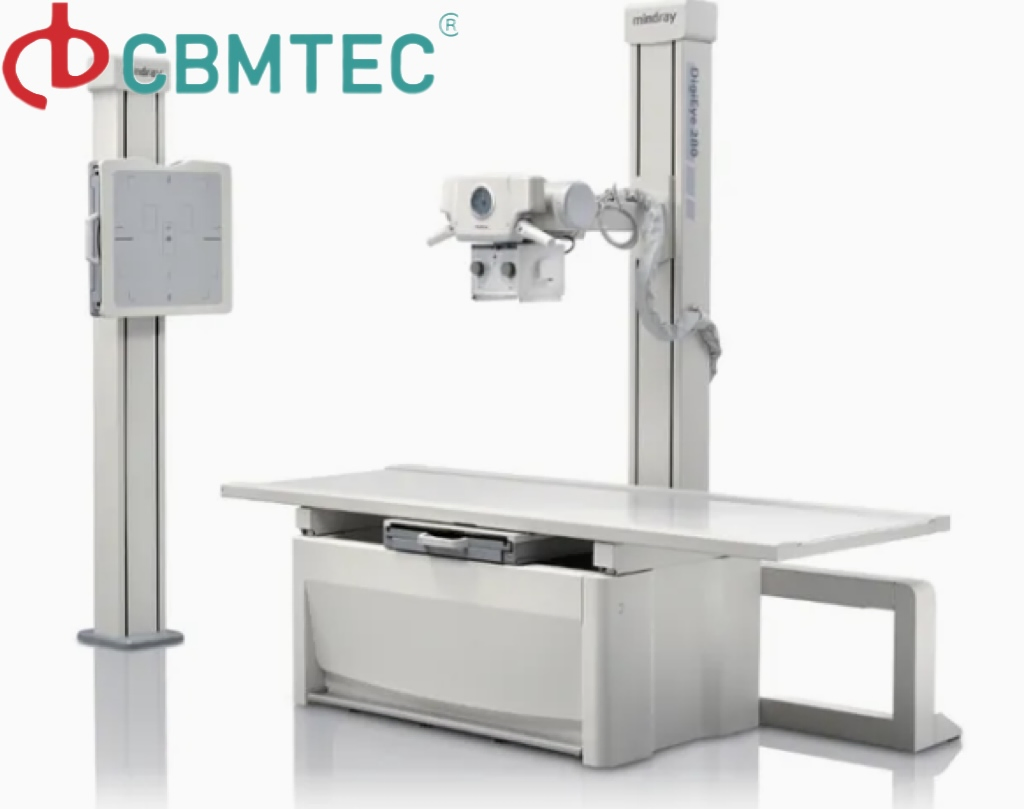

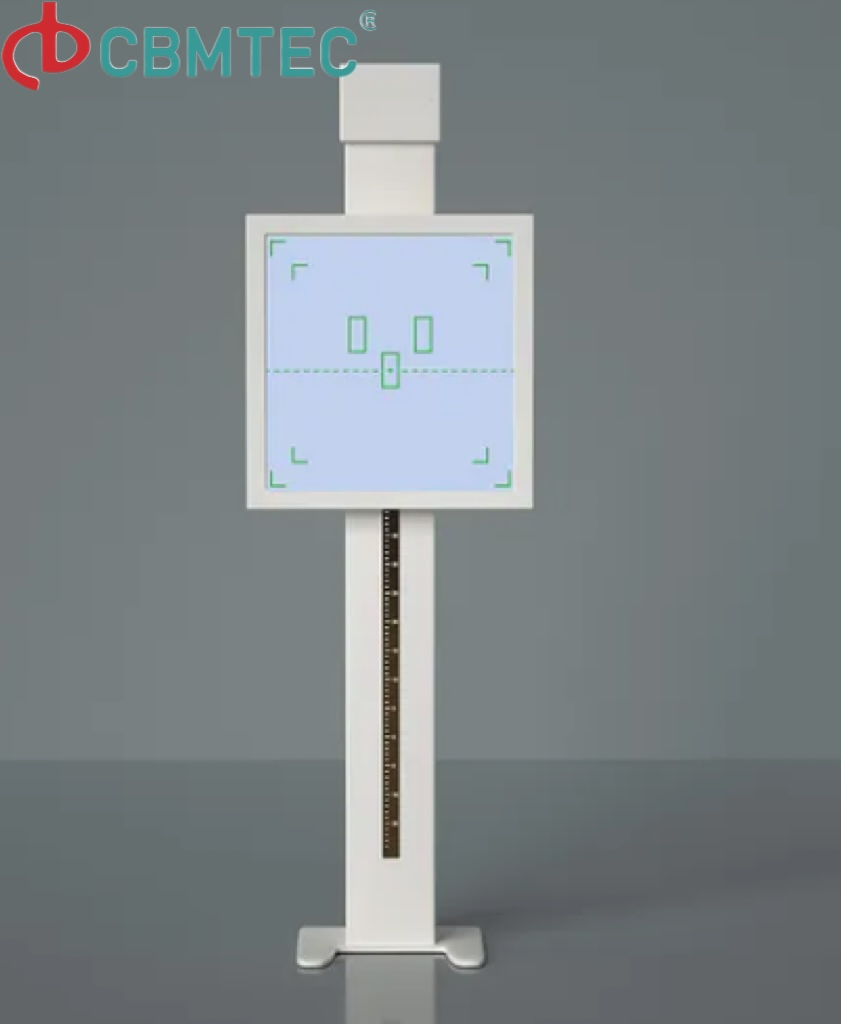

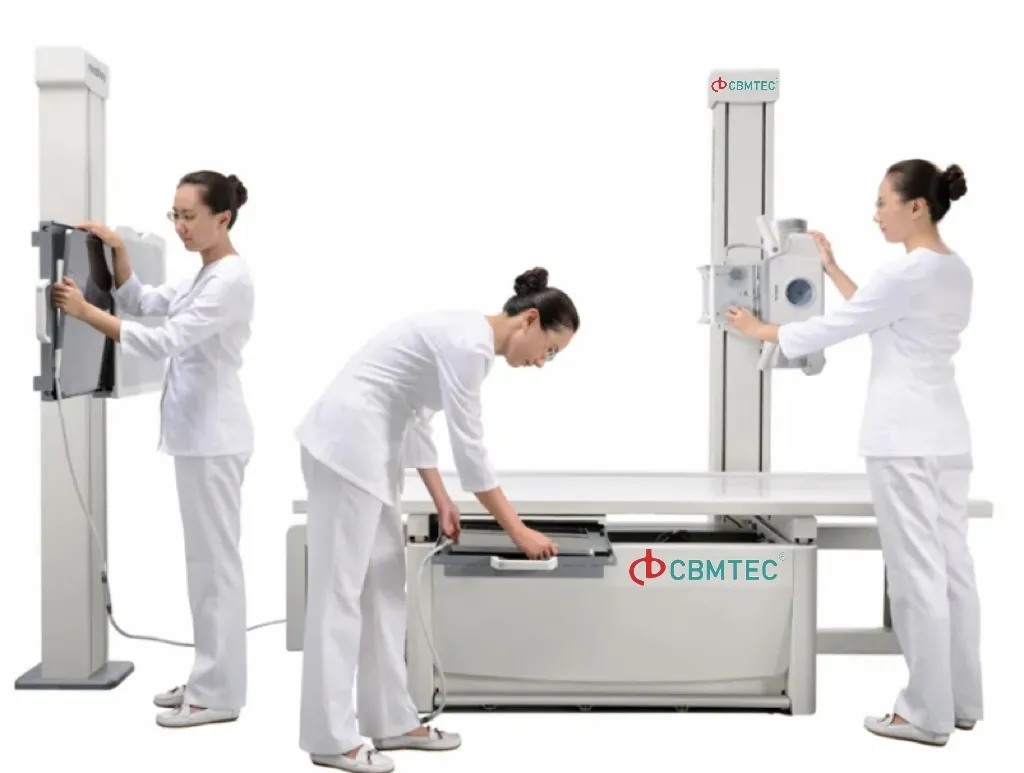

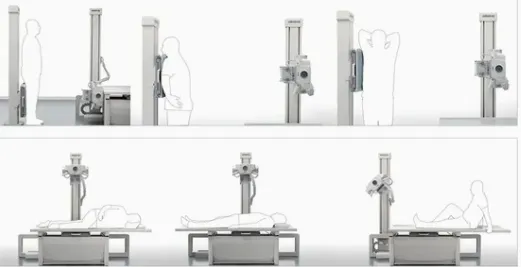

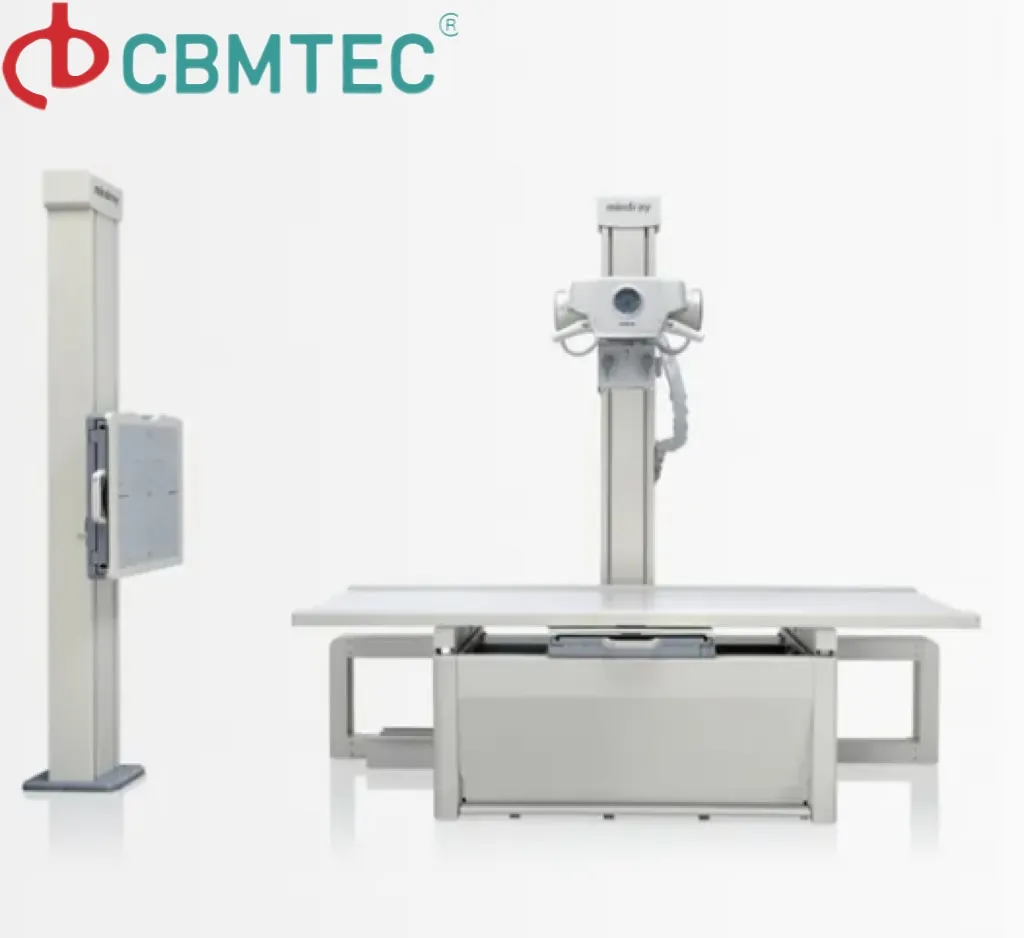

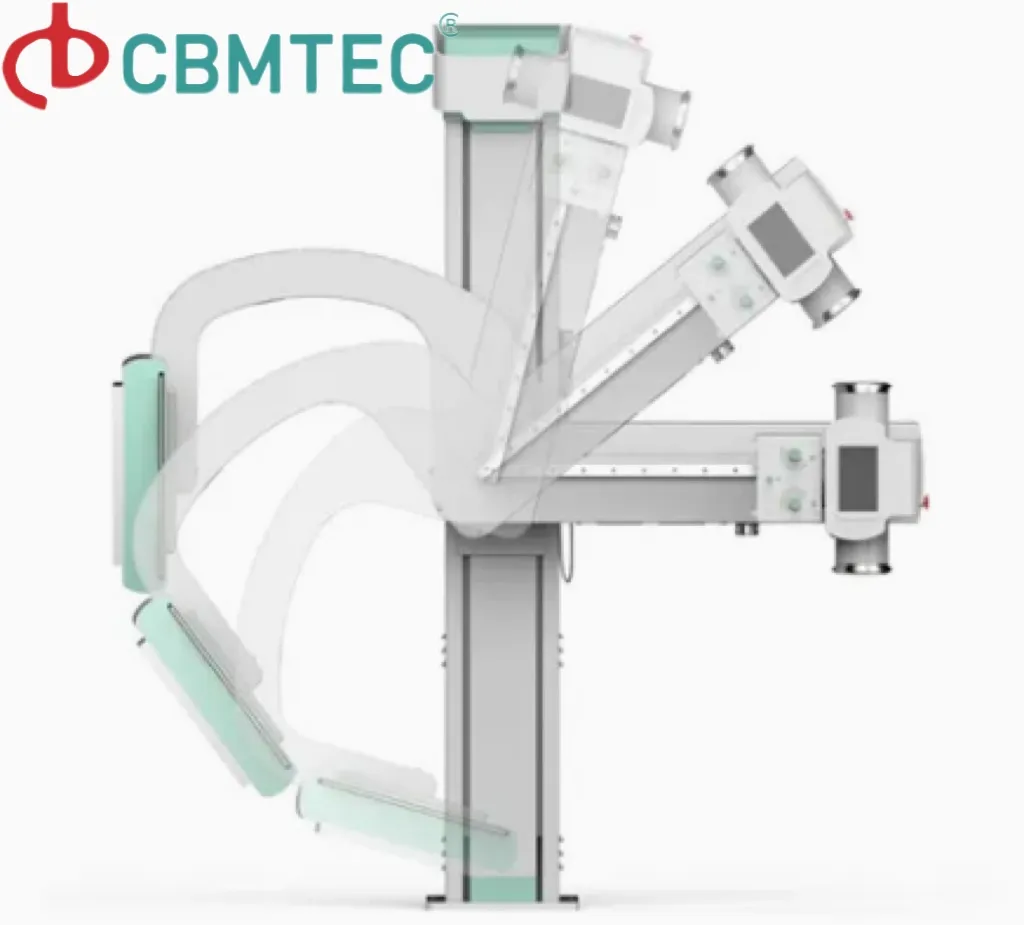

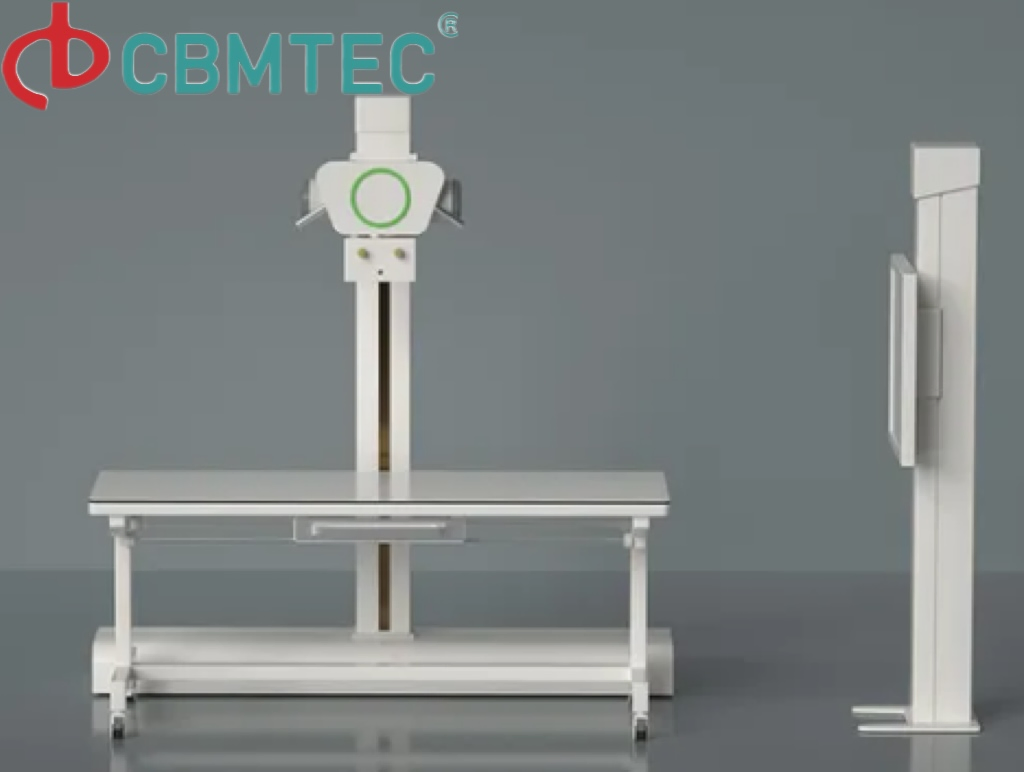

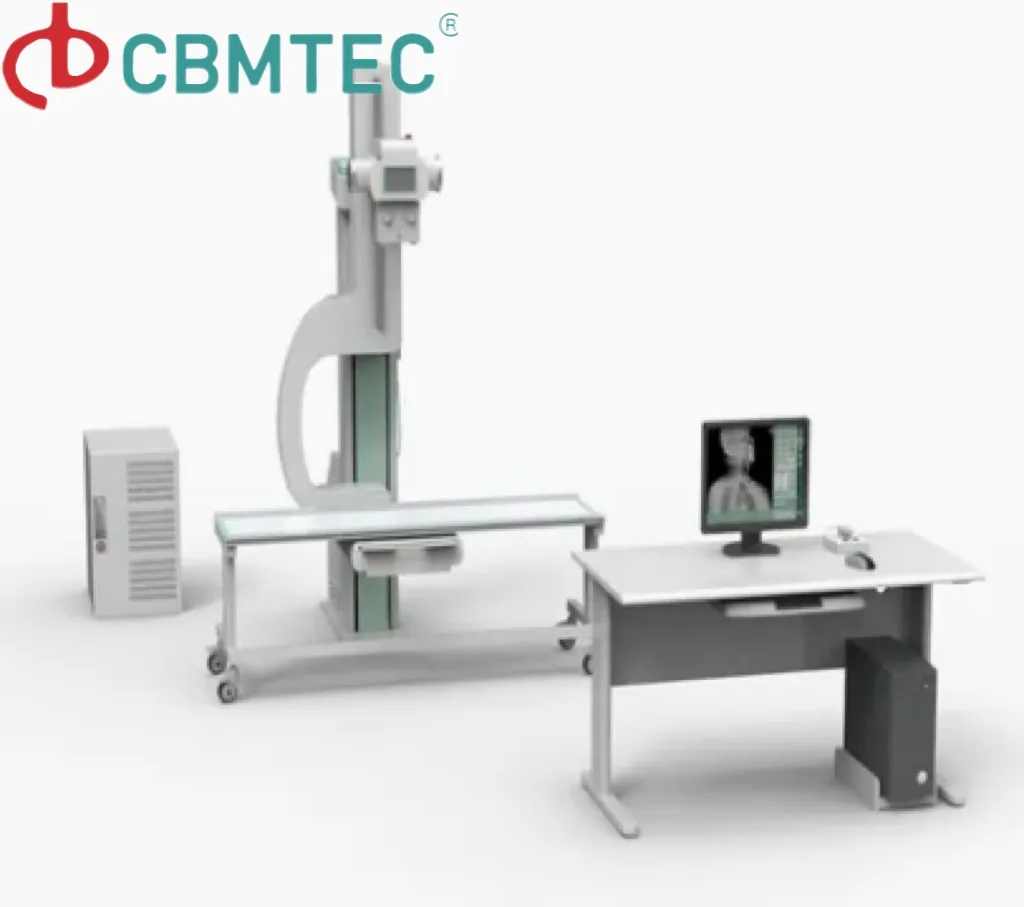

Product Show
Packing & Exhibition
Frequently Asked Questions
What is the power capacity of this DR X-ray system?
The system features a high-frequency generator with a power output of 50kW to 65kW, suitable for various hospital radiography needs.
What are the focal point sizes for the X-ray tube?
The X-ray tube assembly provides dual focal points of 0.6 mm and 1.2 mm for high-precision imaging.
What is the size of the digital flat panel detector?
The system uses a large-scale flat panel detector with a scanning area of 17 × 17 inches, providing a wide field of view.
What type of power supply is required for installation?
This equipment requires a standard industrial power supply of 380 VAC (± 38V) at 50Hz/60Hz.
How fast can I preview the captured images?
The digital imaging system is highly efficient, with an image preview time of no more than 2 seconds.
What is the maximum tube voltage for radiography?
The radiography tube voltage ranges from 40kV to a maximum of 150kV, allowing for a wide range of clinical applications.
