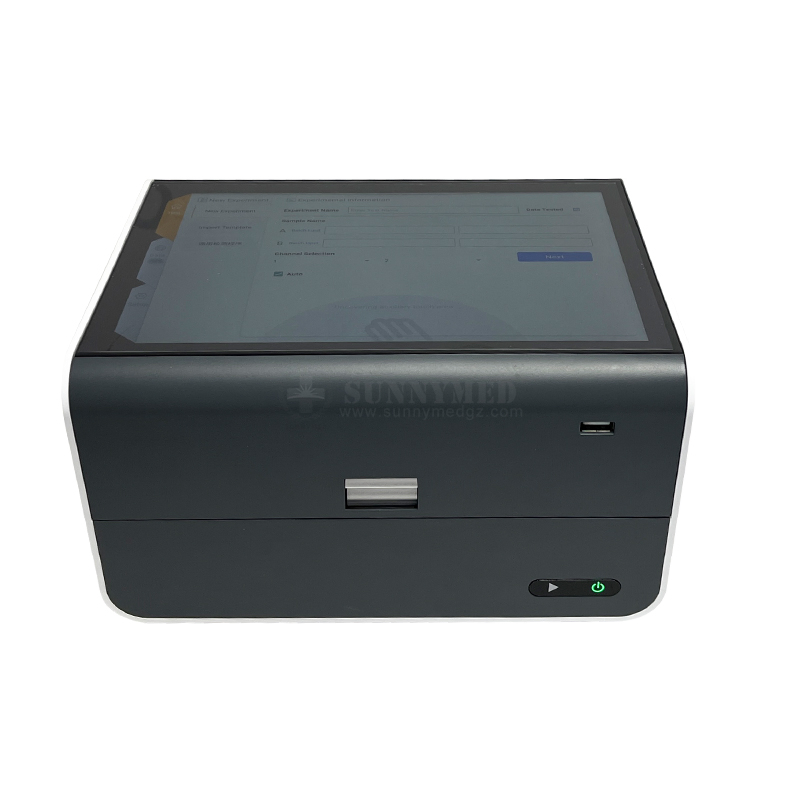

Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System
Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System
Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System
Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System
Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System
1 / 5
Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System
Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System
Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System
Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System
Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System

Sy-W007-1 Portable Qpcr Veterinary 4-Channel Direct Imaging Fluorescence PCR System

Customization: Available
Type: Biochemical Analyzer
Product Name: Portable Qpcr System
Send Inquiry

Product Description

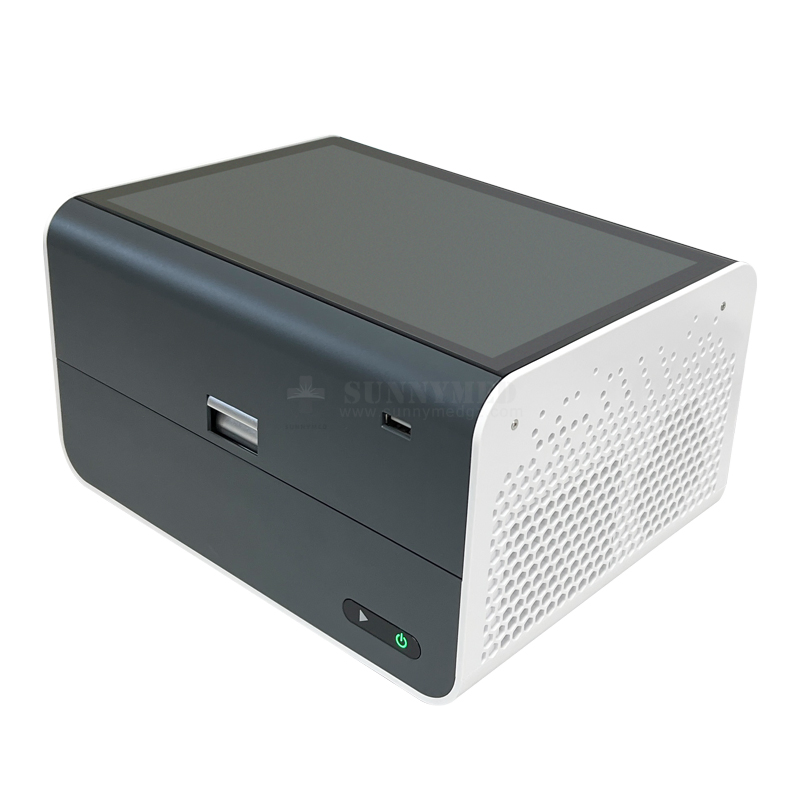

SY-W007-1 Portable qPCR Veterinary 4-Channel Direct Imaging Fluorescence PCR System

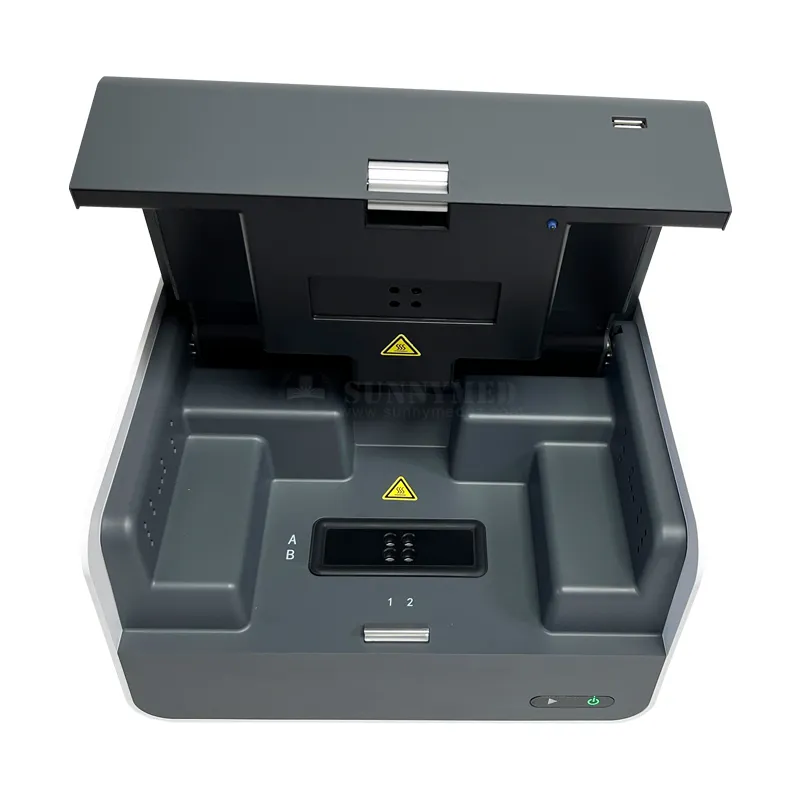

Portable qPCR System
Basic Specifications
Model NO.
SY-W007-1
Multiplex Capability
Up to 4 Targets Per Well
Detection Threshold
3 Copies
Dynamic Range
>1.0e9
Signal Interface
USB 2.0
Transport Package
Carton Box
Product Description
Capacity (# of wells) 8
Channels (# of Fluorophores per well) Up to 4 (1. FAM/SYBR Green; 2. JOE/HEX/VIC/TET; 3. ROX/Texas Red; 4. CY5/LIZ/Cy5.5)
Multiplex capability Up to 4 targets per well
Minimum detection threshold 3 copies
Dynamic range >1.0E9
Signal Interface USB 2.0
Excitation source High endurance LED
Detector Ultra-low-light CMOS bio-imaging chip
Thermal system Solid-state, Peltier-based
Tube/plate formats 0.2mL, 4 or 8-tube strip
Reaction volume 10uL - 60uL
DNA probes supported DNA binding dyes (e.g. SYBR-Green), hydrolysis probes (e.g. TaqMan probe) and hybridization probes (e.g. FRET probes)
Excitation Range 460nm - 670nm
Emission Range 510nm - 720nm
Programming modes qPCR amplification with touchdown option; isothermal amplification; melting curve analysis; manual fluorescence measurement and quantification
Temperature Uniformity Within ±0.25°C at annealing stage
Detailed Photos

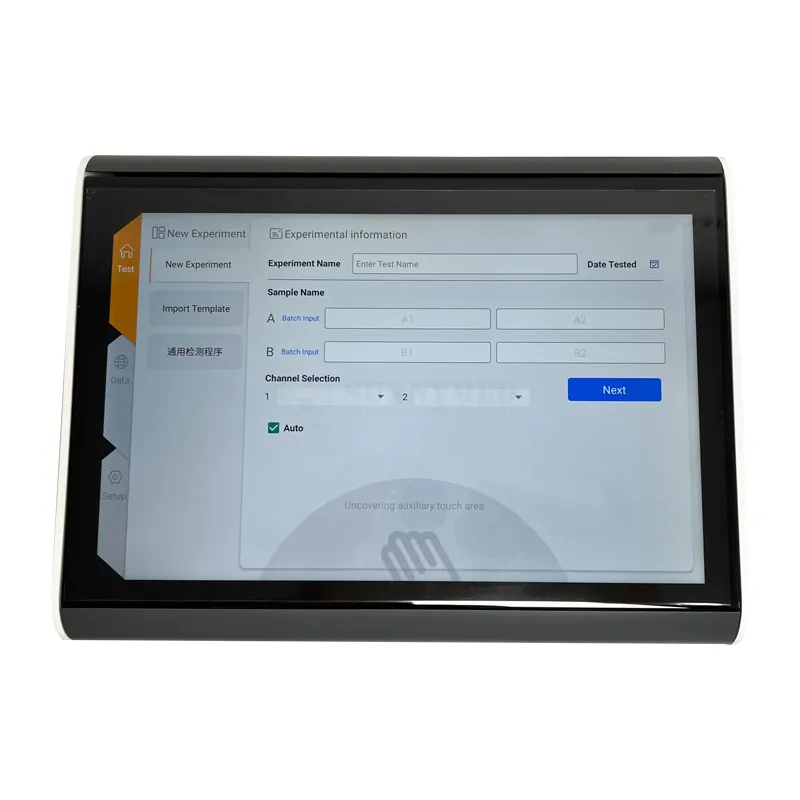

Detailed View 1
Detailed View 2
Detailed View 3

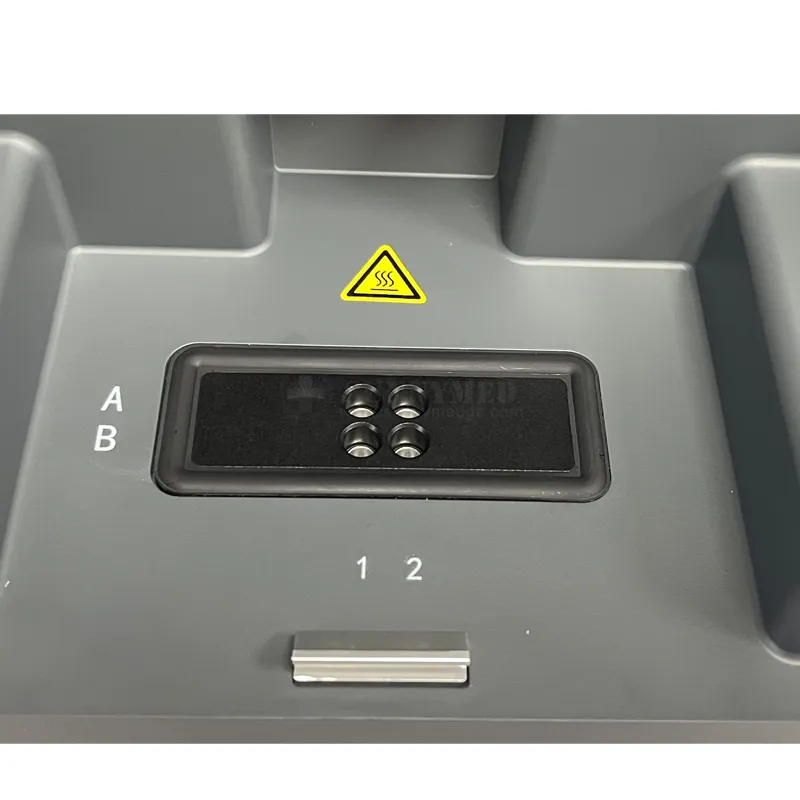

Detailed View 4
Manufacturing & Quality Control
Production Line
Quality Control
Certificates
Testing Lab
Facility
Frequently Asked Questions
How many targets can the SY-W007-1 detect simultaneously?
The system features multiplex capability, allowing for the detection of up to 4 targets per well across 4 distinct fluorescence channels.
What is the sensitivity and detection threshold of this PCR system?
The system is highly sensitive with a minimum detection threshold of just 3 copies and a wide dynamic range of over 1.0E9.
Which types of DNA probes and dyes are compatible?
It supports a variety of chemistries including DNA binding dyes (like SYBR-Green), hydrolysis probes (such as TaqMan), and hybridization probes (like FRET).
What kind of thermal and detection technology does it use?
The system utilizes a solid-state, Peltier-based thermal system for precise temperature control and an ultra-low-light CMOS bio-imaging chip for high-quality fluorescence detection.
What are the supported tube formats and reaction volumes?
The system is compatible with 0.2mL tubes in 4 or 8-tube strip formats, supporting reaction volumes ranging from 10uL to 60uL.
What programming modes are available for different applications?
Available modes include qPCR amplification with touchdown options, isothermal amplification, melting curve analysis, and manual fluorescence measurement/quantification.
