Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
1 / 5
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices

Professional Pet X-ray Imaging System for Veterinary Practices

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Certification:
CE, FDA, EEC, MSDS, ISO13485
Group:
Middle-aged and Old
Maximum Voltage:
125kv
Size Focus:
0.5/1.0 mm
Thermal Capacity:
140K Hu
Anode Input Power:
Small Focus 10kw/ Larg Focus 30kw
Input Power Voltage:
110/220VAC/10A
Maximum Output Power:
32kw
Kv Range:
40-125kv
Ma Range:
10-400mA
Exposure Time:
0.001-6.3s
Scintillator:
Amorphous Silicon a-Si Cesium Iodide Csi
Image Size/Pixel Matrix:
43×43cm 3072×3072
Transport Package:
Wooden Package
Specification:
32KW customized logo
Production Capacity:
50000

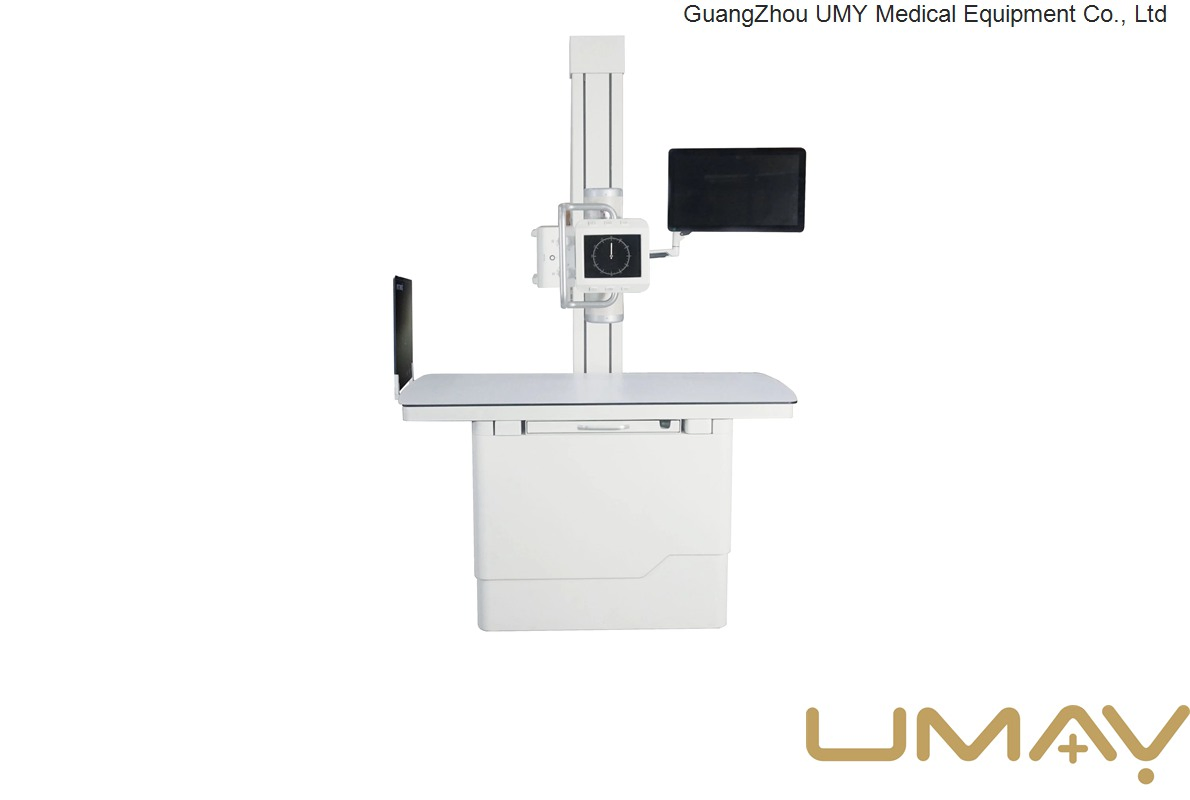

Professional Pet X-ray Imaging System
Veterinary Practices X-ray System
Imaging Detail 1

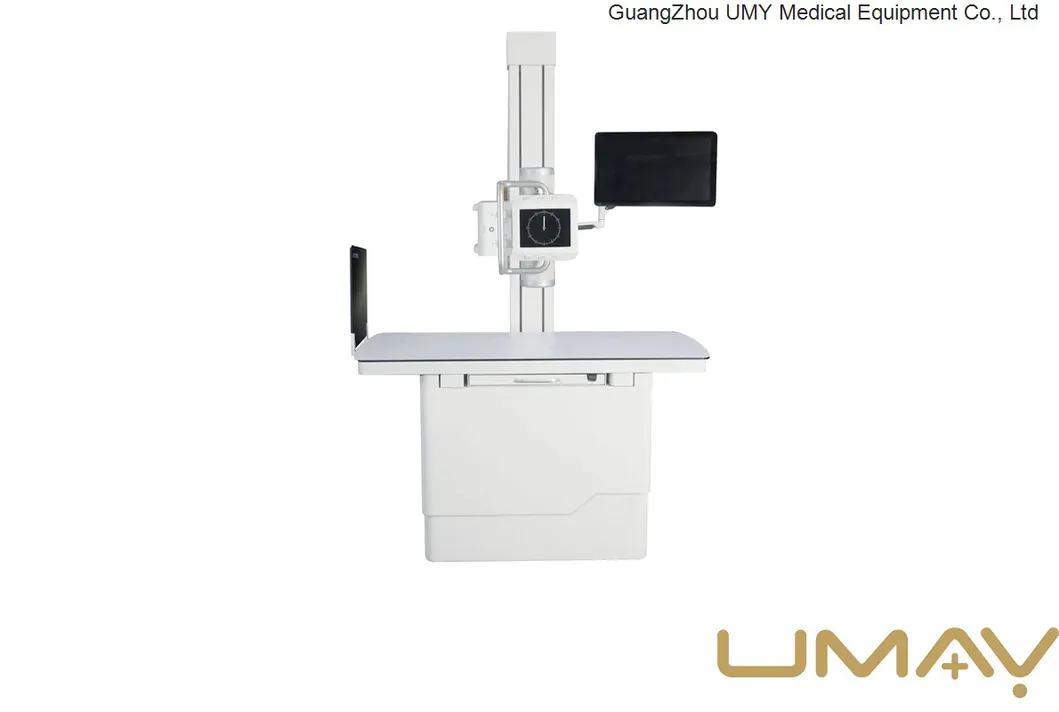

Imaging Detail 2
Imaging Detail 3
System Component 1

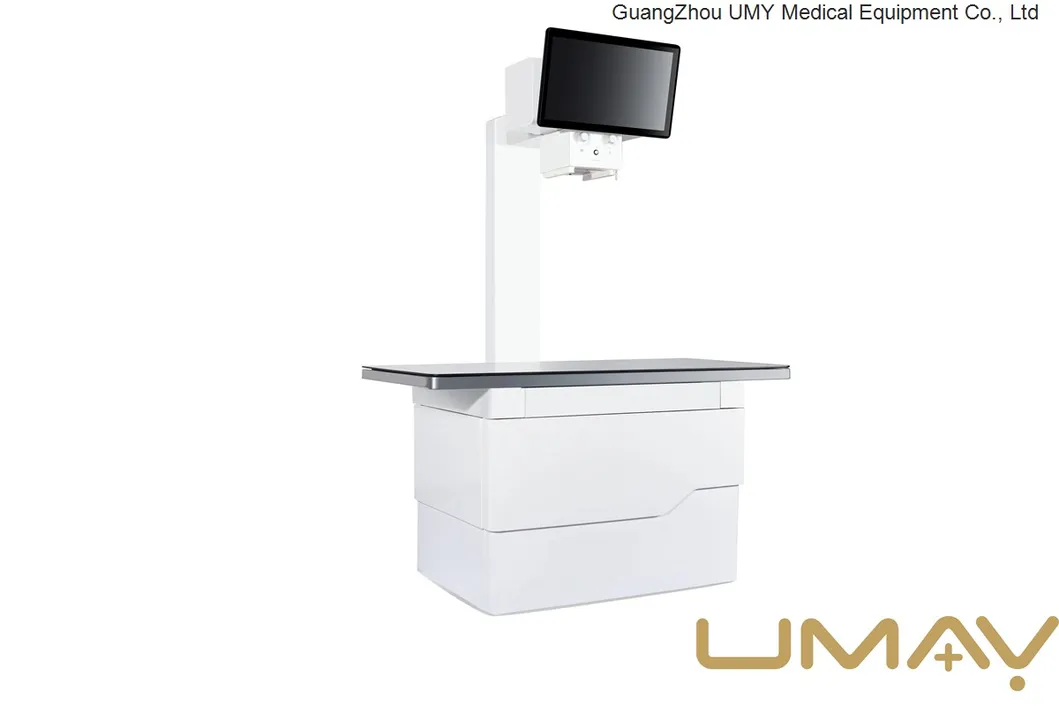

System Component 2
System Component 3
Product Specifications
High Voltage Generator
Input power voltage110/220VAC/10A
Maximum output power32KW
KV range40~125KV±(1%+1KV)
mA range10~400MA±(1%+1KV)
Exposure time0.001-6.3s
X-ray Tube
Maximum voltage125KV
Size focus0.5/1.0 mm
Thermal capacity140k HU
Anode input powerSmall focus 10KW / Large focus 30KW
Flat Panel Detector
ScintillatorAmorphous silicon a-Si cesium iodide CsI
Image size/pixel matrix43×43cm 3072×3072
Pixel pitch139μm
A/D conversion16bit
Spatial Resolution3.6 LP/mm
Power & Room Requirements
Power supply110/220VAC, +/-10%, Grounding
Power supply lineNot less than 4 square millimeters
Minimum door width65cm
Minimum room size2m * 1.5m
Physical Specifications
Weight180KG
Dimensions195cm * 140cm * 90cm
Full System View
X-ray System Application
Frequently Asked Questions
What are the primary certifications for this X-ray system?
The system is fully certified with CE, FDA, EEC, MSDS, and ISO13485 standards, ensuring compliance with international medical safety regulations.
What is the maximum output power and voltage range?
The system features a high-voltage generator with a maximum output power of 32KW and a KV range from 40 to 125KV.
What type of detector does the imaging system use?
It utilizes a high-performance flat panel detector with a Scintillator made of Amorphous Silicon (a-Si) and Cesium Iodide (CsI), providing a 3072×3072 pixel matrix.
What are the space requirements for installation?
The minimum room size required is 2m x 1.5m, and the facility must have a minimum door width of 65cm for equipment entry.
What is the thermal capacity of the X-ray tube?
The X-ray tube has a high thermal capacity of 140k HU, allowing for consistent use in professional veterinary practices.
Can the system operate on standard power voltages?
Yes, the system is compatible with both 110VAC and 220VAC (+/- 10%) input power voltages at 10A.
