🔍 Technical Specifications
High Frequency Generator (XDRP80)
- Output power: 80kW
- Voltage (Radiography): 40kV-150kV
- Voltage (Fluoroscopy): 40kV-125kV
- Current (Radiography): 10mA-1000mA
- mAs Range: 0.1~1000mAs
- Input Power: 380V, three phases
- Supports ABS & AEC functions
X-Ray Tube (Canon E7254FX)
- Focus: 0.6/1.2mm
- Voltage: 150kV
- Anode Heat Capacity: 400kHU
- Input Power: 40kW/102kW
- Rotating Speed: 2700rpm / 9700rpm
Dynamic Flat Panel Detector (Foinoe-DR-CP)
- Technology: a-Si Flat Panel Detector
- Scintillator: CsI
- Images size: 430mm x 430mm
- Static Pixel Matrix: 3072 x 3072
- Dynamic Pixel Matrix: 1536 x 1536
- Pixel size: 140μm
- Max Frame Rate: 30f/s

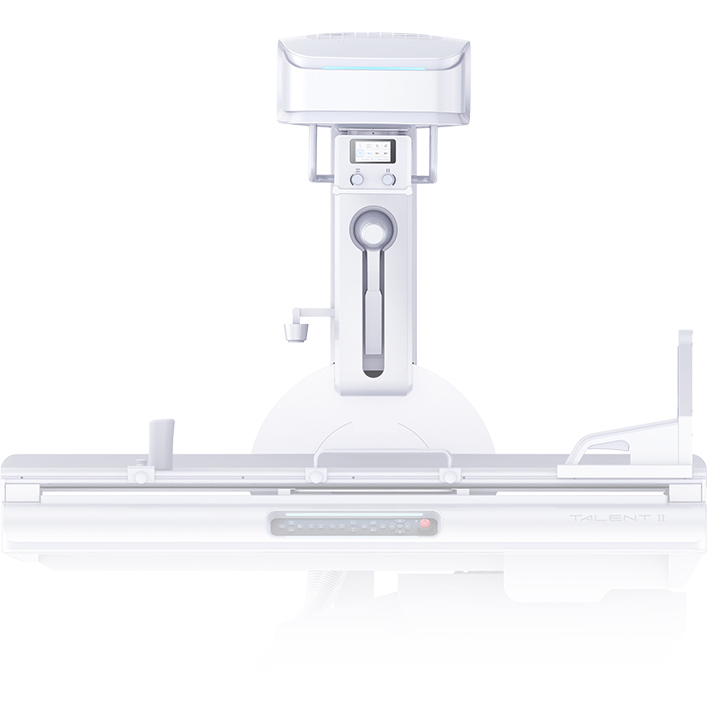

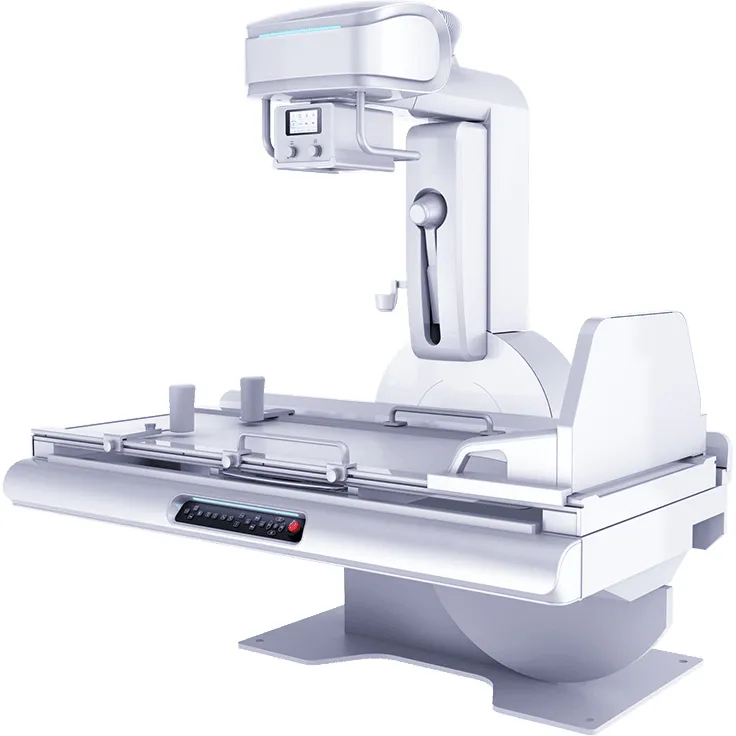

Remote Control Bed (DC-DT-4)
- Bed Size: 2106 x 2042 x 1636mm

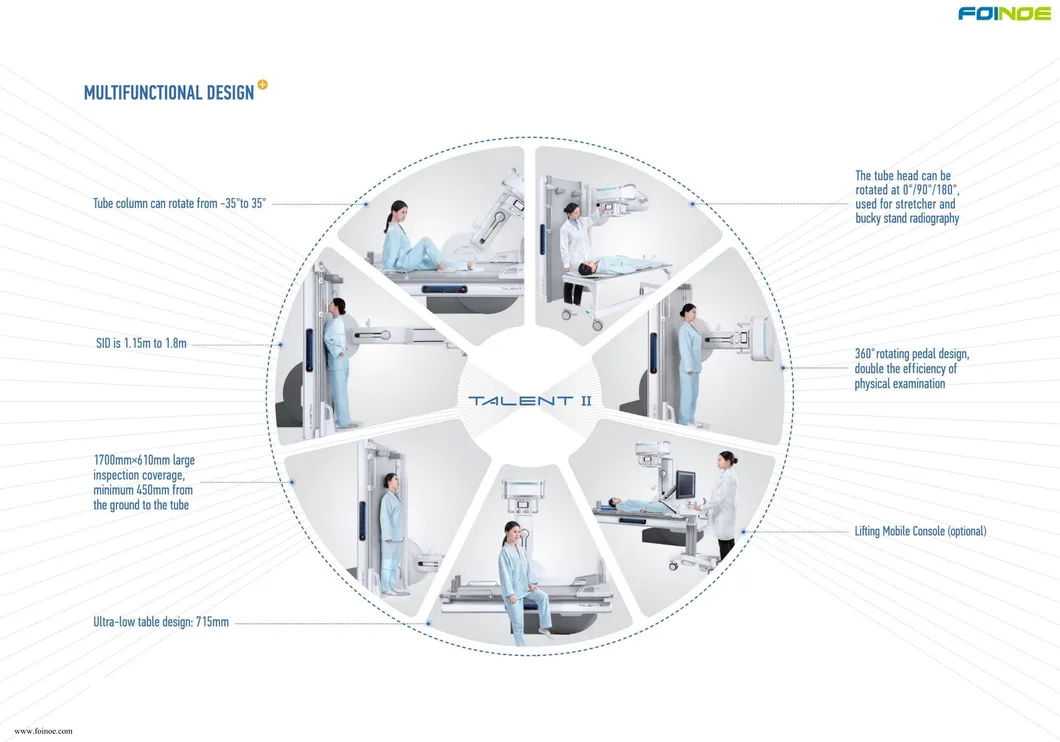

- SID Range: 1.15m - 1.8m
- Bed Rotate Range: -15° to +90°
- Tube Column Rotate: -35° to +35°
- Load Bearing: 200kg
- Function: One-click in Place (Standing/Lying)
DX Ray Diagnostic Workstation (TS-5)
- RAM: 8G | Hard Disk: 1T
- Protocol: Standard DICOM 3.0

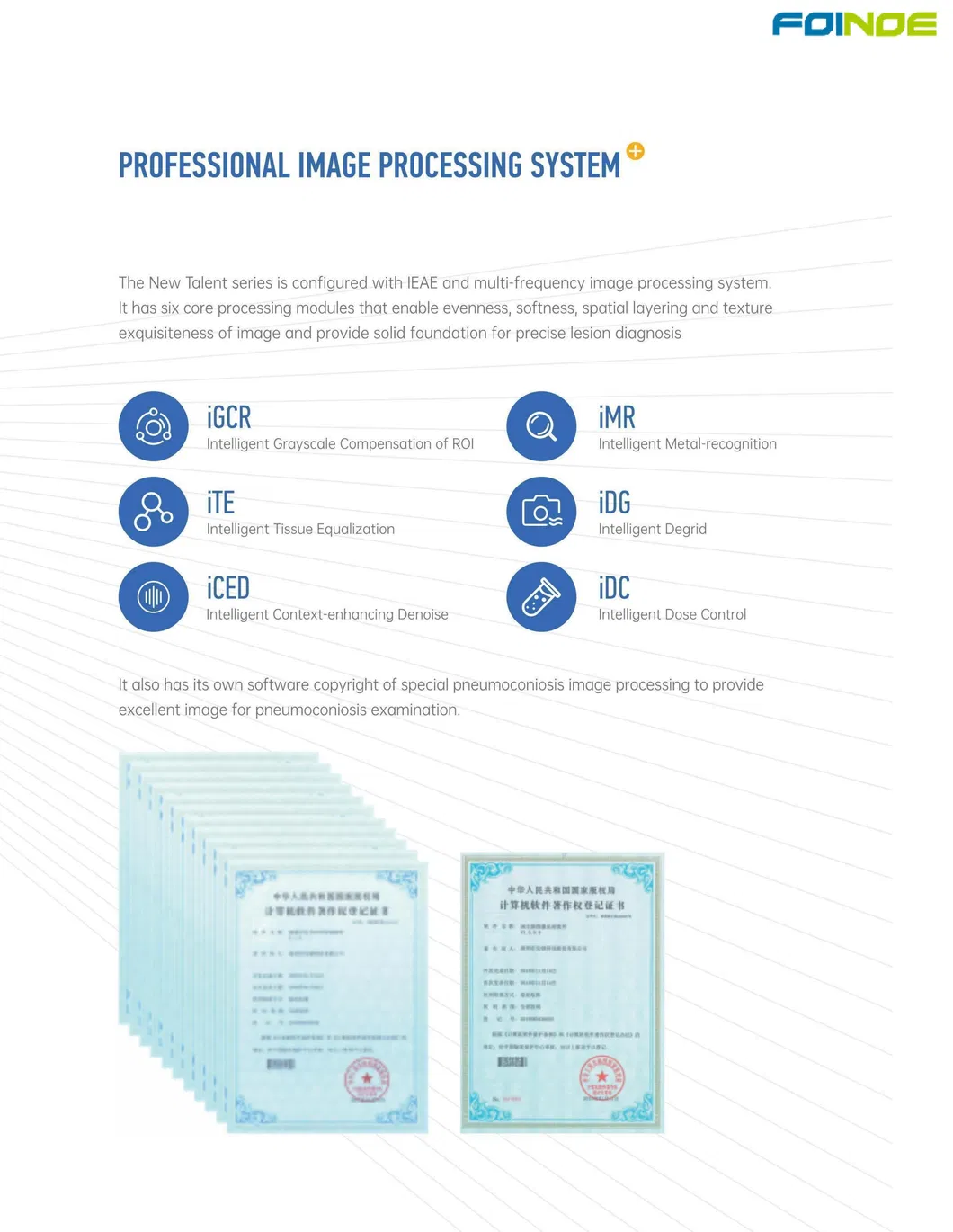

- Image Processing: EAE Enhancement, IEQ Processing
- Anatomically Programmed Radiography (APR): 1350+ Programs
- Automatic Collimator Adjustment
❓ Frequently Asked Questions

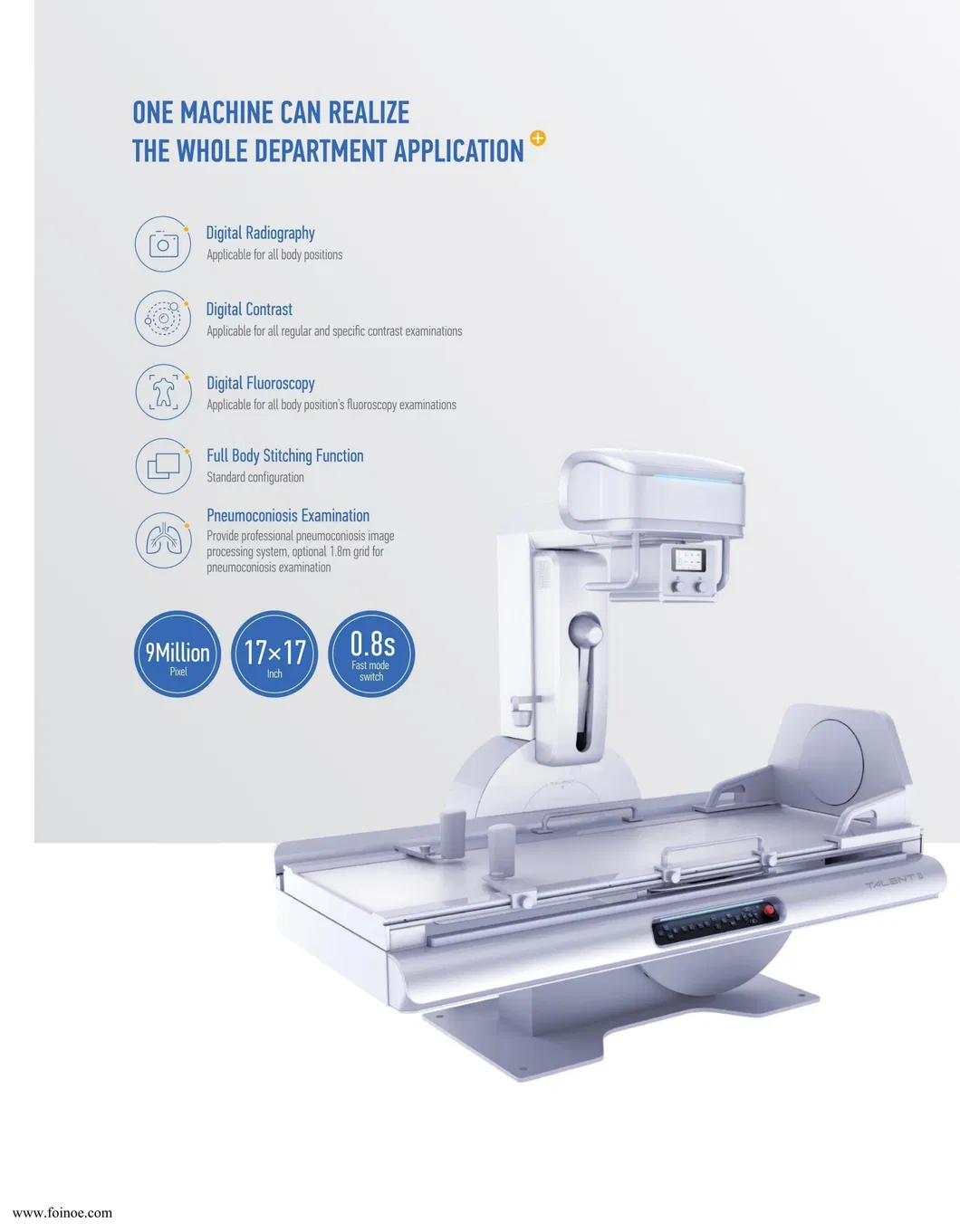

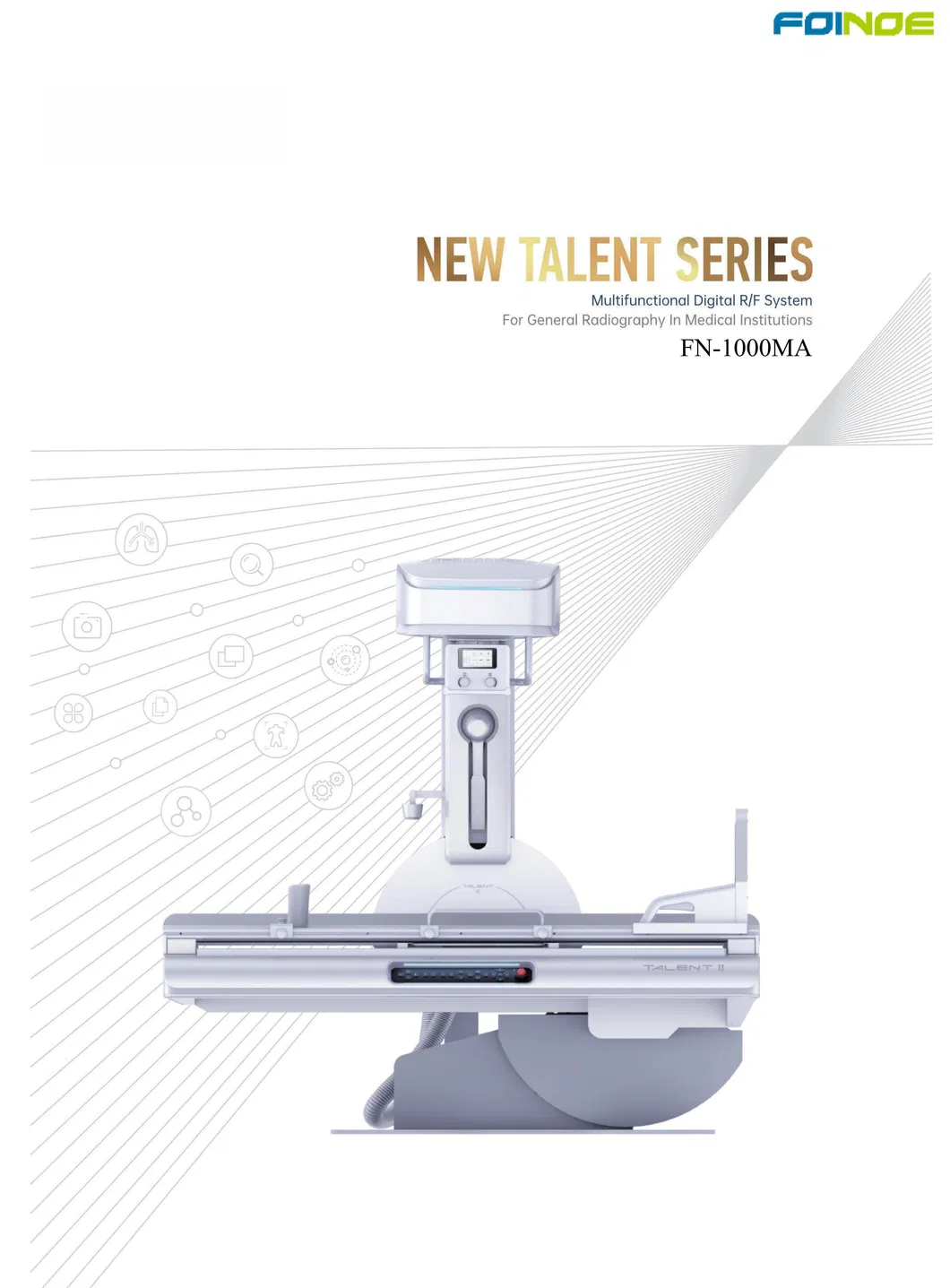

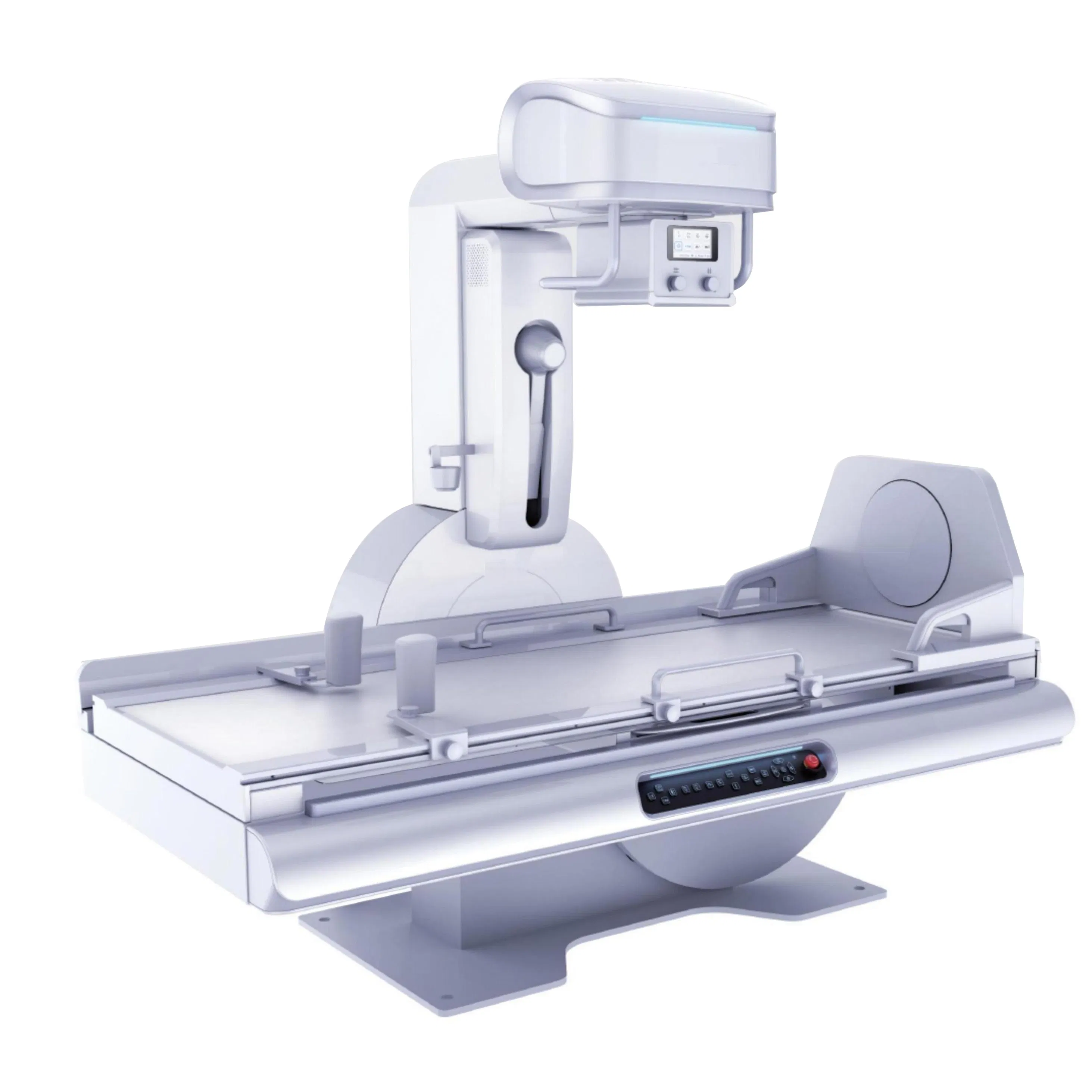

What are the primary functions of the FNX-1000MA system?
The FNX-1000MA is a multifunctional digital system designed for both high-quality digital radiography and dynamic fluoroscopy, suitable for comprehensive medical diagnostics.
What is the advantage of the dynamic flat panel detector?
It uses a-Si technology with a CsI scintillator, providing a high pixel matrix (3072x3072 for static) and a frame rate of up to 30f/s for smooth dynamic imaging.
Can the bed position be controlled remotely?
Yes, the system features a remote-controlled bed with a rotation range of -15° to +90° and a one-click function to automatically switch between standing and lying positions.
Is the system compatible with standard hospital networks?
Yes, the TS-5 workstation complies with standard DICOM 3.0, allowing seamless transmission to PACS and connection to medical report printers.
What safety features are included for radiation control?

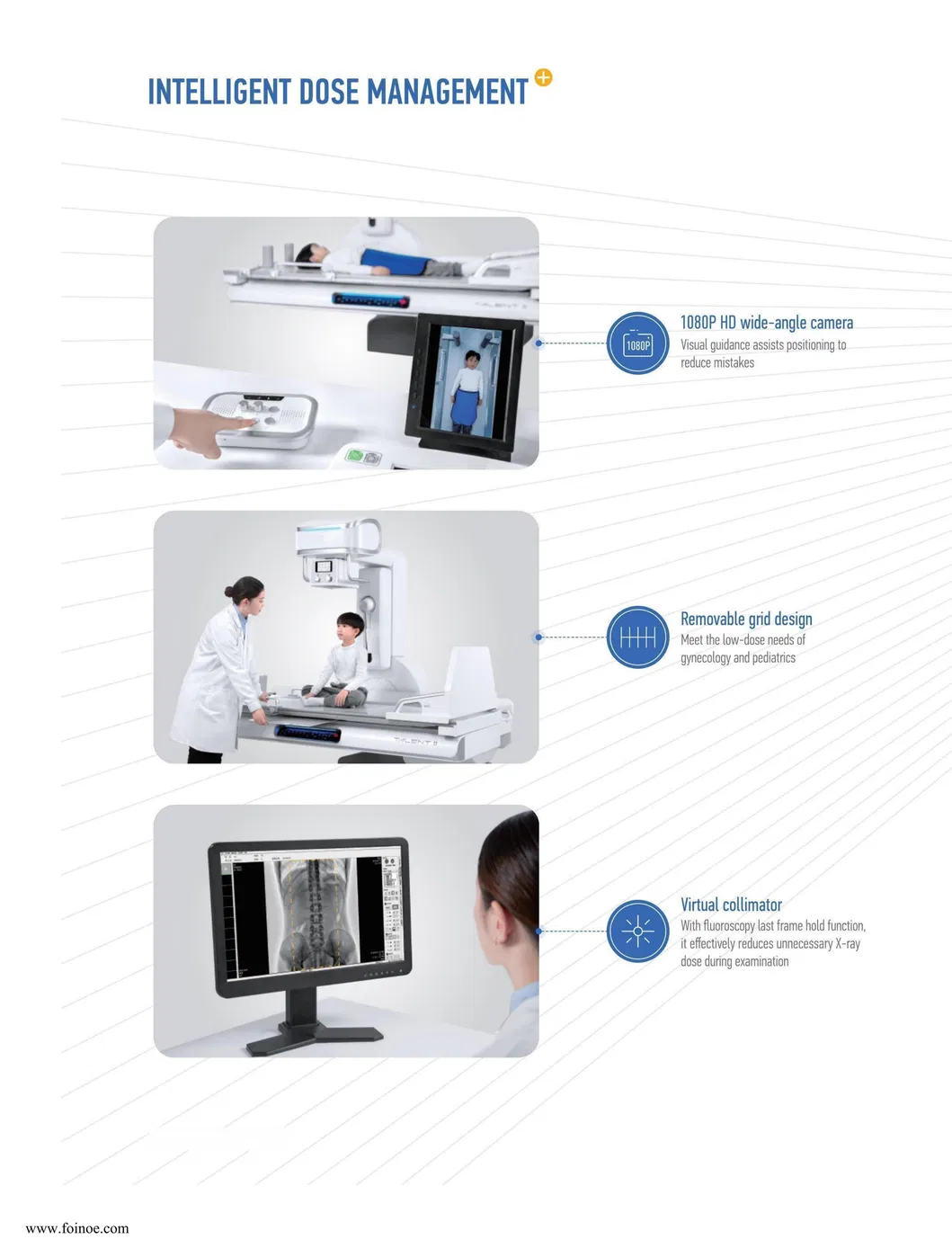

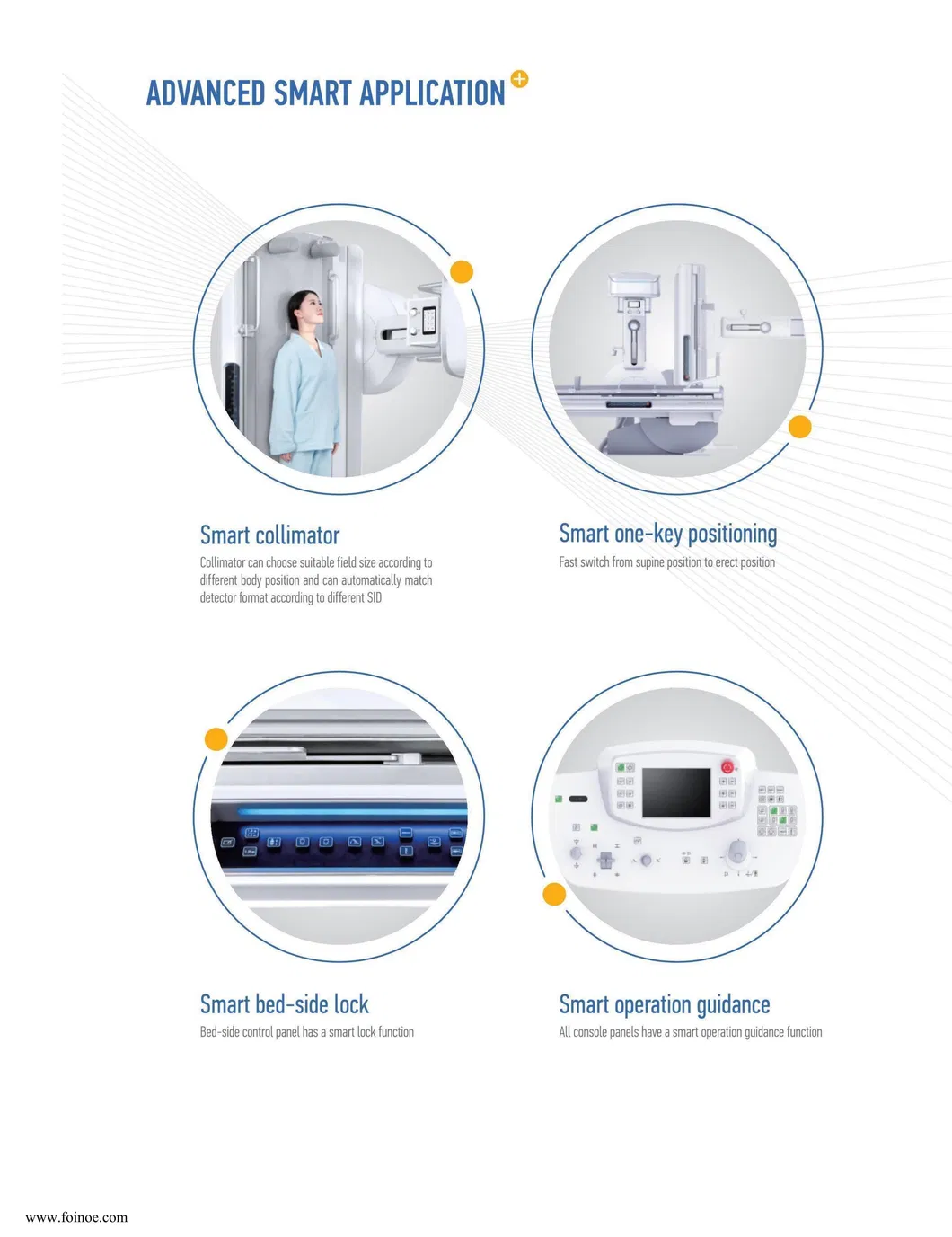

The system includes an automatic collimator that adjusts window size based on the chosen body part and an exposure/fluoroscopy switch to prevent accidental radiation.
What is the power capacity of the high-frequency generator?
The system is equipped with an 80kW high-frequency generator supporting radiography voltages up to 150kV and current up to 1000mA.
