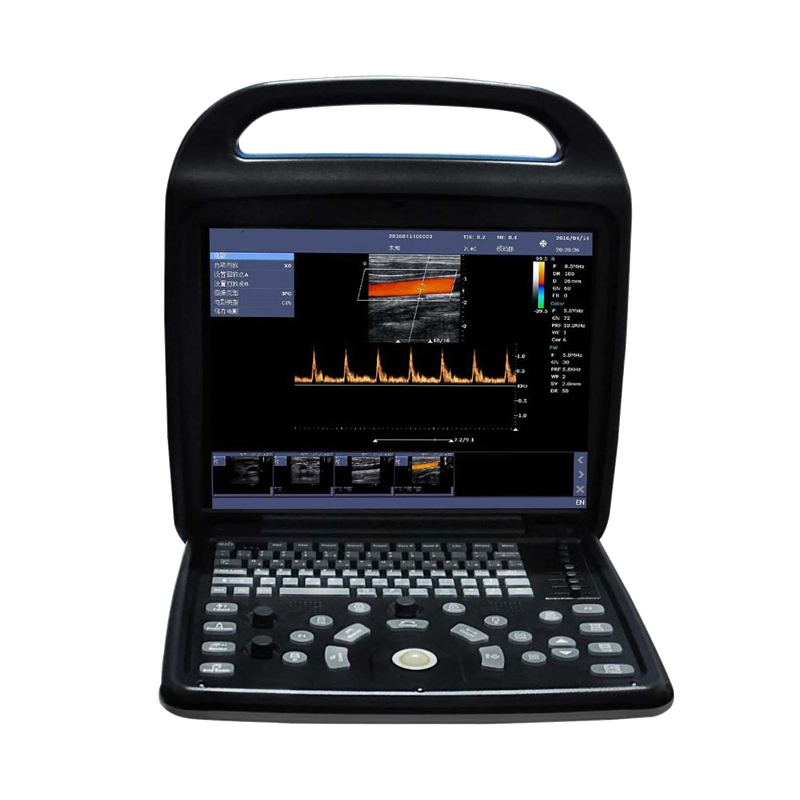

Portable Compact Color Doppler Ultrasound Imaging System--Advanced Imaging for Human & Veterinary Use

1 / 5

Portable Compact Color Doppler Ultrasound Imaging System--Advanced Imaging for Human & Veterinary Use

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Ultrasound Scanner

Send Inquiry

Product Description

Basic Specifications

Model NO.UMUS069

CertificationCE, FDA, ISO13485

Weight≤7.5kg

Display15-Inch High-Res LCD

Imaging ModesB, M, Color Doppler, PDI

Battery Life≥2 Hours

StorageBuilt-in 500GB HDD

Scanning Depth≥320mm

Product Description

The UMUS069 is a high-end portable color Doppler ultrasound system designed for both human and veterinary use. It offers exceptional imaging performance for abdominal, urological, obstetric, cardiac, and small organ examinations. Its ergonomic design and advanced imaging technologies make it an ideal choice for clinics, hospitals, and animal medical institutions.

⭐Key Features

Lightweight & Portable: Weighs ≤7.5kg for easy transport between clinical settings.
High-Resolution Display: 15-inch LCD monitor for detailed diagnostics.
Advanced Modes: Supports B-mode, M-mode, Color Doppler, Power Doppler (PDI), and Pulse Doppler (PW).
Multi-Probe Compatibility: Includes micro-convex, convex array, linear array, rectal, and cardiac probes.
DICOM 3.0: Seamless integration with existing medical imaging networks.

Technical Specifications

📊Imaging Parameters

Attribute Name	Attribute Value
Weight	≤7.5kg
Display	15-inch high-resolution LCD monitor
Imaging Modes	B-mode, M-mode, Color Doppler, PDI, PW
Probe Frequency Range	2.5-10.0MHz
Storage Capacity	Built-in 500GB hard drive
Max Scanning Depth	≥320mm
DICOM Compliance	DICOM 3.0 standard

⚙️Standard Configuration

Full digital color ultrasound host (500GB HDD)
Frequency conversion micro-convex probe
Frequency conversion linear array probe
Comprehensive user documentation

Visual Overview

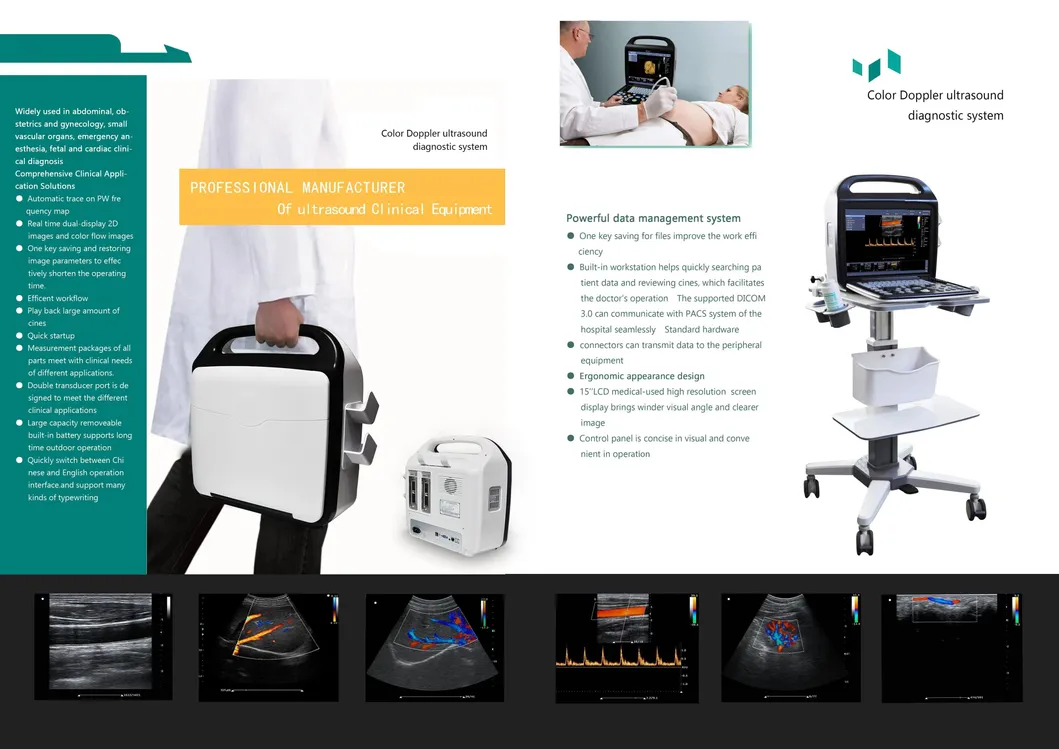

Portable Color Doppler Ultrasound System

Production & Installation

Frequently Asked Questions

1. Can the UMUS069 be used for both animals and humans?

Yes, the system is designed as a versatile diagnostic tool suitable for abdominal, urological, obstetric, and cardiac examinations in both human medicine and veterinary practices.

2. What imaging modes are available on this portable system?

The system supports multiple advanced modes including B-mode, M-mode, Color Doppler, Power Doppler (PDI), and Pulse Doppler (PW) for precise diagnostic imaging.

3. How portable is the device for field work?

The UMUS069 is highly portable, weighing ≤7.5kg and featuring a built-in high-capacity lithium battery that provides ≥2 hours of continuous operation without a power outlet.

4. What is the storage capacity for patient images and videos?

The unit comes with a built-in 500GB hard drive, supporting various formats such as JPG, BMP, FRM for images and CIN or AVI for video clips.

5. Does the system support international data standards?

Yes, it is fully DICOM 3.0 compliant, ensuring seamless data sharing and integration with hospital PACS systems and other medical networks.

6. What quality control measures are in place for this equipment?

Quality is guaranteed through strict pre-production sample testing and a comprehensive final inspection of every unit before shipment to ensure clinical reliability.
