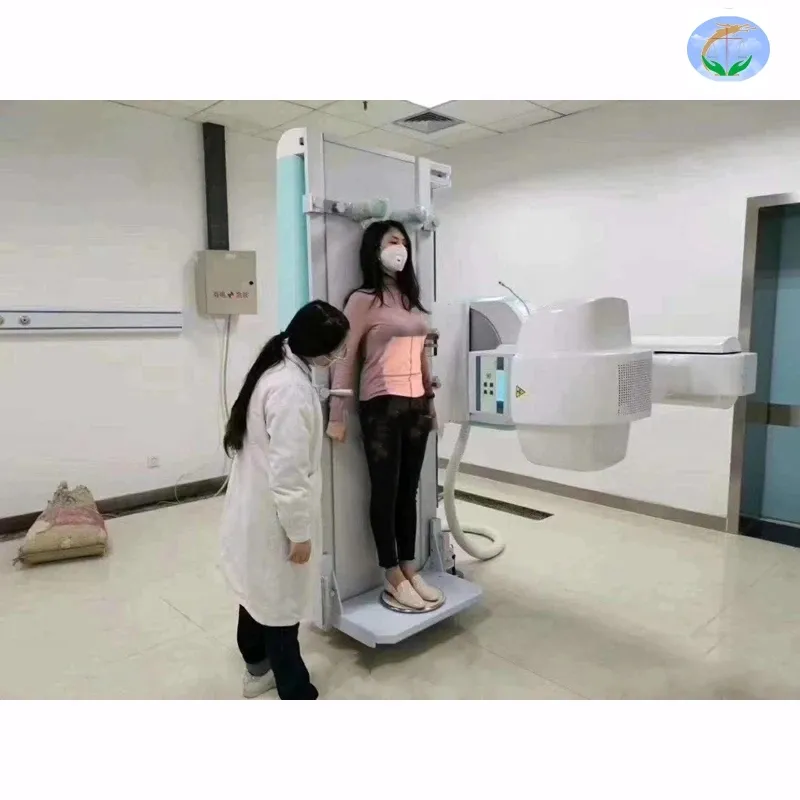

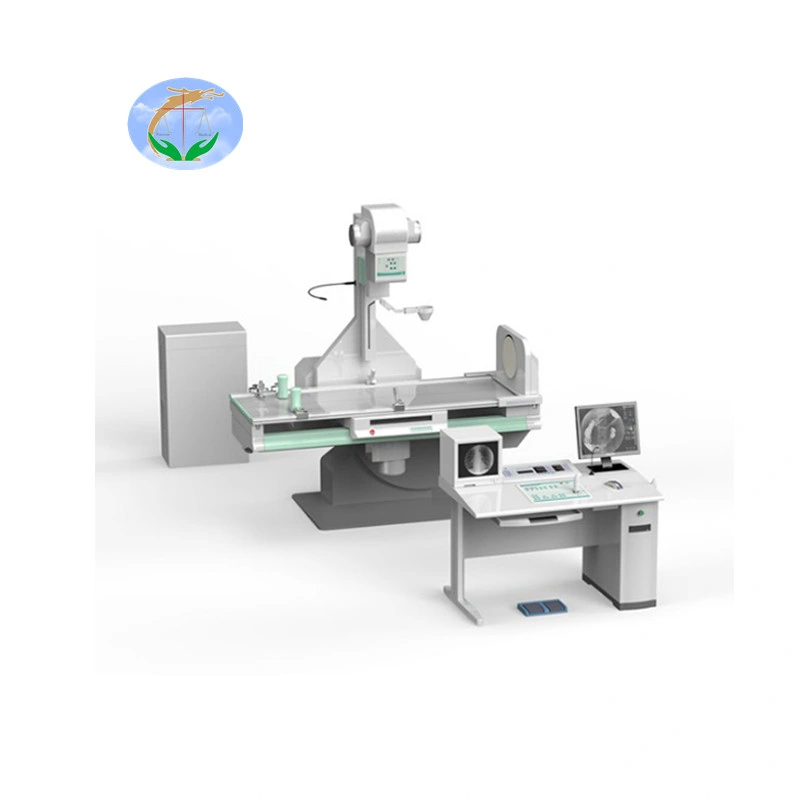

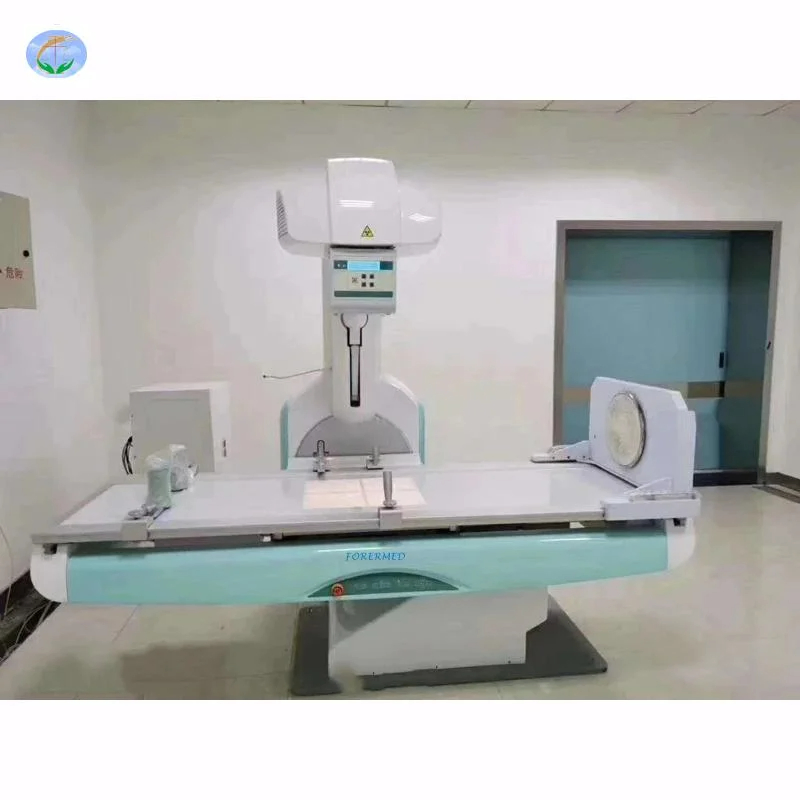

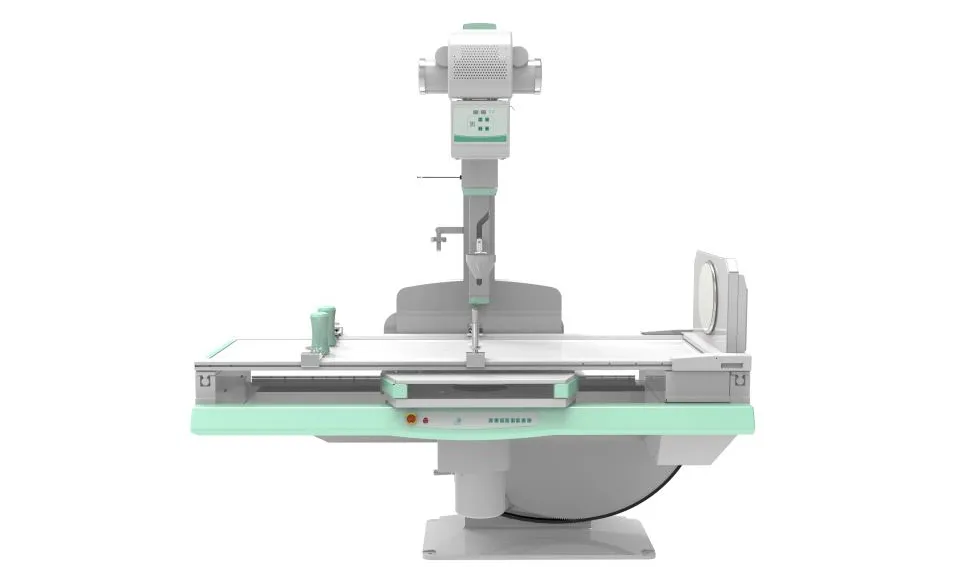

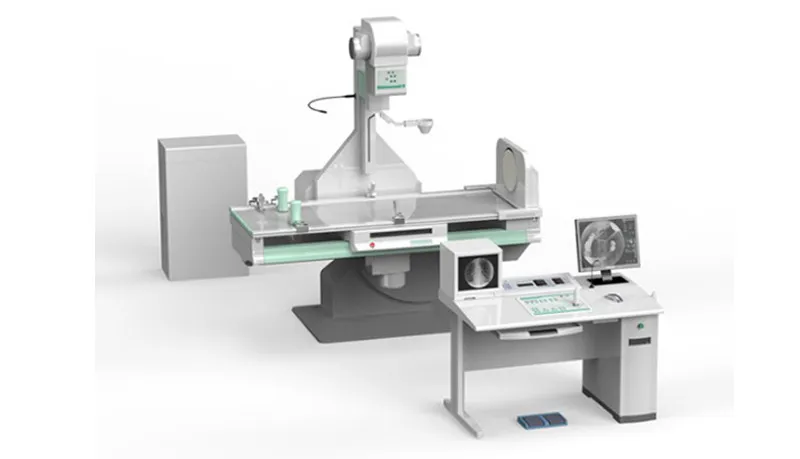

Full support perspective, gastrointestinal spot film, GI (barium meal, barium enema), orthopedic photography, pediatrics photography, chest, urinary system angiography, peripheral angiography operations, gynecological Photography (HSG) and many other checks, the real machine can realize all these functions.
| Item | Content | Technical Parameter | |
|---|---|---|---|
| Power supply | Voltage | 380V±38V | |
| Frequency | 50Hz±1Hz | ||
| Capacity | ≥65kVA | ||
| Internal Resistor | ≤0.17Ω | ||
| Digital X-ray High Voltage System | Photography | Power Output | 80KW |
| Inverter Frequency | 440KHZ | ||
| Tube Voltage | 40kv-150kv step regulation | ||
| Tube Current | 10mA-1000mA step regulation | ||
| Exposure time | 1.0s-10000ms step regulation | ||
| Control interface | Touched LCD | ||
| Control hand | One-button operation handle | ||
| Digital Controlled X-ray Tube | Tube Brand | Toshiba | |
| Tube Focus | 1.2mm / 0.6mm | ||
| Input Power | Large focus: 80KW / small focus: 50kW | ||
| Thermal Capacity | 400 KHU | ||
| Intensifier and Monitor | Image Intensifier | Toshiba (9"/6"/4.5") | |
| CCD Camera | 2,000,000 pixel | ||
| Monitor | 14" High Definition Monitor | ||
| Workstation | i5-6500, 4 GB DDR3, 500GB SATA, DSI function | ||
| LCD Screen | 19" LED Medical High Definition Monitor | ||

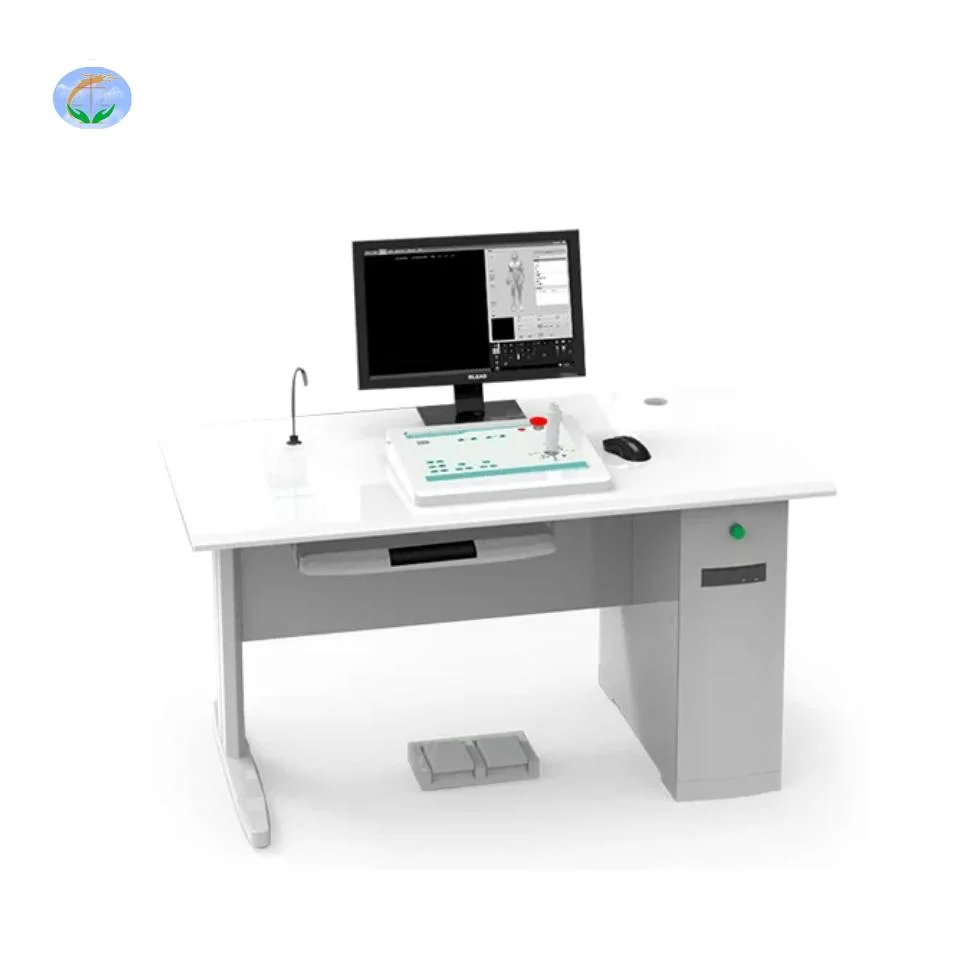

| Remote console (with touch screen control) | 1 set |
| High-voltage generator | 1 set |
| Toshiba X-ray Tube | 1 set |
| Electric multi-leaf collimator | 1 set |
| Diagnostic Bed | 1 set |
| Three Field image intensifier | 1 set |
| CCD Camera | 1 set |
| Medical HD monitor | 1 set |
| High voltage cable | 2 sets |
| Workstation | 1 set |
