Model NO.HDR-570
CertificationCE, ISO13485
DetectorDynamic Digital Detector
Detector TechnologyFull-Frame CCD
Tube Focus0.6mm / 1.2mm
Max Output Voltage150kv
Heat Capacity300khu
Output Power27kw / 75kw
Transport PackageWooden Case
Production Capacity500 Piece/Month

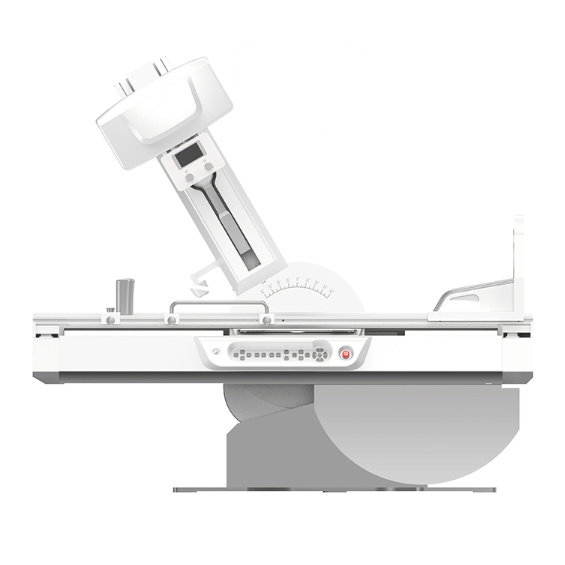

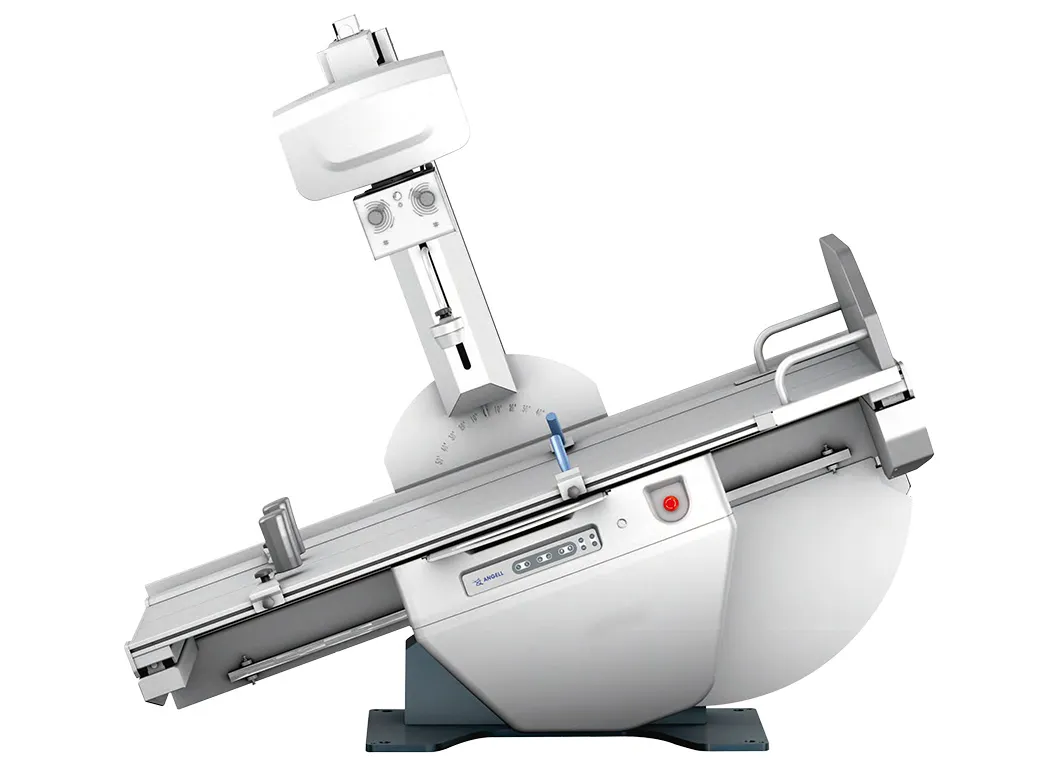

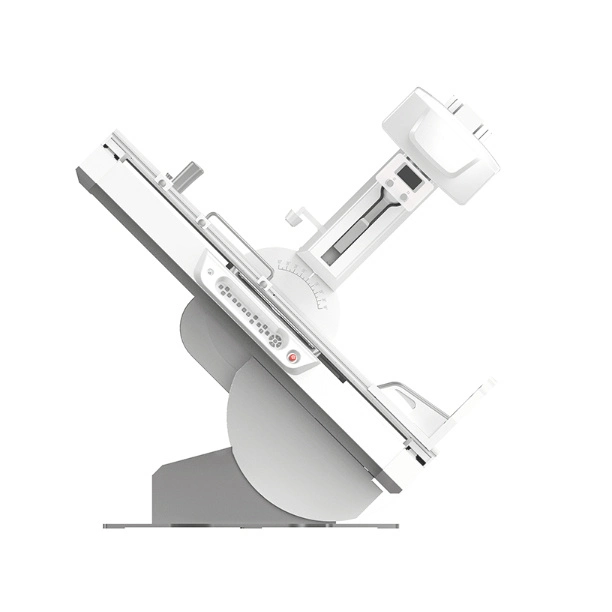

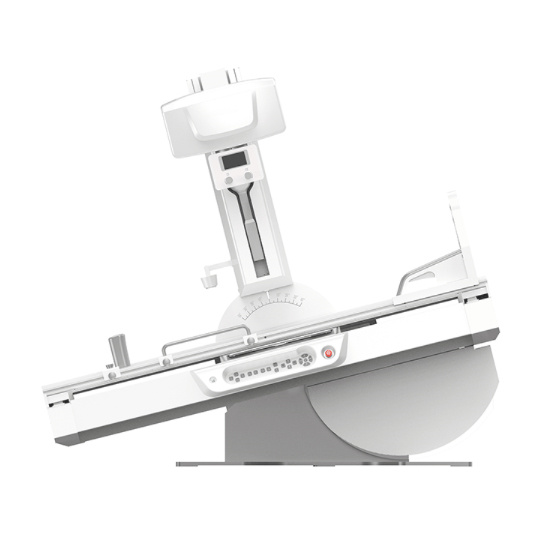

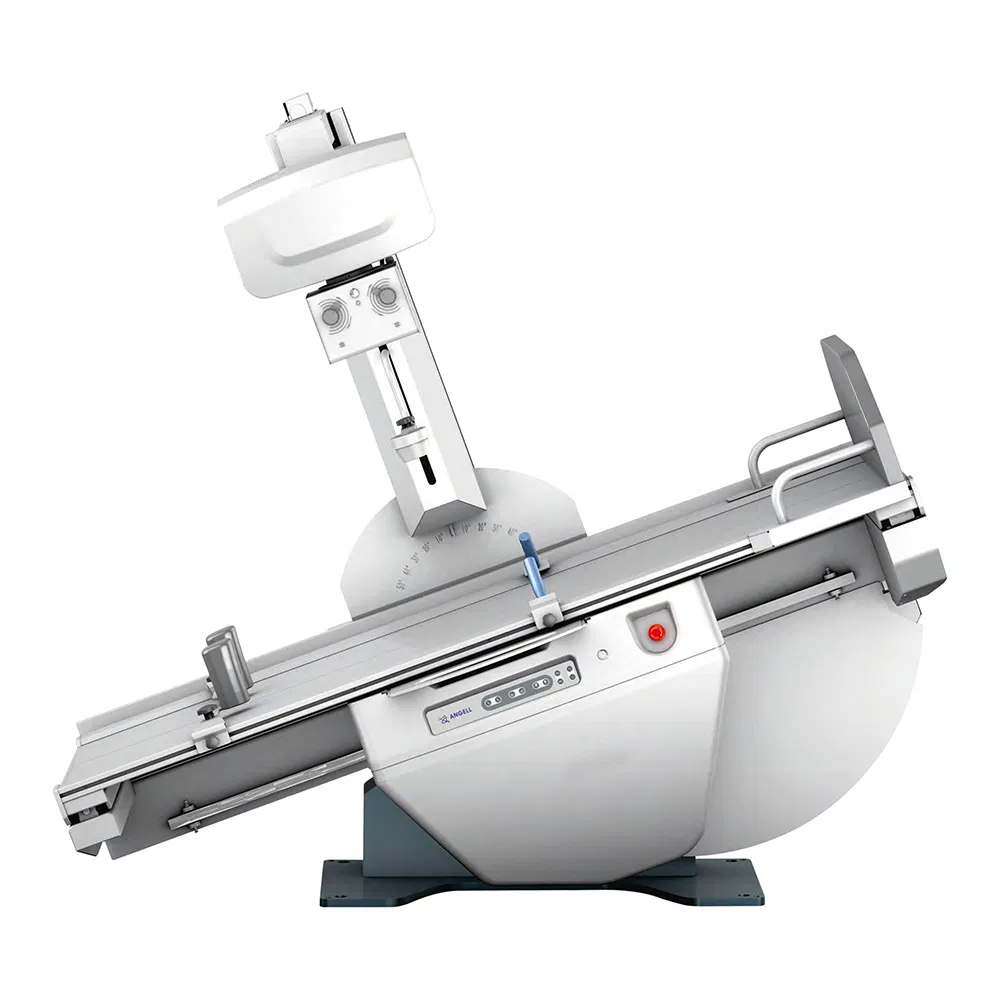

HDR-570 High Frequency Digital Dynamic Detector Radiography & Fluoroscopy X Ray System
▶
Large view field 43cm X 43cm
A full sized view area with HD image can enable doctors to be more focused on lesion observation, and reduce radiation time for patients. HDR-570 with full size dynamic detector makes X-ray image reading much easier and more convenient. It is not affected by geometric distortion which is typical of image intensifiers.
▶
Avoid misdiagnosis and missed diagnosis

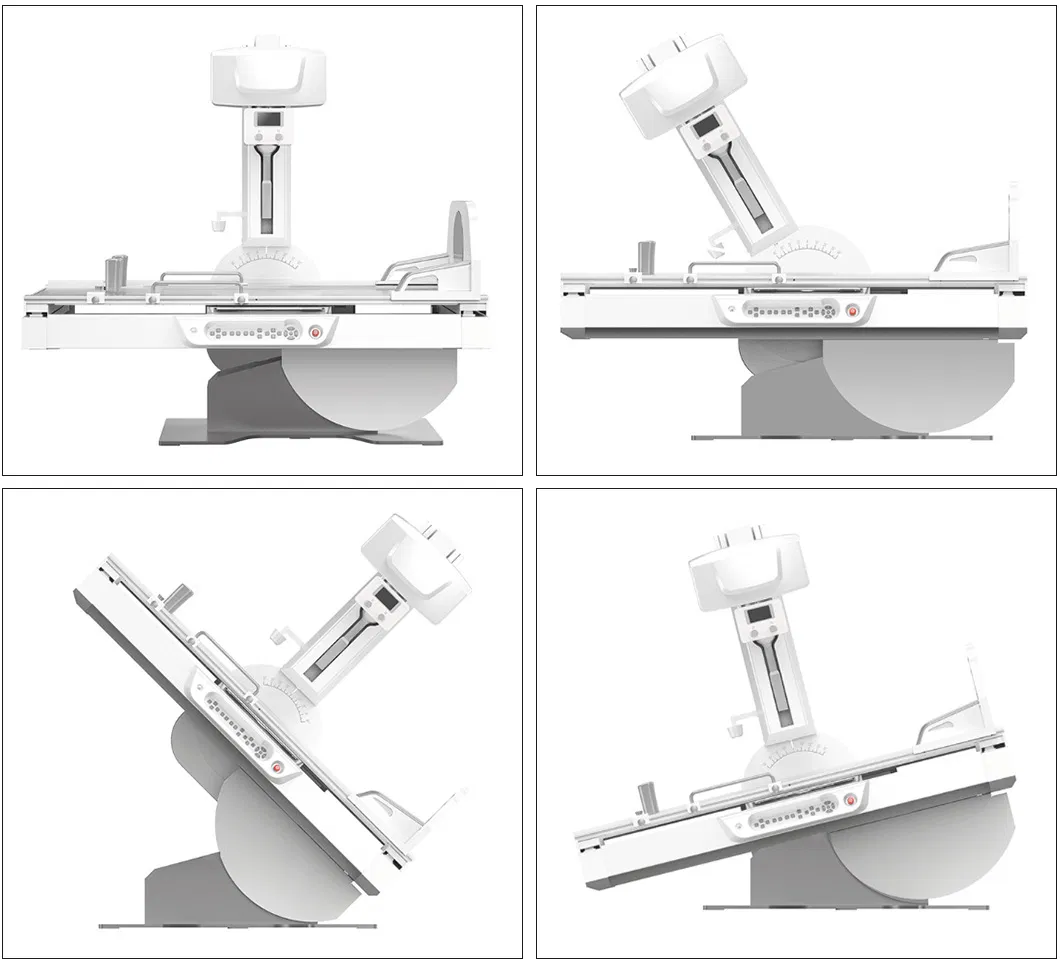

Static DR sometimes have problem of misdiagnosis which resulted from overlaid images or improper positions. HDR-570 can provide multiple view angles with dynamic preview images, which helps to find out hidden lesions or correct the improper position in the low dose preview mode, together with spot film function to make a more precise diagnosis.
▶
Digital radiography & Fluoroscopy
Wide range of examination angles for Skull, Thorax, Abdomen, Vertebral Column, Pelvis and Extremities. Dynamic checking for esophagography, upper gastrointestinal, intravenous urography (IVP), HSG, and T-tube cholangiography.
Technical Specification
| Dynamic Detector |
Effective View Field |
17 x17 inch (430mm x 430mm) |
| Static Pixel Matrix |
3072 x 3072 |
| Dynamic Pixel Matrix |
1024 x 1024 |
| Output Grayscale |
14bit |
| Spatial Resolution |
3.57lp/mm |
| X-ray Tube |
Tube Focus |
0.6mm / 1.2mm |
| Max Output Voltage |
150kV |
| Heat Capacity |
300kHU |
| 50KW Generator |
Power Requirement |
380V with 3 Phases Wires |
| Output Voltage (Radiography) |
40kV - 150kV |
| Output Current (Radiography) |
10mA - 650mA |
| Range of mAs |
0.4mAs - 630mAs |
| Workstation |
CPU / RAM |
Dual-Core 3.0G / 2GB |
| Display |
24-inch |
| Hard Disk |
500G |
Frequently Asked Questions
What is the time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. For small or sample orders, please check with us regarding ready stock availability.
What about quality assurance?
We offer a one-year warranty period beginning from the time of shipment. For minor problems, we provide free spare parts for replacements. For serious issues, we can provide a free replacement.
How competitive is the price level?
We are confident that our prices are competitive at the same quality level, backed by over 20 years of experience in the field. We adhere to providing top-quality products at competitive prices.
Why do prices vary between suppliers for similar-looking models?
Prices vary based on the quality of materials used and the level of quality control. Products using cheaper materials and having less rigorous testing are naturally lower in price.
What are the accepted payment terms?
We accept T/T in advance, L/C, Western Union, PayPal, and MoneyGram.
Which shipping companies do you use?
We work with major lines such as MAERSK, PIL, COSCO, and APL, as well as couriers like DHL, EMS, TNT, and UPS. We prioritize the buyer's option based on schedule and service needs.
