High-End Digital Radiography and Fluoroscopy Drf System

Customization:	Available
Certification:	CE, ISO13485
Transport Package:	Standard Export Packing

Send Inquiry

Product Description

Basic Information

Model NO.

MSLPLD6500

Product Description

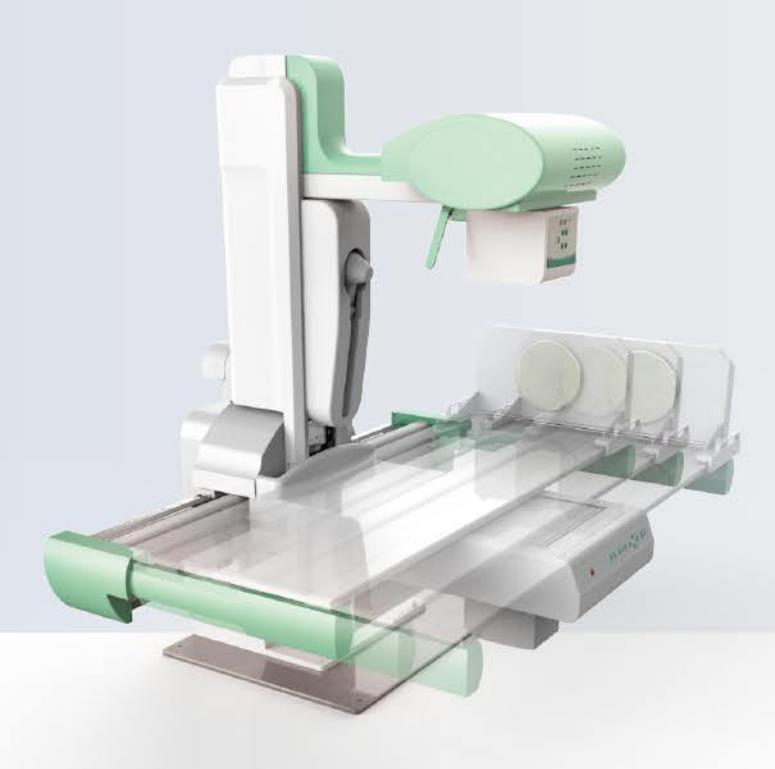

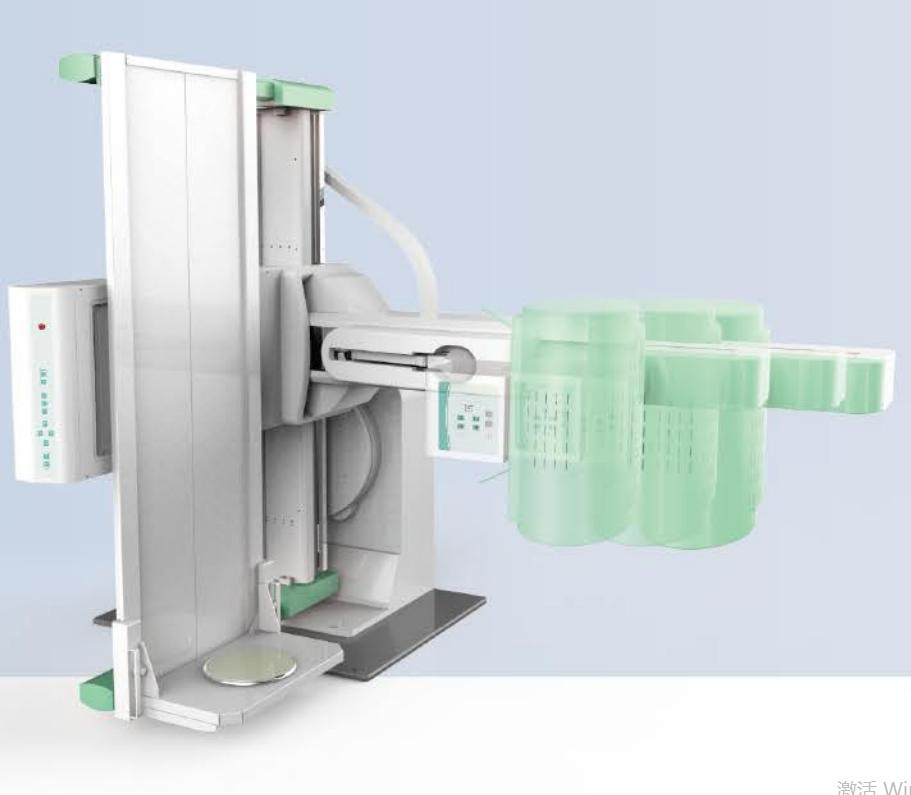

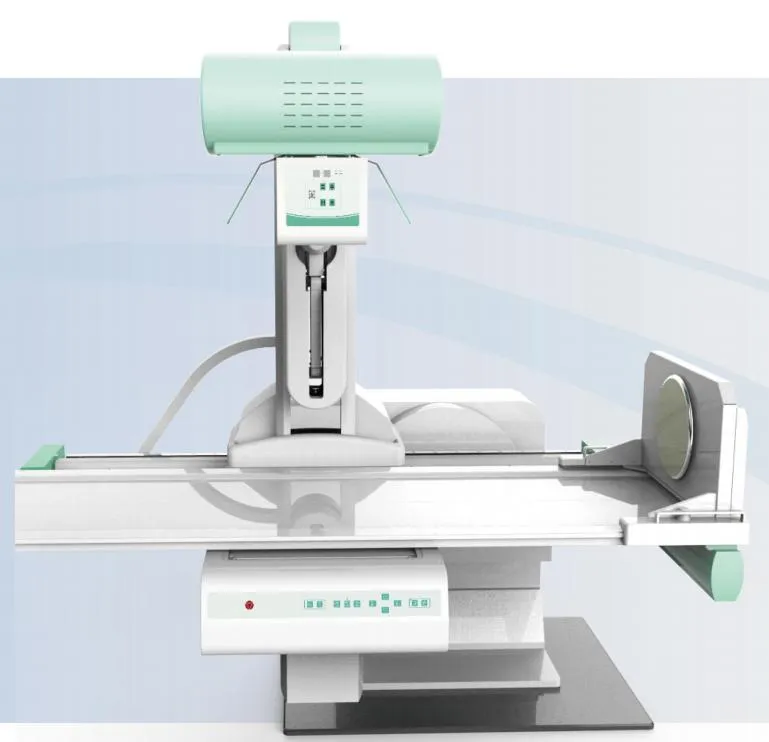

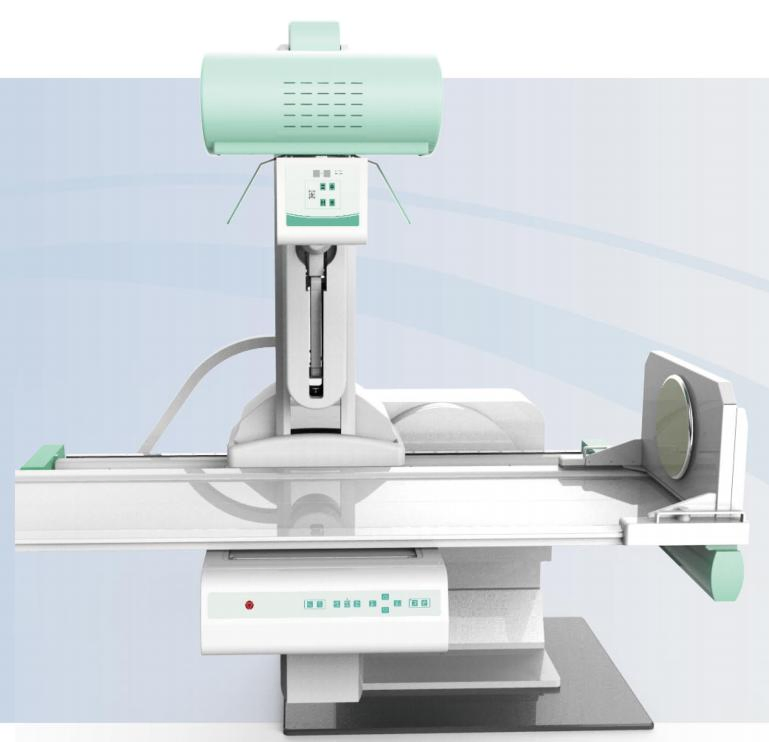

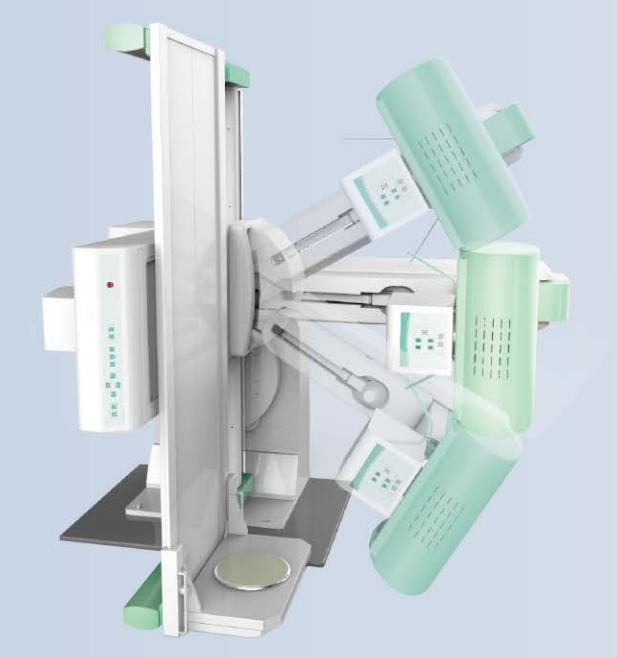

MSLPLD6500 High-end Digital Radiography & Fluoroscopy System

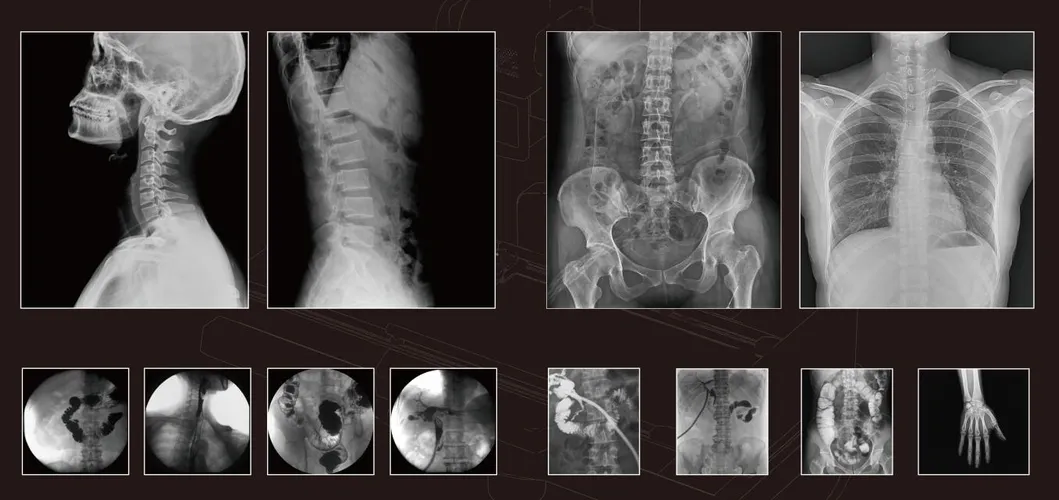

Fully support perspective, gastrointestinal spot film, GI (barium meal, barium enema), orthopedic photography, pediatrics photography, chest, urinary system angiography, peripheral angiography operations, gynecological Photography (HSG) and many other checks. The MSLPLD6500 can realize all these functions effectively.

Technical Parameters

Item	Content	Technical Parameters
Power Supply	Voltage	380V±38V
	Frequency	50Hz±1Hz
	Capacity	≥65kVA
	Internal Resistance	≤0.17Ω
Generator	Power	80 KW
	Inverter Frequency	440 KHz
	Radiography Tube voltage	40kV~150kV step adjustment
	Radiography Tube current	10mA~1000mA step adjustment
	Radiography mAs	0.1 mAs~1000 mAs
	Fluoroscopy Tube voltage	40kV~125kV step adjustment
X-ray Tube	Target	Molybdenum-based lanthanum-tungsten composite
	Target angle	12°
	Tube Focus	1.2mm / 0.6mm
	Anode Rotation Speed	9700 rpm
Diagnostic Table	SID	1100mm~1800mm
	Table size	2100mm×730mm
	Table rotation	+90°~0°~ -25°
	Compressor pressure	80N~130N
	Table bearing	135kg
Flat Panel Detector	Pixel size	143μm
	Effective area	430(H)*439(V)
	Spatial resolution	3.7 Lp/mm(CsI)

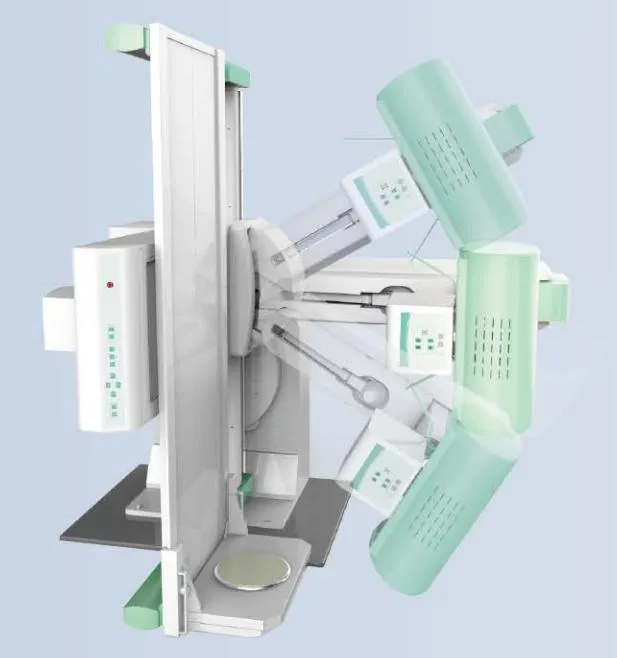

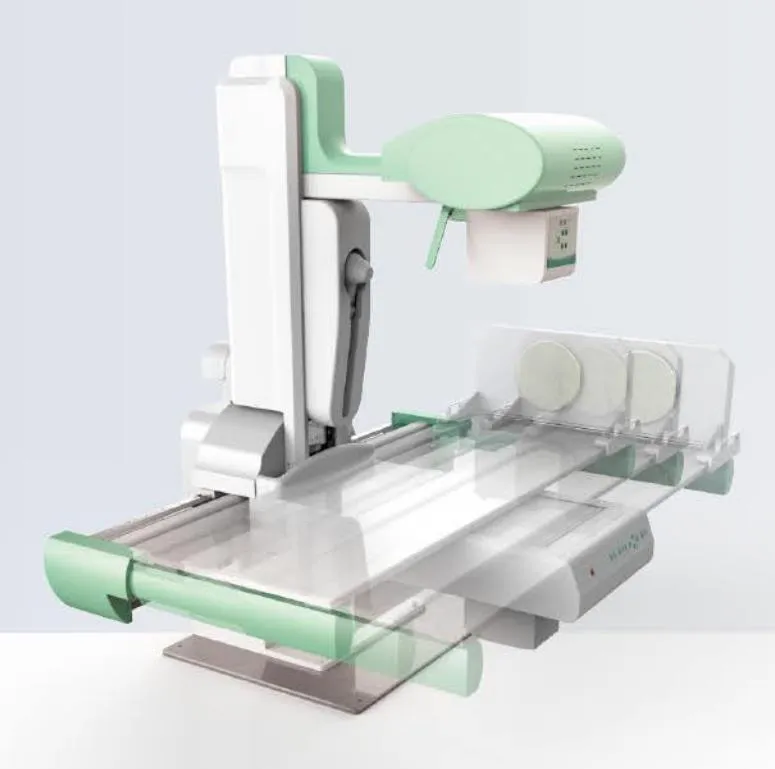

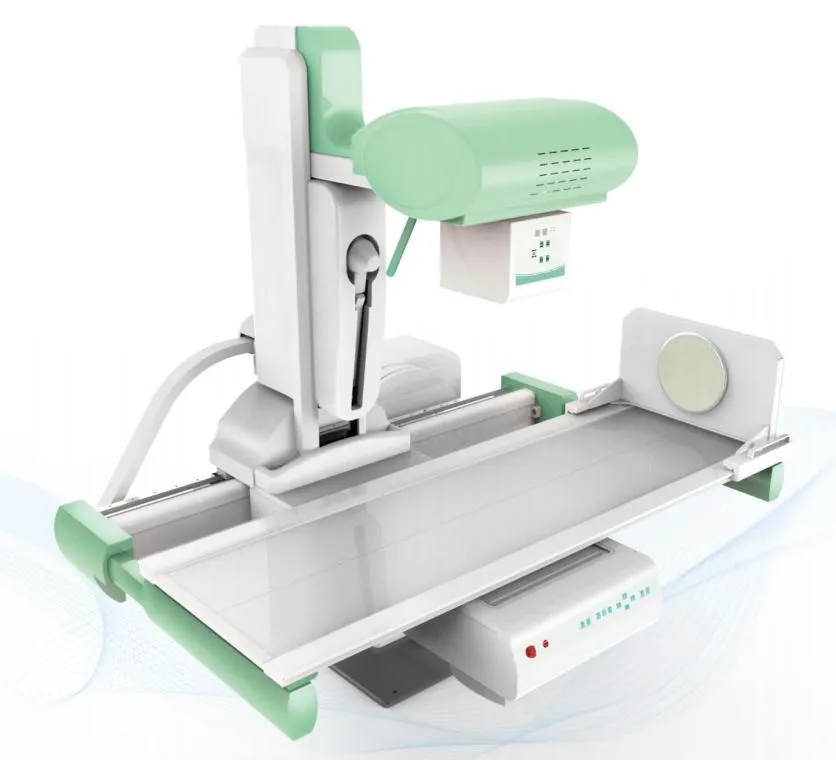

Detailed Photos

Frequently Asked Questions

What are the primary clinical applications of the MSLPLD6500?

The system supports a wide range of examinations including gastrointestinal spot films, GI (barium meals/enemas), orthopedic photography, pediatrics, chest imaging, urinary system angiography, and gynecological photography (HSG).

What is the power capacity of the high-frequency generator?

The system is equipped with a powerful 80KW generator with an inverter frequency of 440 KHz, ensuring high-quality imaging and stable performance.

Does the diagnostic table support rotation for different procedures?

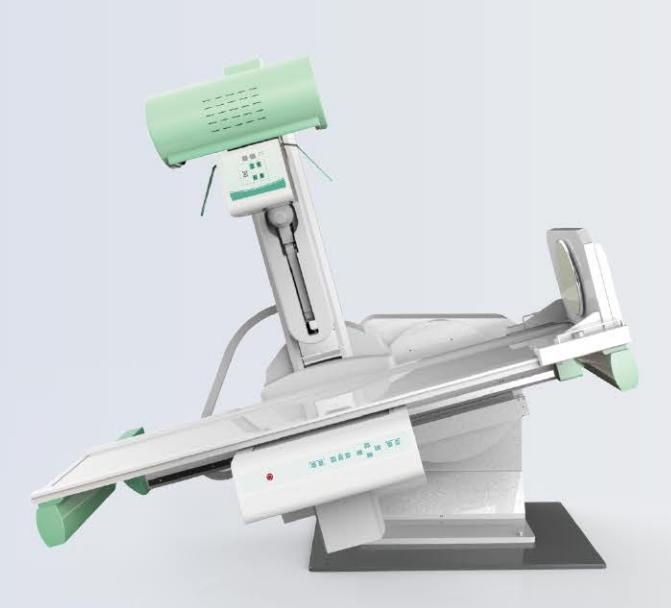

Yes, the diagnostic table features a rotation range of +90° to -25°, allowing for versatile positioning during various radiographic and fluoroscopic procedures.

What type of detector technology is used in this system?

The MSLPLD6500 utilizes an amorphous silicon thin film transistor Flat Panel Detector with a pixel size of 143μm and a spatial resolution of 3.7 Lp/mm (CsI).

What are the workstation's image processing capabilities?

The workstation software includes advanced functions such as real-time noise reduction, image enhancement, horizontal/vertical flipping, window width/position adjustment, and comprehensive DR acquisition tools.
