💡 Key Features

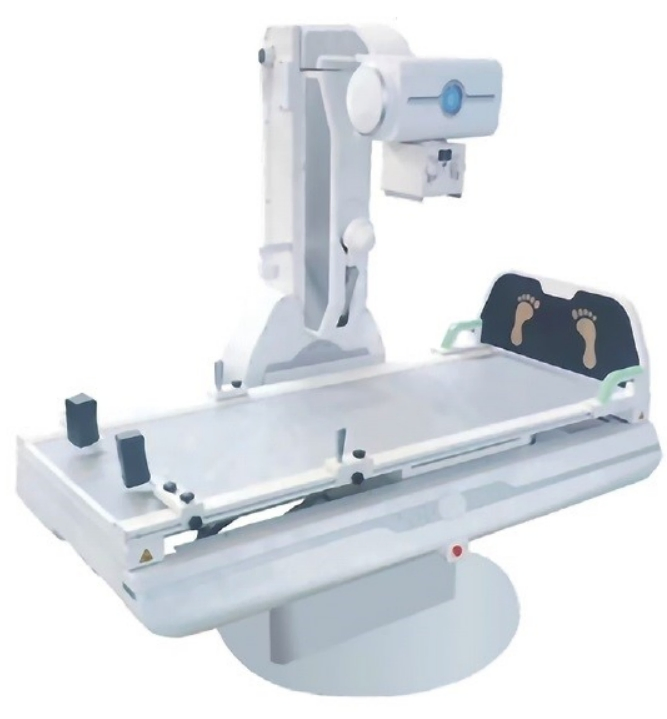

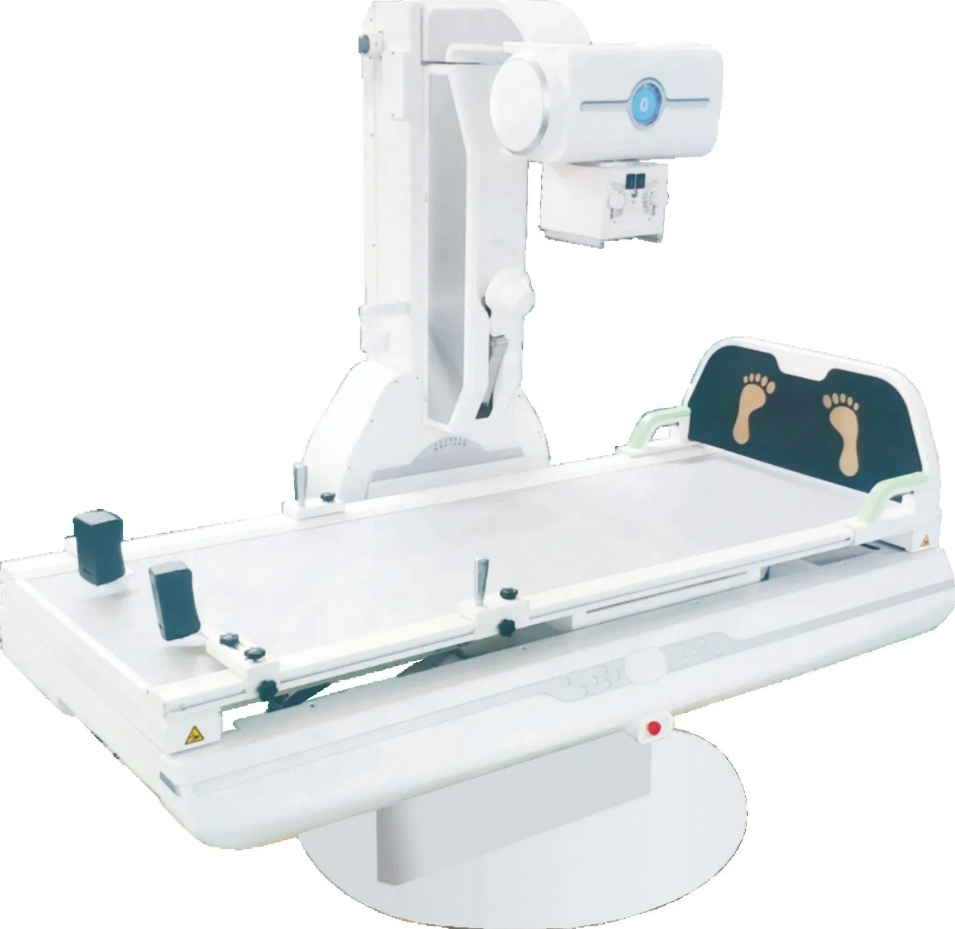

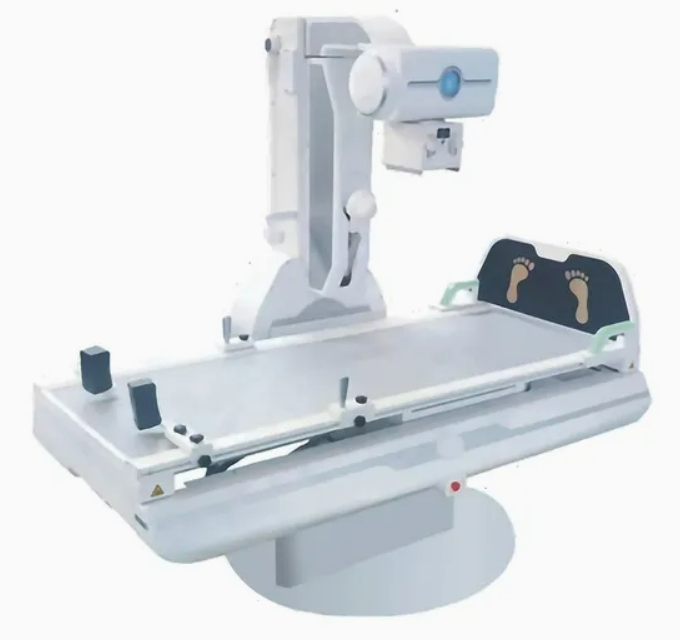

Digital photography, digital perspective, and digital imaging are integrated into one system. It supports fluoroscopy for all body parts, positioning, puncture, and digital point photography.
Comprehensive imaging capabilities: Gastrointestinal imaging (large field, esophagography, double contrast barium gas), urography, cystography, gynecological imaging, arthrography, and myelography.
Advanced diagnostics: Supports cholangiopancreatography and peripheral angiography.
Digital photography: Versatile imaging for various body parts, including routine standing and lying positions (chest X-ray, cervical spine, lumbar spine, abdomen) and special tilt/angle photography.
⚙️ Technical Specifications
✓ Maximum Output Power: 50kW
✓ Input Power Supply: 380VAC three-phase
✓ Output Voltage: 40 ~ 150kV
✓ Tube Current Range: 10 ~ 630mA
✓ Exposure Time Range: 1ms-10000ms
✓ mAs Range: 0.1mAs ~ 800mAs
✓ Support AEC and APR Automatic Exposure
✓ Fault self-diagnosis and display
✓ Column lateral movement range: 0 ~ 1000mm
✓ SID movement range: 1000 ~ 1800mm
✓ Detector rotation angle range: -45 ~ +45°
✓ Bed rotation angle range: +90 ~ 0 ~ -20°
✓ Bed lateral movement range: 250mm
✓ Compression pressure: 100N and 150N
✓ Compression device travel: > 280mm
✓ Bed height: < 950mm
✓ Focus Design: 0.6mm / 1.2mm
✓ Nominal Electric Power: 22kW / 54kW (50Hz)
✓ Maximum KV: 150kV
✓ Anode Target Angle: 12°
🏢 Profile
The company is a supplier of one-stop solutions for X-ray equipment. Products are widely used in medical, dental, veterinary, and industrial imaging applications. With dedicated R&D labs, the focus is on providing valuable solutions compatible with local markets, offering cost-effective products and services to customers worldwide. The product range has expanded to include flat panel detectors, generators, scintillators, X-ray tubes, stands, DR assembly solutions, DR software, and cloud PACS systems.
❓ Frequently Asked Questions
What are the primary clinical uses for the HXDRF-65C?
It is designed for digital photography and fluoroscopy, supporting gastrointestinal imaging, urography, arthrography, and routine X-ray photography for all body parts.
Does the system support automatic exposure control?
Yes, the high-frequency generator supports both AEC (Automatic Exposure Control) and APR (Anatomical Programmed Radiography) for optimized imaging.
What is the rotation range of the electric bed?
The electric bed features a rotation range from +90° to -20°, allowing for a wide variety of patient positioning and imaging angles.
What is the maximum output power of the generator?
The system is equipped with a high-performance 50kW high-frequency high-voltage generator.
Can this system perform peripheral angiography?
Yes, the HXDRF-65C is capable of performing peripheral angiography along with other specialized imaging like cholangiopancreatography.
What are the focus sizes of the X-ray tube?
The X-ray tube assembly features a dual-focus design with 0.6mm and 1.2mm focal spots for high-resolution imaging.
