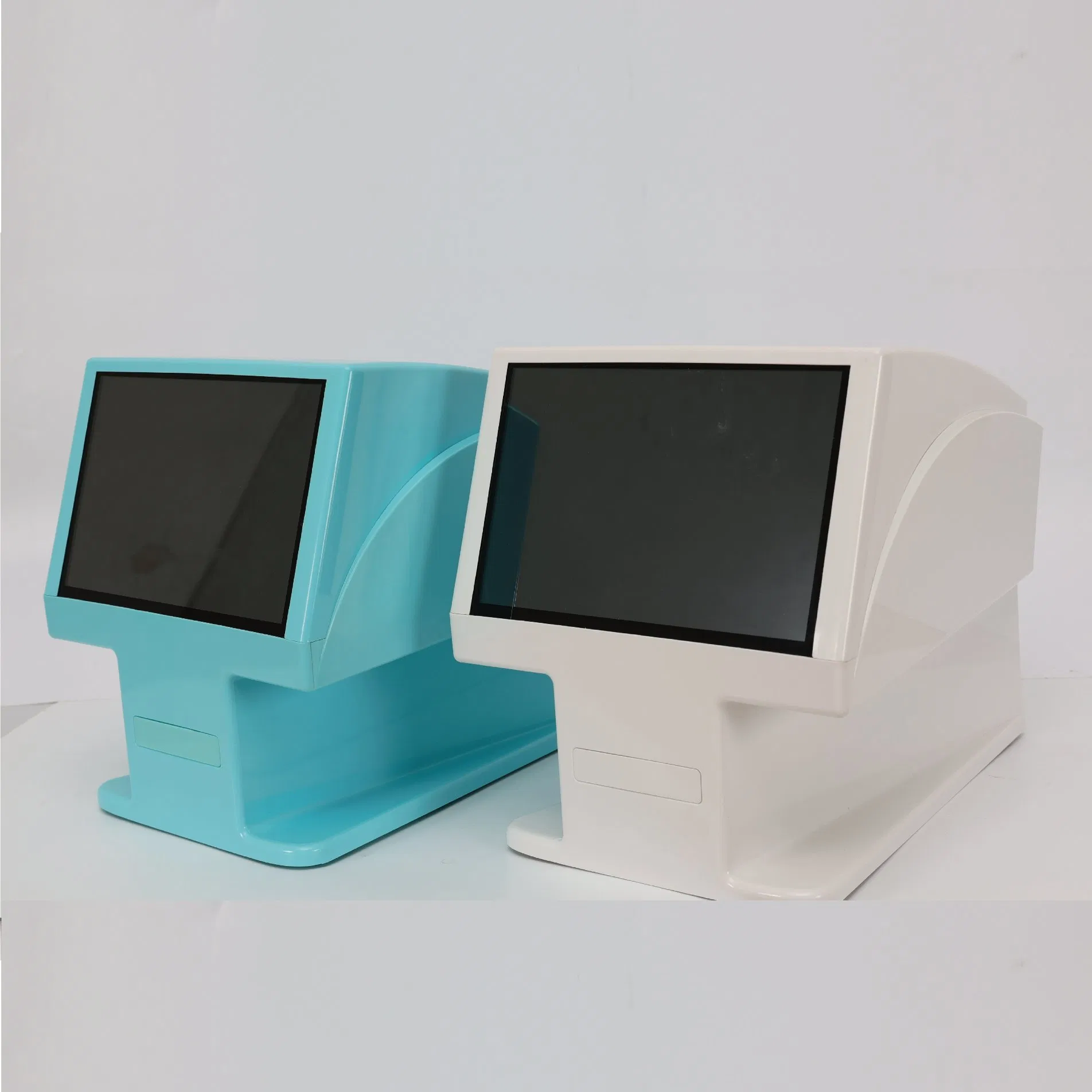

Digital Dental Radiography Imaging System

1 / 5

Digital Dental Radiography Imaging System

Customization:	Available
Applicable Departments:	Oral Department of Internal Medicine
Certification:	RoHS, ISO, CE

Send Inquiry

Product Description

Basic Info.

Model NO.

DDT-100

Type

Imaging System

Material

PVC

Screen Size

10.1 inch

Definition

17lp

Specification

365X265X270mm

Origin

China

Capacity

5000PCS/Month

Product Description

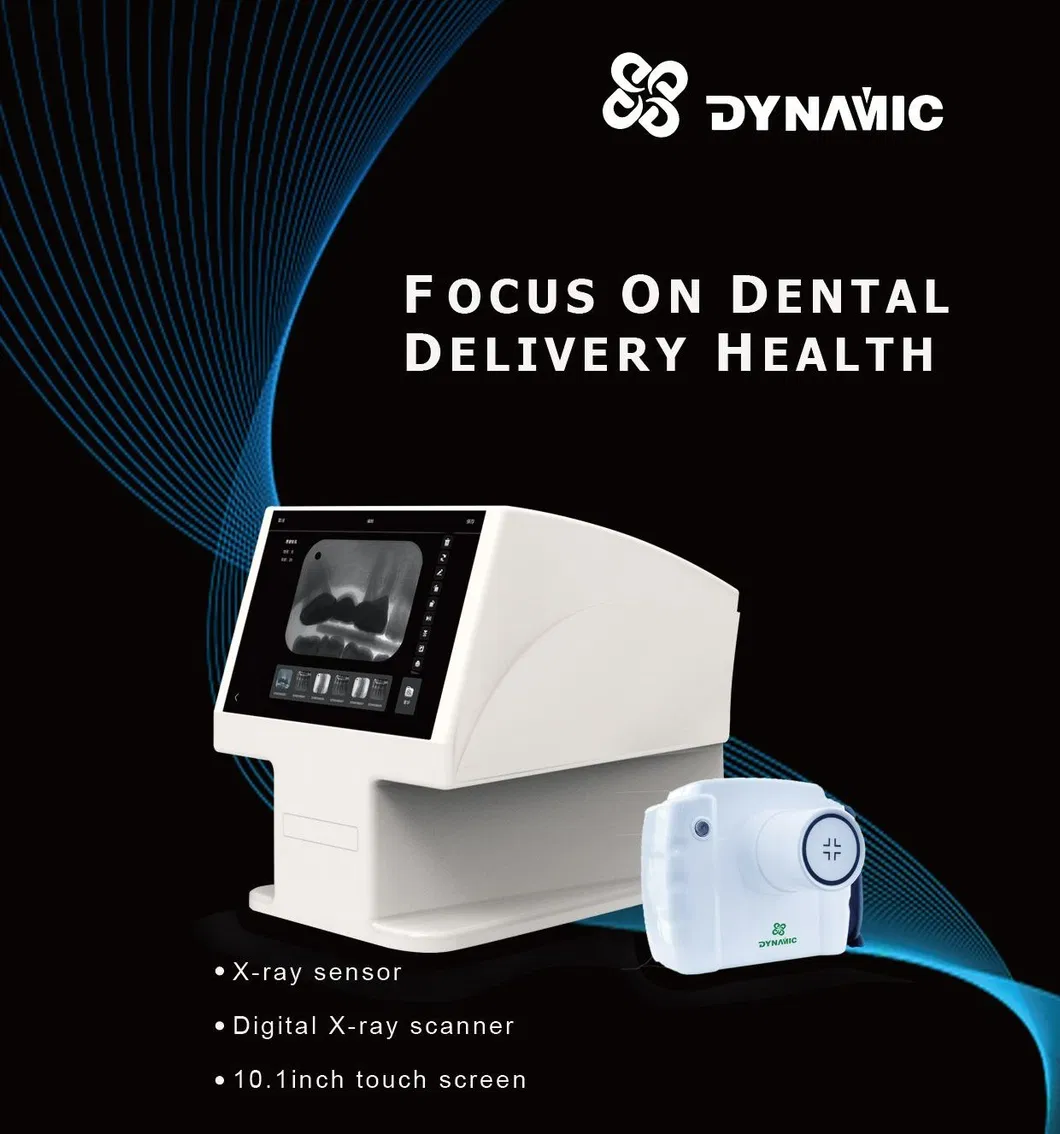

Dental intraoral phosphor plate scanner

The high-definition dental scanner is designed to assist dentists with exact diagnosis. It features the largest true color touch screen on the market, equipped with a built-in self-management system and large memory storage for tens of thousands of records. The unique wireless screen projection aids in medical teaching and doctor-patient communication, meeting the needs of modern digital outpatient clinics.

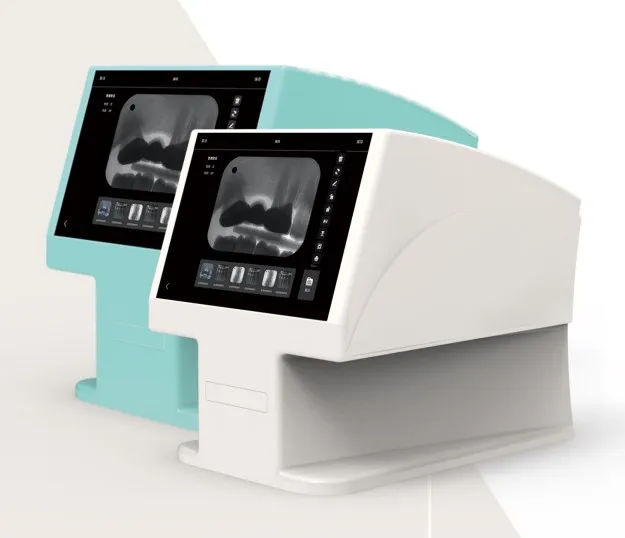

Product Features

HD 10.1-inch Touch Screen: True color resolution of 1280*800 for clear and easy viewing.

Self-contained Management: Store up to 10,000 dental films with a wireless connection for convenient access.

Built-in Wireless Projection: Enhances teaching and improves communication between doctors and patients.

Automatic Scanning: Instant scanning and reading process for a fast workflow.

High-quality Imaging: 17lp/mm resolution and 16 grayscales ensure exceptional image detail.

Multi-Room Sharing: WiFi connection allows multiple consultation rooms to share the host.

Product Parameters

Color	White	Storage Memory	4.5GB

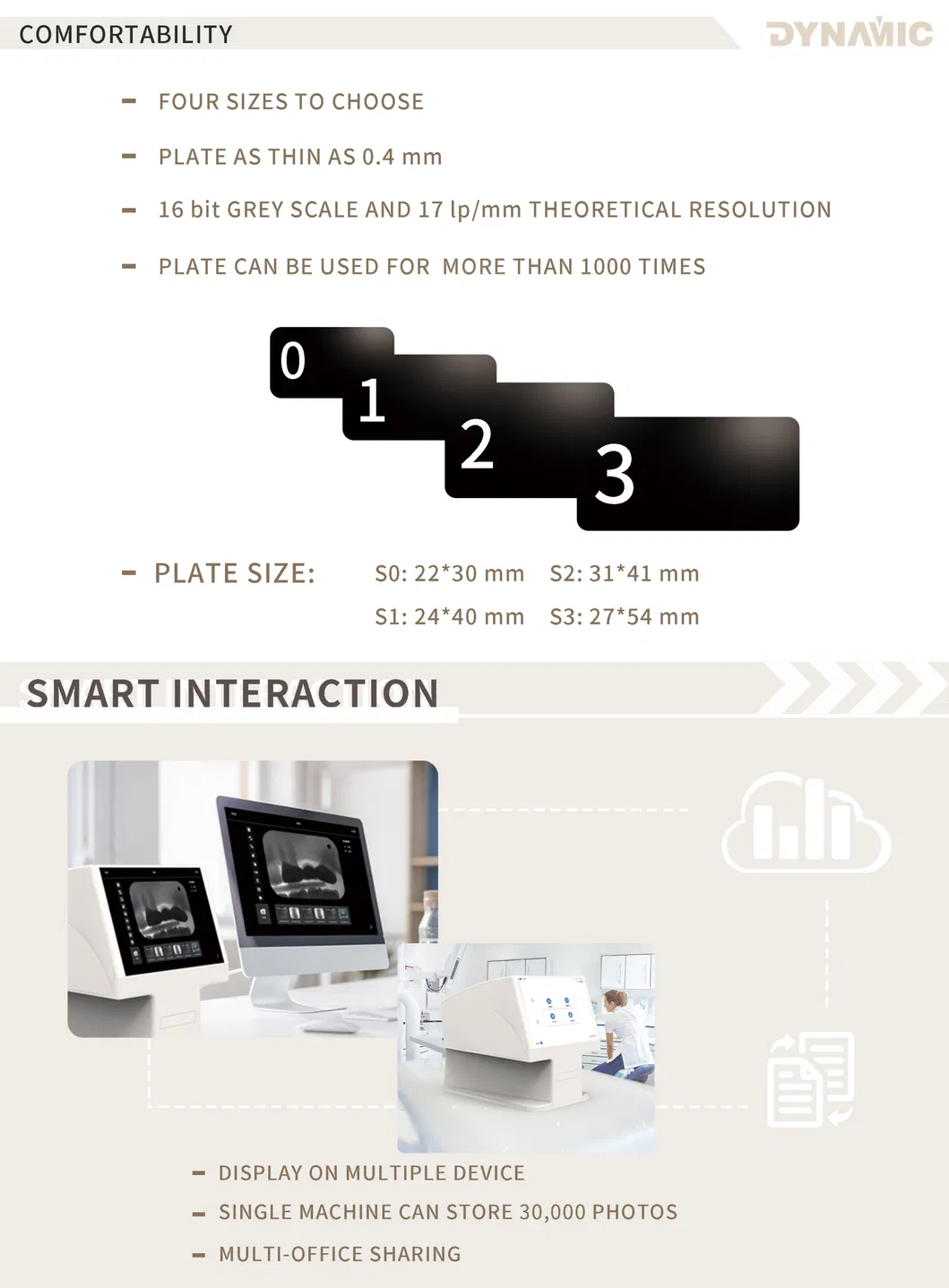

Support Plate Size	0 / 1 / 2 / 3	Theoretical Resolution	17 Lp/mm
Display	10.1 inch true color touch screen	Grayscale Value	16 bit
Pixel Size	30um	Weight	6kg
Host Size	365X265X270mm	Transmission Interface	5G-WIFI
Power	<60w	Operation Mode	Stand-alone / Clinic Sharing

Key Highlights

Large 10.1-inch touchable screen
Integrated MIS (Management Information System)
Wireless projection screen function
Fully automatic scanning process
High signal-to-noise ratio for images
Powerful image processing functions
5G/WiFi wireless connectivity
Automatic WiFi connection
Seamless multi-room sharing

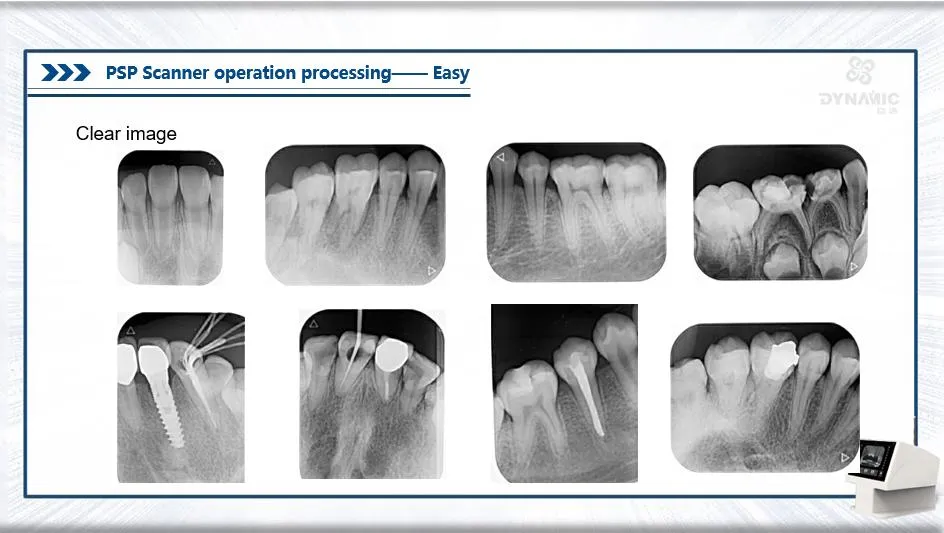

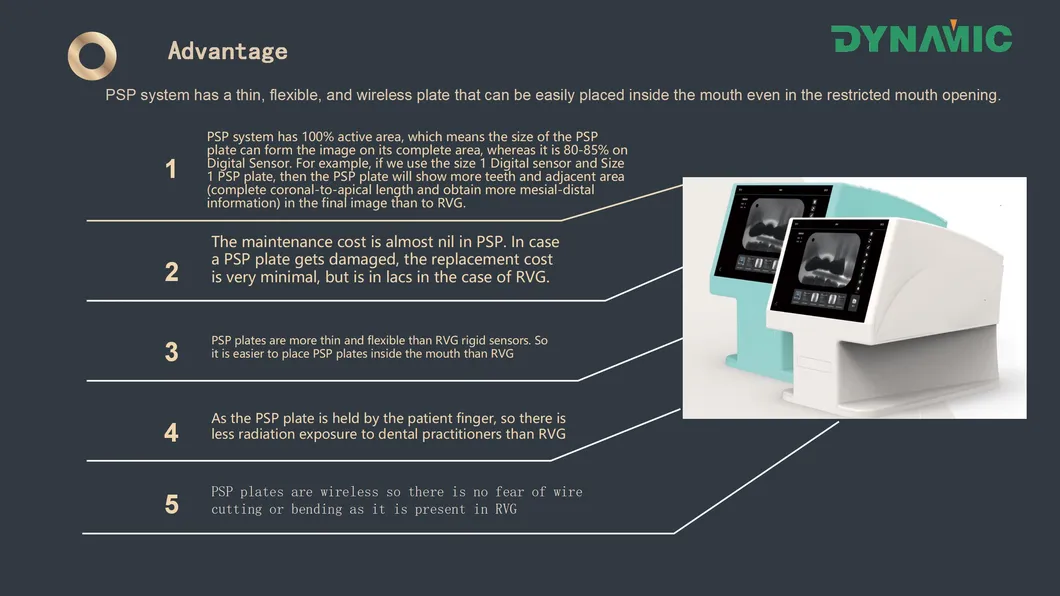

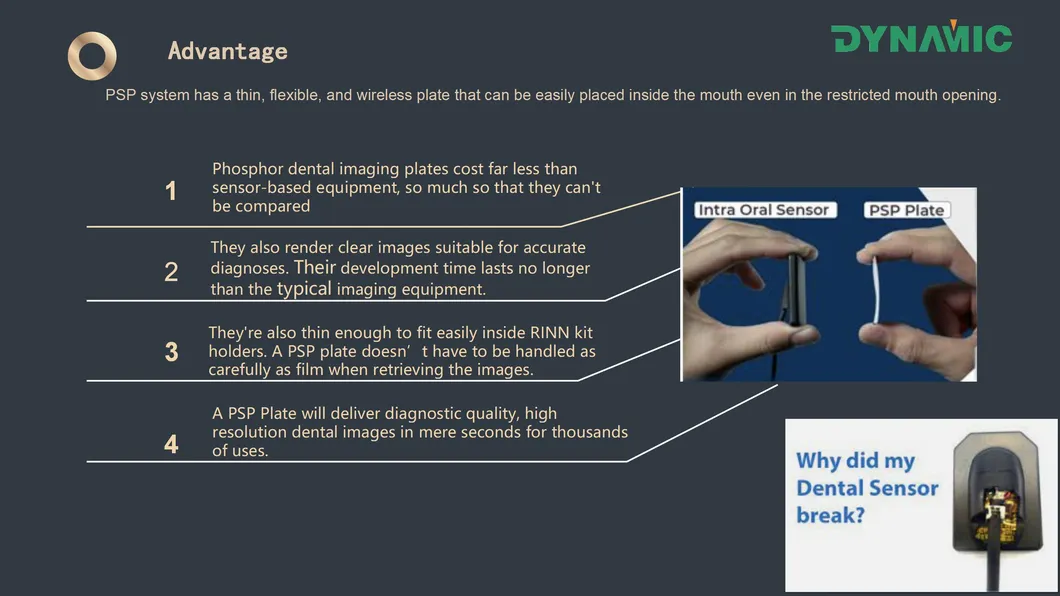

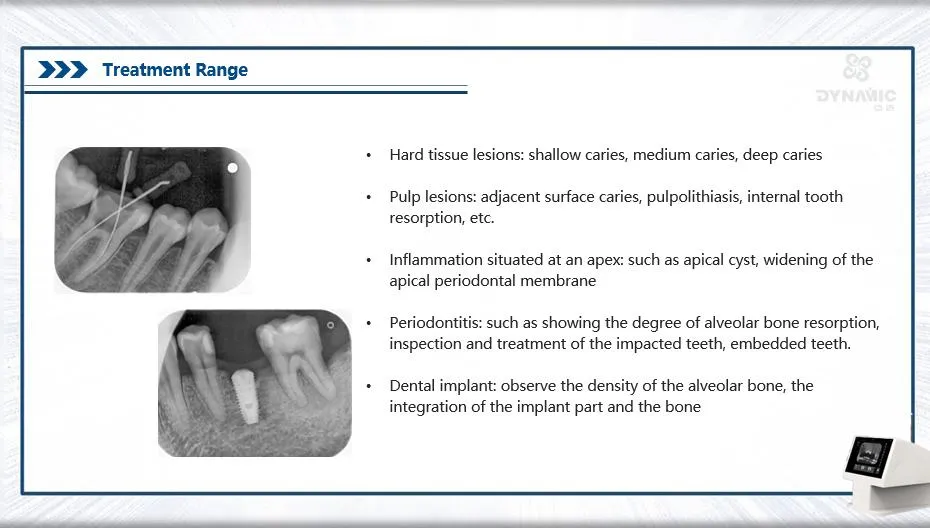

Application Cases

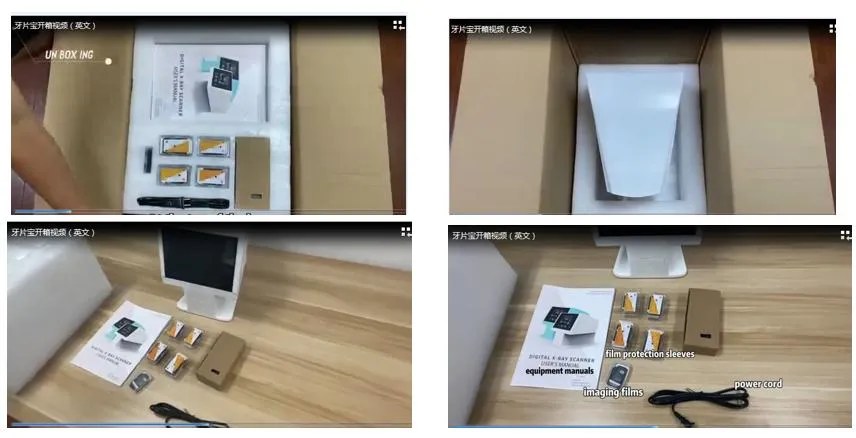

Package and Accessory

Frequently Asked Questions

Q1: What sizes of phosphor plates are compatible with this scanner? A: This scanner supports phosphor plate sizes 0, 1, 2, and 3, covering various intraoral imaging needs.

Q2: How many images can the built-in management system store? A: The system has a built-in memory of 4.5GB, allowing it to store up to 10,000 dental films locally.

Q3: Does the device support wireless connectivity for clinic sharing? A: Yes, it features 5G-WIFI connectivity, enabling multiple consultation rooms to share the scanner and view images on computers or mobile devices.

Q4: What is the resolution quality of the dental images? A: The scanner provides a theoretical resolution of 17 lp/mm and 16-bit grayscale for highly detailed diagnostic imaging.

Q5: Can the screen display be projected for patient education? A: Yes, the device includes a built-in wireless projection feature specifically designed to assist in medical teaching and doctor-patient communication.

Q6: Is the scanning process manual or automatic? A: The device features an automatic scanning process, providing instant reading and high-speed processing for better clinical efficiency.
