High Performance 1000mA Dynamic Digital X Ray Radiography System for Medical Diagnosis in Hospitals

Basic Information

Model NO.	MSF4505
Certification	CE, FDA, EEC, MSDS, ISO13485
Product Name	Mobile DR X-Ray Machine
AC Power	100V-240V, 50Hz/60Hz, ≤50va
Nominal Output Power	32kw
Maximum Output Power	35.2kw
Inverter Frequency	Max. 250kHz
Kv Range	40-125kv
Detector Technology	Wireless a-Si Flat Panel Detector
Images Size	17″X17″ Inch
Origin	China

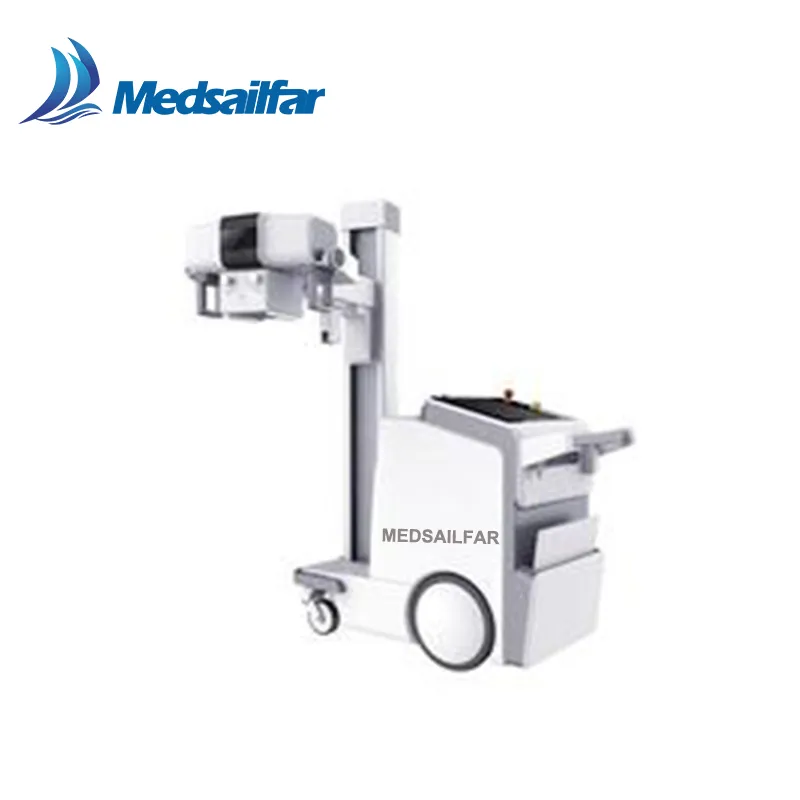

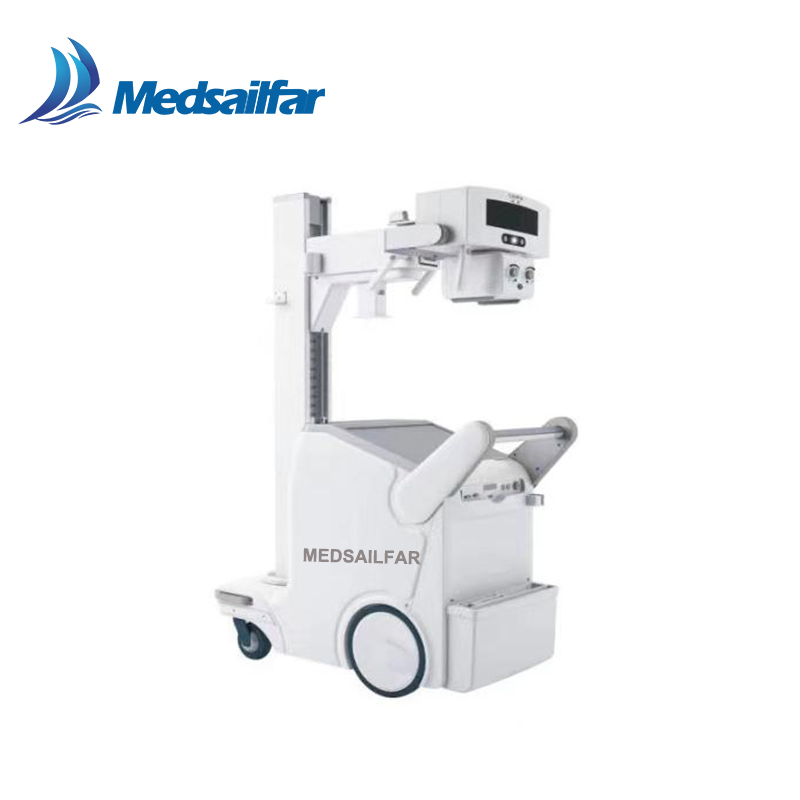

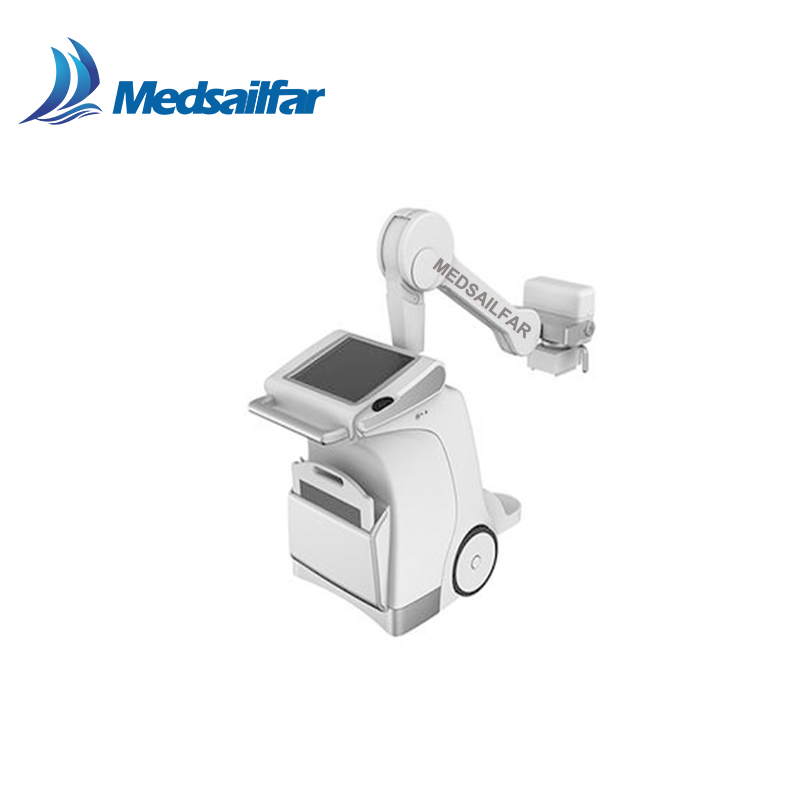

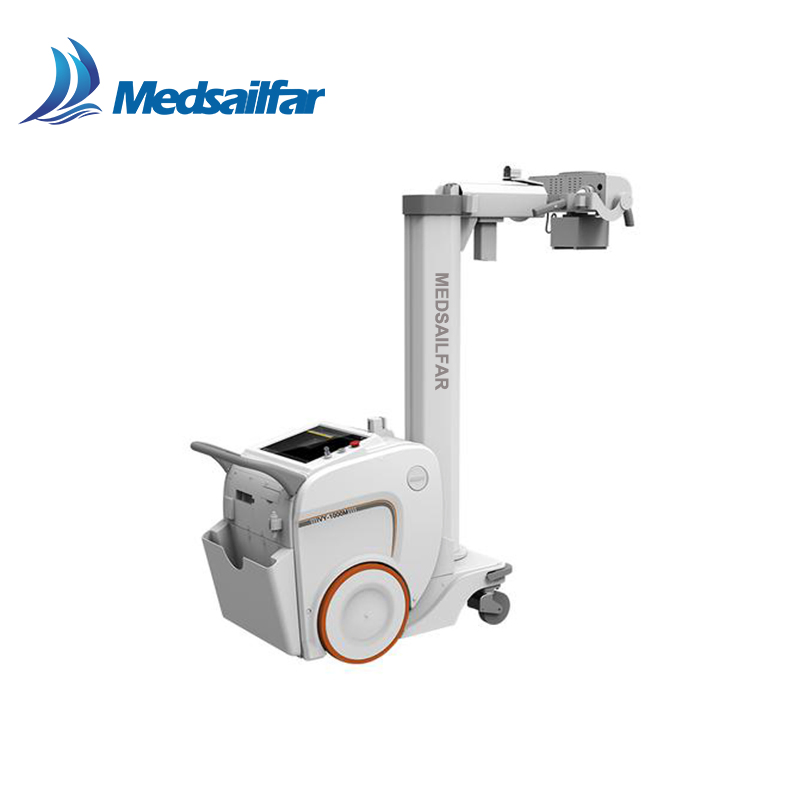

Detailed Product Gallery

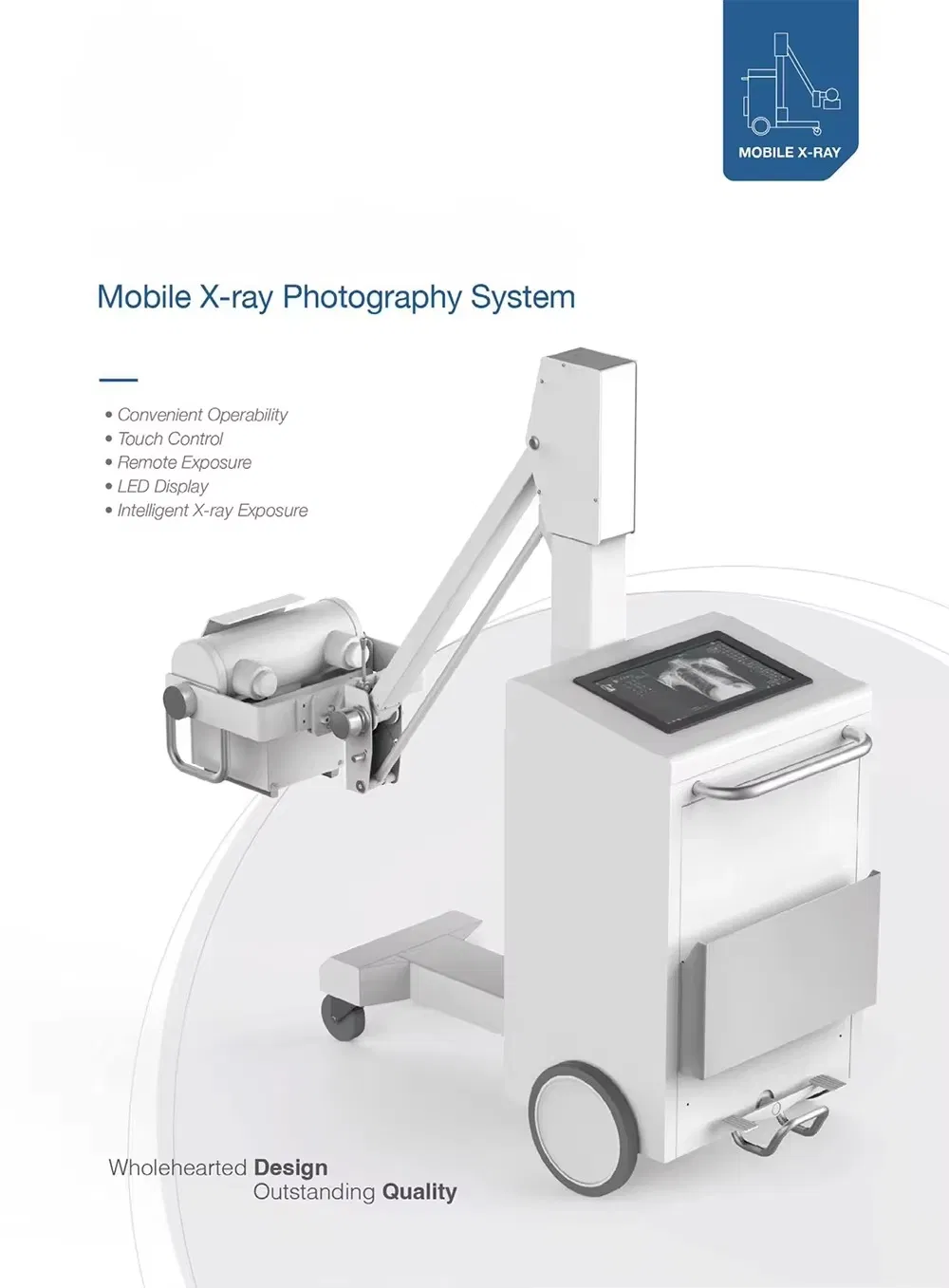

Product Description

Medical X-ray Radiography System is a high-performance diagnostic equipment suitable for medical use across various institutions. This mobile DR machine provides rapid medical diagnosis with a high-frequency generator that offers rich imaging layers and a user-friendly interface.

Simple Stand design with integrated wheels for flexible movement.

Compact suitcase design for easy transport and storage.

Triple control modes: Hand switch, Remote control, and Touch screen.

Versatile application: Hospital rooms, ambulances, disaster relief, and sports events.

7-period digital LED display for clear parameter monitoring.

Integrated failure self-protection and self-diagnosis system.

High precision control of tube voltage and tube current.

48 presupposed anatomy memory patterns for quick selection.

Full lead shielding on X-ray tube to prevent leakage.

Technical Parameters

High Frequency Generator

Nominal Output Power	32kW
Maximum Output Power	35.2kW
Inverter Frequency	60kHz ~ 250kHz
kV Range	40-125kV
mA Range	10-400mA
mAs Range	0.5-200mAs
Exposure Time	1ms ~ 7.1s

Flat Panel Detector

Technology	Wireless a-Si Flat Panel Detector
Scintillator Material	CsI
Pixel Matrix	3072 x 3072 pixels
Pixel Size	139μm
Spatial Resolution	3.5lp/mm
Preview Time	2s (Wireless) / 1s (Wired)
Battery Standby	8 Hours

Packaging & Shipping

Company Profile

We are a leading medical manufacturer specializing in medical equipment solutions. With over two decades of experience since 1999, we provide comprehensive OR, ICU, and Imaging solutions. Our facilities span 50,000 square meters with advanced production technology.

Our products are approved by international quality standards including ISO9001, ISO13485, CE, and FDA. We serve over 200 countries worldwide, focusing on constant innovation and high-efficiency customer service.

Our Advantages

Related Medical Solutions

Frequently Asked Questions

1. Where can we see your real products?

You can see our equipment at major international exhibitions such as Arab Health and Canton Fair, or visit our 1000m² showroom and production facility.

2. Which markets do you currently serve?

We have exported medical products to more than 150 countries, with major markets in the Middle East, Southeast Asia, Africa, and South America.

3. What price terms and payment methods do you accept?

We support various terms including FOB, CIF, DDP, and DDU. Payments can be made via T/T, L/C, or Western Union.

4. Do you provide technical training?

Yes, we offer free technical training at our factory upon order placement. We also provide on-site installation and training services if required.

5. How do you handle after-sales technical assistance?

We provide detailed User and Service Manuals. Our technical team responds within 2 working days via email or video conferencing to provide solutions and support.

6. What are the available shipping modes?

Goods can be shipped via courier (TNT, DHL, FedEx), air freight, or sea freight depending on the order size and urgency.
