Biobase Integrated Automatic Gel Imaging System with High-Resolution CMOS Camera and LCD Display for Lab

Customization: Available
After-sales Service: Online Technical Service Provider
Sample Type: /

Product Description

Basic Information
Model NO.
BK-AGX3
Warranty
1 Year
Environment
Normal Pressure and Temperature
Display
Digital Display
Performance
Automatic
Power Supply
220V
Certification
CE
Camera Resolution
6.0MP
Photosensitive Efficiency
79%
Pixel Density
16 Bits (0-65535)
Origin
China
Product Description
📌 Application:

Nucleic acid detection with various fluorescent dyes such as EB, SYBR Gold, SYBR Green, SYBR Safe, Gel red Gel, Green Texas Red, Fluorescein labeled DNA/RNA, etc.

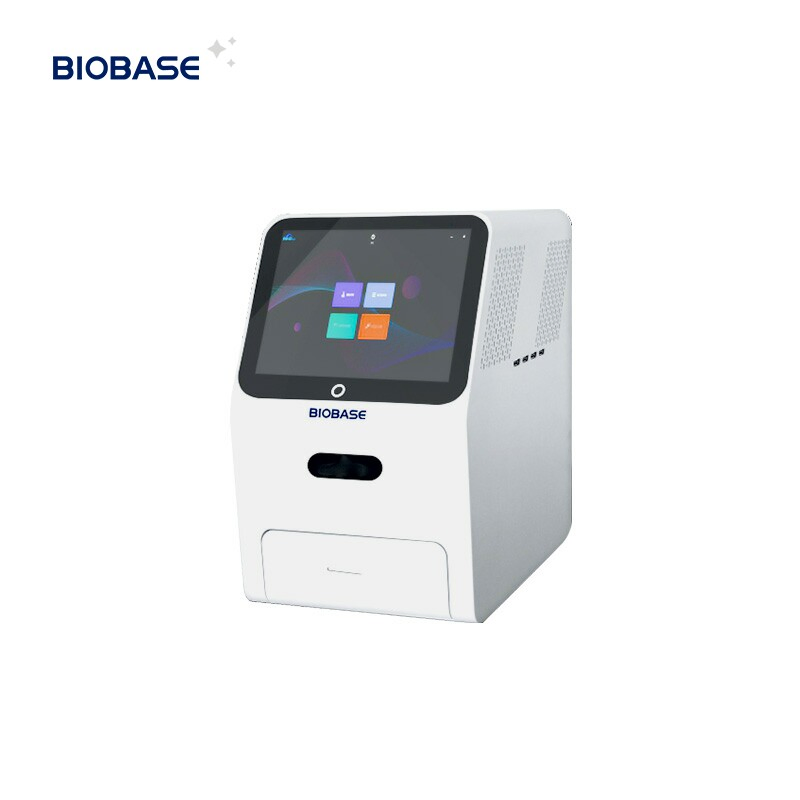

Integrated Automatic Gel Imaging System
⚙️ Key Features:
  • Camera lens: Adopt dark field camera module F 1.0 Super aperture 20 million Solutions Analyticity.
  • Touch system: 12.5 inches touch HD display, one touch imaging, intelligent processing system.
  • Special filter: Multilayer coated filter is adopted passing of absolute stray light.
Product Parameters
ModelBK-AGX3
Camera Resolution6.0MP
Photosensitive Efficiency≥79%
Exposure Time1ms-5000ms
Pixel Density16 Bits (0-65535)
OD≥4.8OD
LensLarge aperture autofocus lens F=1:1.2, 20million auto focus lens
UV Transmission302nm, optional other transmitted blue light
White Light ReflectionLED reflection (cold light)
FilterStandard 590nm, other optional
Shooting Area21×21cm
Touch System12.5-inch touch system
Packing Size450*462*666mm
Gross Weight22.3kg
Profile & Capabilities

We are specialized in products of many areas including laboratory equipment, cleaning and disinfection equipment, laboratory safety protection product, cold chain product, medical equipment, general analytical equipment, measuring equipment, physical test equipment and some industry research equipment. We are committed to creating a one-stop scientific instrument procurement ecological chain.

Our international trading team is supported by an excellent research team, strong quality control team, professional sales team and responsible after-sale service team. We provide quality products and offer training service on the installation and maintenance of all products. Especially our engineers are experienced on hands-on design, testing and trouble shooting.

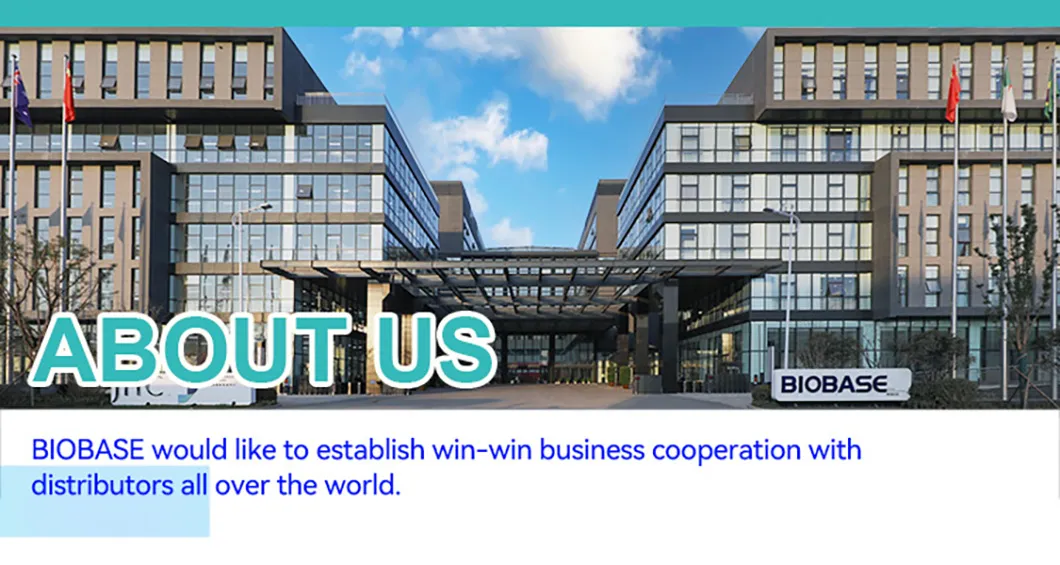

Facility Image
Certification Showcase
After Sales Service
  • 100% product quality guarantee
  • Quick delivery time
  • Promptly reply within 24 hours
  • OEM service available
Service 1
Service 2
Service 3
One-stop Solution
Air Protection Cold Chain General Lab Analytical
Biosafety Cabinet Medical Refrigerator Autoclave Chemistry Analyzer
Laminar Flow Cabinet Blood Bank Refrigerator Incubator ELISA Reader & Washer
Fume Hood -86 Freezer Centrifuge Hematology Analyzer

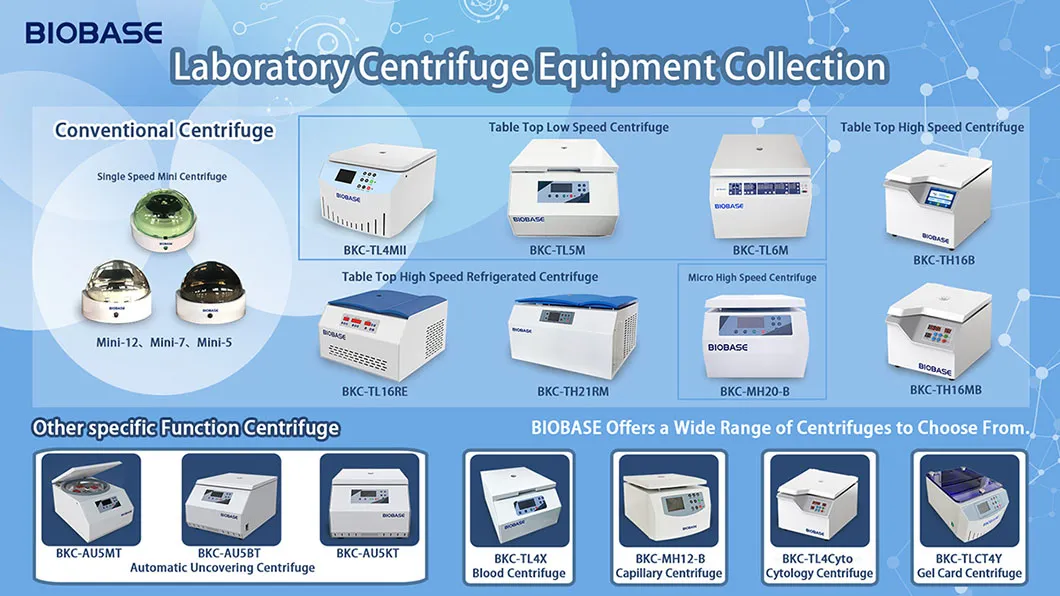

Product Range 1

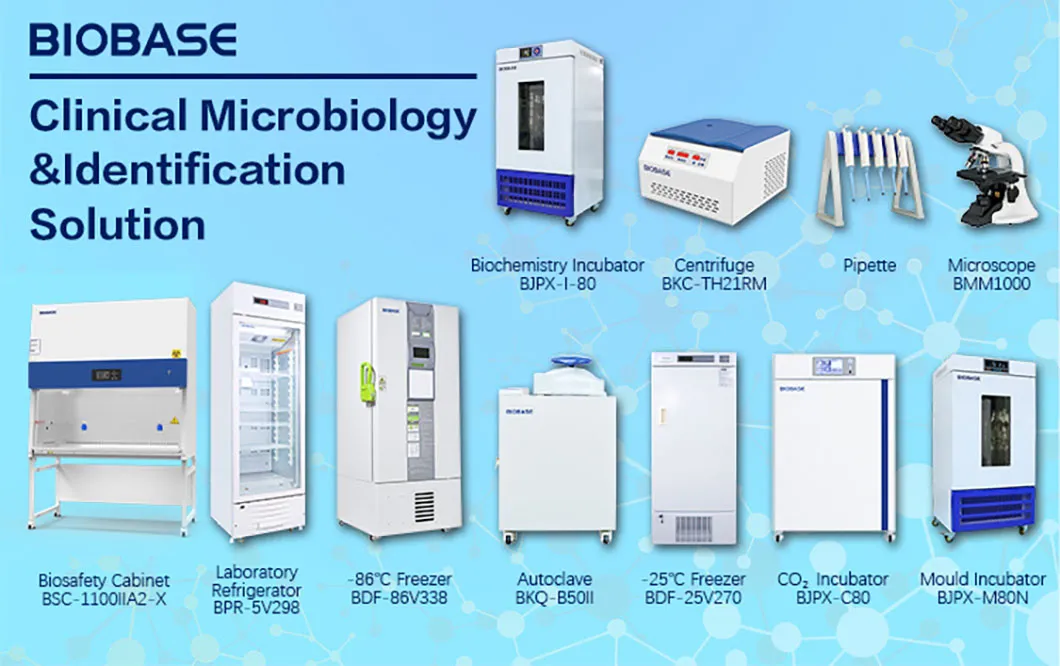

Product Range 2
Large Product Catalog
Exhibition & Packaging

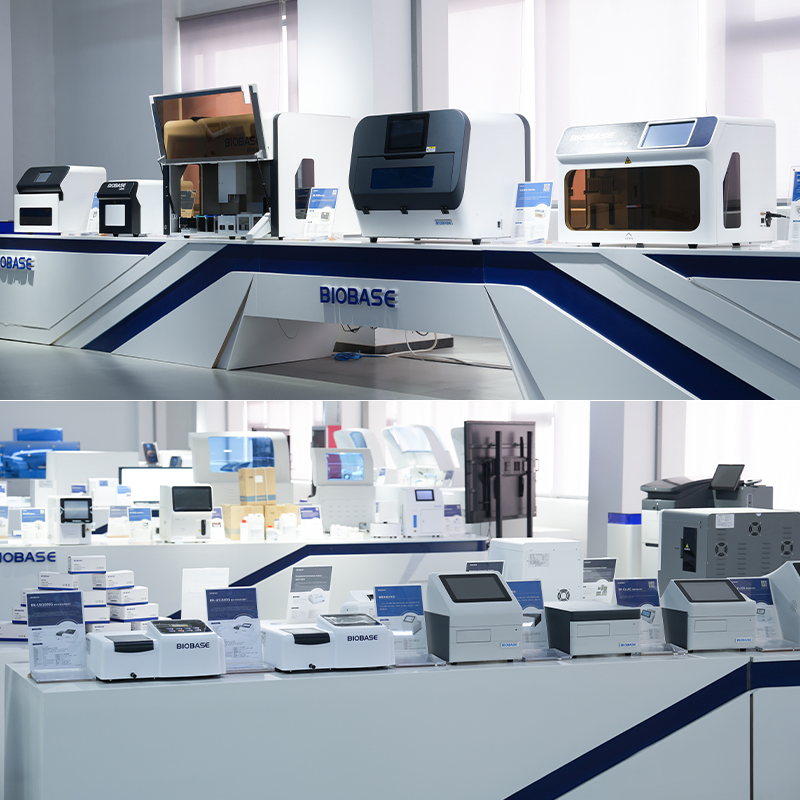

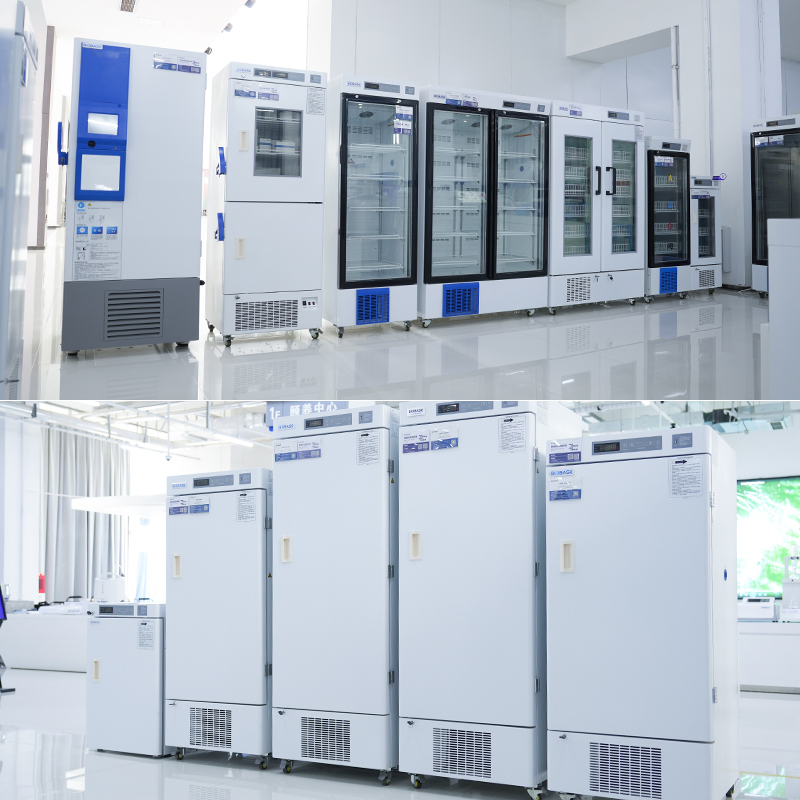

Showroom
Exhibition
Packaging
Shipping
Contact For More Details
Contact Information Banner
❓ Frequently Asked Questions
What is the camera resolution of the BK-AGX3 model?
The system features a high-resolution 6.0MP camera with a dark field camera module and F 1.0 super aperture for superior analytical results.
Which fluorescent dyes are compatible with this imaging system?
It is designed for nucleic acid detection with various dyes including EB, SYBR Gold, SYBR Green, SYBR Safe, Gel Red, Gel Green, Texas Red, and Fluorescein labeled DNA/RNA.
Does the system require an external computer for operation?
No, the BK-AGX3 is an integrated system with a 12.5-inch HD touch display and an intelligent processing system for one-touch imaging.
What is the standard UV transmission wavelength?
The standard UV transmission is 302nm. We also offer optional transmitted blue light modules depending on your requirements.
What kind of after-sales support is provided?
We offer a 1-year warranty, 100% product quality guarantee, and professional training on installation and maintenance via our experienced engineering team.
What are the packaging specifications for shipping?
The equipment is safely packed in wooden or carton packages. The packing size is 450*462*666mm with a gross weight of approximately 22.3kg.
