Advanced Gas Detection Systems with 320X256 High-Resolution Imaging

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

Send Inquiry

Product Description

Basic Info.

Model NO.:HWx320G

Type:CCTV Camera

Sensor:CMOS

HDMI Format:1080P

Resolution:650tvl

Kind:Autofocus Lens

Certification:EMI/EMC, ISO9001: 2000, Explosion-Proof

Feature:Waterproof, Vandal-proof, Auto BLC

Distance:≧30m

Sensor Size:1/3 inch

Detector Pixel:320×256

Sensitivity:≤25mk

Product Description

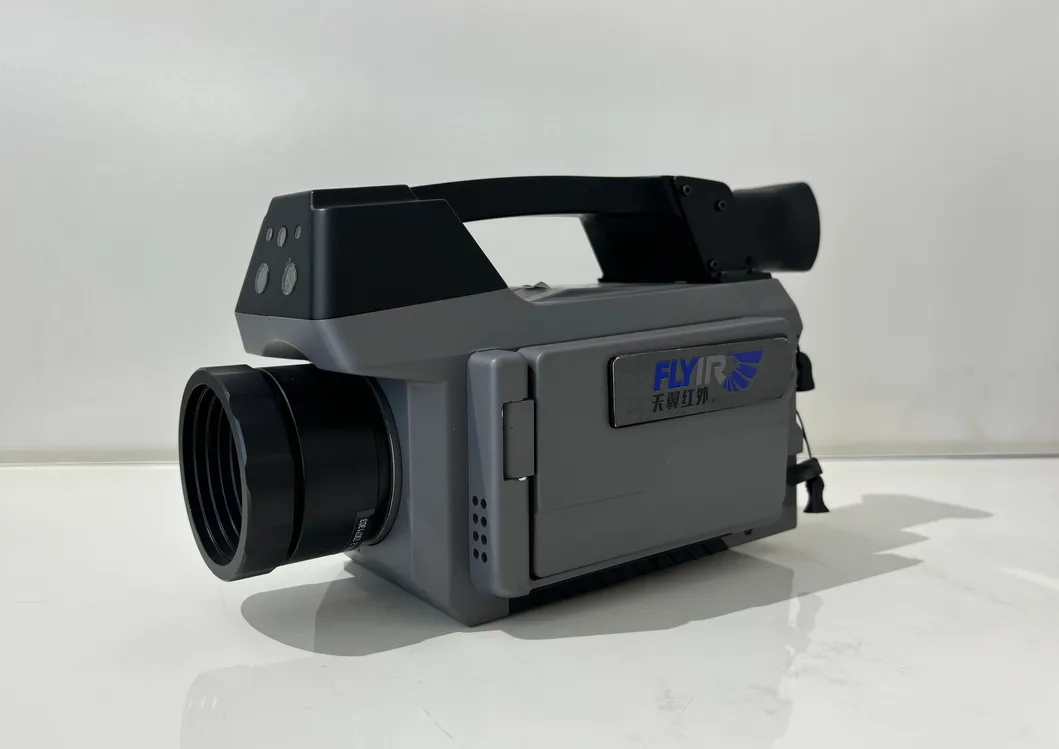

Introducing the HWX320G, a cutting-edge multifunctional infrared thermal imaging system crafted for unparalleled precision in gas leak detection and radiometric temperature measurement. This state-of-the-art device is tailored for methane and a spectrum of volatile organic compounds (VOCs) using advanced infrared imaging technology. With its 320X256 medium wave refrigeration infrared detector, it masters multi-sensor fusion, making it indispensable in industrial settings like oil refineries, natural gas treatment facilities, and offshore oil platforms.

Product Characteristics

Equipped with a refrigeration type naturalized confinement infrared detector.
VOCs gas detection sensitivity of a remarkable 0.4 g/hr (CH4).

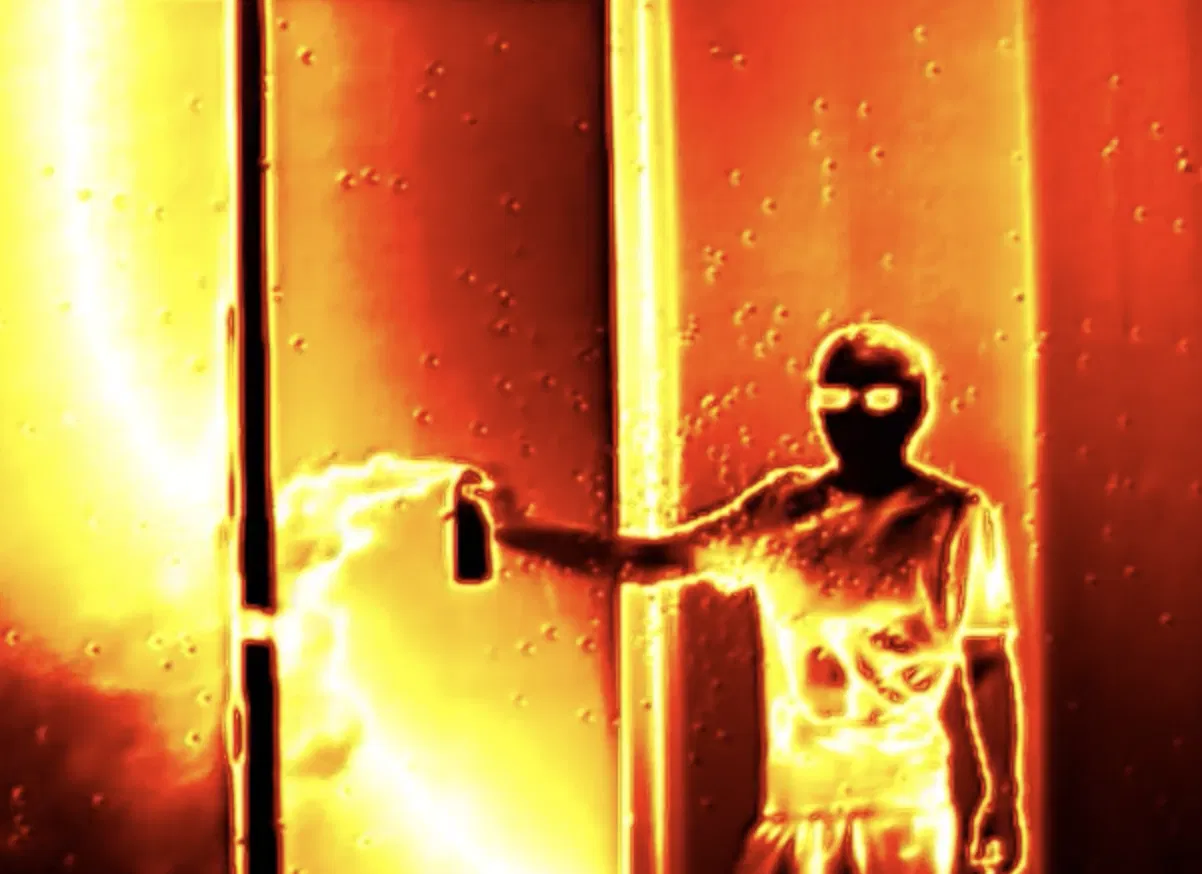

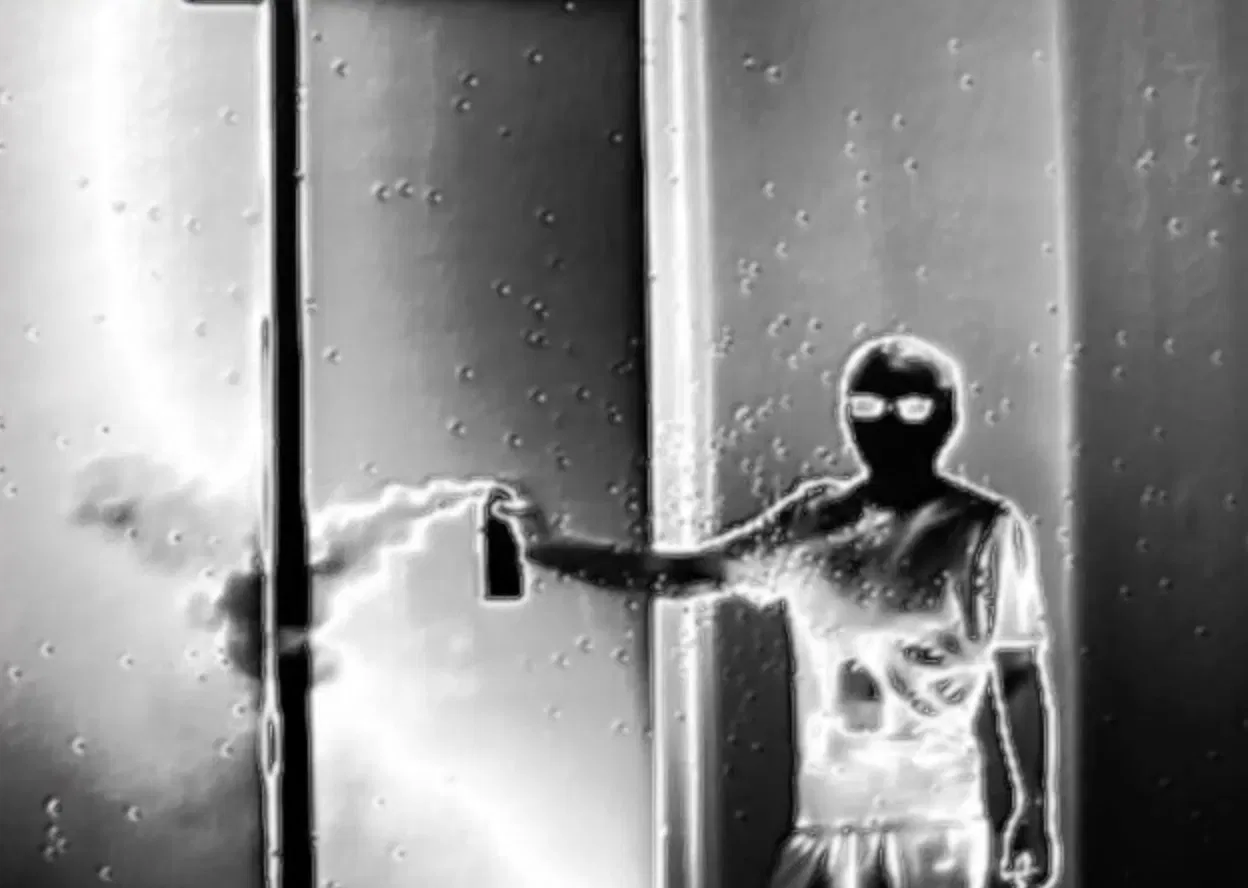

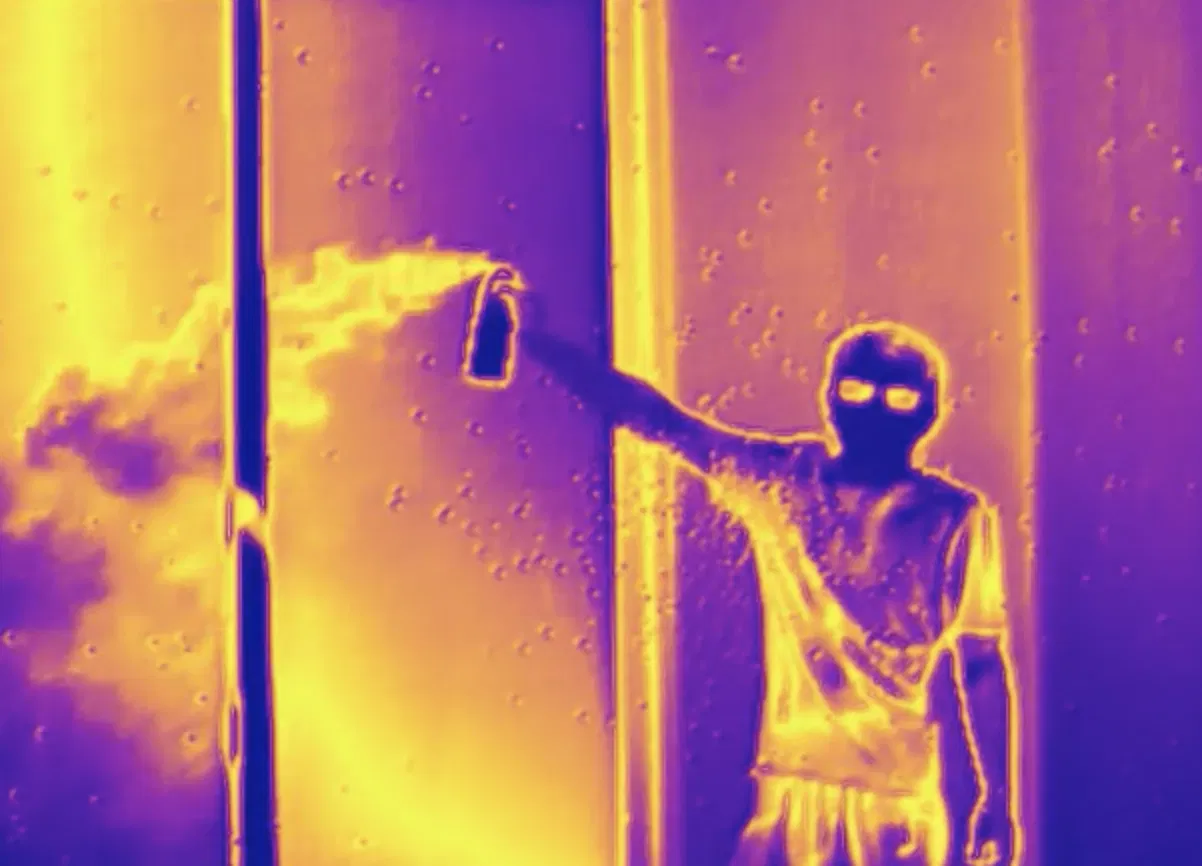

High sensitivity mode designed to detect the finest gas leaks.
Intuitive imaging for precise infrared temperature measurement.
Direct storage of images and videos to SD card.

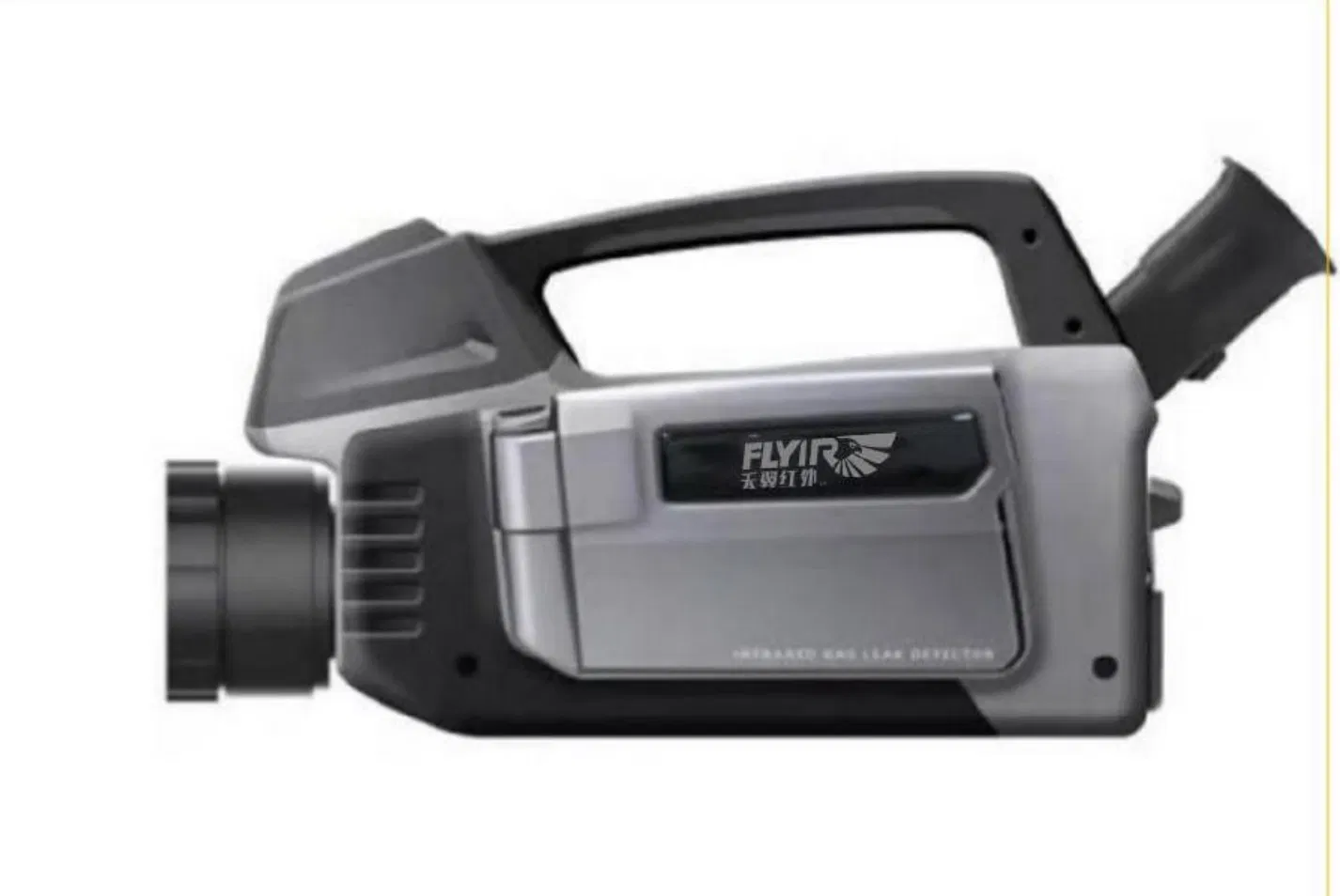

Sleek, compact design weighing only 3 kg.
Certified explosion-proof: Ex ic nC op is IIC T4 Gc.

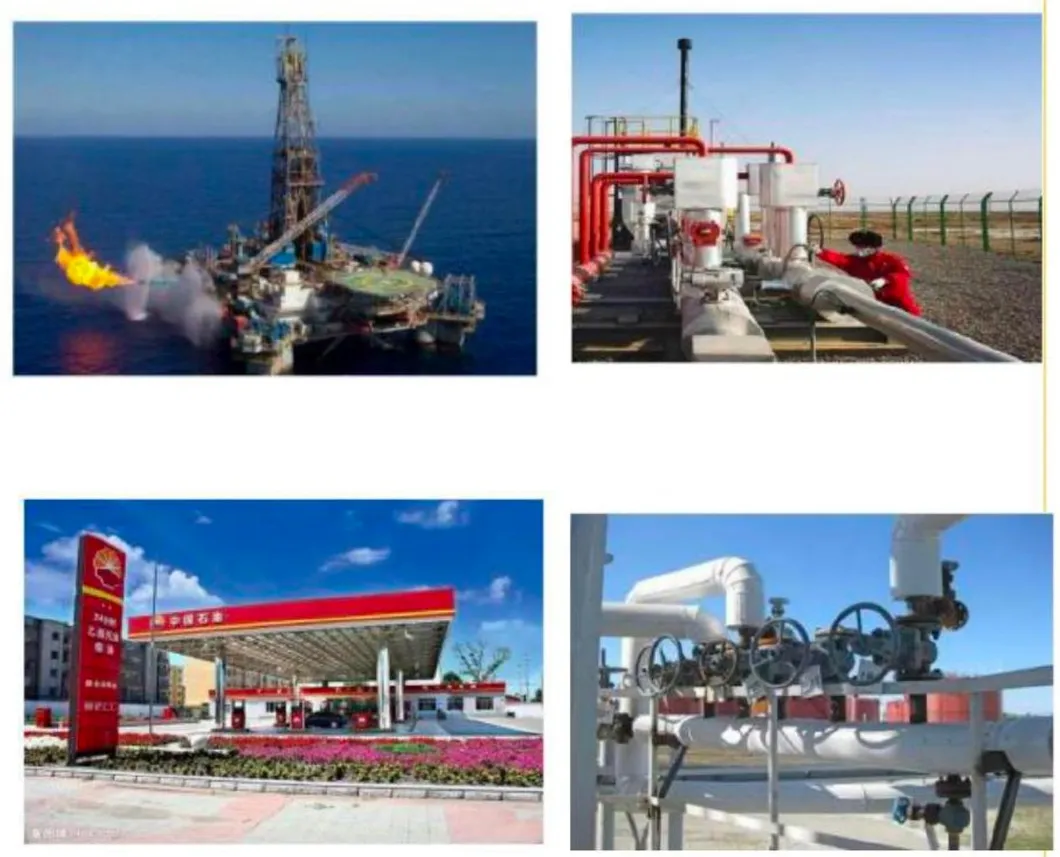

Application Scenarios

Ideal for various high-demand environments including:

Petroleum and petrochemical industries
Natural gas processing and storage facilities
Environmental Protection Agencies (EPA)
Offshore oil platforms
Academic and research institutions

Product Parameters

Model: HW×320G
Detector Performance	Detector type	Refrigeration type naturalized confinement infrared detector
	Pixel / Pitch	320×256 / 30 μm
	Wavelength coverage	3.2 - 3.5 μm
	Gas Sensitivity	≤ 0.4g/hr (CH4)
Imaging & Lens	Optional lens	22.5mm / 38mm / 50mm / 75mm
	LCD Screen	4.3" Color Digital LCD, 800x480, Rotating
	Visible Camera	8-megapixel CMOS, Autofocus
Storage & Data	Memory card	128G SD card with WiFi function
	Video Storage	H.264 format HD images
	Voice Notes	Supported, stored with images
Environmental	Working Temp.	-30℃ ~ +50℃
	Protection Level	IP54
	Explosion-proof	Ex ic nC op is IIC T4 Gc
Detectable Gases	Methane, ethane, butane, Propane, octane, pentane, heptane, hexane, ethylene, propylene, benzene, Toluene, ethylbenzene, xylene, ethanol, methanol, isoprene, MEK, MIBK, and 1-pentene

Frequently Asked Questions

What gases can the HWX320G system detect?

It is specifically designed to detect Methane (CH4) and a wide range of Volatile Organic Compounds (VOCs) including ethane, propane, benzene, ethanol, methanol, and many others.

What is the sensitivity level for methane detection?

The system boasts an exceptional VOCs gas detection sensitivity of ≤ 0.4 g/hr for Methane (CH4), even in high sensitivity mode.

Is this device safe for use in hazardous industrial environments?

Yes, it is certified explosion-proof with the rating Ex ic nC op is IIC T4 Gc, making it suitable for oil refineries and natural gas platforms.

How is the visual data stored and transferred?

Data is stored on a 128G SD card. The device also features WiFi functionality and HDMI output for easy data export and real-time viewing.

Does the system provide temperature measurement?

Yes, in addition to gas leak imaging, it provides precise radiometric infrared temperature measurement with a thermal sensitivity of ≤25mk.

What is the weight and battery life of the unit?

The unit is compact and weighs approximately 3 kg. It uses a rechargeable lithium battery that provides about 2 hours of continuous operation at room temperature.
