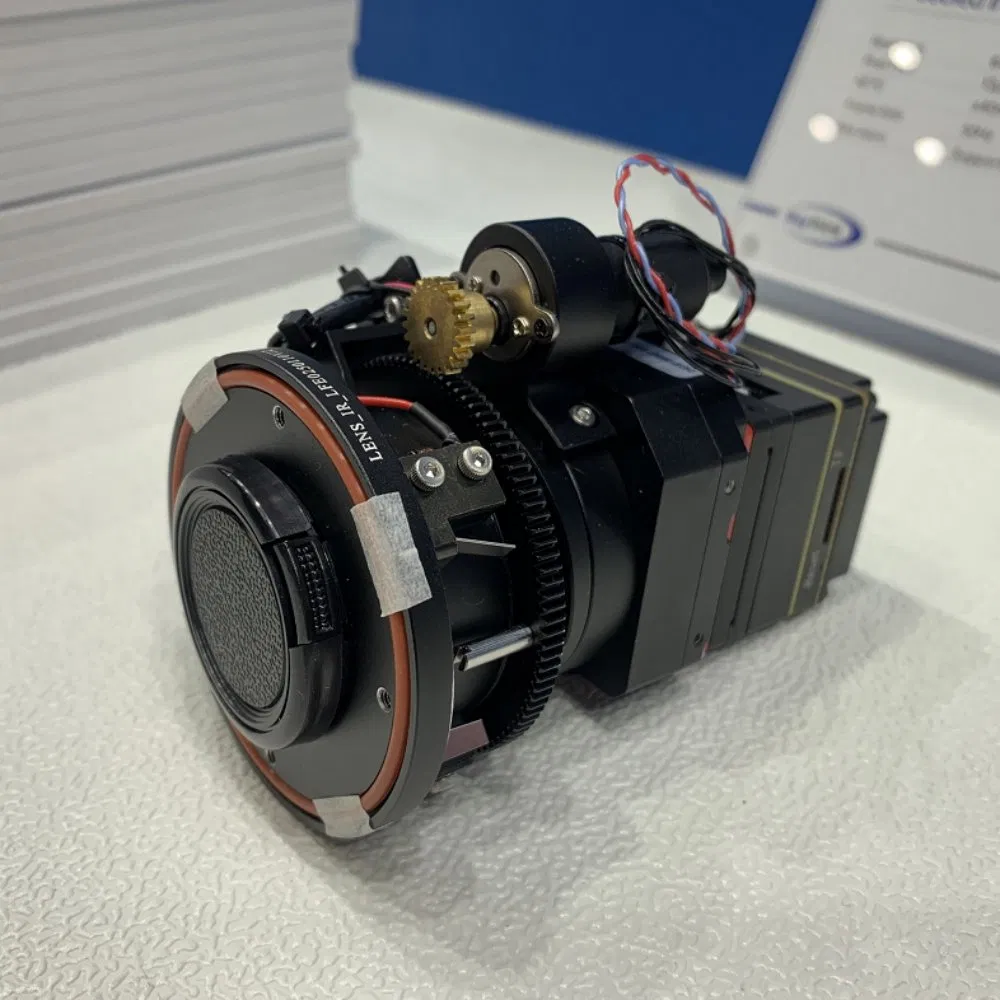

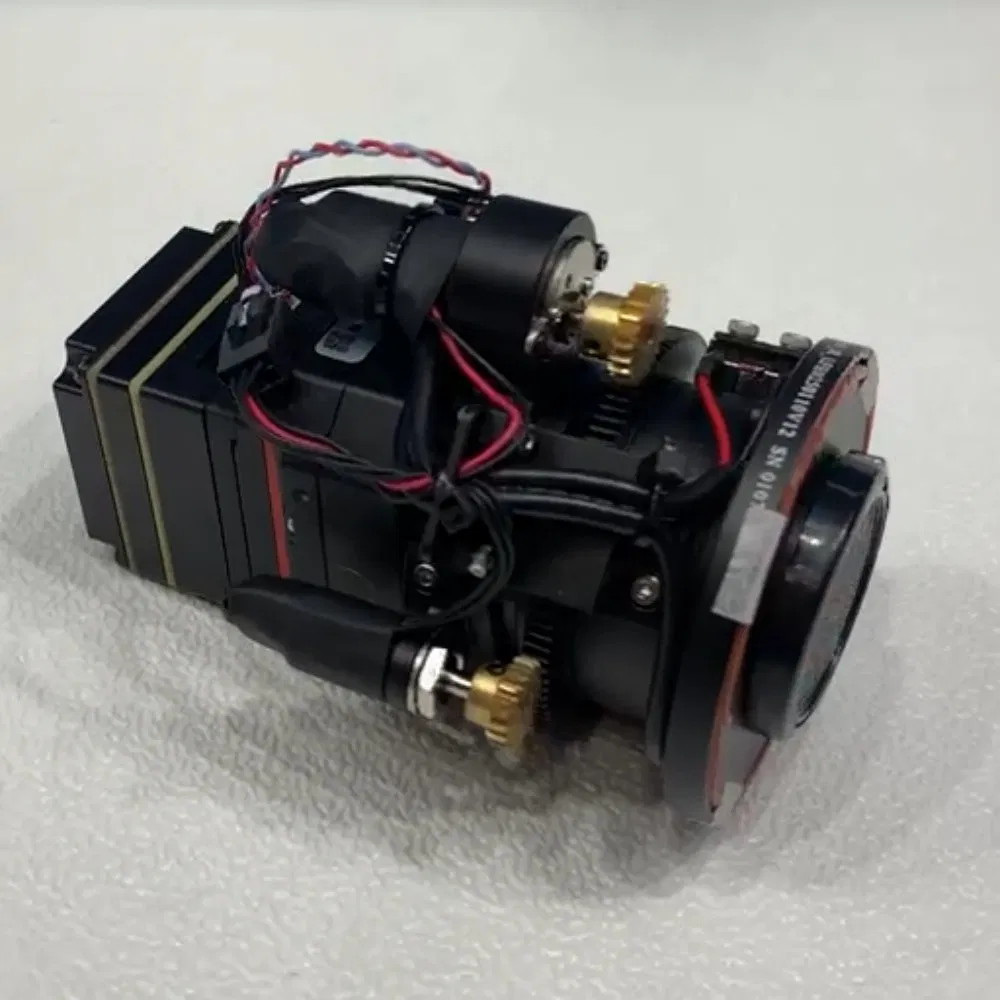

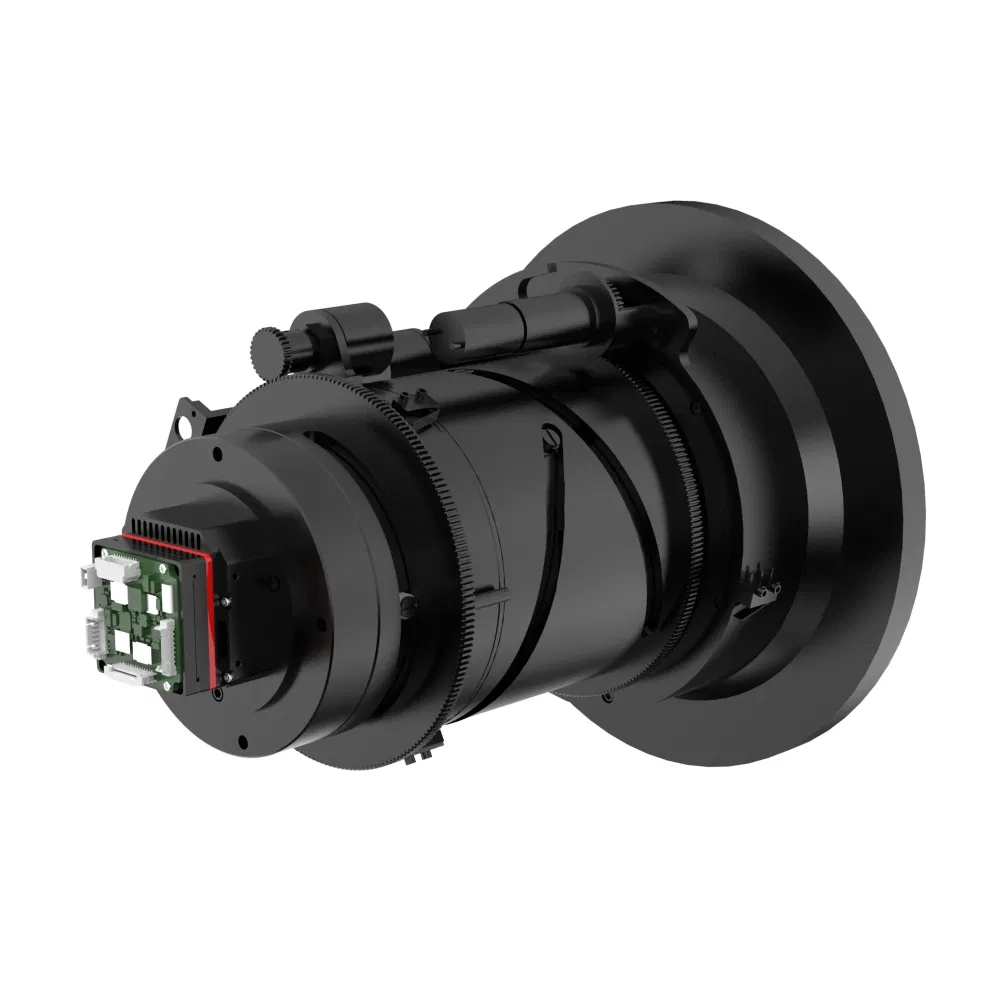

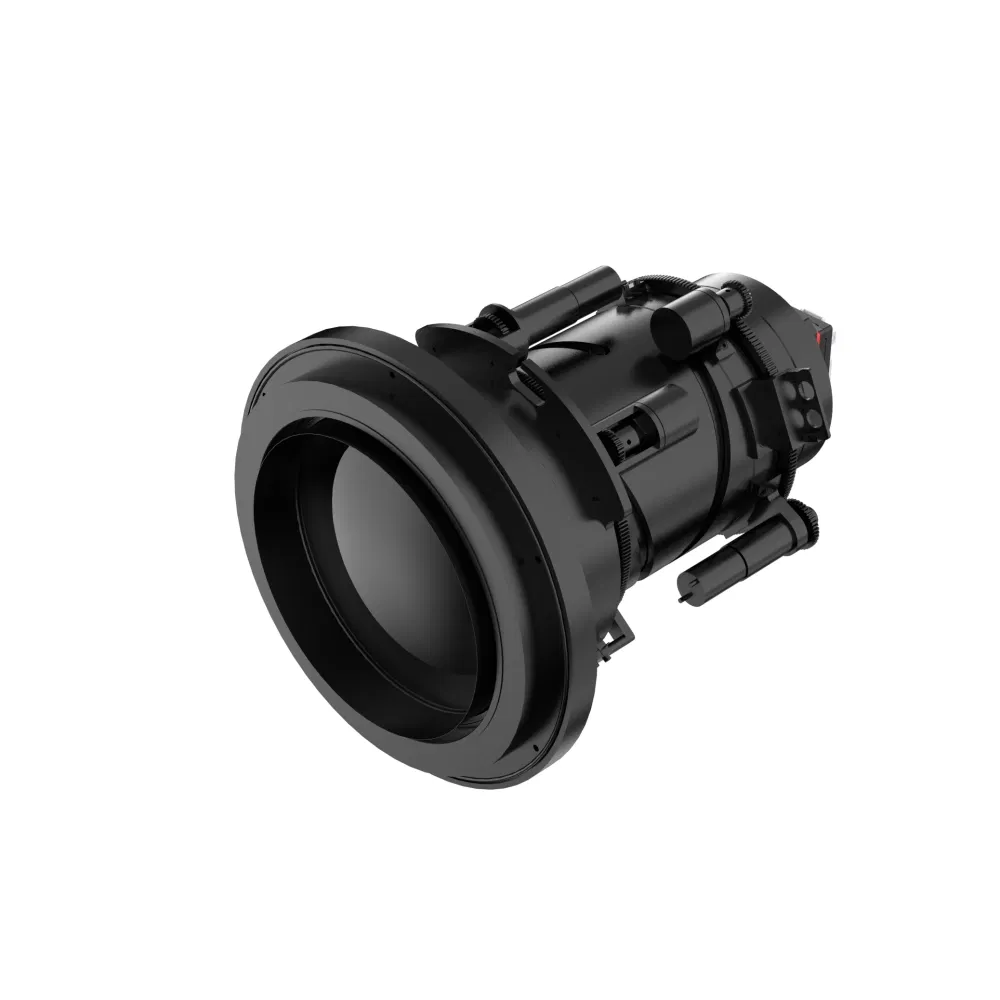

All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System
All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System
All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System
All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System
All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System
1 / 5
All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System
All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System
All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System
All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System
All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System

All-Scenario Adaptable 640*512 Resolution High-Performance Infrared Imaging System

Customization: Available
Function Type: Thermal Imaging System
Detection Type: Infrared Detector
Send Inquiry

Product Description

Basic Info.

Model NO.:Turing F640
Output Signal:Digital Type
Process:Vox
Certification:RoHS
Lens Type:Athermalized/Prime Electric Focus
Focus Mode:Manual/Automatic
Resolution:640×512
Pixel Pitch:12μm
Frame Rate:50Hz
Spectral Band:8~14μm

Product Description

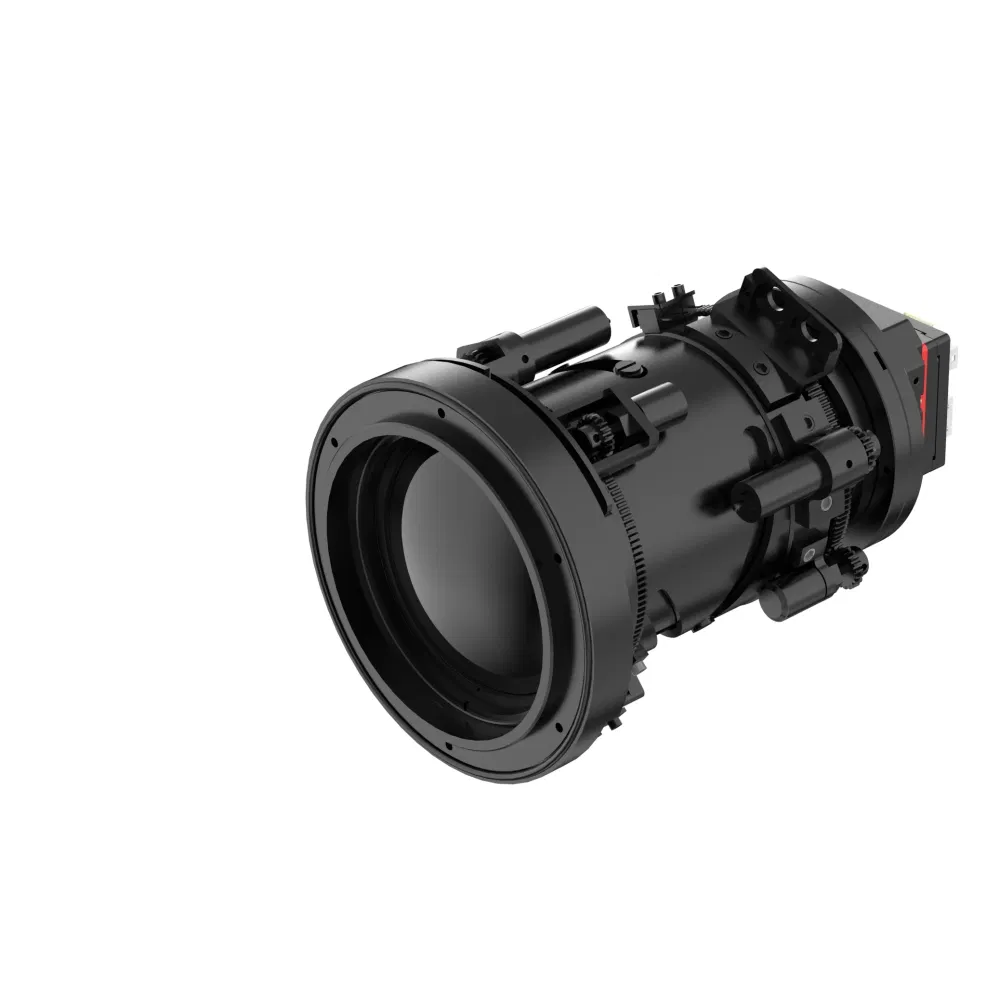

Turing F640 Infrared Module

Turing F640 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for long-distance monitoring. The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, and water area monitoring.

Product Highlights

●
All-Weather, All-Scenario Ultra-Fast Focusing
Optimized lens control technology achieves full focus in all temperature ranges. Deeply optimized algorithms achieve ultra-fast focusing in 1 second.
●
Providing Sharp Infrared Images
New generation image algorithms optimized for forests, sea, sky, and rainy/foggy weather, providing clear and sharp infrared images.
●
Providing Optimized Lens

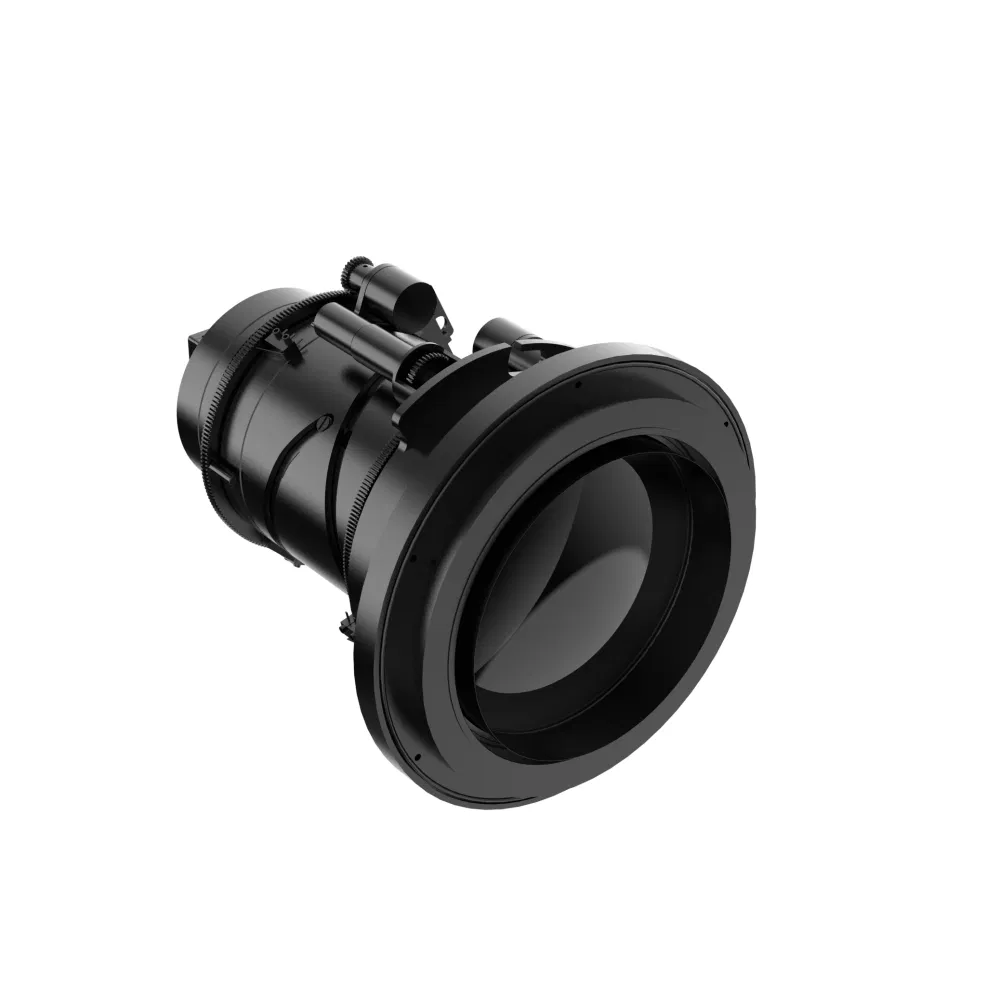

Supports athermalized prime lenses, prime electric focusing lenses, and continuous zoom lenses with defocusing compensation.
●
Multiple Video Interfaces
Support interfaces such as BT.601, BT.1120, SDI, USB, Cameralink, and HDMI. Multiple SDKs available for secondary development.

Specifications

Performance Characteristics
Detector TypeUncooled VOx infrared detector
Resolution640×512
Pixel Pitch12μm
Frame Rate50Hz
NETD≤40mK@25ºC, F#1.0
Image Adjustment
PaletteSupport (20)
Digital Zoom1.0~8.0× continuous zoom
Image ProcessingNon-uniformity correction, Noise reduction, Detail enhancement
Intelligent Function
Fire WarningSupport fire point detection
Intelligent DetectionRegional intrusion, tripwire intrusions, recognition
Environment Adaptability
Operating Temperature-45ºC~+70ºC
Storage Temperature-45ºC~+85ºC

Application Scenarios

Perimeter Surveillance

Perimeter Surveillance

Forest Fire Prevention

Forest Fire Prevention

Security Monitoring

Security Monitoring

Urban High-Altitude Observation

Urban High-Altitude Observation

Facility 1

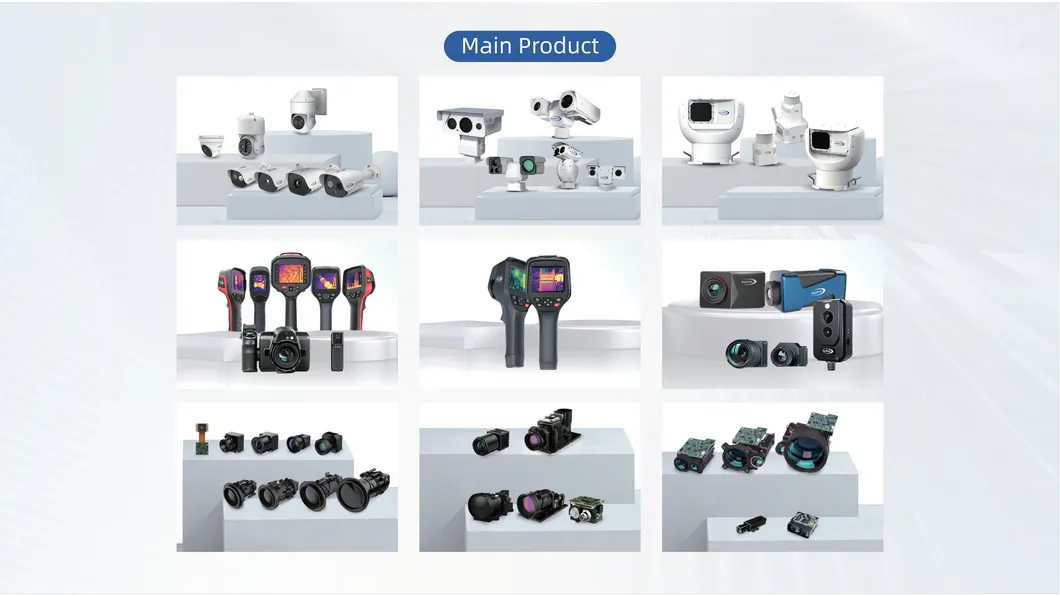

Facility 2
Facility 3
Facility 4

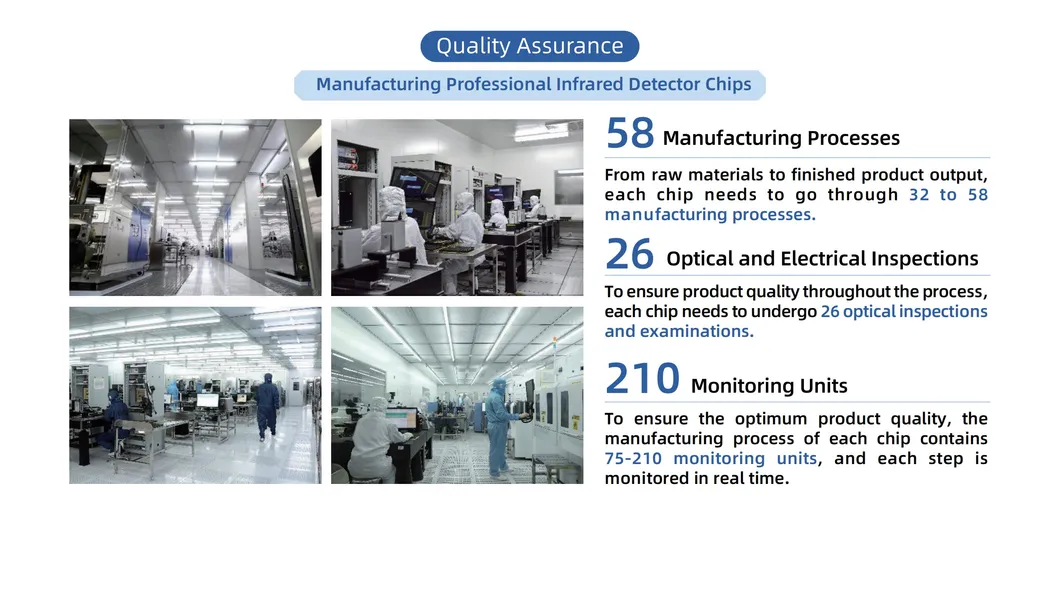

Facility 5

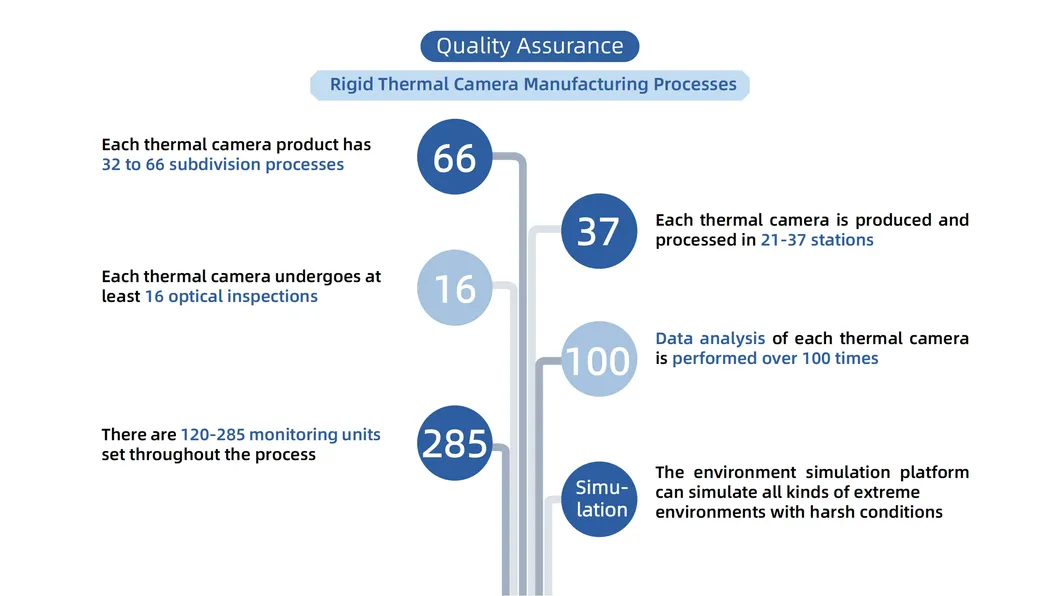

Facility 6

Frequently Asked Questions

Q1: How can we guarantee quality?
A: We have professional infrared detector chip manufacturing, a rigid thermal camera manufacturing process, a perfect quality management system, and a CNAS certification reliability test platform.
Q2: How long is your delivery time?
A: For small orders, it usually takes 7 working days. For OEM orders, please check the specific shipping time with our team.
Q3: What is the Minimum Order Quantity (MOQ)?
A: The MOQ depends on the specific product model. Please contact us for details.
Q4: What are your payment terms?
A: Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
Q5: What is the product warranty policy?
A: OEM products come with a 1-year warranty. Please refer to the product instructions for more specific details.
Q6: How about after-sale support?
A: We provide lifetime Technical Support. Our engineers will respond to your technical support requests within 24 hours.
