| Model NO. | BVE-2000CW |
| Specification | Pallet Size: 2330*650*280mm |
| Trademark | CETC |
| HS Code | 8543709100 |
| Production Capacity | 10000PCS/Month |

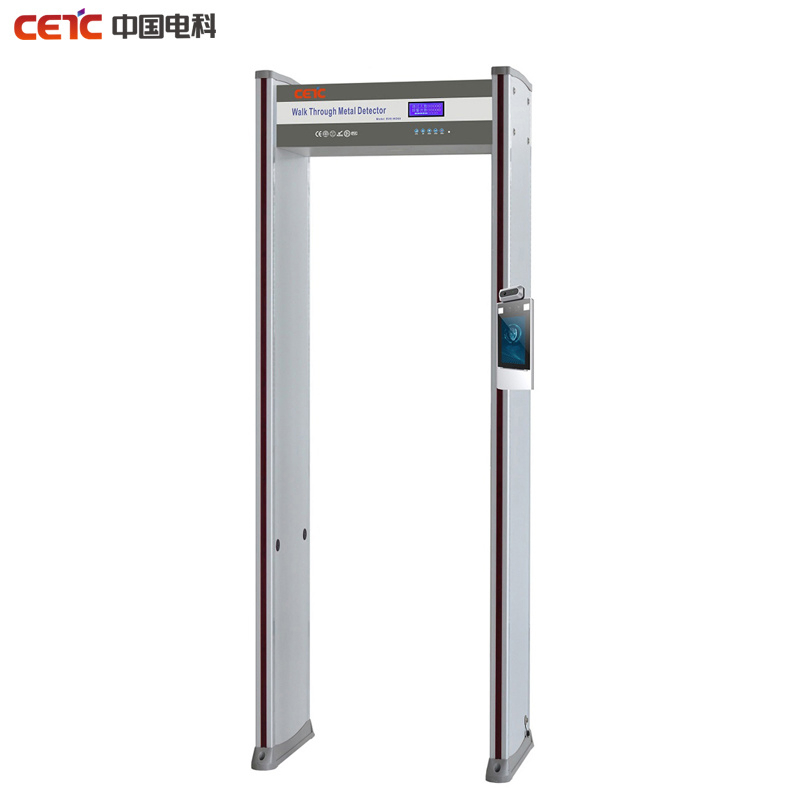

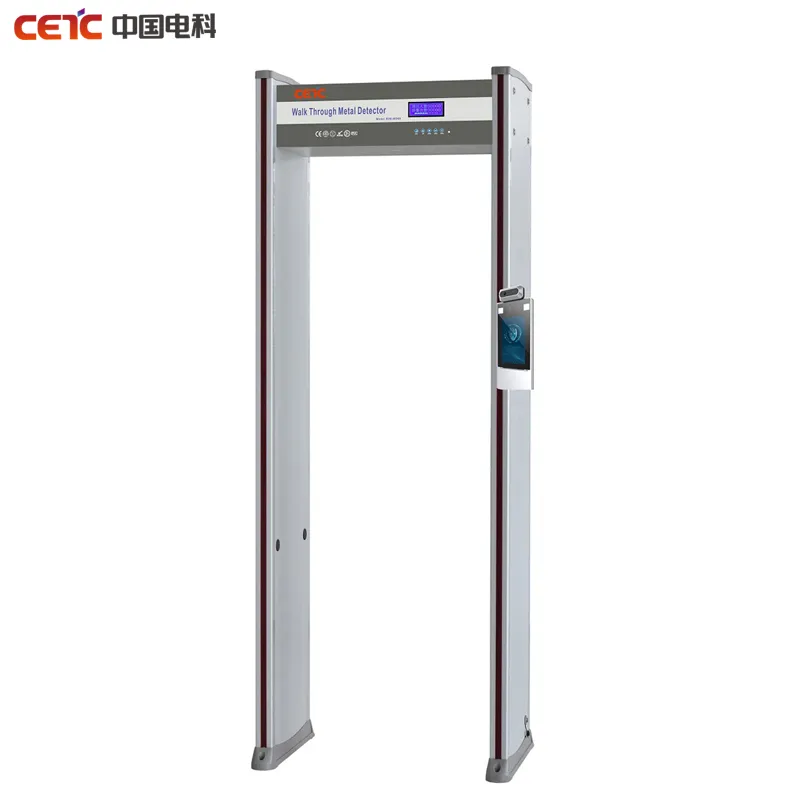

The BVE-2000CW high quality, high performance walk through metal detector integrated with thermal imaging, face identification technology, multiple detection zones. When the passengers entering the detection area, the equipment could do fast detection of head temperature, showing sound and light alarming for the temperature higher than set value and prompt alarming.
This system pinpoints contraband goods location with high-brightness LED indicators and meets high throughput security checking requirements with high recognition rate, complying with all international electrical equipment safety standards.
| Features Parameter | Description |
|---|---|
| Operation System | Linux |
| Face Recognition Accuracy Rate | >99% |
| Face Recognition Time | 200ms |
| Face Capacity | 10,000 |
| Measurement Range | 30ºC - 45ºC |
| Measurement Accuracy | 0.1ºC |
| Measurement Distance | 1m |
| Authentication Mode | Face Whitelist (1:N), Card, Face + Body temperature, Mask Detection |
| Screen | Touch Screen, Size: 7 inch, Resolution: 600*1024 |
| Camera | Dual Lens, 2MP, 1080P |
| Protection Level | IP 54 |
| Exterior Size | 2230mm(H) X 820mm(W) X 500mm(D) |
Our equipment holds CE, ISO, FCC, FDA, Radiation Safety Permit, AAA Credit Level Enterprise, and Hardware Design Patents.

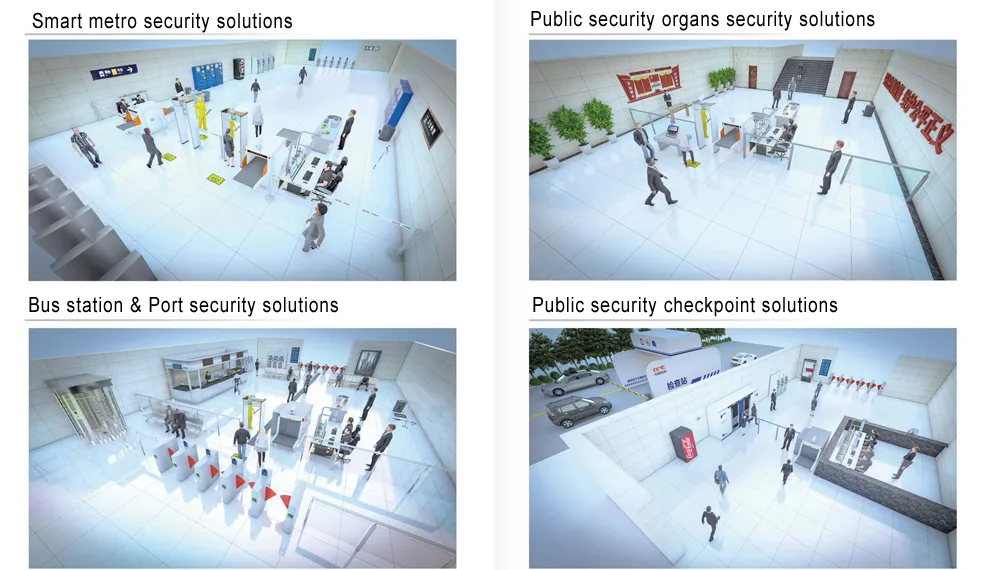

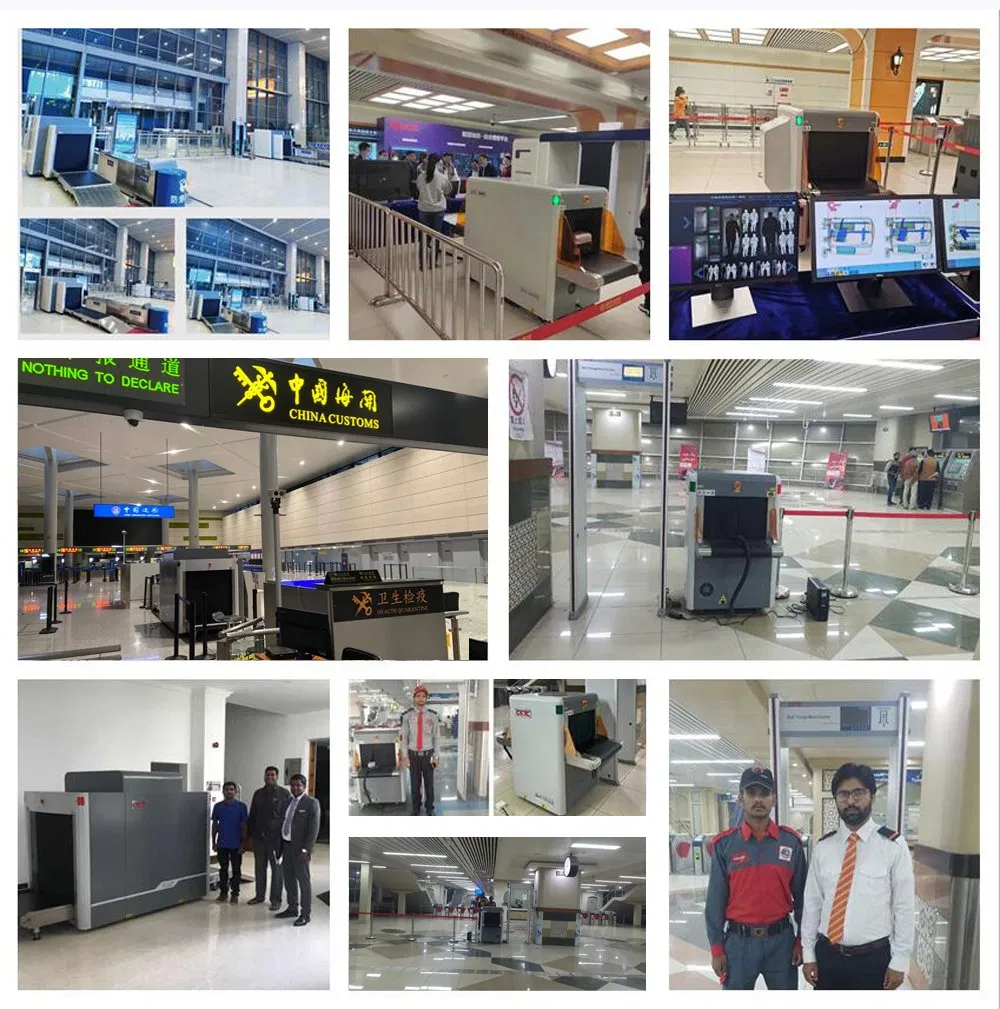

Ideal for: Office Entrances, Railway Stations, Airports, Factories, Borders, Prisons, Shopping Malls, and Customs.

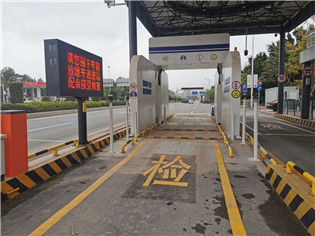

We provide 8 comprehensive series: X-Ray Baggage Scanners, Vehicle Inspection Systems, Container Scanners, Hand Held/Walk Through Metal Detectors, Explosive Detection, and Under-vehicle Inspection equipment.
For normal orders, the lead time is usually within 2 weeks after receiving payment, depending on the specific models and quantity.
Yes, we offer OEM, ODM, and SKD services. Our technical team can design customized products based on specific client requirements.
We provide a free 1-year warranty. Paid warranty extensions from 2 to 10 years are also available upon request.
We offer site visit services, online technical analysis, and 24-hour telephone technical guidance to ensure systems operate properly.
Standard terms are T/T 30% in advance and 70% before shipment. We support ocean, air, and land transportation using professional composite wood pallet packaging.
