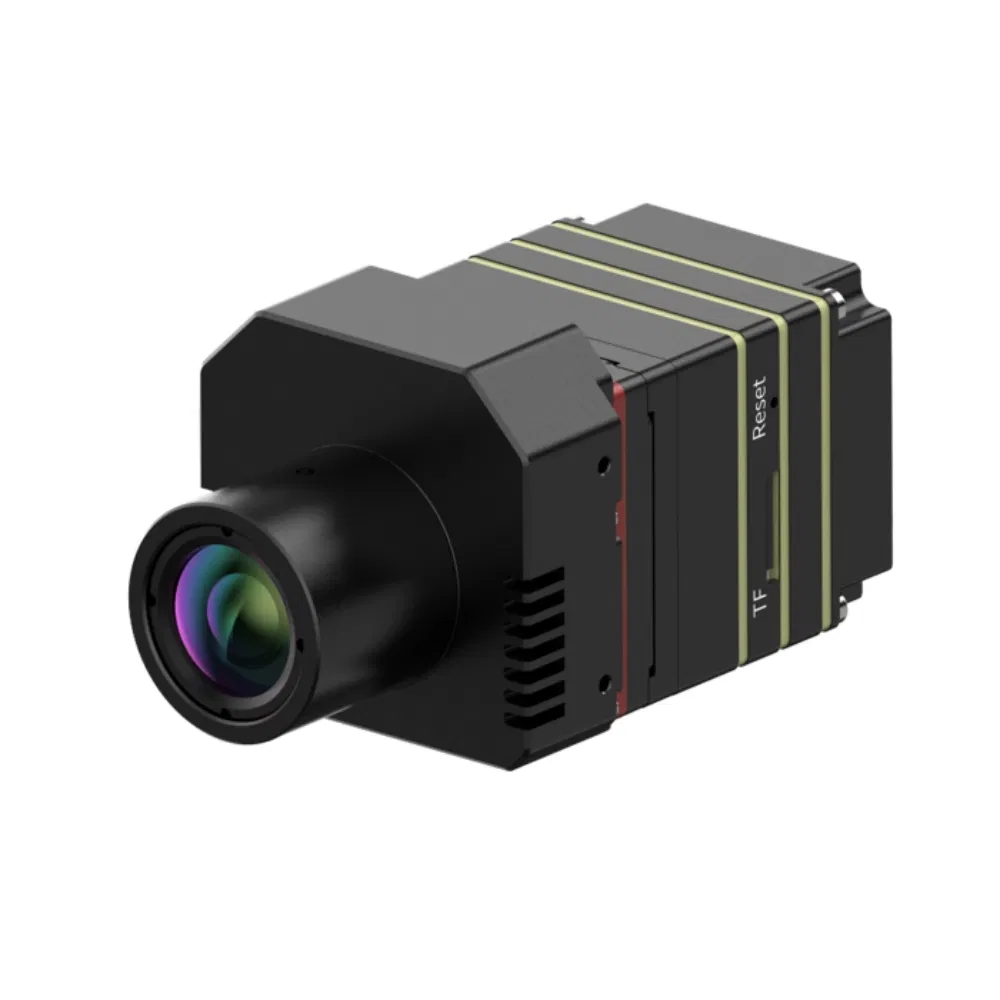

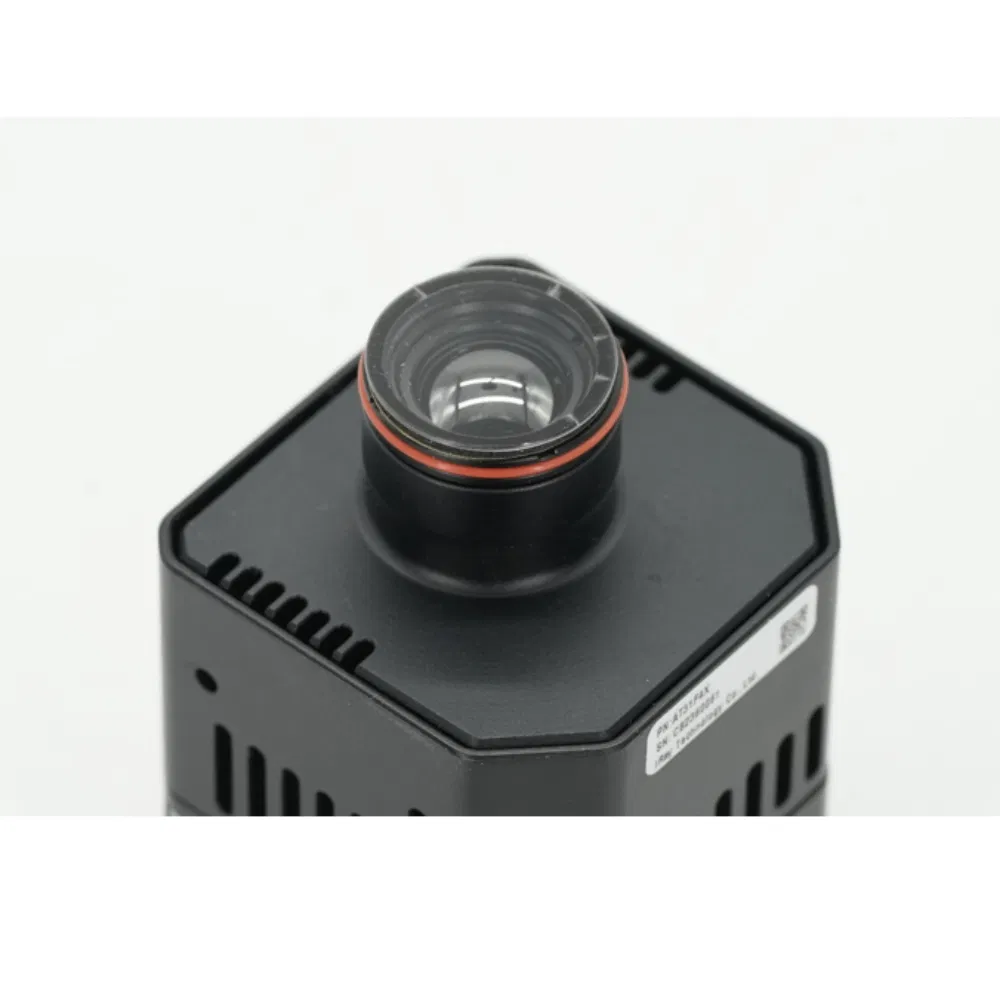

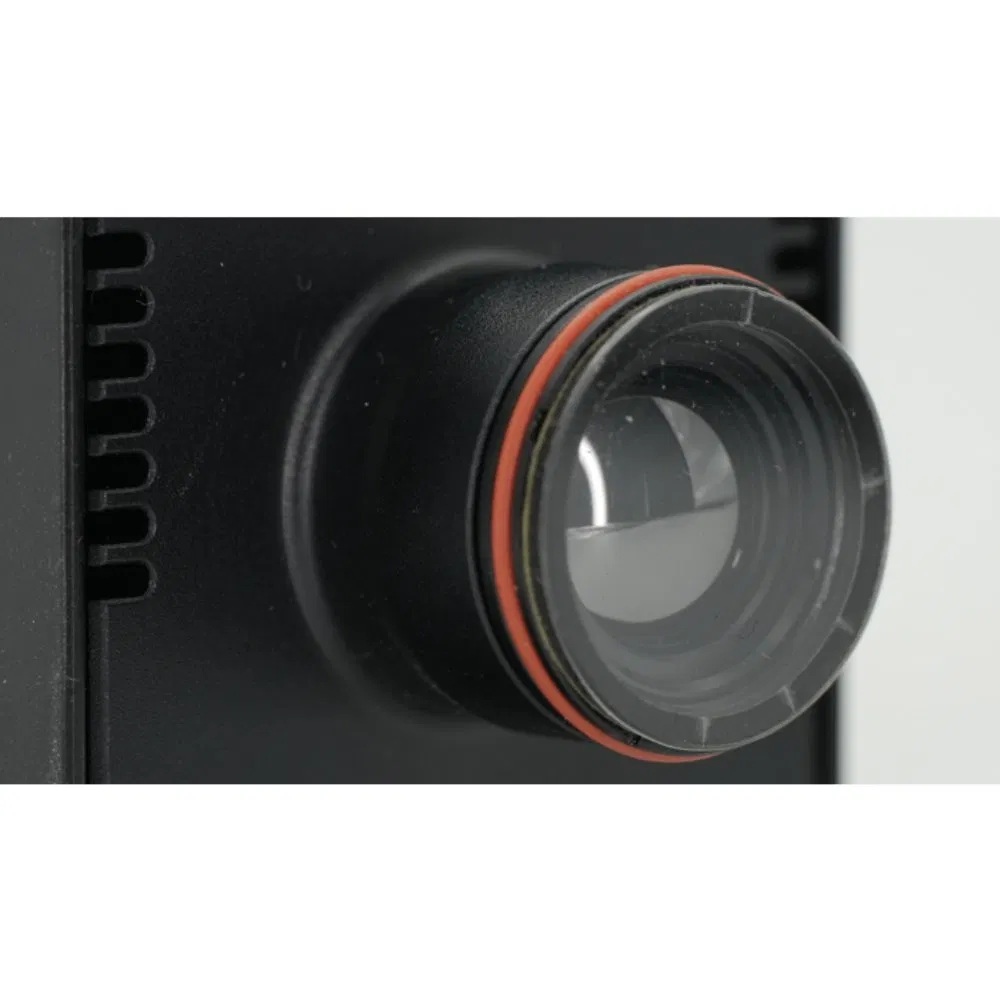

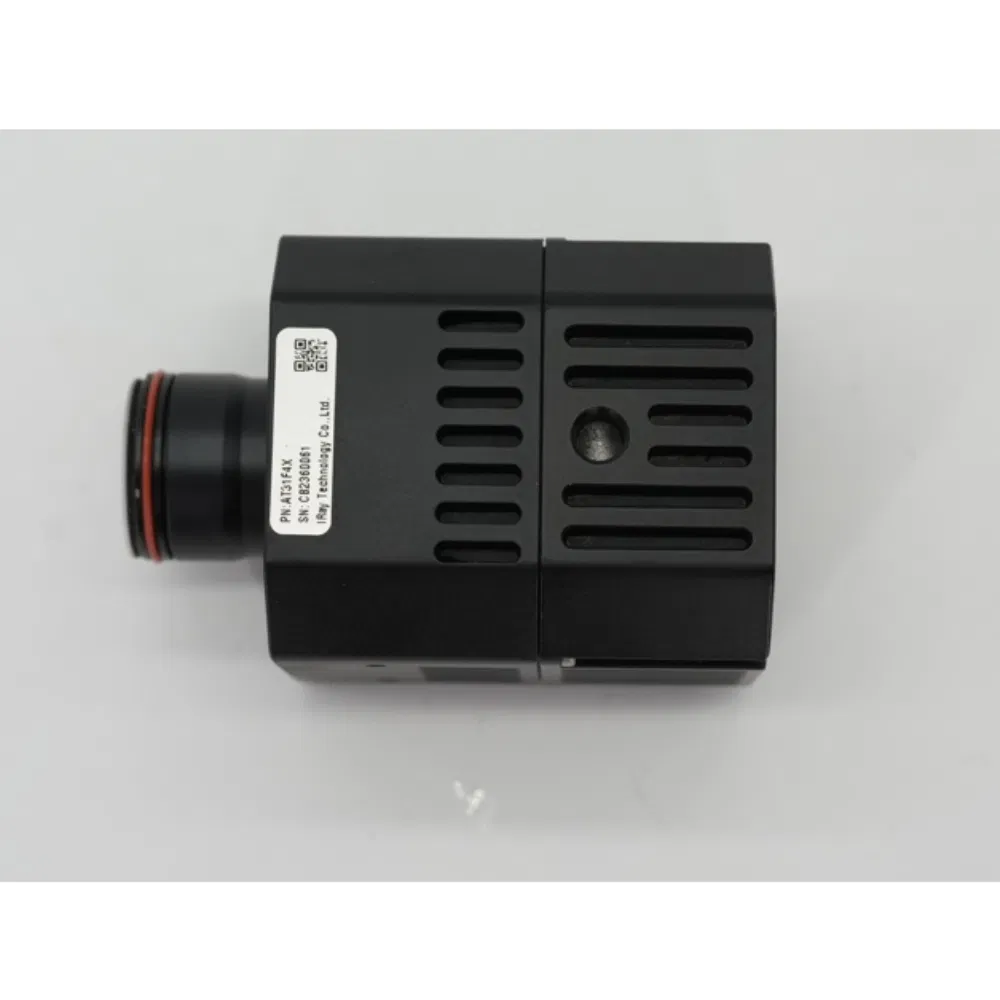

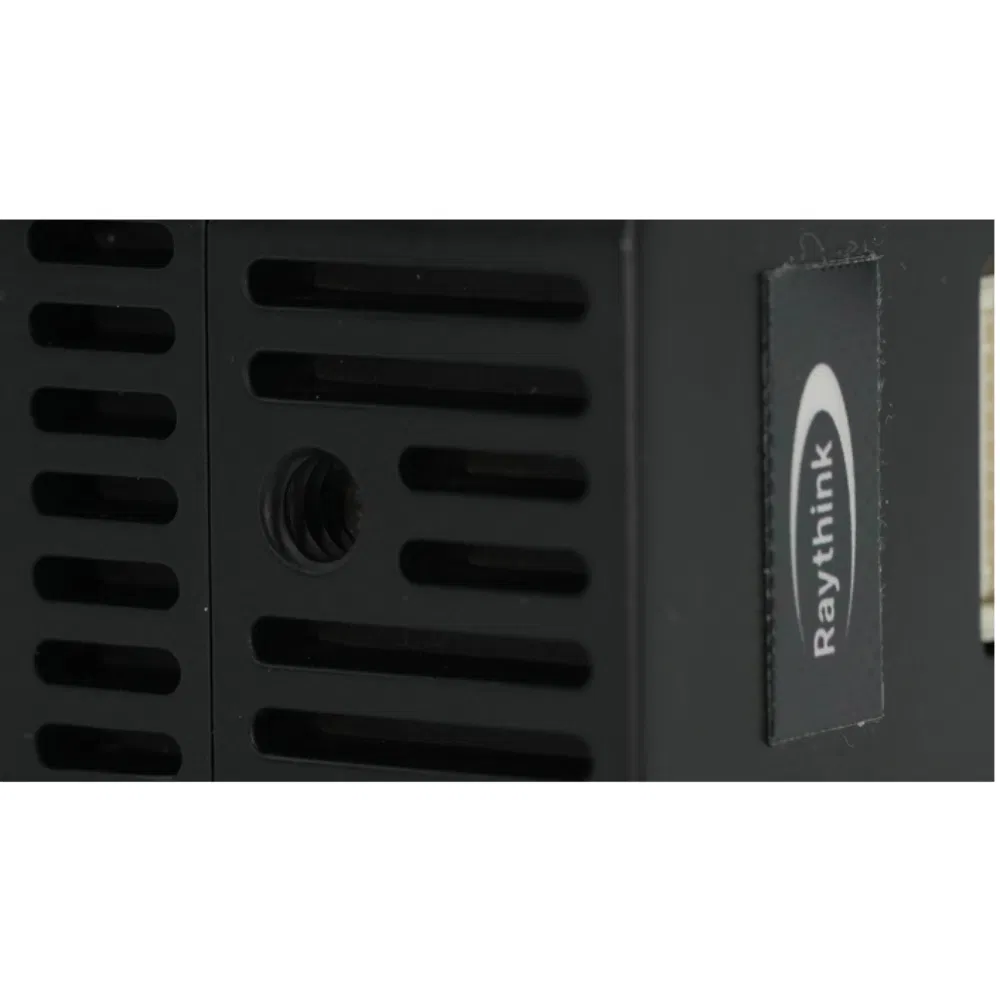

TN460 is a high-performance and high-accuracy thermal camera equipped with an uncooled infrared FPA detector. It delivers exceptional infrared imagery and precise temperature measurement capabilities.
Designed for seamless integration, it supports multiple communication protocols including Modbus TCP, Onvif, and GB28181. Its compact form factor and low power consumption make it an ideal choice for machine vision, electric power monitoring, industrial automation, and new energy sectors.
| Focal Length | 4.1mm | 9.1mm | 13mm | 25mm |
|---|---|---|---|---|
| FOV | 100°×81° | 48.6°×38.6° | 32.9°×26.6° | 17°×14° |
| IFOV | 2.93mrad | 1.32mrad | 0.92mrad | 0.48mrad |
| Thermal Imaging Parameters | |
|---|---|
| Detector | Uncooled VOx detector |
| Infrared Resolution | 640×512 |
| Pixel Pitch | 12μm |
| NETD | ≤40mK |
| Temperature Measurement | |
| Measurement Range | -20ºC~+150ºC, 0ºC~650ºC |
| Accuracy | ±2ºC or ±2% of readings |
| Correction | Emissivity, Distance, Ambient Temp, Atmospheric Transmissivity |
| Measurement Tools | 12 points, 12 lines, 12 areas; Isotherm support |
| Image & Video | |
| Palettes | 20 options (Black-hot, White-hot, Iron red, Rainbow, etc.) |
| Video Standards | H.264, H.265 |
| Mirroring | Horizontal / Vertical / Diagonal |
| System Interface | |
| Communication | RJ45 (Gigabit), RS485 (Optional Pelco-D) |
| Interface Protocols | Modbus TCP, ONVIF, GB28181, MQTT |
| Storage | Support TF Card |
