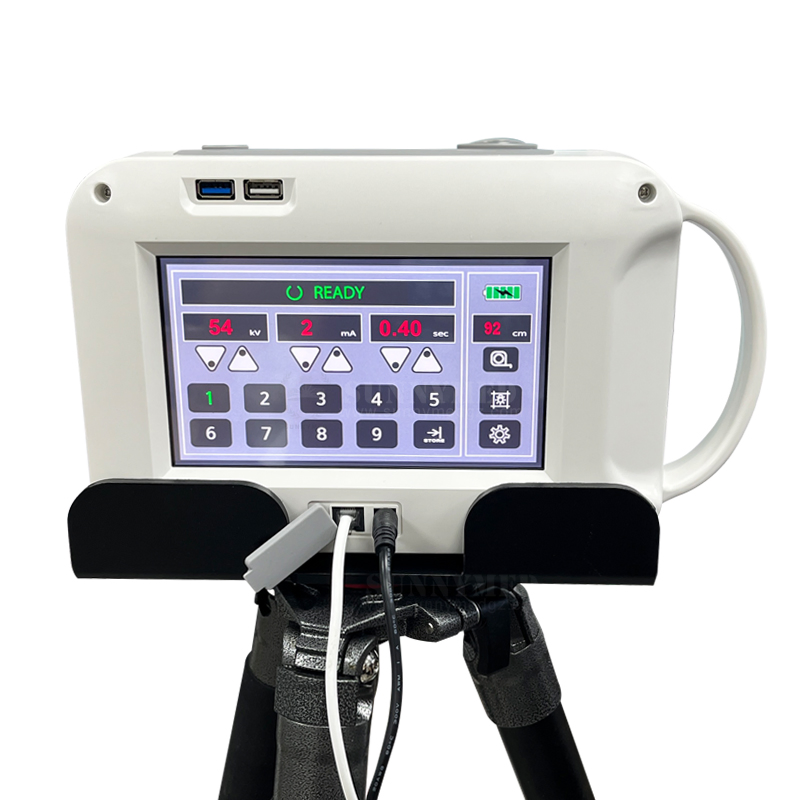

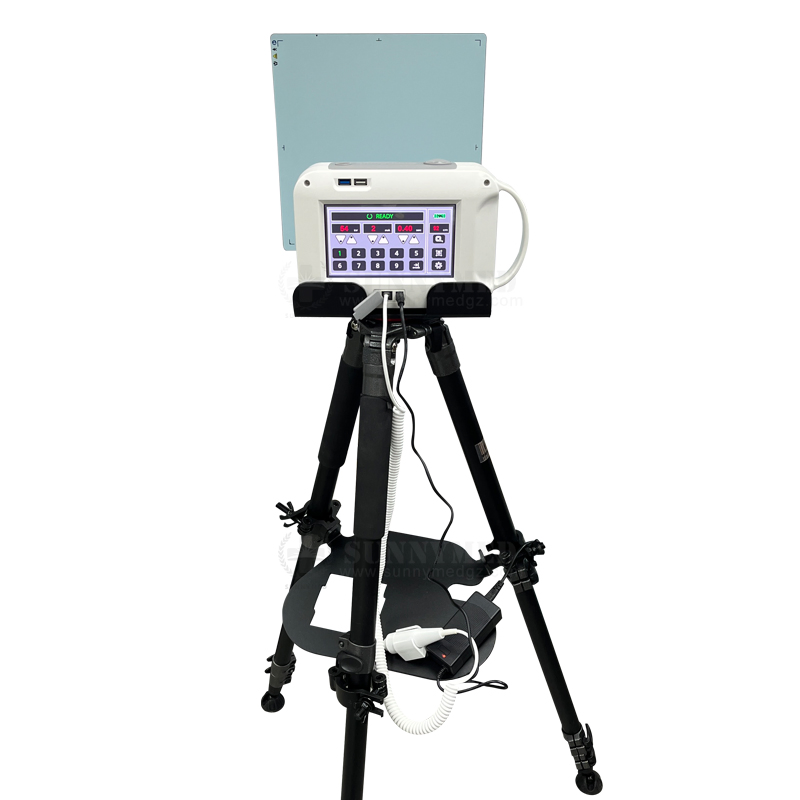

Sy-D034 Hospital Human and Animal Use 85kv Portable X Ray Device

1 / 5

Sy-D034 Hospital Human and Animal Use 85kv Portable X Ray Device

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Certification:	CE

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SY-D034

Product Name

Portable X-Ray Machine

Warranty

2 Years

After-Sale Service

Online Technical Support

Display Screen

7 Inch LCD Screen

Capacity

200 Set/Month

✨ Product Description & Features

Suitable For: Comprehensive diagnostic centers, hospital radiology departments, emergency rooms, orthopedic departments, lung diagnosis, and veterinary hospitals.

✔

Ultra-Compact Design: Requires minimal space and is highly portable for various clinical settings.

✔

Safety First: Minimized radiation dose to both patient and operator for safe daily use.

✔

High Efficiency: Industry-leading battery performance allows for continuous operation without power cords.

✔

Integrated Workflow: Built-in workstation with seamlessly integrated software for immediate operation.

✔

No Installation: Completely wireless system that requires no additional setup or equipment.

✔

Superior Imaging: High-frequency output and optimized focal spots for clear medical diagnostics.

📊 Technical Specifications

Technical Data Details
Dimension	288 × 268 × 168 mm (L × W × H)
Weight	3.2kg ± 25%
Display Screen	7 inch LCD screen (Resolution: 1024x600)
Input Voltage	220V ± 10% AC
Battery Capacity	22V, 2200mAh
Frequency	50Hz ± 1Hz
Output Range	50-70 kV (step: 1kV) + 2-5mA (step: 1mA)
X-ray Exposure Time	0.03 - 2.00 seconds (adjustable steps)
X-ray Tube Model	CEIOXW70-3
Focal Spots	0.3 × 0.3 mm

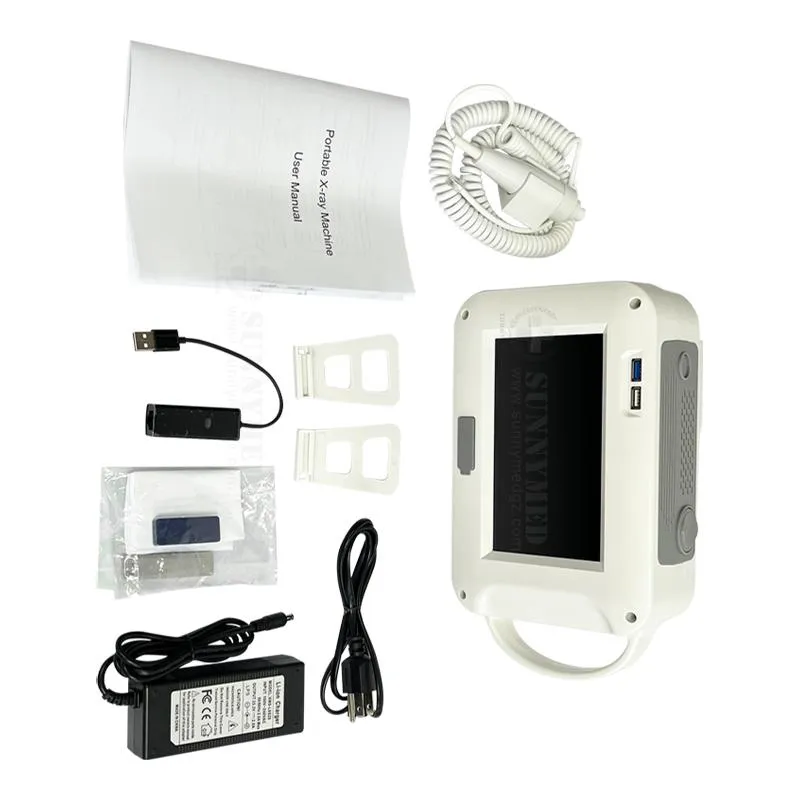

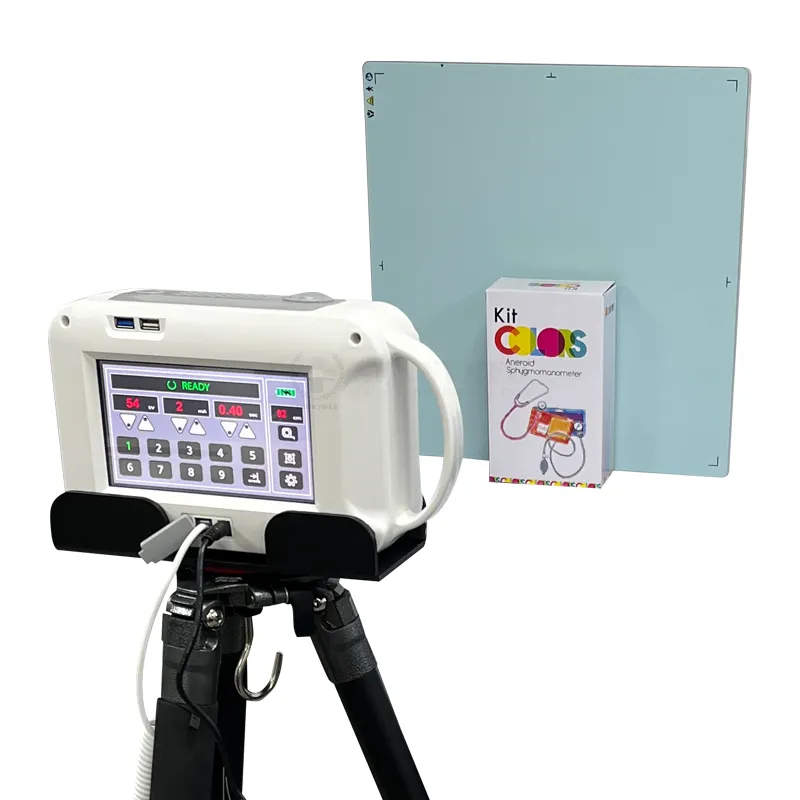

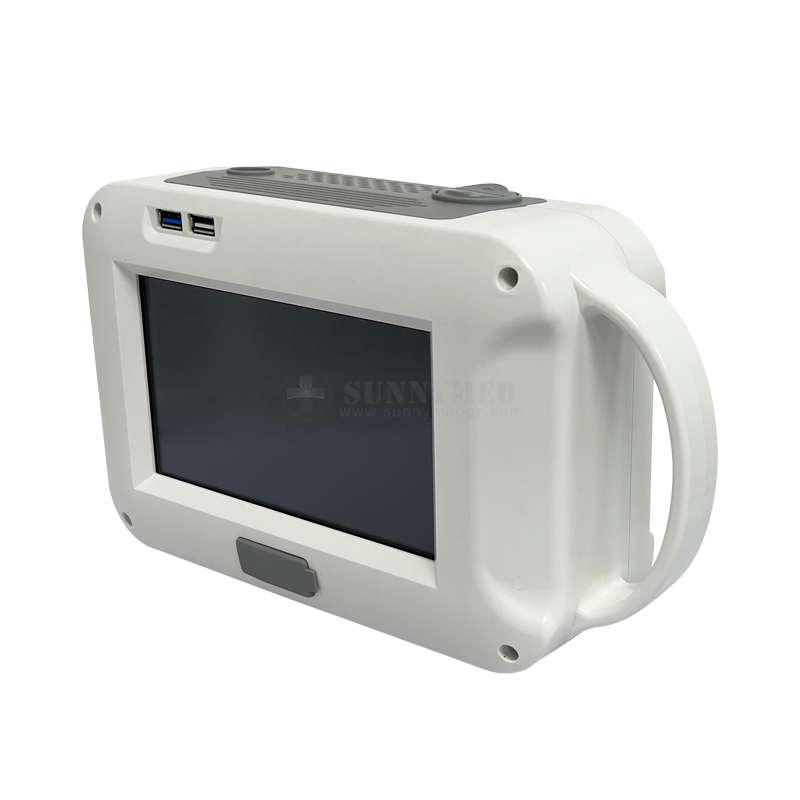

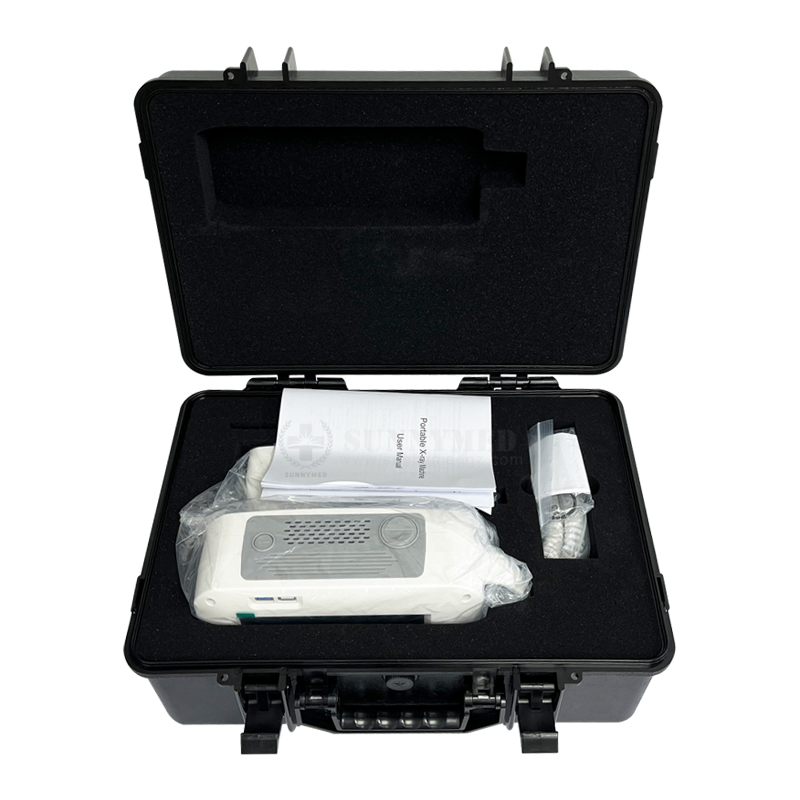

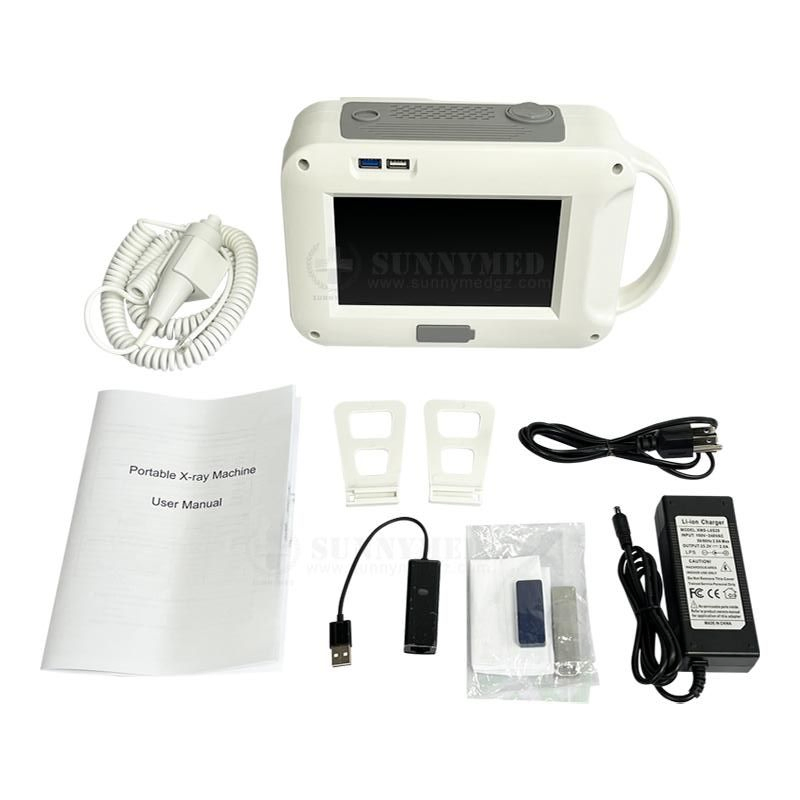

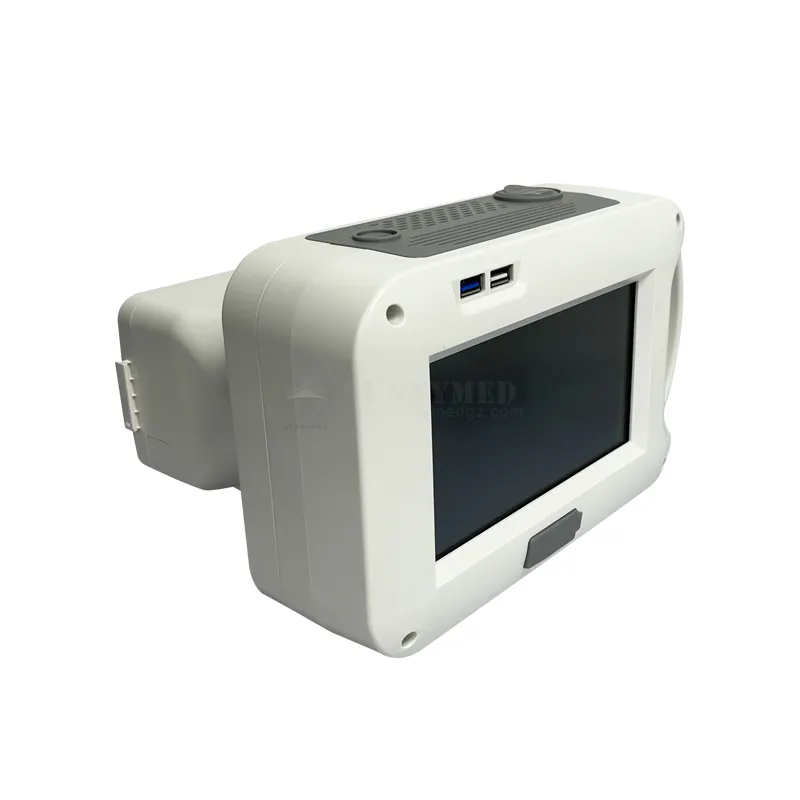

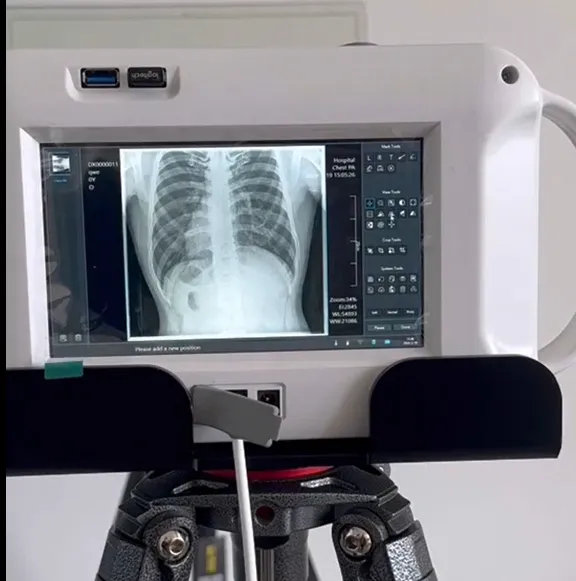

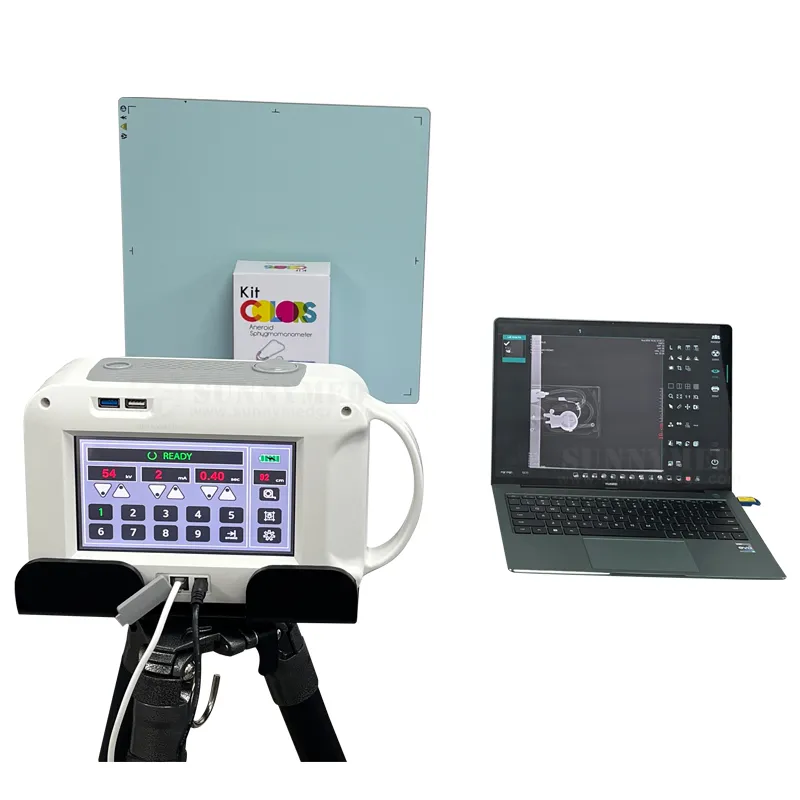

📷 Detailed Product Photos

🔍 Application Scenarios

❓ Frequently Asked Questions

1. Can this machine be used for both human and veterinary diagnosis?

Yes, the SY-D034 is designed for both human hospital use (radiology, orthopedics, emergency) and veterinary applications.

2. Is the device truly wireless and portable?

Absolutely. It features a built-in 2200mAh battery and integrated workstation software, requiring no external cables or additional installation.

3. What is the weight and size of the unit?

The unit is ultra-lightweight at approximately 3.2kg with dimensions of 288 × 268 × 168 mm, making it easy to carry between wards.

4. How long is the warranty period for this X-ray machine?

The product comes with a comprehensive 2-year warranty and lifetime online technical support.

5. What kind of display does it use?

It is equipped with a high-resolution 7-inch LCD screen (1024x600) for clear viewing of settings and parameters.

6. How is the radiation safety managed?

The system is optimized to use the lowest possible dose of radiation while maintaining high-quality imaging, ensuring safety for both patients and healthcare providers.
