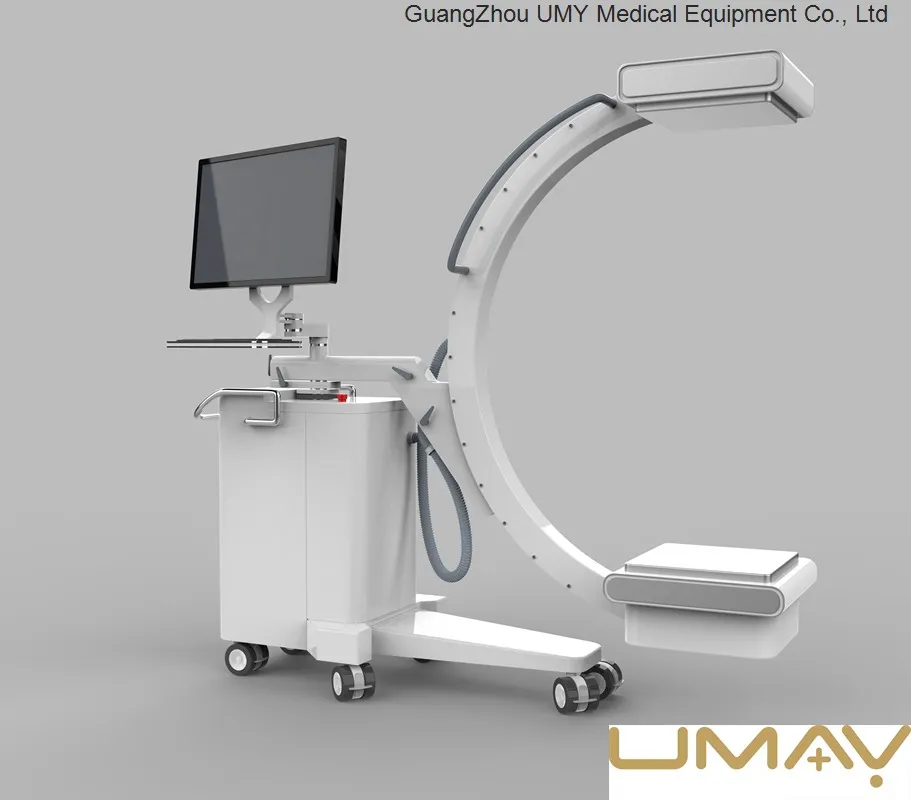

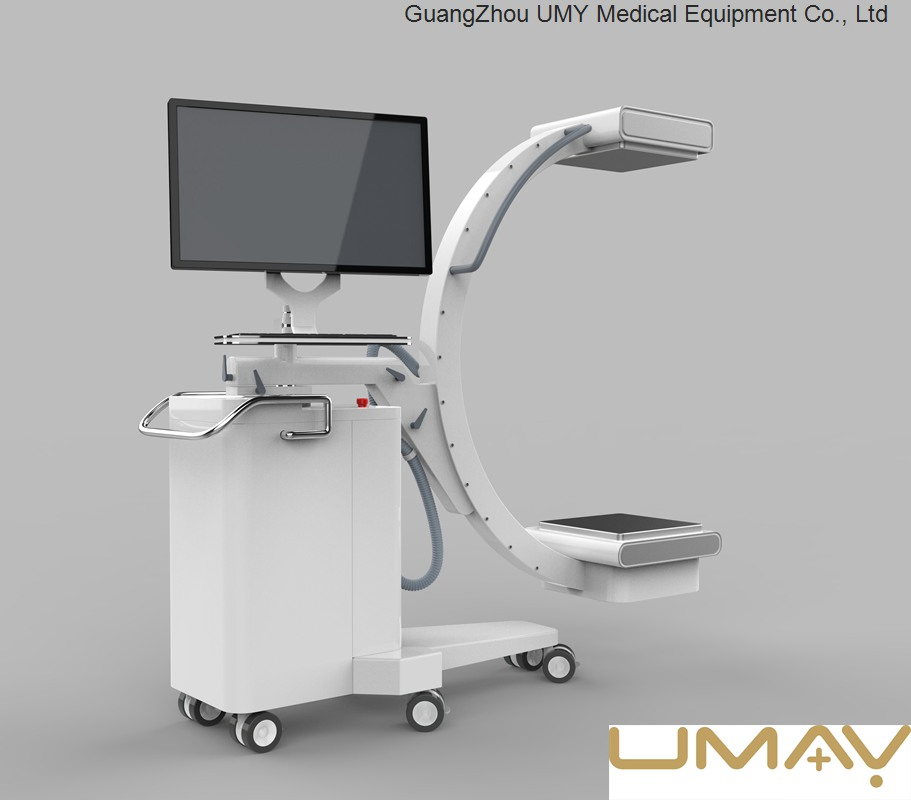

Portable C Arm X-ray Device for Efficient Patient Care

1 / 3

Portable C Arm X-ray Device for Efficient Patient Care

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

UM-1015

Certification

CE, FDA, EEC, MSDS, ISO13485

Group

Middle-aged and Old

Maximum Power

50kw

Photography Voltage

40-125kv

Pulse Fluoroscopy

10-30mA

Exposure Time

1ms-5000ms

Mas Variation

0.1mas-200mas

Input Power Supply

220 VAC

Focus

0.3mm/0.6mm

Max.Kv

125kv

C-Arm Vertical Disp.

≥400mm

⚙️ Product Specifications

1. Flat Panel Detector
Type of the detector	TFT monolithic amorphous silicon
Panel size of the detector	210mm*210mm
Acquisition pixel matrix	1024×1024
Pixel pitch / Spatial resolution	200 um / 2.5LP/MM
Pixel gray scale / Acquisition frame	16 Bit / 30fps
2. High Frequency and High Voltage Generator
Max. Output power	50kw
Input power supply	220 VAC
Photography voltage / Current	40~125kV / 10~100mA
Exposure time / mAs range	1ms-5000ms / 0.1mAs~200mAs
Fluoroscopy (Continuous / Pulse)	0.5-5mA / 10-30mA
3. X-ray Bulb Tube Assembly
Focus / Max.KV	0.3mm/0.6mm / 125kV
Anode target angle	12°
4. C-Arm Stand
Vertical displacement (Electric)	≥400mm
Horizontal displacement (Manual)	≥200mm
Rotation displacement	≥±200°
Track displacement	-30°~+90°
Depth of arc / S.I.D	≥650mm / ≥1000mm
5. Grid and Beam Limiting Device
Grid material / Size	Aluminum based / 23×23cm
Grid ratio / Focal length	100:1 / 1000mm
6. Work Station
CPU / Host Memory	Intel i7, 3GHz+ / ≥16GB DDR3
Hard disk	1T/7200rpm high speed
Operating System	Windows 10 64 bit Professional

❓ Frequently Asked Questions

What type of detector technology is used in the UM-1015?

The UM-1015 utilizes a high-precision TFT monolithic amorphous silicon flat panel detector with a 1024×1024 pixel matrix for crystal clear imaging.

What are the power requirements and output capacity?

The system operates on a 220 VAC input power supply and delivers a maximum output power of 50kw, supporting photography voltages up to 125kV.

What certifications does this medical X-ray device hold?

This equipment is fully certified with CE, FDA, EEC, MSDS, and ISO13485 standards, ensuring compliance with international medical safety regulations.

How flexible is the C-arm movement during surgical procedures?

The C-arm offers excellent maneuverability with ≥400mm electric vertical displacement, ±200° rotation, and a depth of arc of ≥650mm, providing optimal positioning for various clinical needs.

What kind of workstation comes with the system?

The system includes a high-performance workstation powered by an Intel i7 processor, 16GB RAM, and a 1TB hard drive, running on Windows 10 Professional.

Does the device support pulse fluoroscopy?

Yes, it supports pulse fluoroscopy with a range of 10-30mA and a frame frequency of 1-30 frames, allowing for dose reduction while maintaining image quality.
