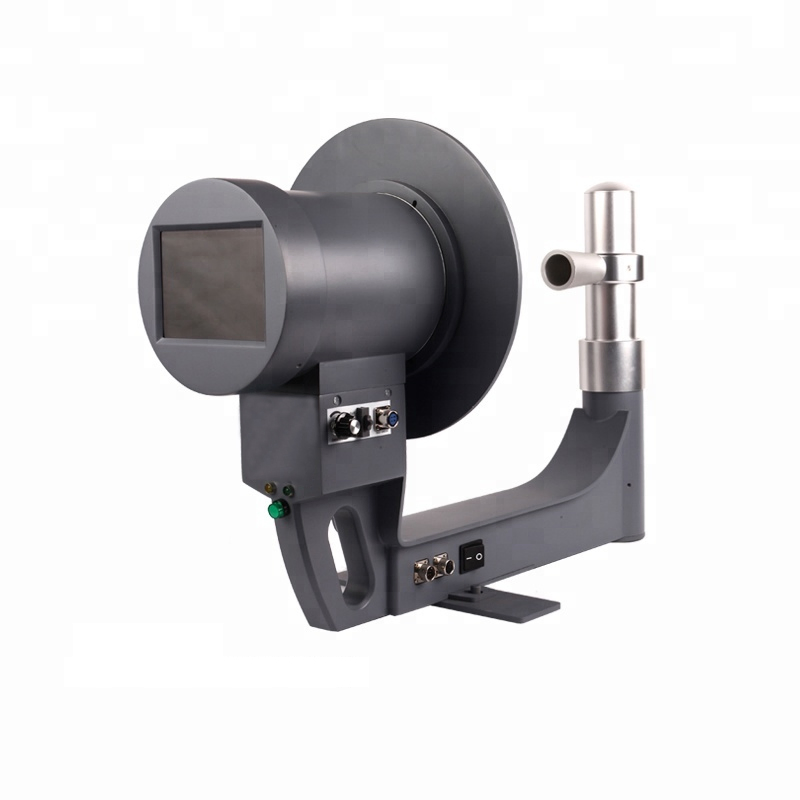

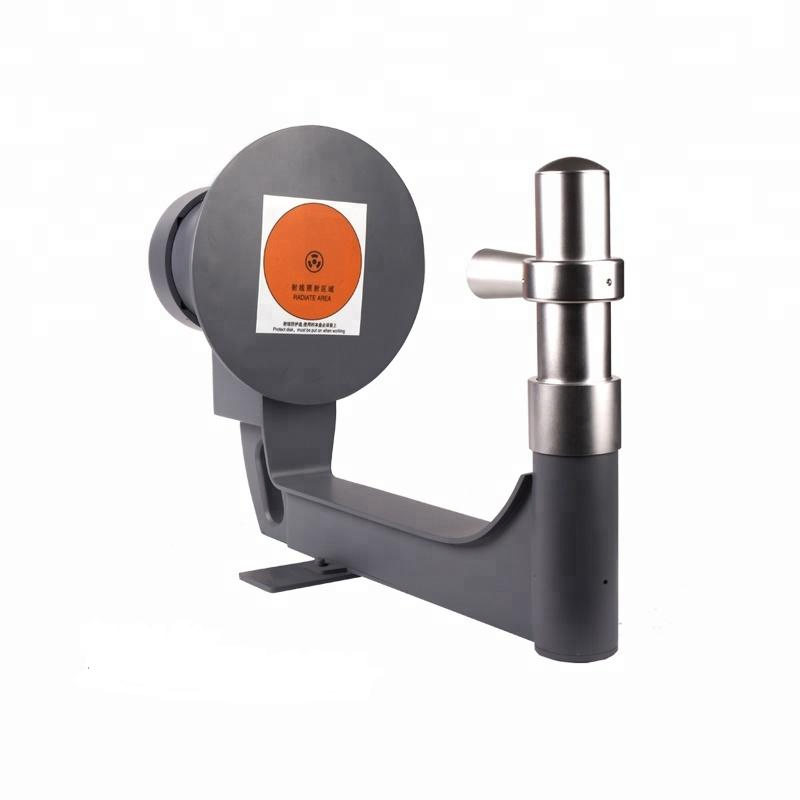

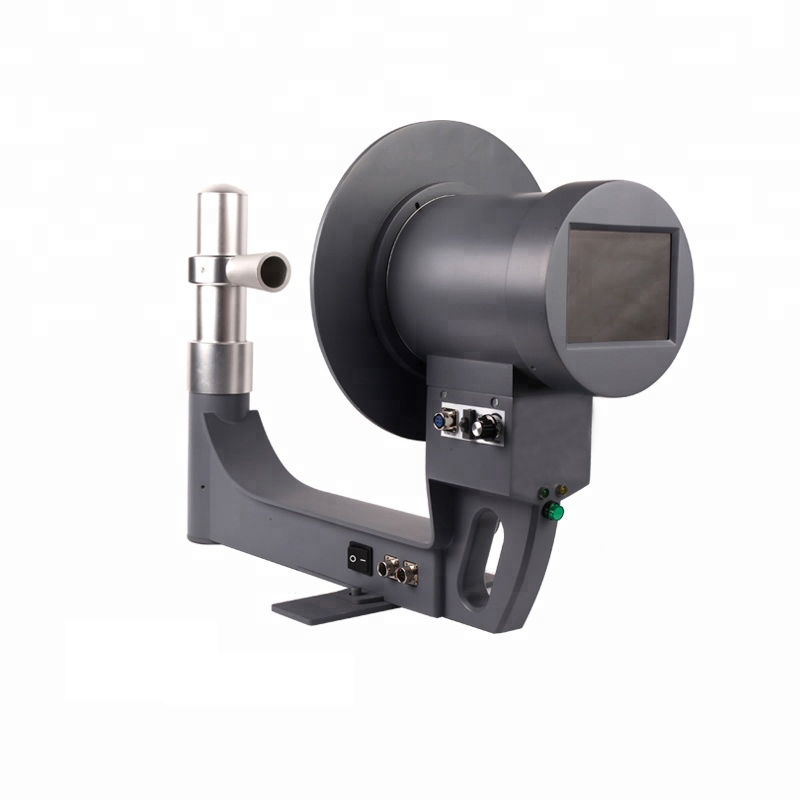

Juzheng X-ray Machine Medical Fluoroscopy Portable X Ray Device

1 / 5

Juzheng X-ray Machine Medical Fluoroscopy Portable X Ray Device

Customization:	Available
After-sales Service:	Remote Support
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

XR-100C

Portable

Form

Portable

Application

Industrial, Medical Instrument

Type

Veterinary X Machine

Certification

ISO, OHSAS

Effective Field of View

Φ 50-100mm

Resolution

45 Lp/Cm

X-ray Tube Voltage

50~80kv

X-ray Tube Current

0.3-0.5mA

X-ray Leakage

≤1.0mgy/H

Contrast

Grayscale

Level 7

Power Supply

220V±22V, 50±1Hz

Transport Package

Copper Alloy Suitcase + Plywood Case

Production Capacity

100 Units/Month

Product Description

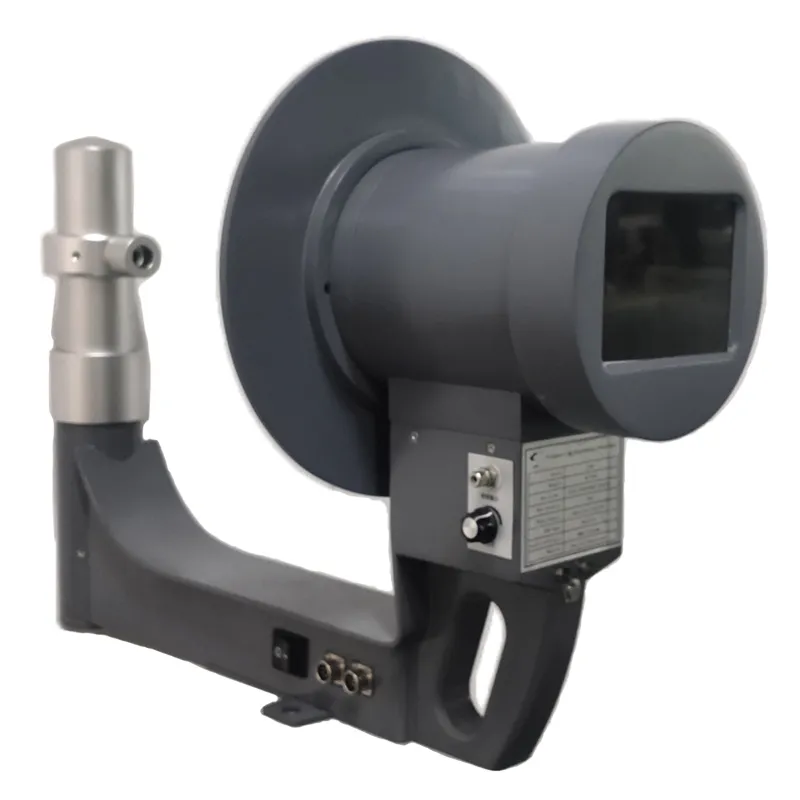

Medical Fluoroscopy Portable X-ray Device

High-performance real-time imaging system for multi-purpose diagnostic and industrial applications.

Instrument Features: 1: No darkroom, real-time imaging, display synchronization display, can be connected to computer storage printing;
2: High gain, high sensitivity, high spatial resolution, short response time;
3: Simple design, small size, light weight, can be used by hand;
4: Low radiation dose, safe and reliable, easy to operate.

Industrial Applications: Used for factory connecting wires, USB wires, earphones, die-casting parts, aluminum castings, plastic castings, and electronic components. Detects internal structure offset, deformation, or desoldering.

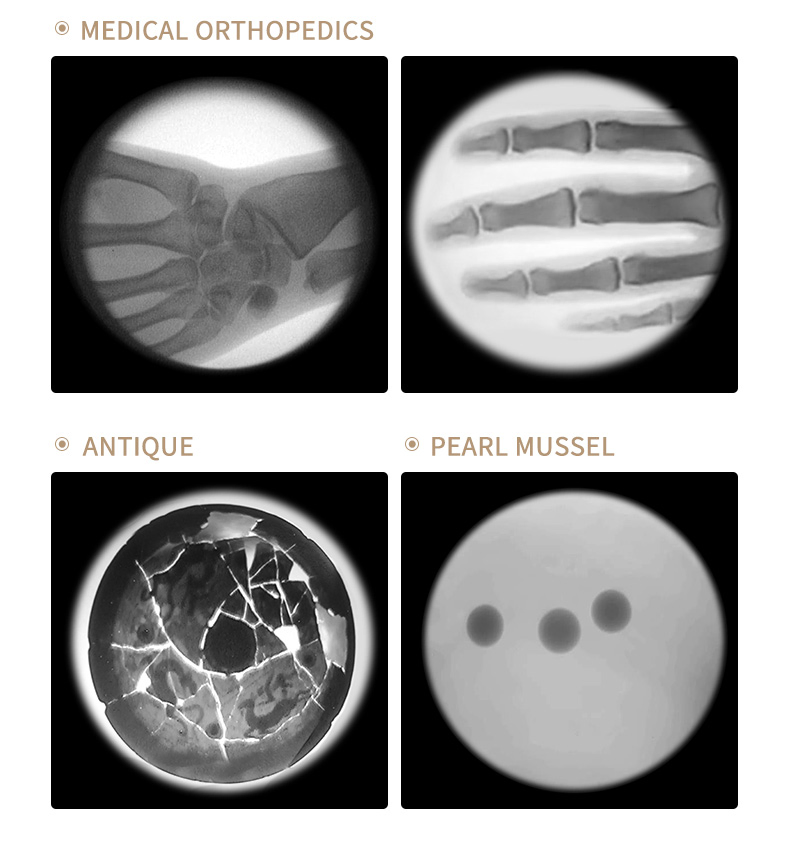

Medical Applications: Ideal for orthopedic surgery, emergency, ward rounds, and surgical sites. Supports closed reduction of limb fractures, fixation, needle insertion, and foreign body detection. Best for pediatric use due to low dose.

Technical Specifications

Product Name	Portable X-Ray Fluoroscopy Instrument
Model#	XR-100C
Product Application	Pet/Veterinary, Limbs/Orthopedic, Chip/Electronic, Pottery
Field of View	Φ 50-100mm
Resolution	46 lp/cm
Maximum Detection spacing	≤ 280mm
X-ray Output	75 Kv/0.35 mA
X-ray leakage	≤1.0mGy/h
Contrast	4%
Grayscale	Level 7
Input Power	60-90 VA
Output Brightness	> 25cd/cm²
Power Consumption	70VA
Power Supply	220V±22V 50±1Hz

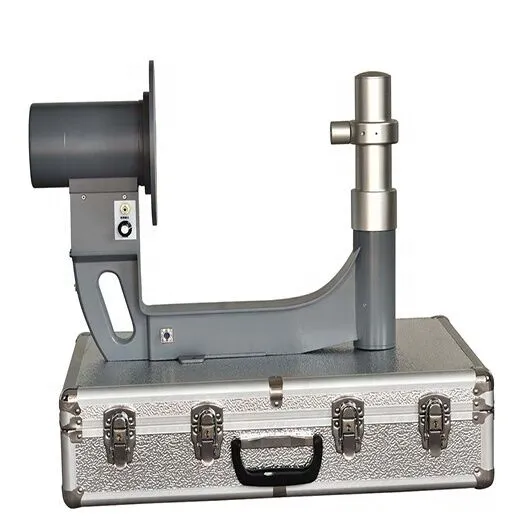

Product Packaging	Copper Alloy Suitcase + Plywood Case
Net/Gross Weight	8 kg / 12kg
Warranty Period	12 Months

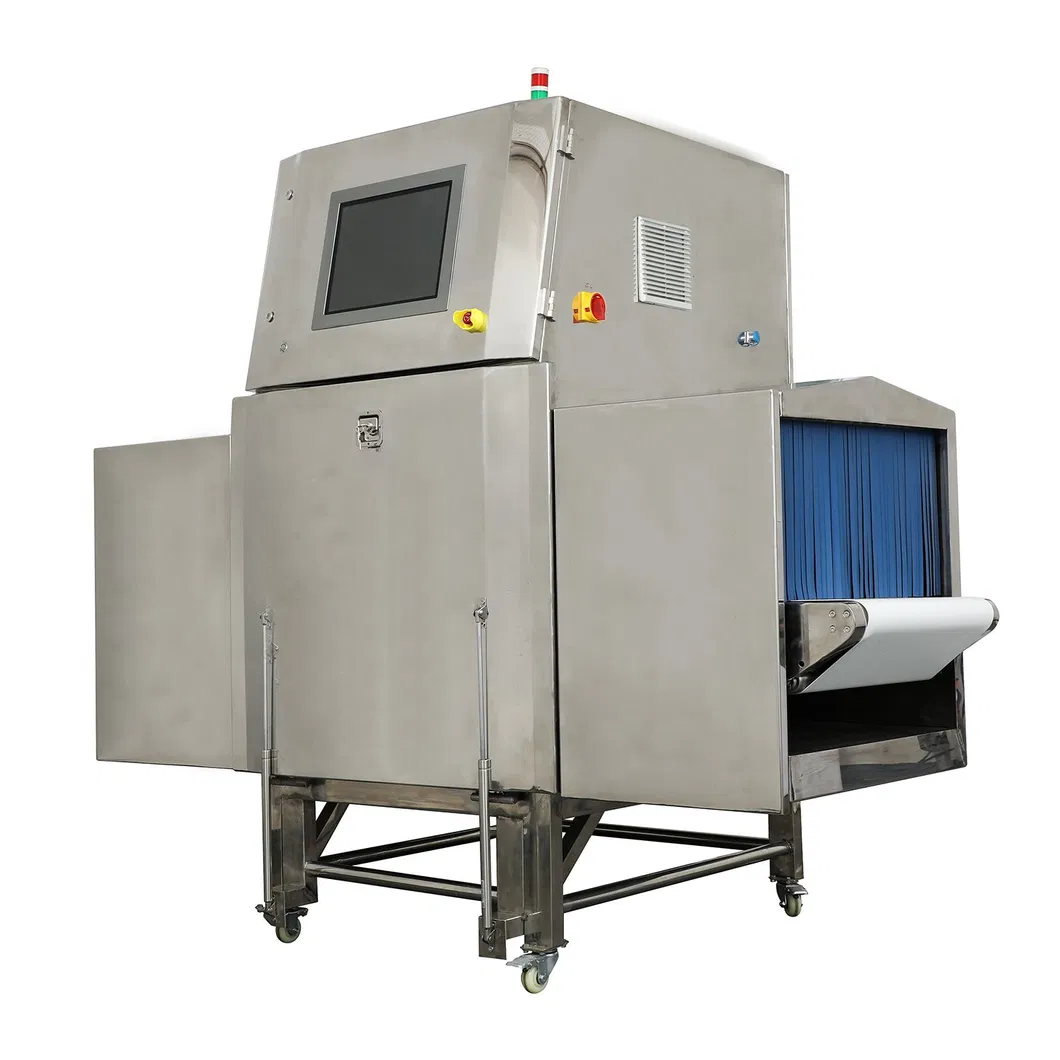

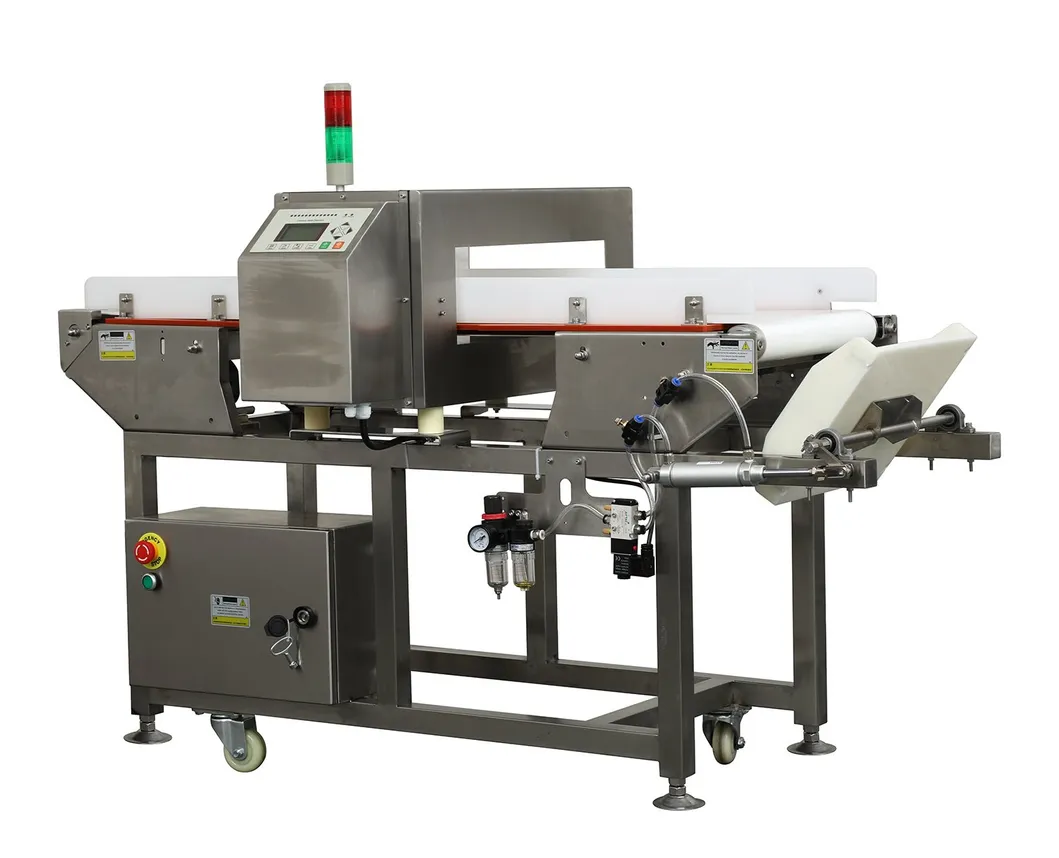

X-ray Inspection System for Big Packaged Food

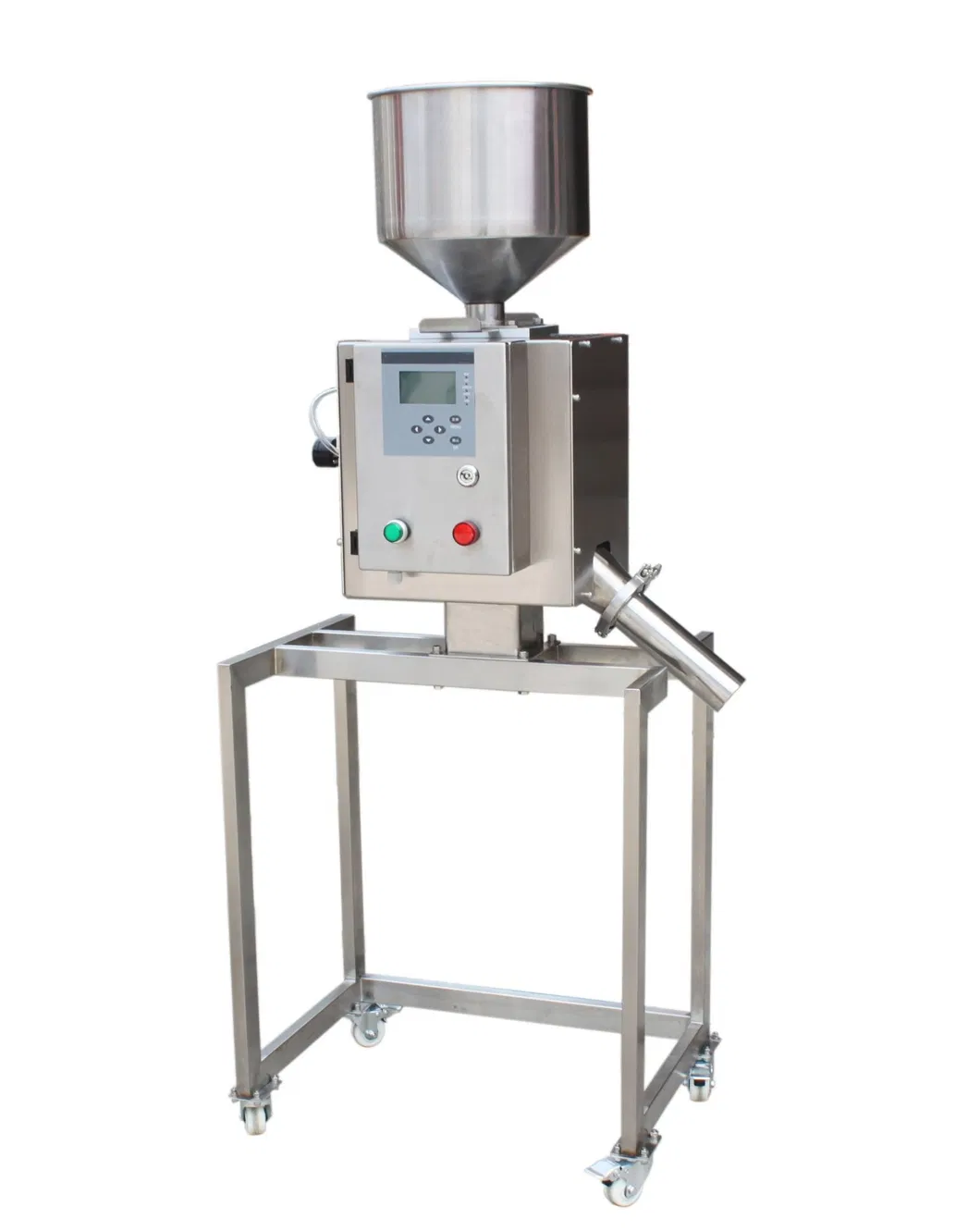

High Precise checkweigher with Rejector

XR-980 Conveyor Metal Detector

XR-180C Vertical Fall Metal Detector

Frequently Asked Questions

Does this X-ray machine require a darkroom for operation?

No, it features real-time imaging technology that allows you to view images directly on a synchronized display without the need for a darkroom.

What are the primary medical uses for the XR-100C?

It is primarily used in orthopedics for limb fractures, closed reduction, needle insertion, and detecting foreign bodies. It is also suitable for gynecological and pediatric examinations due to its low radiation dose.

Is the radiation leakage safe for operators?

Yes, the X-ray leakage is extremely low, at ≤1.0mGy/h, making it a safe and reliable choice for both industrial and medical environments.

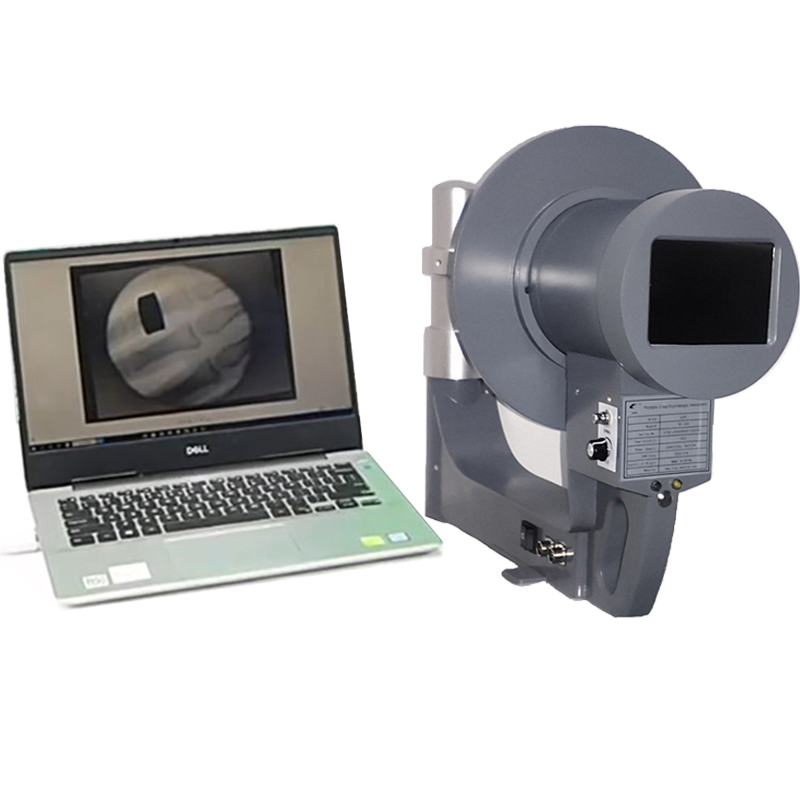

Can the device be connected to a computer?

Yes, the system supports synchronization with computers for data storage and printing of real-time imaging results.

What types of industrial components can it inspect?

It is widely used for inspecting USB wires, earphones, aluminum castings, plastic parts, and other electronic components to check for internal deformities or desoldering.

What is the weight of the portable unit?

The portable instrument is lightweight and easy to handle, with a net weight of approximately 8 kg and a gross weight of 12 kg including its protective suitcase.
