Security Inspection Machine, X-ray Scanning Device for Airport, Hotel

Customization:	Available
After-sales Service:	Life Time
Warranty:	2 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

AT100100

Portable

Non Portable

Form

Flatbed

Application

Security Check

Certification

CE, ISO

Customized

Alarm Form

Display Alarm

Transport Package

Wooden

Specification

CE, SGS, ISO

HS Code

9022191090

Capacity

500PCS/Month

Origin

China

Product Description

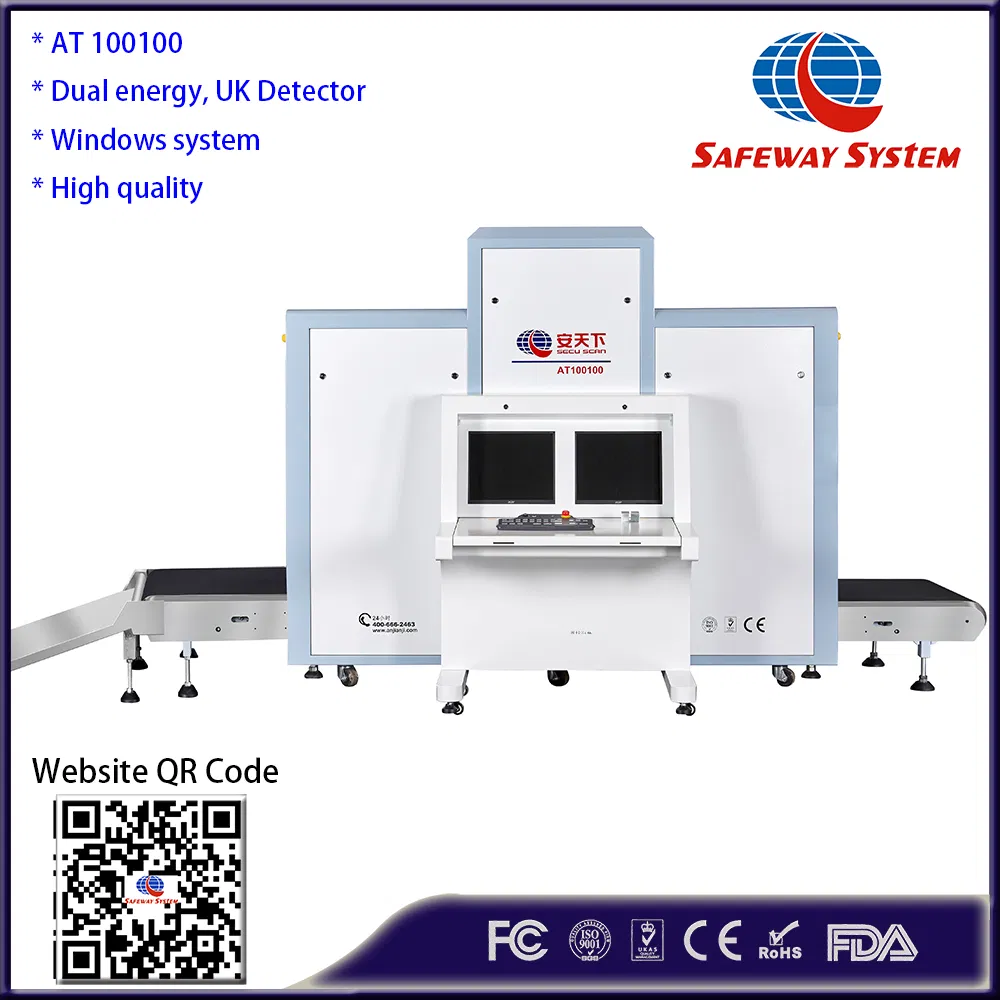

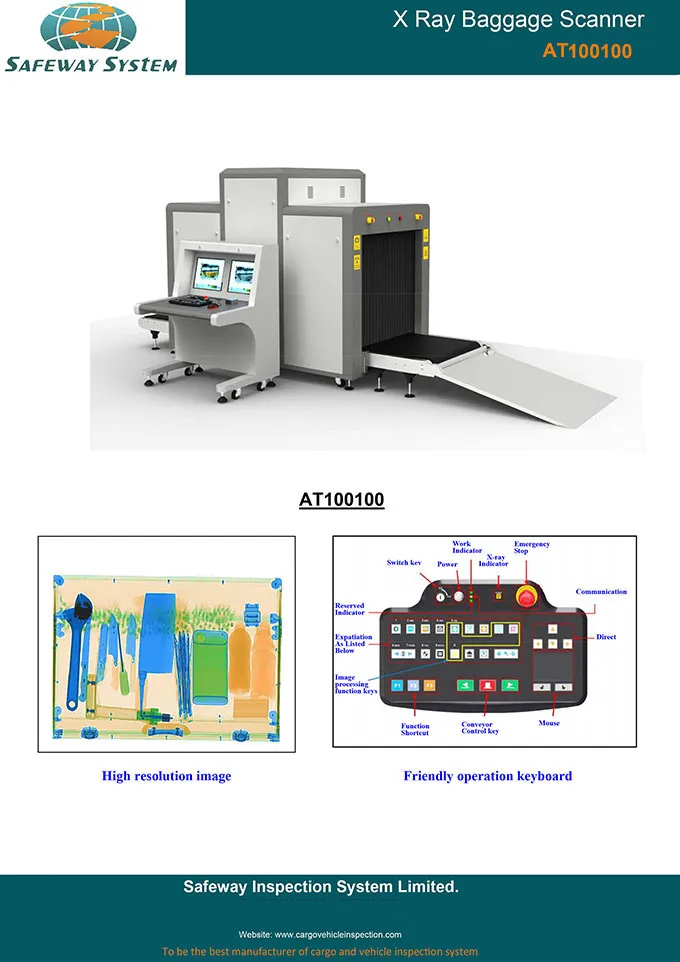

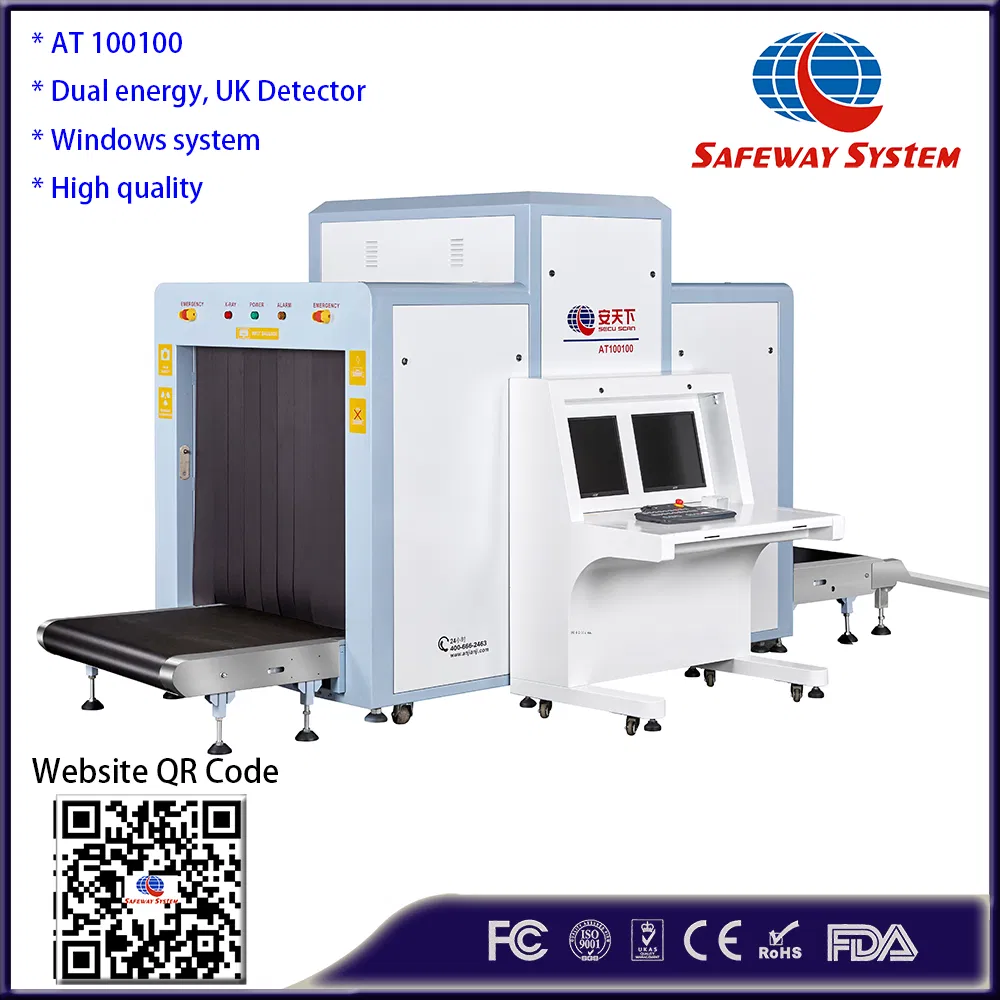

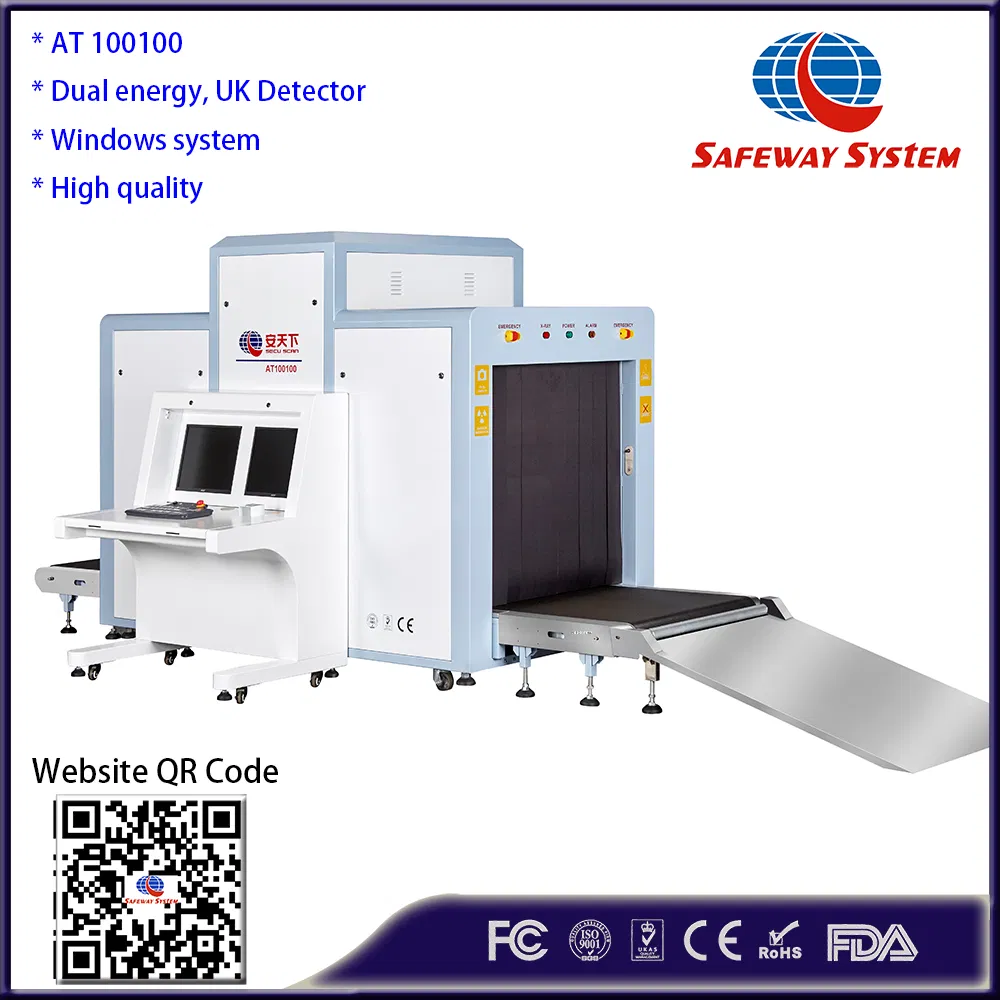

34mm penetration big size X-ray Screening scanner for airport - Model: AT100100

Security Inspection Machine, X-ray Scanning Device

X-ray Generator

Beam direction: Diagonal

Generate angle: 80 degree

Anode Voltage: 100Kv to 160Kv adjustable

Anode power: 0.4 to 0.5mA

Cooling / Duty Cycle: Oil Cooling / 100%

Installation Data

Operation temperature/Humidity: 0°C - 45°C / 20% - 95% (non-condensing)

Storage Temperature/Humidity: -20°C - 60°C / 20% - 95% (non-condensing)

Operation Power: 220VAC (± 10%) 50 ± 3Hz

Power Consumption: 1.3 KW (max), 1KW (working)

Noise: < 58db

Image System

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep

Monitor: High Resolution Color LCD, 19 inch

Image Processing: Edge enhancement, strengthening, lightening, reducing darkening, retrieval.

Processing: 24bit for real-time processing

Image Grey Level: 4096

Image Storage: 60,000 pictures in real time

Zoom: Max 16 Times Enlarge, continuous observation

Core Functions

Assists in detecting organic and inorganic items such as weapons, explosives, and narcotics using multi-color display technology.

Technical Parameters

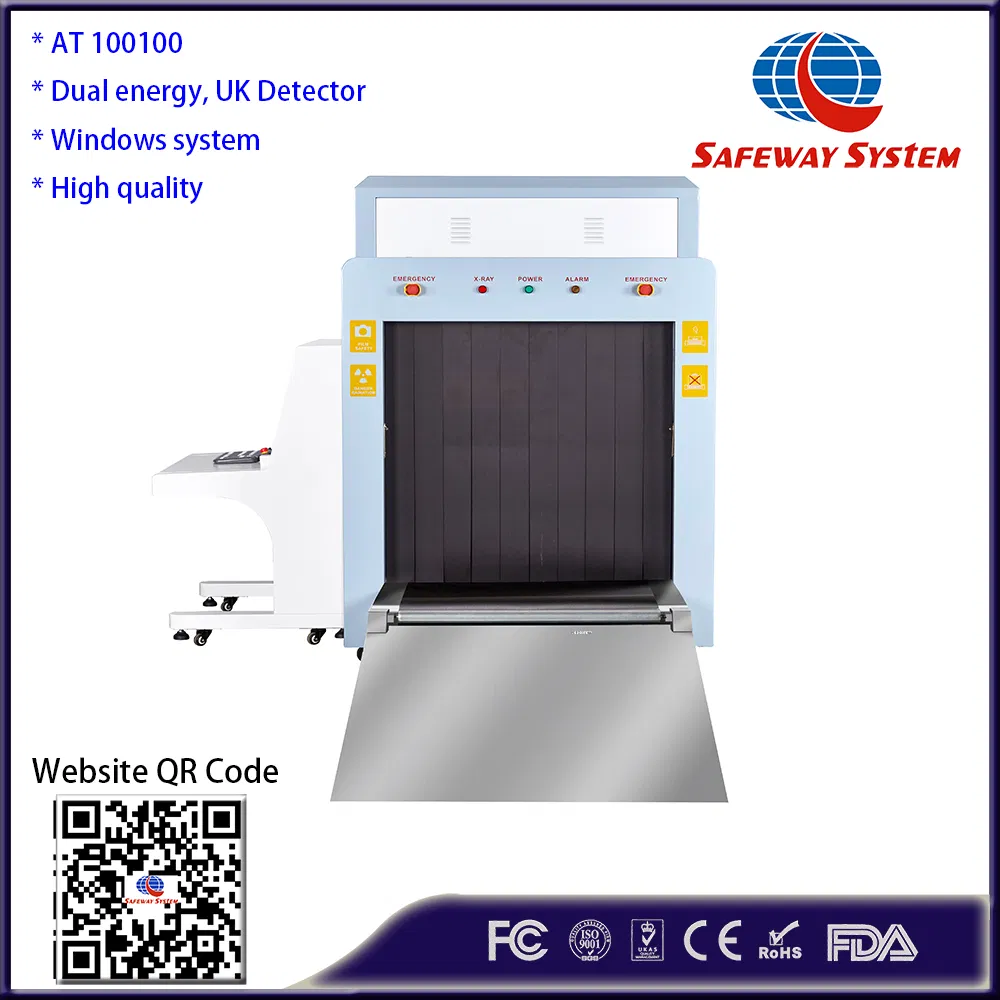

Tunnel Size:	1000(W) * 1000(H) mm
Conveyor Speed:	0.22m/s
Conveyor Max Load:	200kg
Wire Resolution:	32AWG to 38 AWG
Spatial Resolution:	Horizontal: 1.0/1.3mm, Vertical: 1.0/1.3mm
Penetration:	28 to 34 mm Steel
Film Safety:	Guarantee ISO1600 Film
X-ray Leakage:	< 1 μSv/h (at 5cm distance)
Pass Rate:	720 bags per hour

Frequently Asked Questions

1. What is the tunnel size of the AT100100 X-ray scanner?

The tunnel dimensions are 1000mm in width and 1000mm in height, making it ideal for screening large baggage and airport parcels.

2. How thick can the X-ray penetrate steel?

The system provides a high penetration level of 28mm to 34mm of steel, ensuring high security and detailed inspection.

3. Is this machine safe for photographic film?

Yes, the AT100100 guarantees film safety for ISO1600 standard film.

4. What is the maximum load capacity for the conveyor?

The reinforced conveyor belt can handle a maximum distributed load of up to 200kg.

5. Does the system help in identifying illegal substances?

Yes, it uses multi-energetic sensors to distinguish between organic and inorganic materials, helping operators identify weapons, explosives, and narcotics.

6. How many images can the system store?

The integrated image system can store up to 60,000 pictures in real-time for later retrieval and review.
