Portable X Ray Device Digital Imaging Dr System Superb Image Quality 70kv Handheld X-ray Device

Customization: Available
Certification: CE
Scale: Small

Product Description

📋 Basic Specifications
Model NO.YJ-BW704
Kv Range40 ~ 70kv
Ma Range1 ~ 8mA
Exposure ModeButton, Remote Control
Power Input110 ~ 220VAC, 50/60Hz
Frequency100kHz
Power360W
Weight1.6kg
🔍 Product Overview

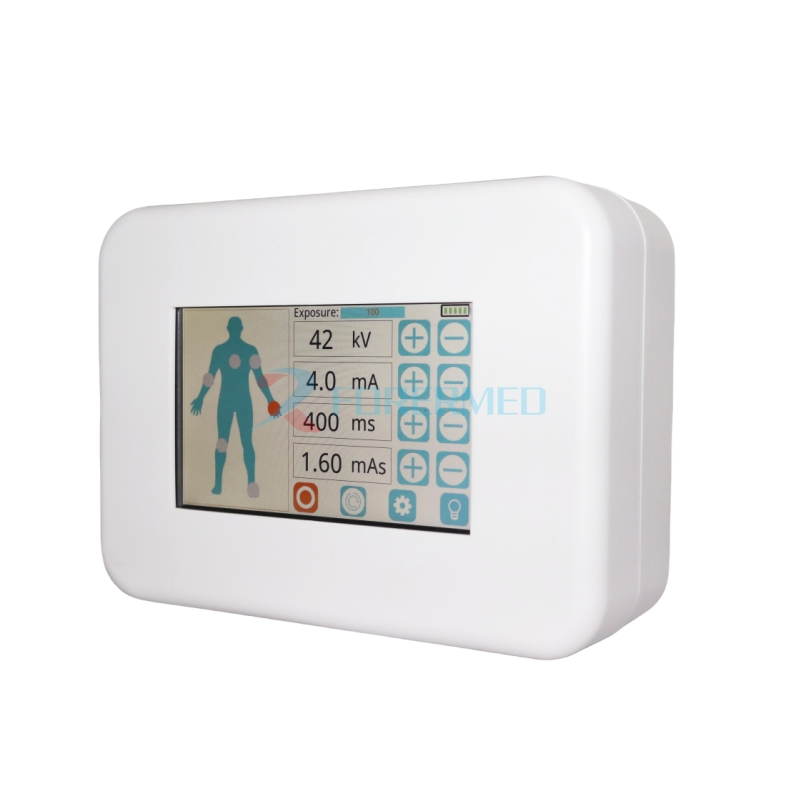

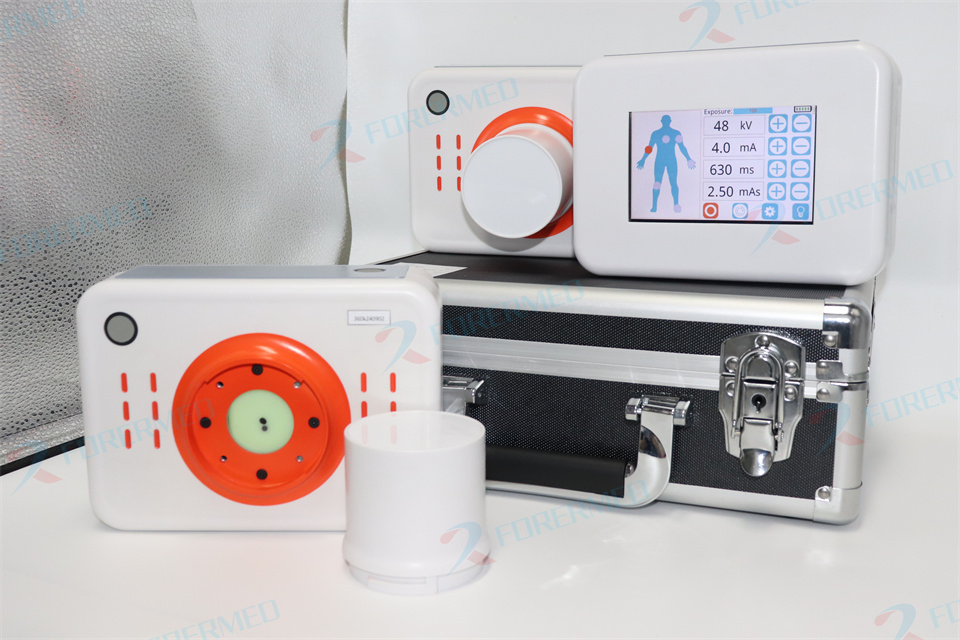

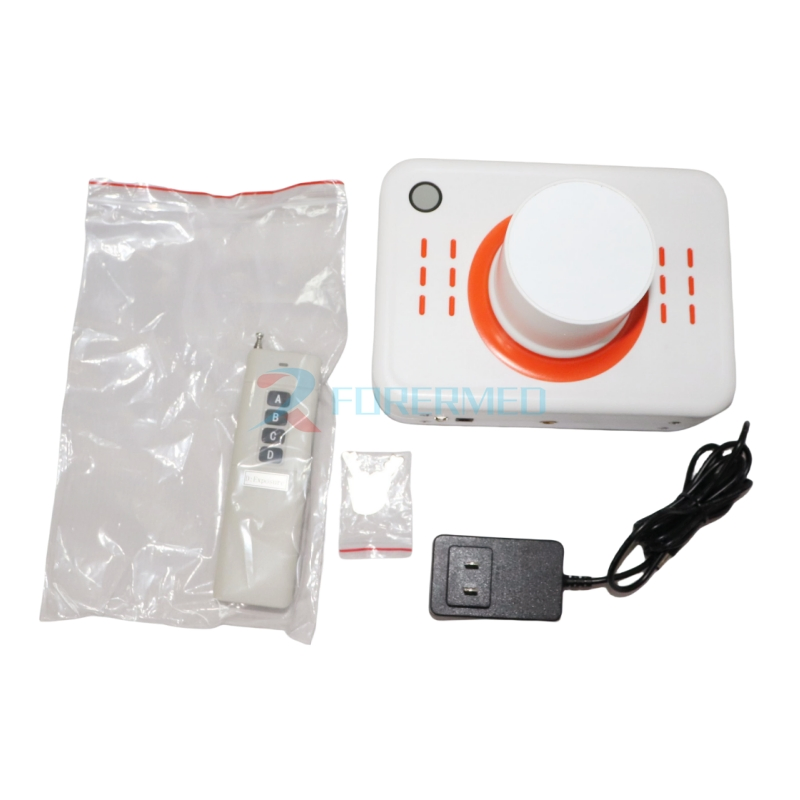

Superb Image Quality Xray Machine With Remote Control 70kv Handheld X-ray Device

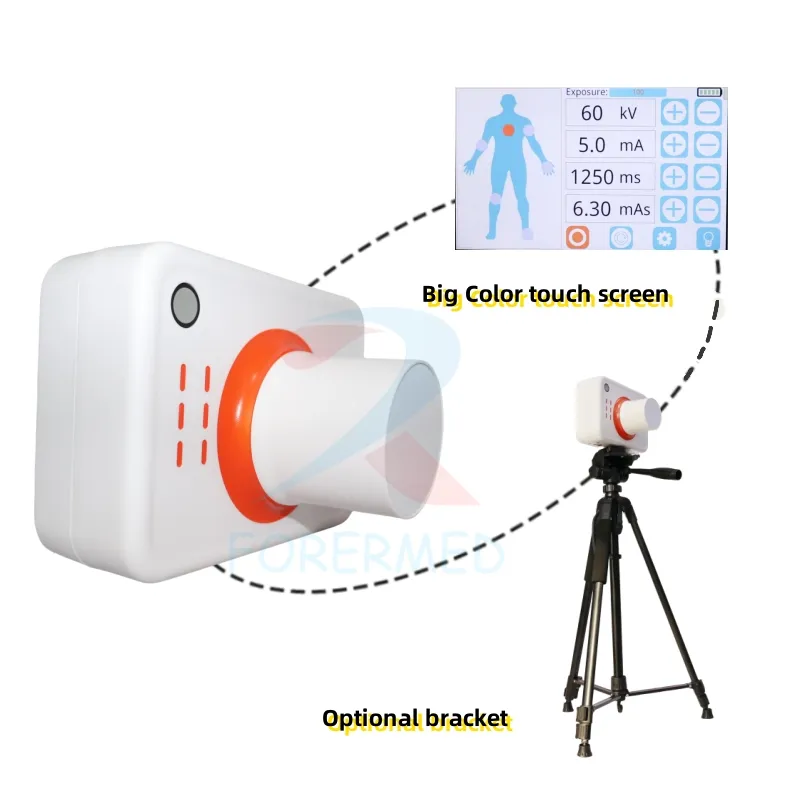

Handheld X-ray Device

Discover the YJ-BW704, a state-of-the-art portable X-ray machine that redefines convenience and versatility in medical imaging. This cutting-edge device is meticulously crafted to cater to the needs of both human and veterinary applications, ensuring exceptional image quality and reliability.

Equipped with a variable kilovoltage (kV) setting that can be adjusted up to 70, the YJ-BW704 offers unparalleled control over the imaging process. This feature allows healthcare professionals to capture highly detailed and clear images, facilitating accurate diagnoses and effective treatment planning.

The YJ-BW704 is designed with portability in mind, making it an ideal choice for mobile clinics, emergency response teams, and veterinary practices. Its compact and lightweight design allows for easy transportation and setup, ensuring that high-quality imaging is always within reach, regardless of the location.

⚙️ Technical Parameters
Power360W
Power adapter input110 ~ 220VAC ,±10%, 50/60Hz
Operating frequency100kHz
kV Range40 ~ 70kV
mA Range1 ~ 8mA
Exposure Time (S)0.01 ~ 4.0s
mAs Range0.01 ~ 10mAs
Exposure modeButton, remote control
Net Weight1.6kg
🖼️ X-Ray Imaging Samples

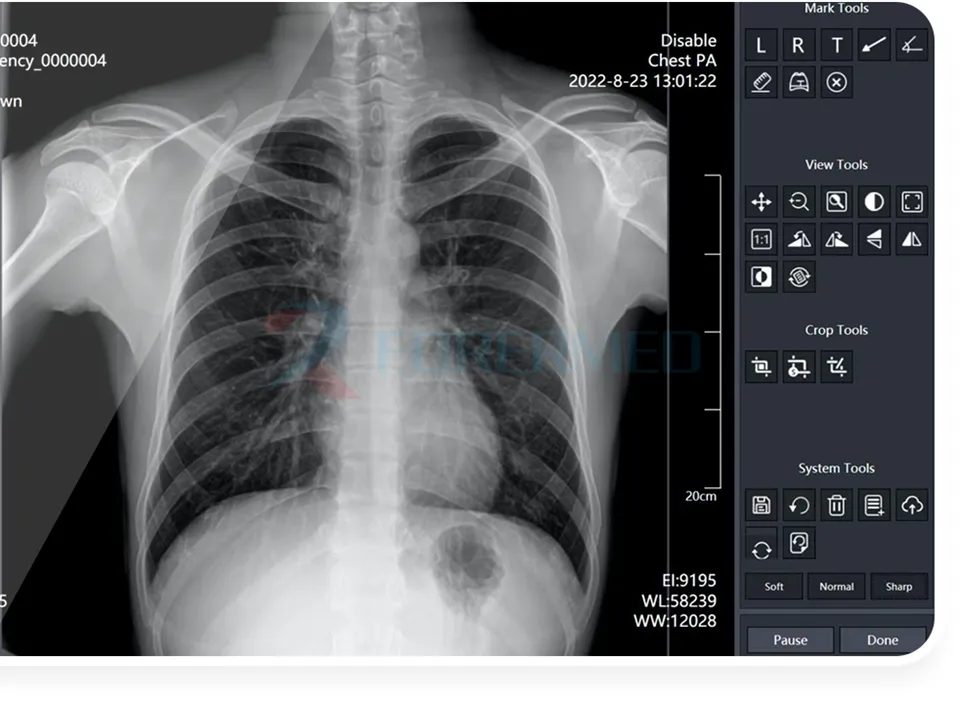

X-ray Image Sample 1
X-ray Image Sample 2

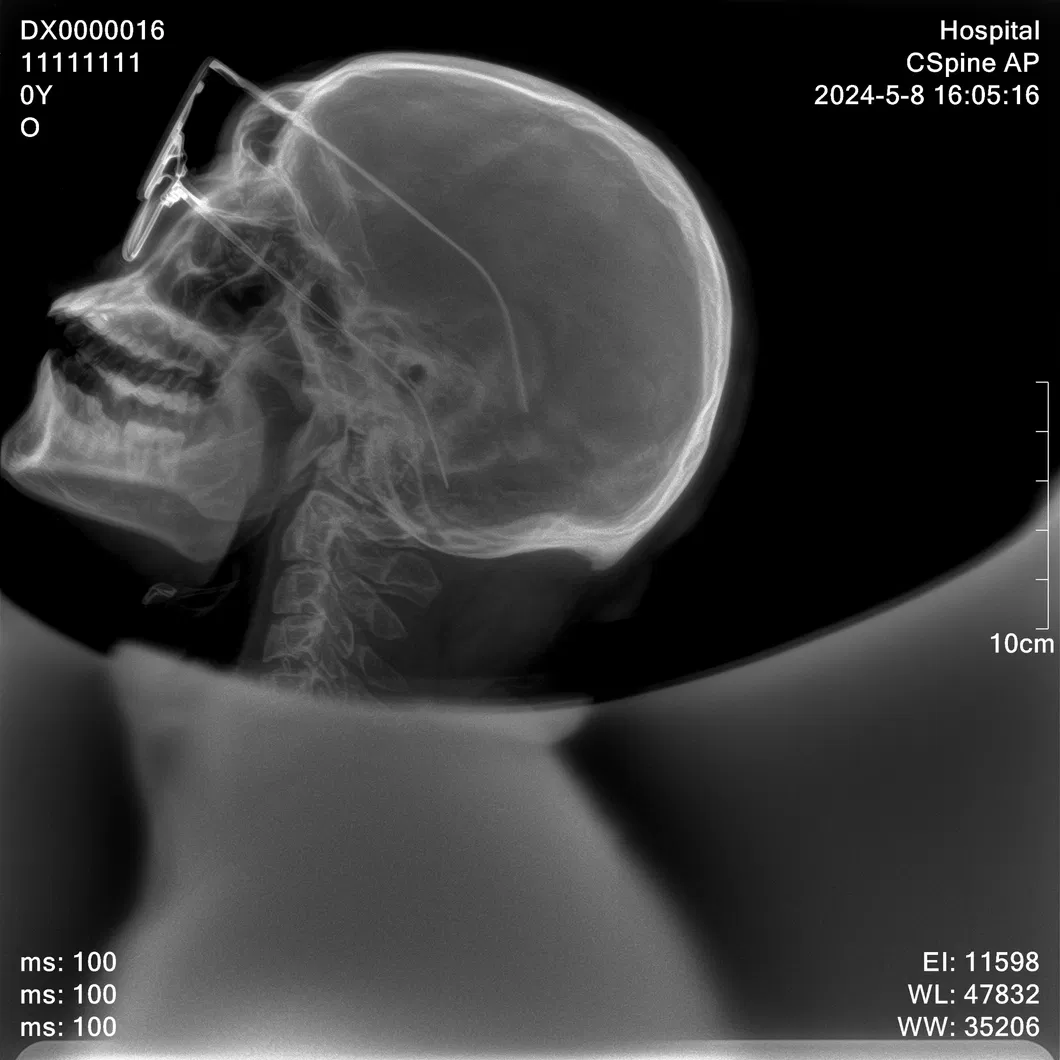

X-ray Image Sample 3
📸 Detailed Product Photos

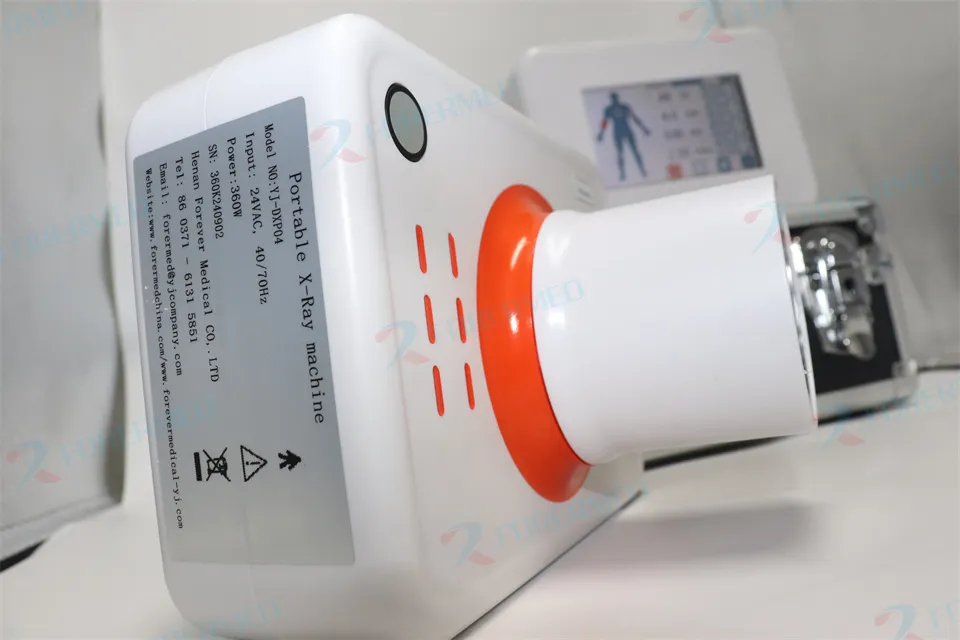

Detail 1

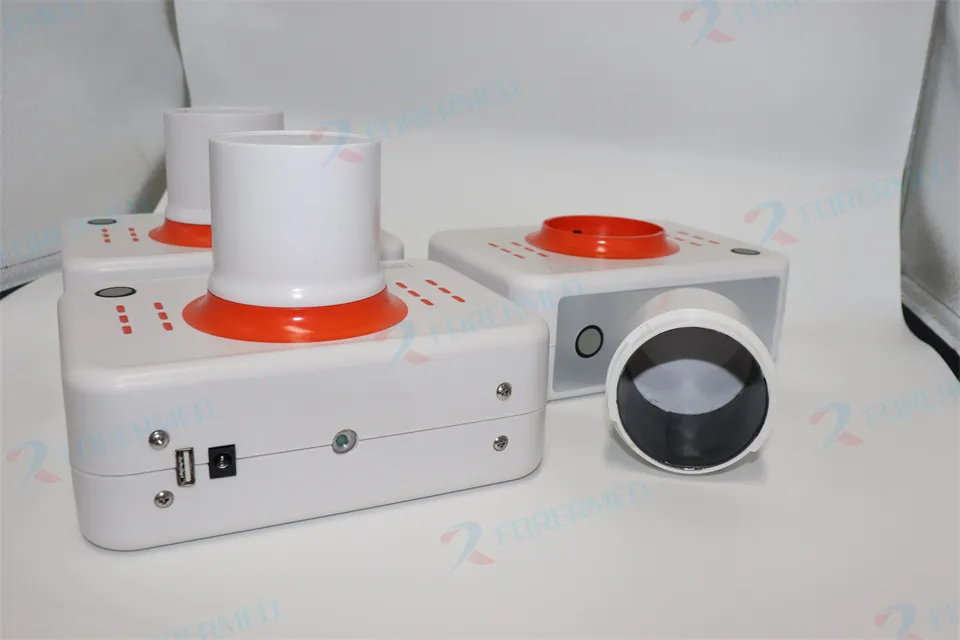

Detail 2

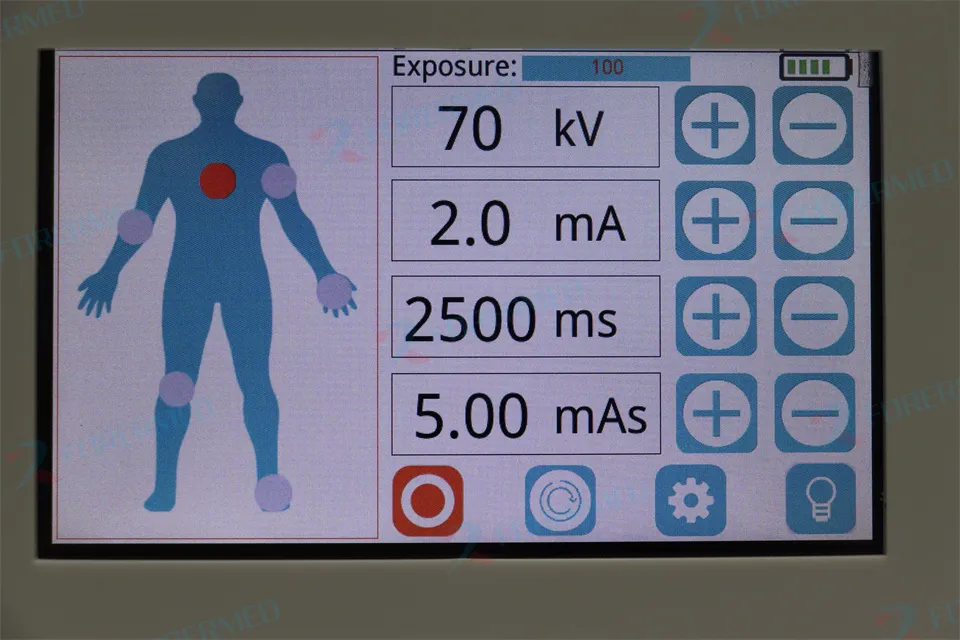

Detail 3

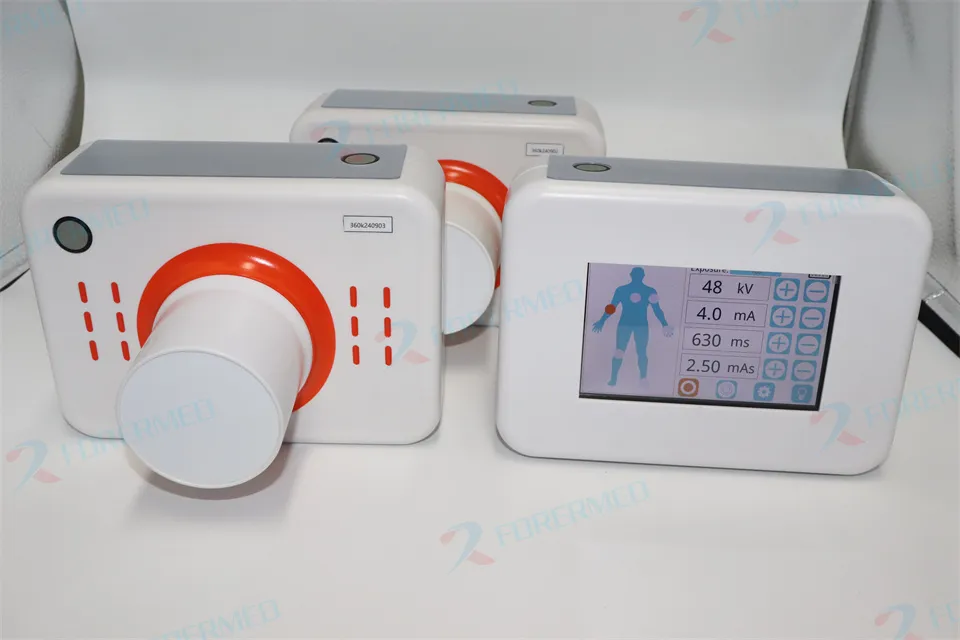

Detail 4
📡 Optional Wireless DR Panel

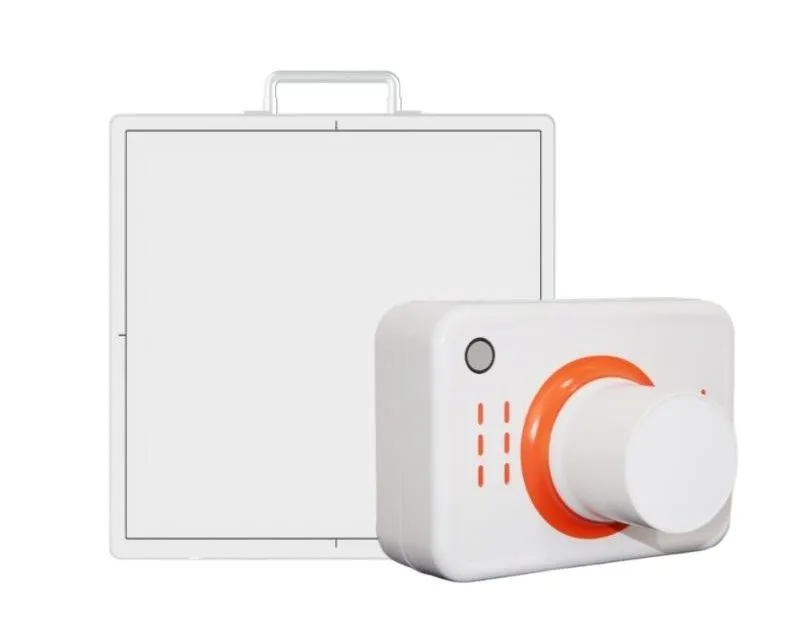

Wireless DR Panel

Wireless 17*17 Inch Flat Panel Detector

  • 🔹 Compatible with all digital X-ray machines
  • 🔹 Type: Amorphous Silicon
  • 🔹 Scintillator: Cesium Iodide
  • 🔹 Active Area: 17x17 Inch
  • 🔹 Spatial Resolution: 34Lp/cm
  • 🔹 Ingress Protection: IPX1
  • 🔹 Warranty: One year
🔗 Related Models
YJ-P5

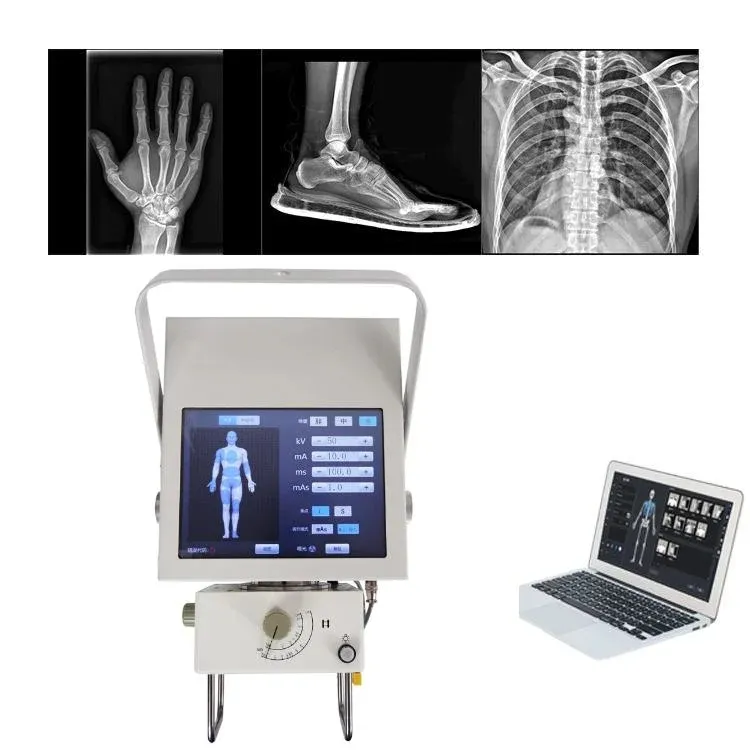

YJ-P5 Portable X Ray

YJ-PR56

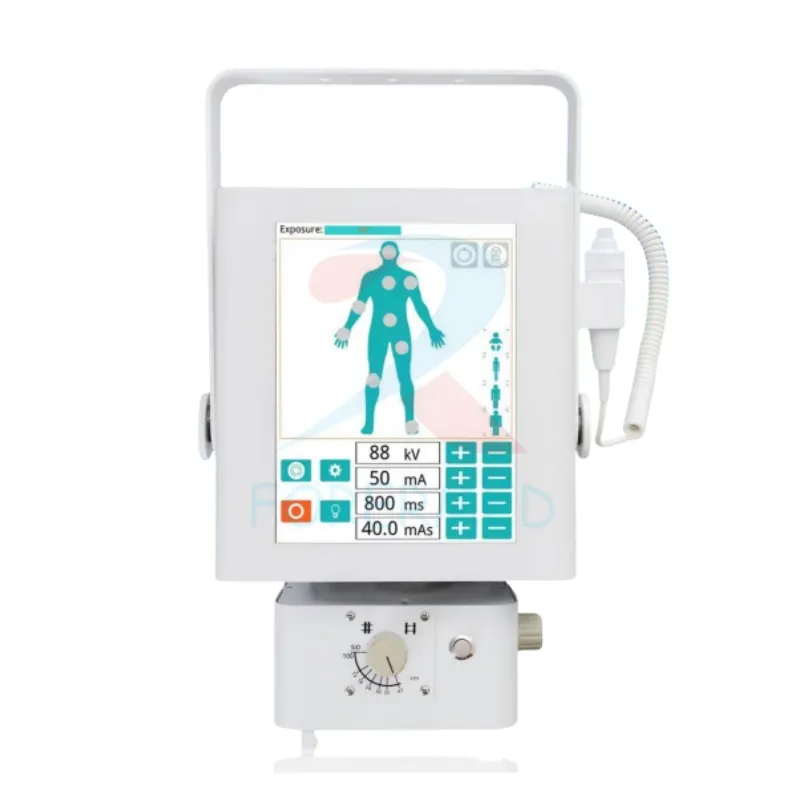

YJ-PR56 Portable X Ray

YJ-BW705

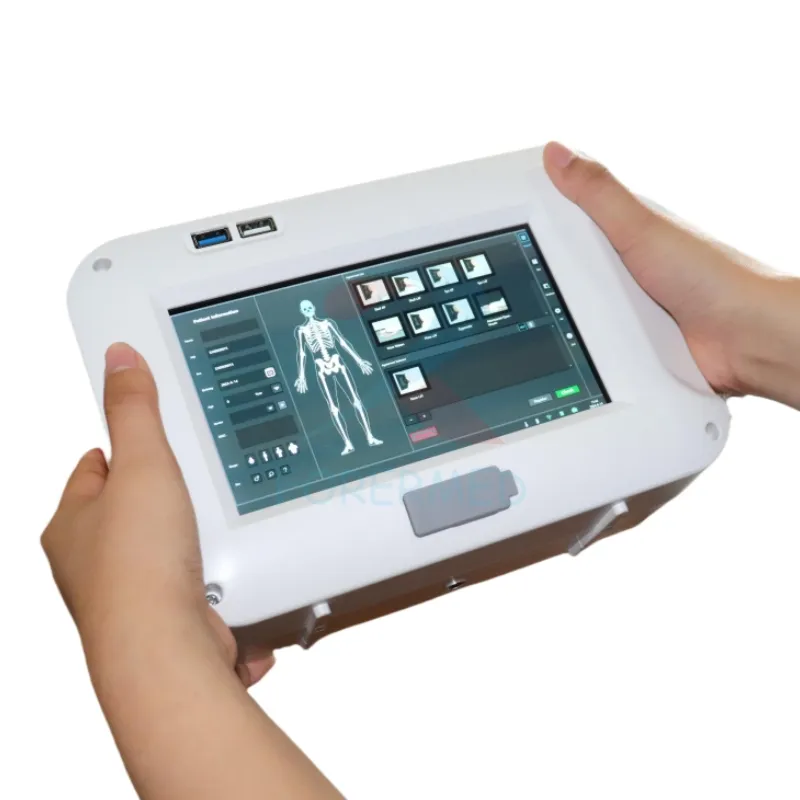

YJ-BW705 Portable X Ray

🏢 Production & Quality
Production 1
Production 2
Production 3

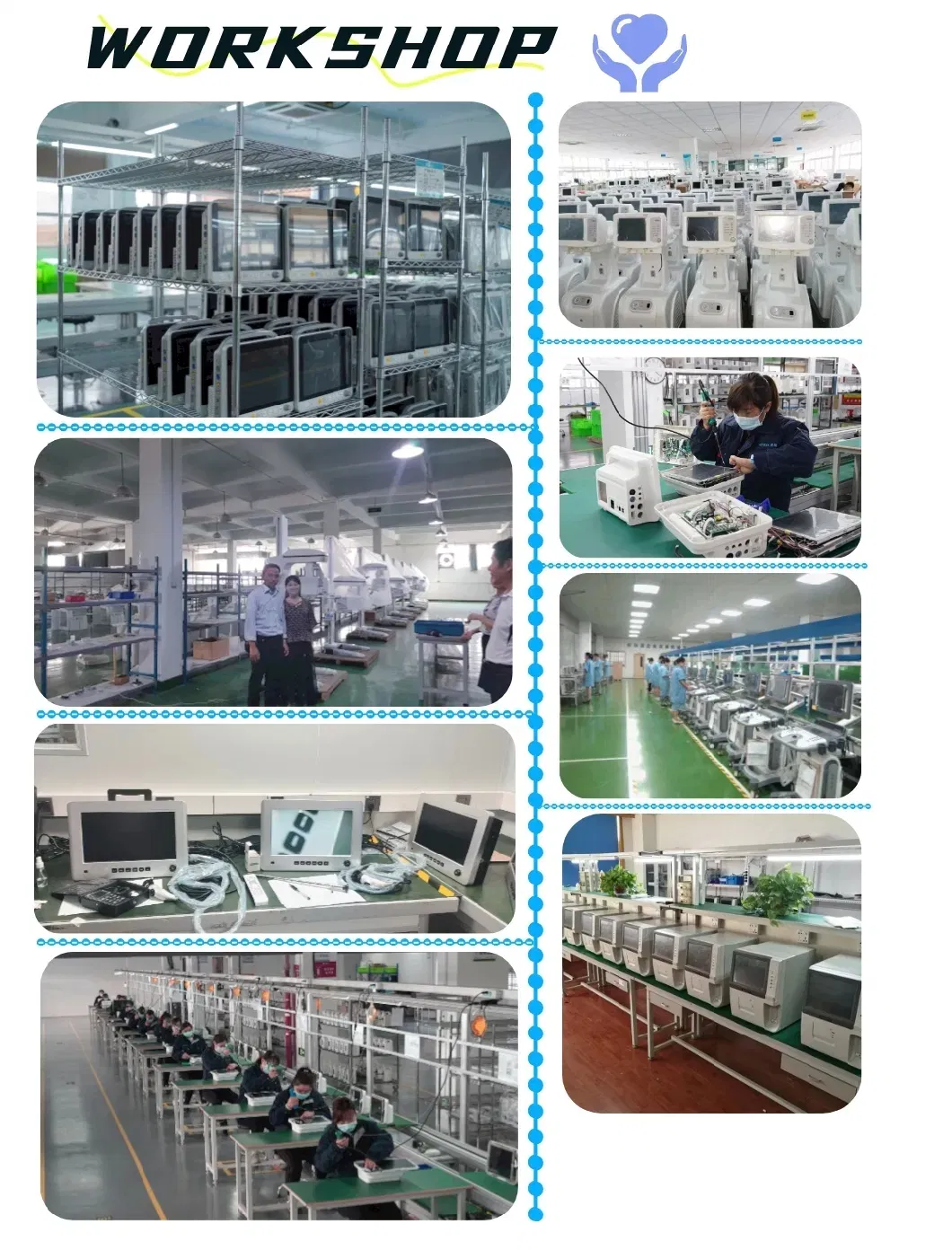

Production 4
Production 5
Production 6
❓ Frequently Asked Questions
FAQ Image
What is the main advantage of the YJ-BW704 X-ray machine?
The YJ-BW704 is extremely lightweight (only 1.6kg) and portable, making it ideal for mobile clinics, emergency use, and veterinary practices while maintaining high image quality with a 70kv output.
Can this device be used for both humans and animals?
Yes, the device is designed for versatility and can be used for both human medical imaging and veterinary applications.
What are the available exposure modes?
The machine supports two exposure modes: manual button operation and remote control for increased safety and convenience.
What is the kV and mA range of this handheld device?
The kV range is adjustable from 40 to 70kV, and the mA range is between 1 and 8mA, allowing for precise control over image detail.
Does it support digital imaging systems?
Yes, it can be paired with an optional 17*17 inch wireless flat panel detector (DR Panel) to convert it into a full digital radiography system.
What is the power requirement for the YJ-BW704?
The device uses a power adapter with an input range of 110 ~ 220VAC (50/60Hz), making it compatible with most international power standards.
