Medical Device Mini Ray Portable Dental X-ray

1 / 5

Medical Device Mini Ray Portable Dental X-ray

Customization:	Available
Applicable Departments:	Orthodontic Department
Certification:	ISO, CE

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

YJ-DXP11

Type

X-Ray Equipment

Material

Metal

Product Name

Dental X-ray Machine

Application

Dental Areal

Function

Oral Hygiene Care

Tube Voltage

60kv

Tube Current

2mA

Rate Power

120va

Origin

China

Capacity

10000piece/Year

🔍 Product Description

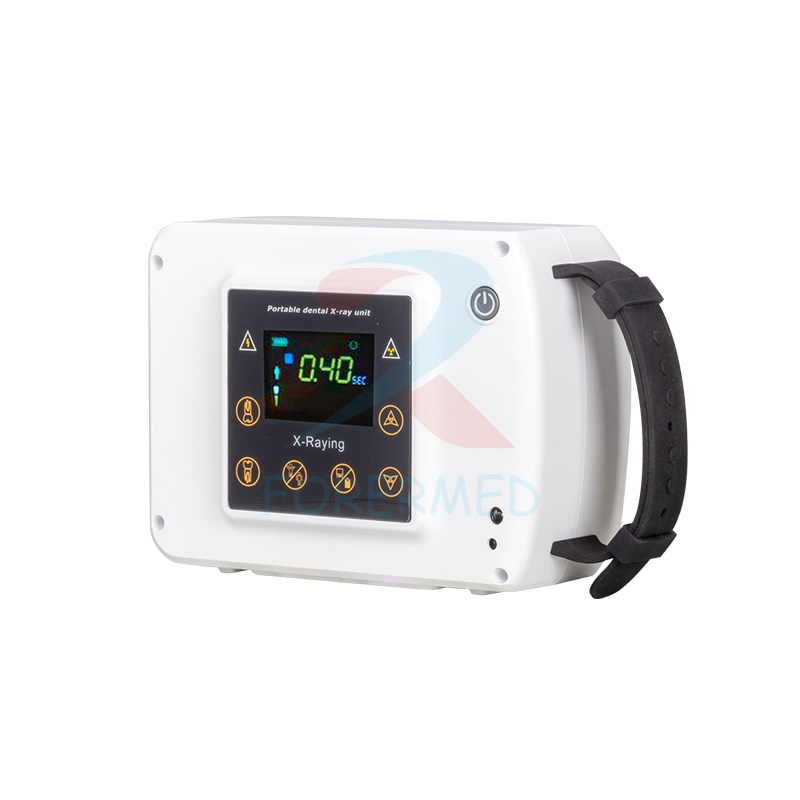

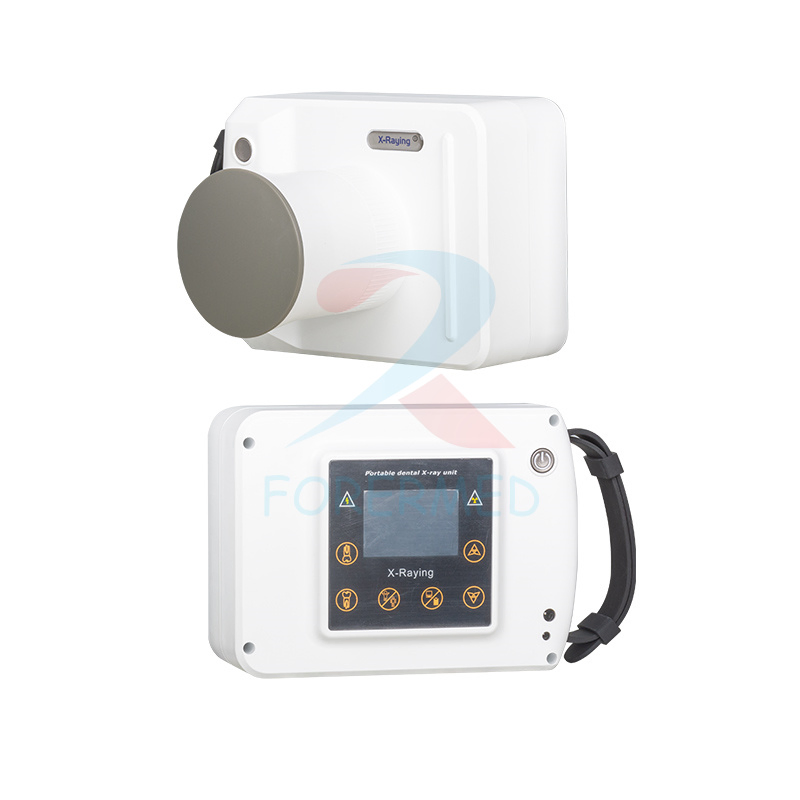

YJ-DXP11 New Design Portable Dental X Ray

1. The motherboard uses semiconductor components of international famous brands such as Samsung, Rubycon, KIA, and HTC, ensuring stable performance.

2. Small shape, light weight, easy to carry, and designed for one-handed operation.

3. Microcomputer IC program with high control precision and simple one-key setting.

4. High power battery with constant discharge, allowing for up to 200 continuous shots when fully charged.

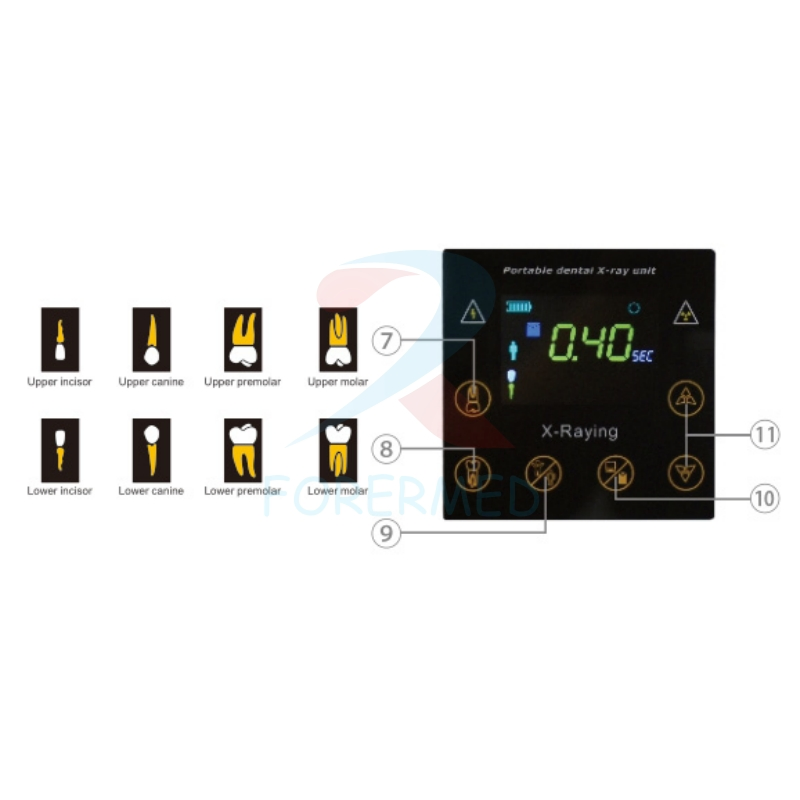

Control Panel Functions:

7 - Upper tooth position selection key
8 - Lower tooth position selection key
9 - Adult / children selection
10 - Film / sensor selection
11 - Exposure time adjustment

⚙️ Technical Specification

Tube voltage	60KV
Tube current	2mA
Exposure time	0.1-2.0s
Frequency	30KHz
Rate power	120VA
Distance from skin to cone	118mm
Tube focus	0.8mm x 0.8mm
Battery	2200mAh
Charger input voltage	AC110V-240V
Output voltage	DC14.8V-16.8V
Ambient temperature	5ºC ~ 40ºC
Relative humidity	<75%RH
Net weight	2.1KG
Gross weight	4.8KG
Device Size	168mm * 158mm * 130mm
Package Size	365mm * 320mm * 245mm

🖼️ Product Gallery

Frequently Asked Questions

What are the main advantages of the YJ-DXP11 portable X-ray?

It features a compact and lightweight design for one-handed operation, high-precision microcomputer control, and high-quality international internal components for stable performance.

How many exposures can be made on a single battery charge?

The high-power 2200mAh battery supports approximately 200 continuous shooting cycles when fully charged.

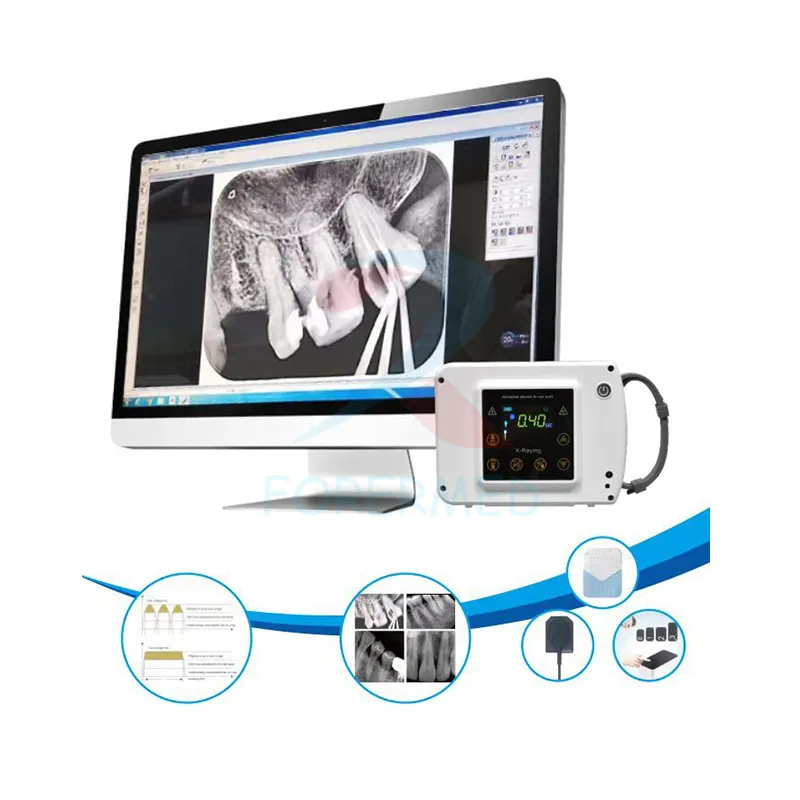

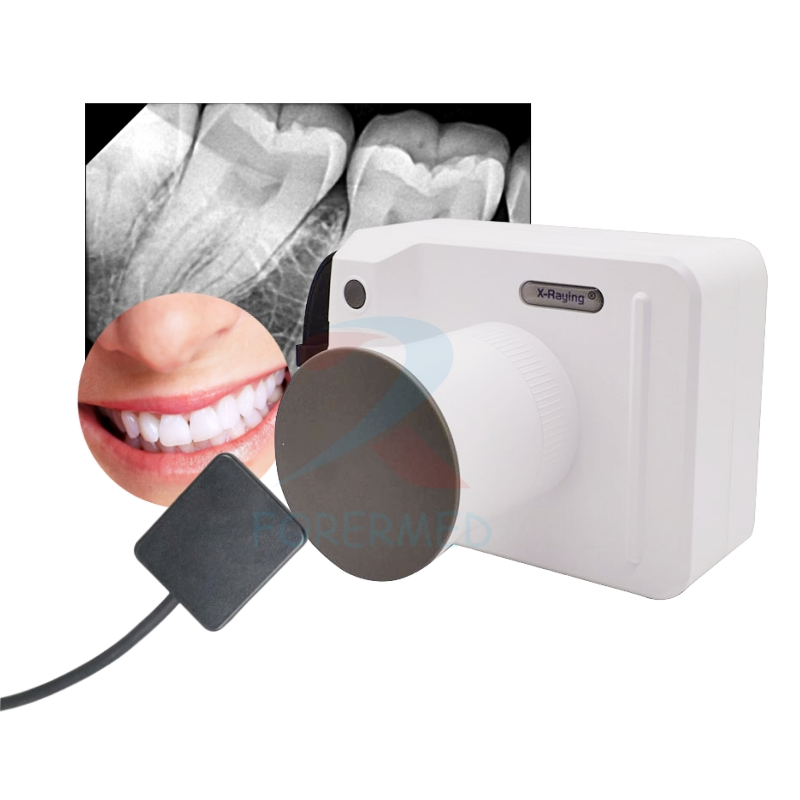

Can this device be used with digital sensors?

Yes, the control panel includes a specific selection mode for both traditional film and digital sensors.

What is the focal spot size of the X-ray tube?

The tube focus is 0.8mm x 0.8mm, which provides clear and detailed dental imaging.

Is the device suitable for both adults and children?

Yes, the interface features dedicated selection keys for adult and pediatric patients to optimize exposure settings.

What is the weight of the unit for transport?

The net weight of the device is only 2.1KG, making it highly portable, while the total gross weight including the protective case is 4.8KG.
