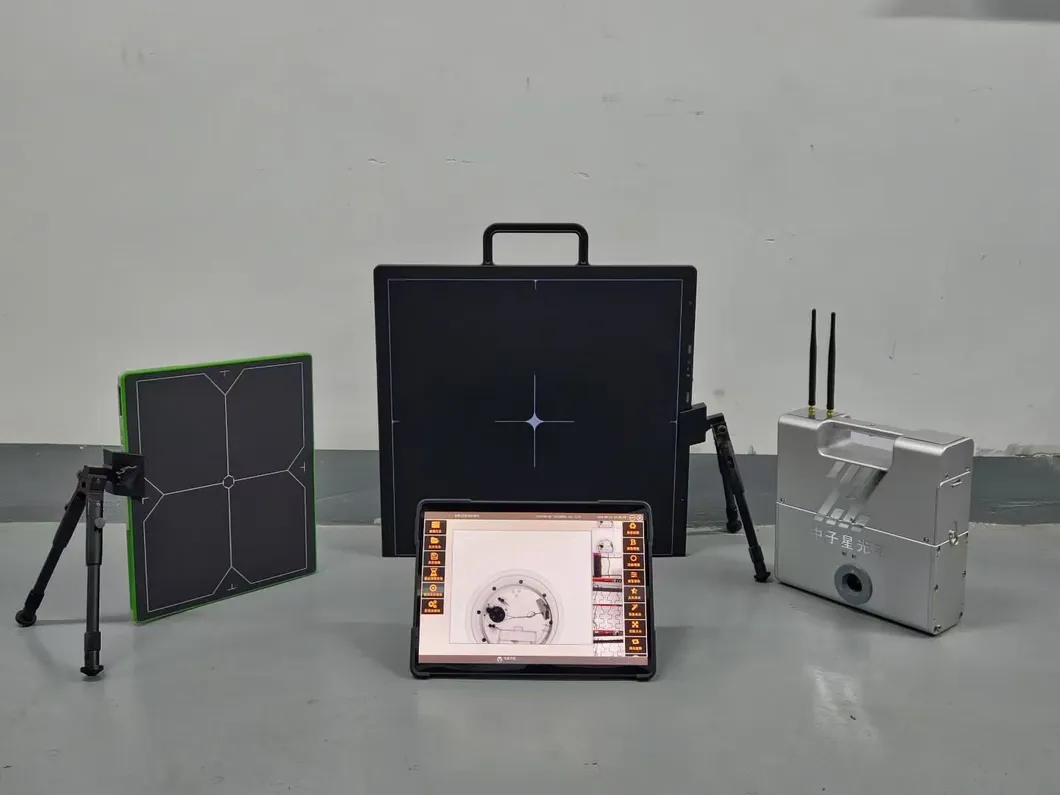

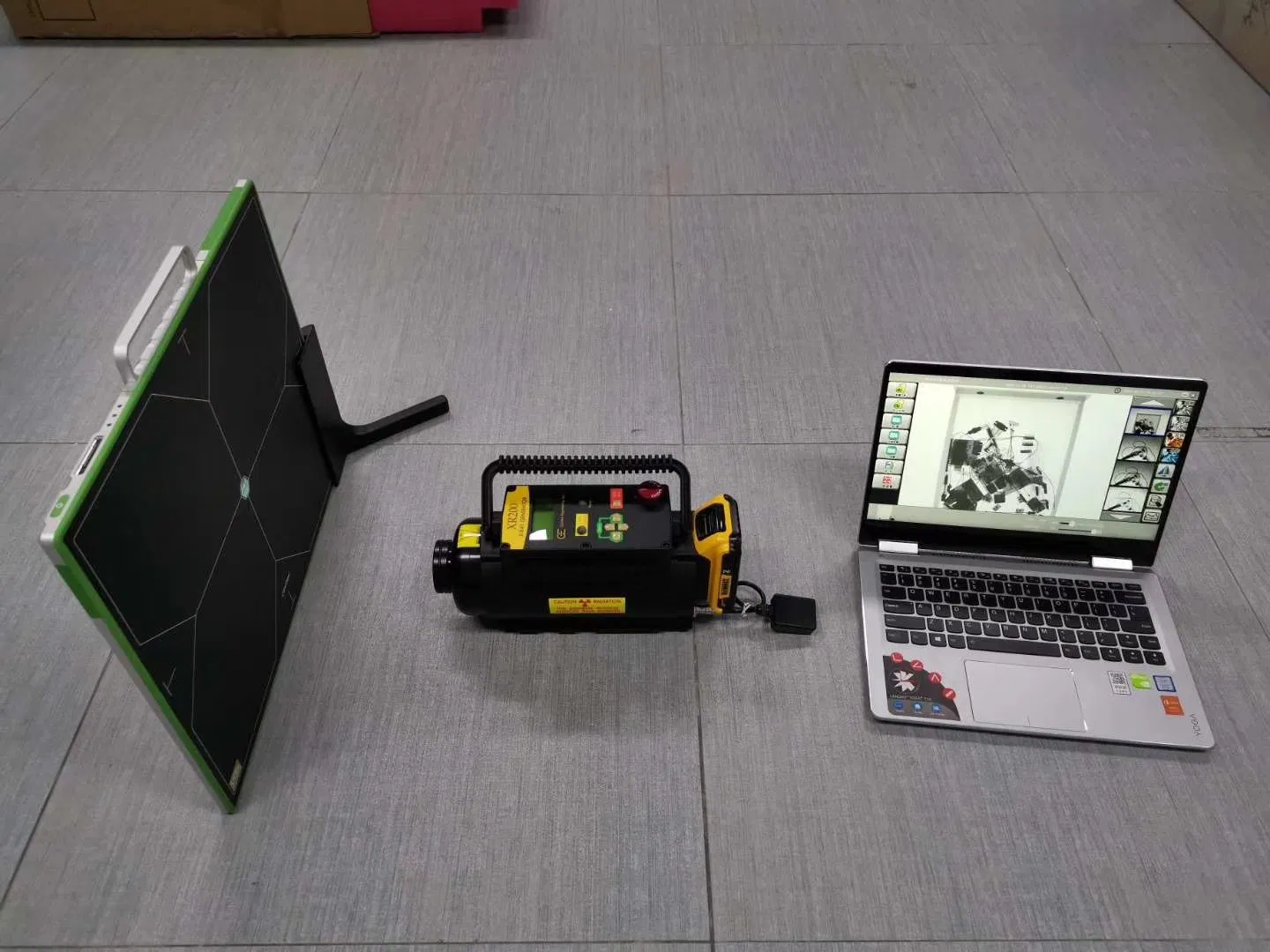

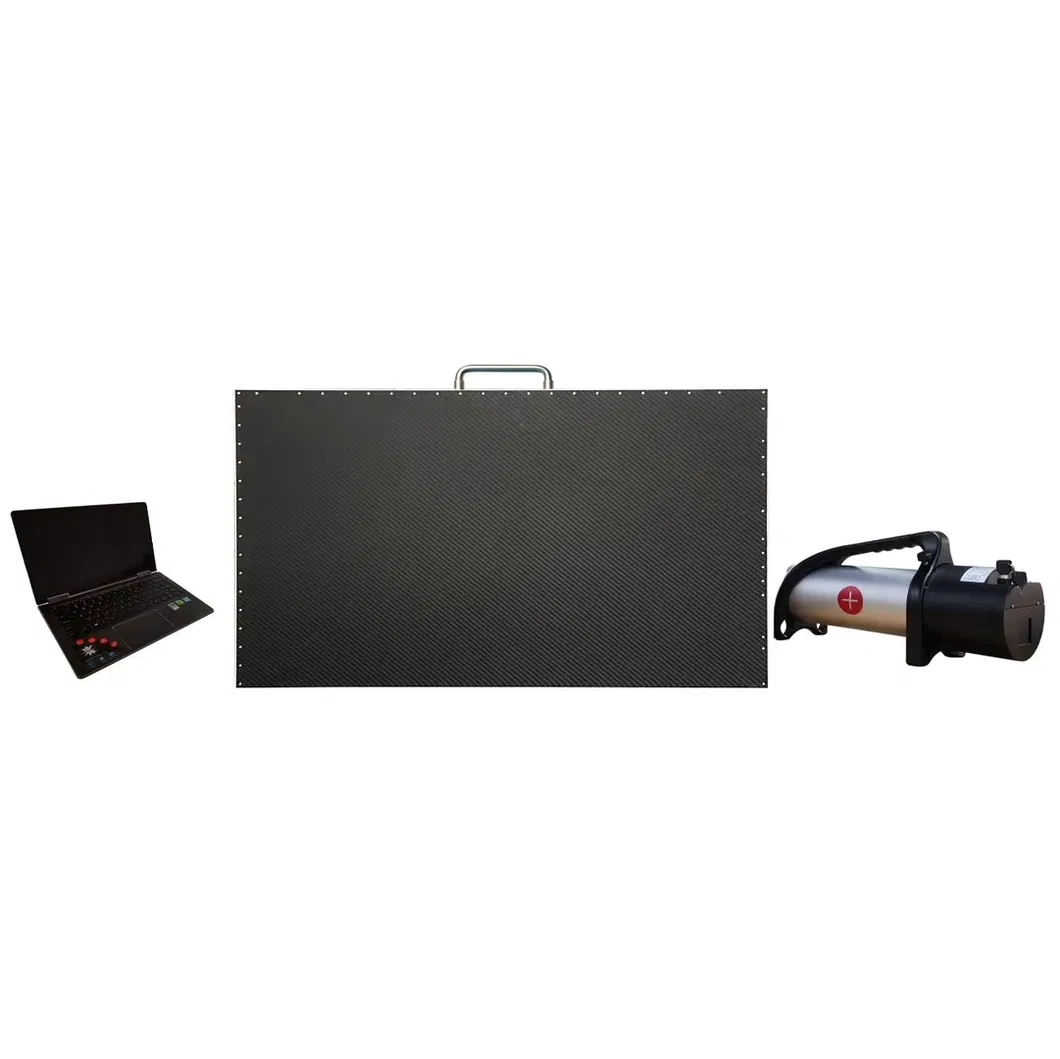

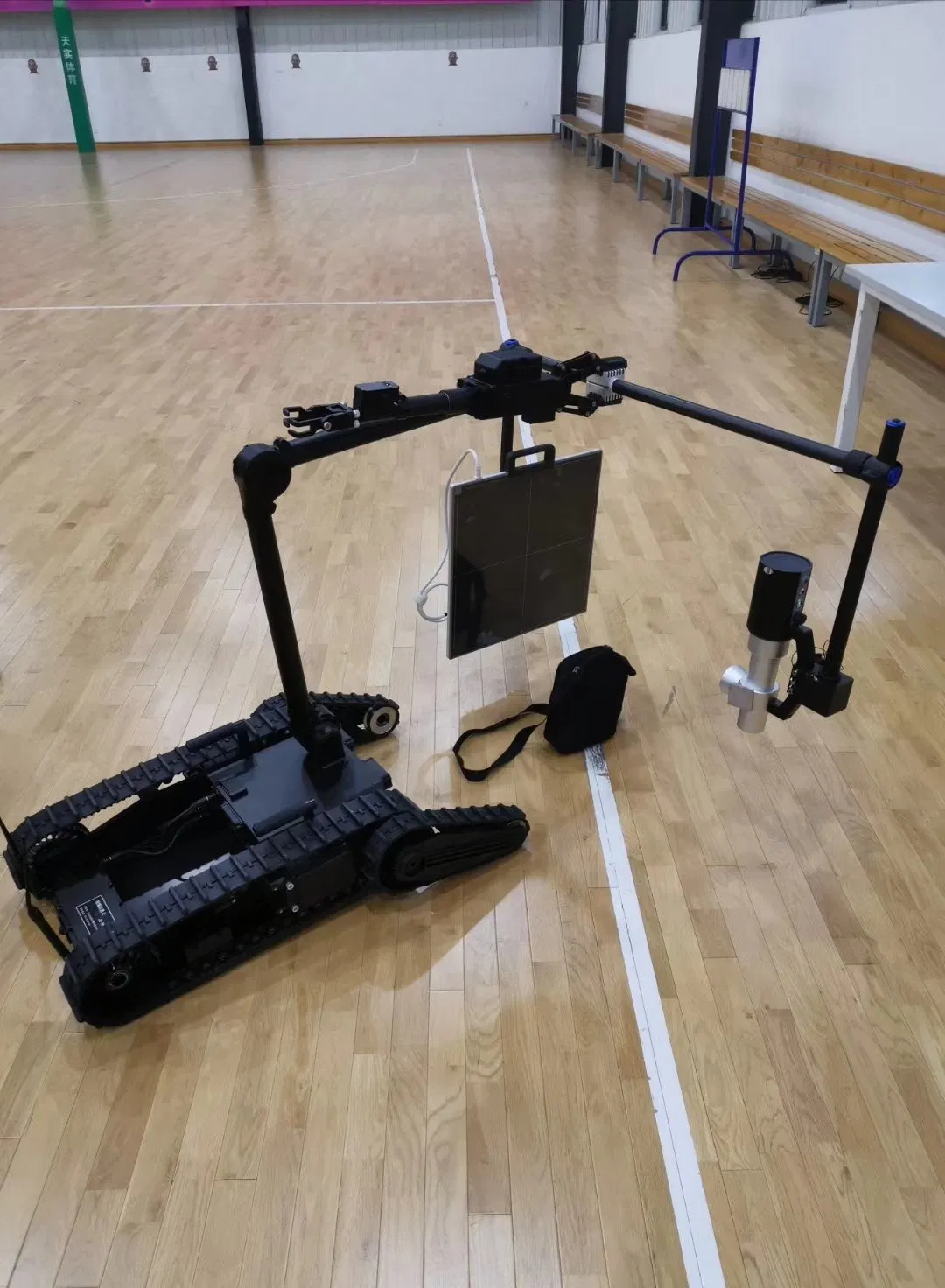

The Cloud Intelligent Portable X-Ray Inspection Instrument is an ultra-thin, lightweight, and high-definition imaging system designed for rapid on-site inspection and analysis. Equipped with a cloud-based amorphous silicon detection terminal, this advanced system outperforms traditional portable X-ray products with AI-assisted recognition, cloud data storage, and real-time remote access.

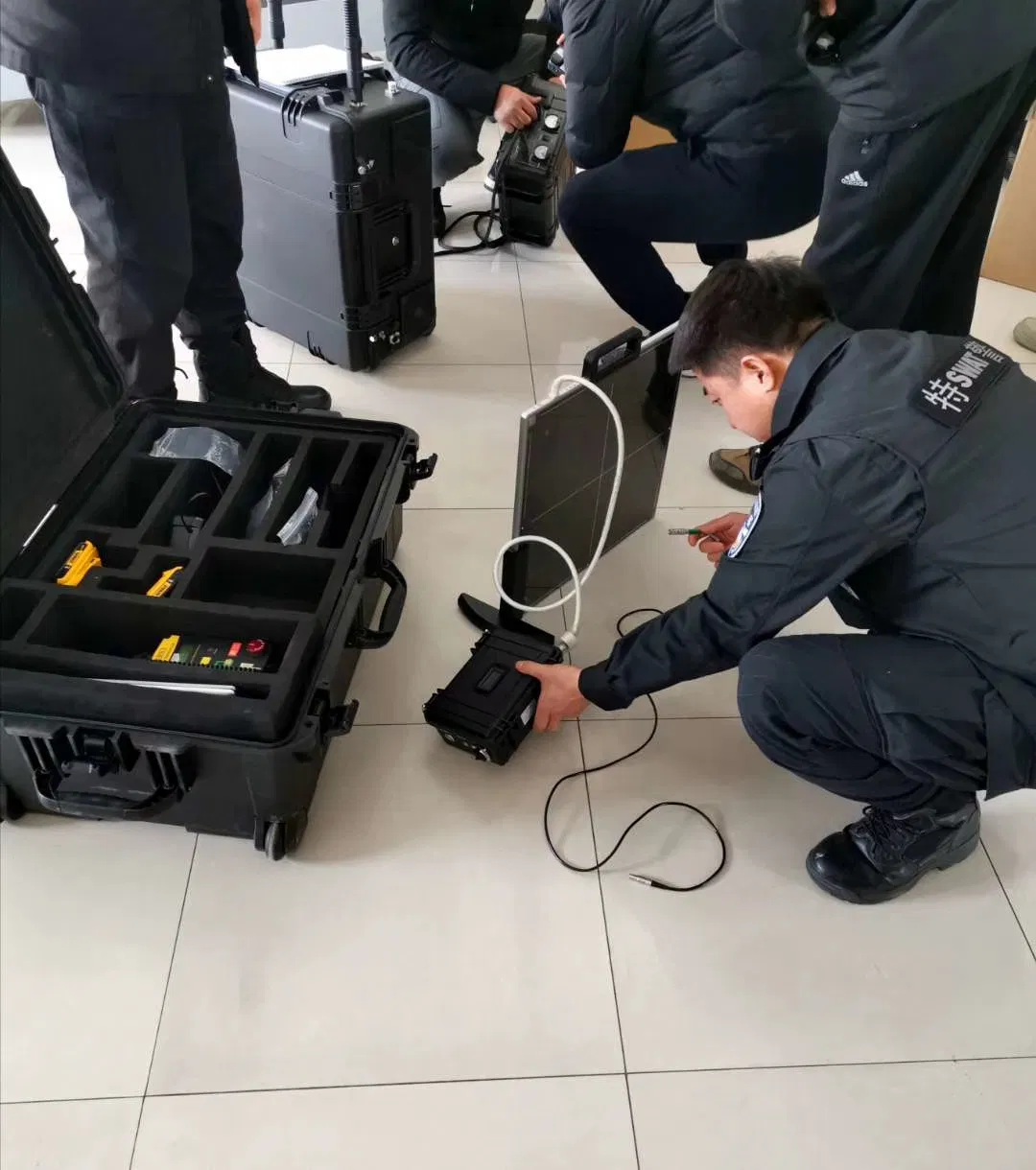

Specially developed for security inspection, explosive ordnance disposal (EOD), anti-smuggling operations, drug detection, goods verification, and fire investigation.
High-sensitivity imaging panel ensuring sharp, high-contrast radiographic results even in challenging field conditions.
Features a cloud-based intelligent network for image storage, AI recognition, and real-time remote monitoring.
Advanced algorithms enable hybrid deep identification of explosives, narcotics, and concealed weapons.

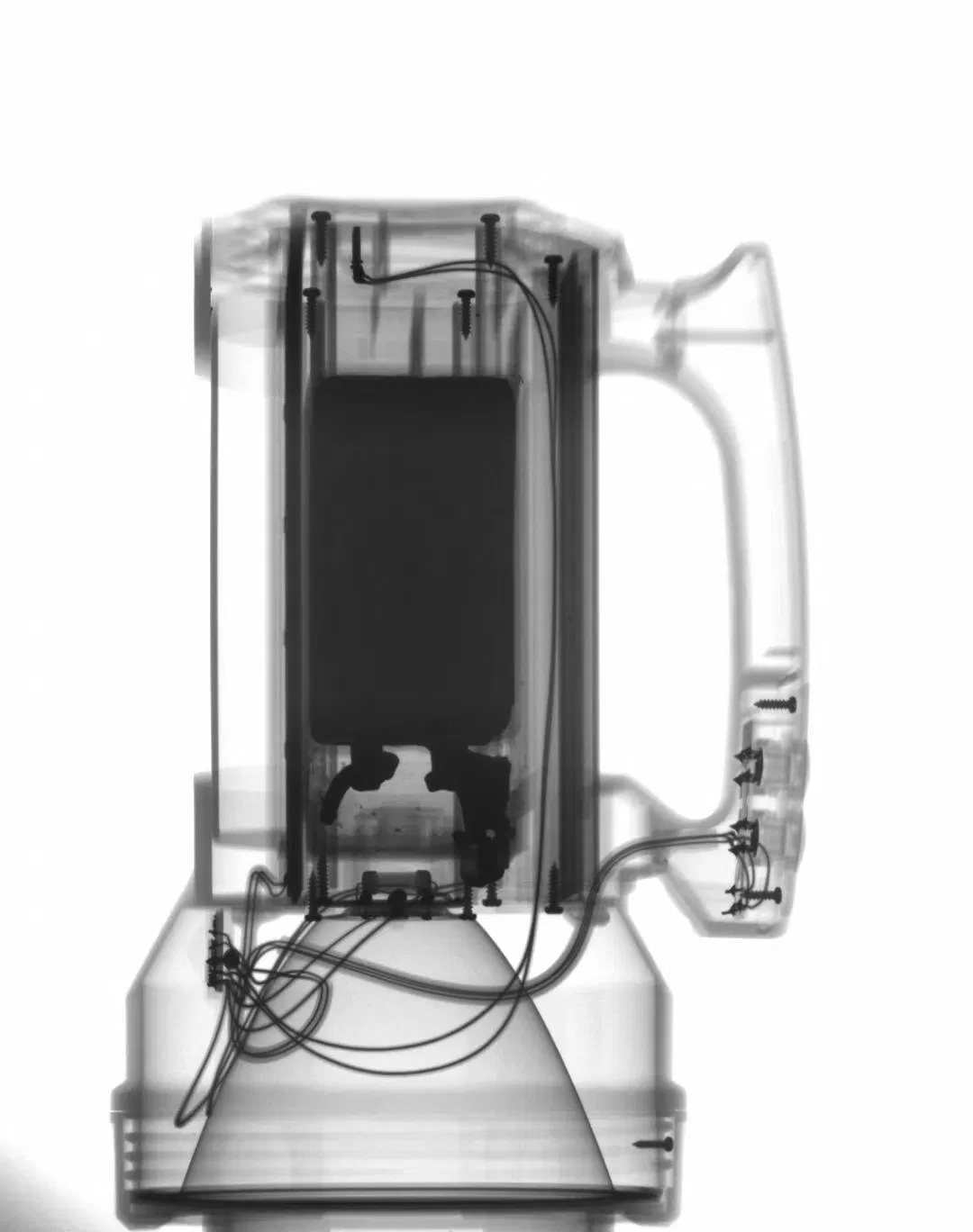

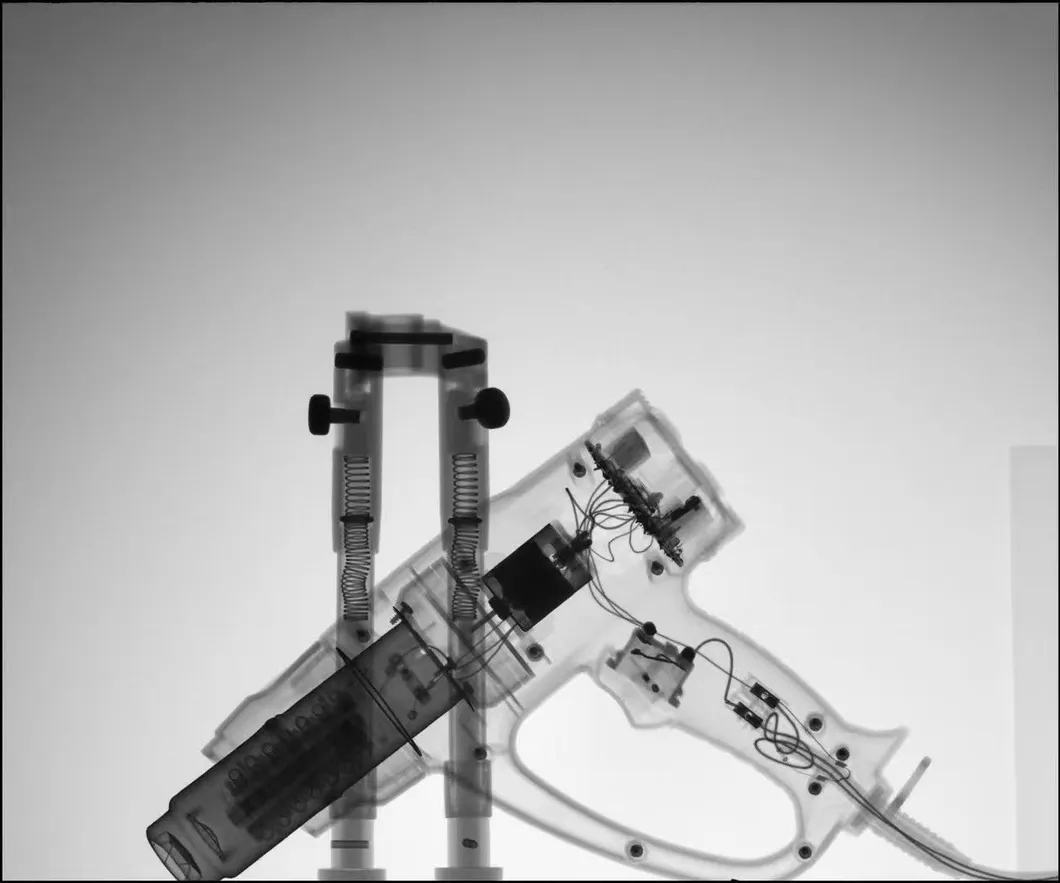

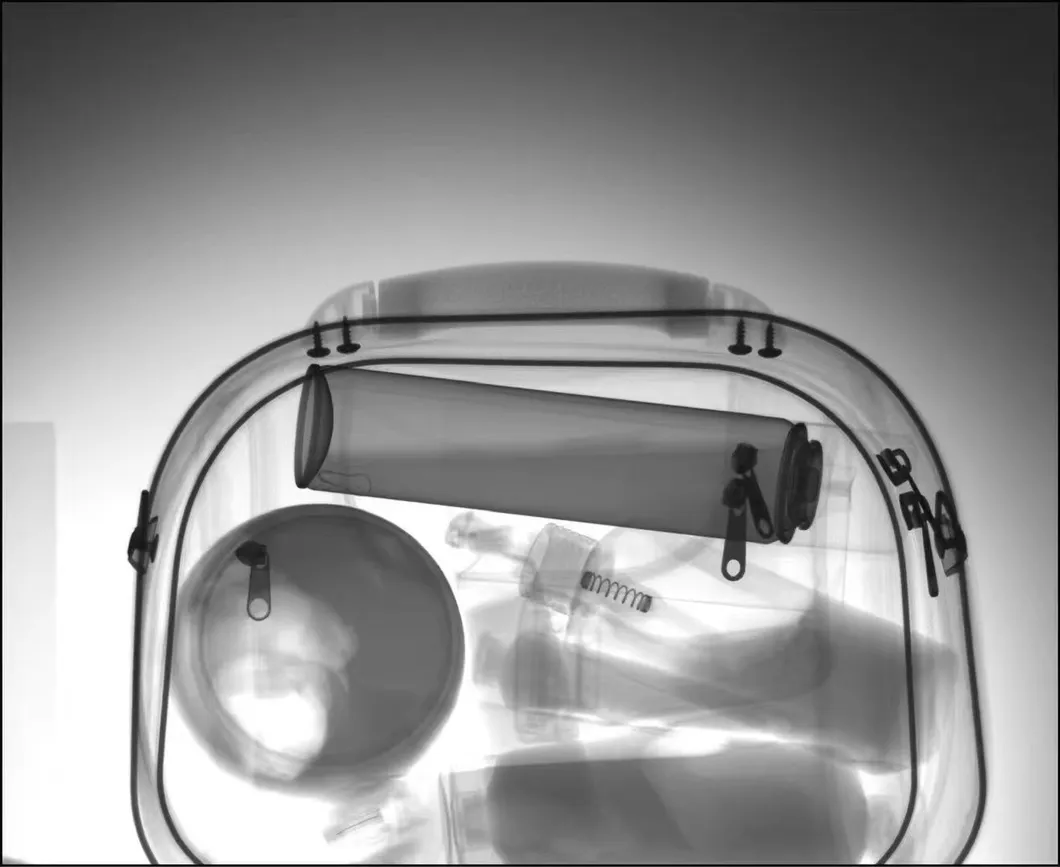

Precise visualization of fine details such as wires and triggers, essential for EOD and security operations.
Only 1.5 cm thick imaging panel, designed for use in confined or irregular spaces. Net weight of 3.9 kg allows for easy one-hand carry and fast deployment.
Penetration depth up to 45 mm steel. Large imaging area (43 × 43 cm) for full object coverage with 3D imaging capabilities.
| Parameter | Specification |
|---|---|
| Material | Amorphous Silicon |
| Imaging Area | 430 mm × 350 mm |
| Dimensions | 460 mm × 460 mm × 15 mm |
| Weight | 3.9 kg |
| Dynamic Range | 16-bit, 65,536 grayscale levels |
| Communication | Gigabit Ethernet / Dual-band Wireless (2.4G/5.8G) |
| Operating Temp | -15°C to +50°C |
| Operation Time | ≥ 48 hours |
| Parameter | Specification |
|---|---|
| Weight | 7 kg |
| Output Voltage | 120 kV constant current |
| Penetration | 35 mm steel (Std); 60 mm steel (High-pen) |
| Focal Spot Size | Φ 0.5 mm |
| Battery Capacity | ≥ 700 exposures per charge |
