Luggage Screening Solutions for Casino Entry Points

Customization:	Available
After-sales Service:	Local Enginner Service
Warranty:	24 Month

Send Inquiry

Product Description

Basic Information

Model NO.

VKX-6040d

Portable

Non Portable

Form

Flatbed

Application

Security Check, Industrial

Type

Industrial High-definition X-ray Detector

Certification

CE, ISO

Alarm Form

Audible Alarm

Production Capacity

75sets/Week

Product Description

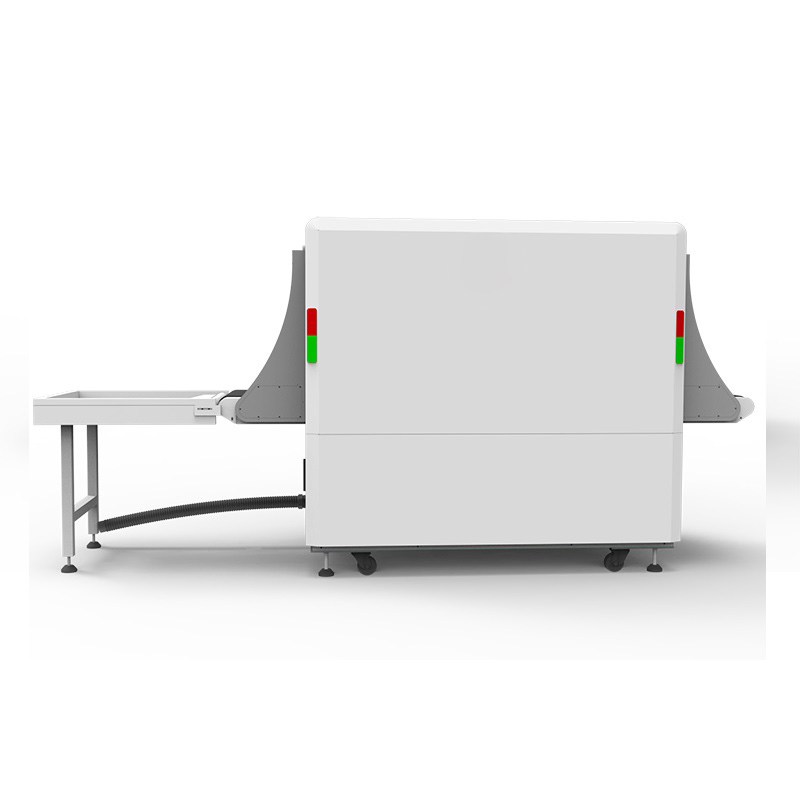

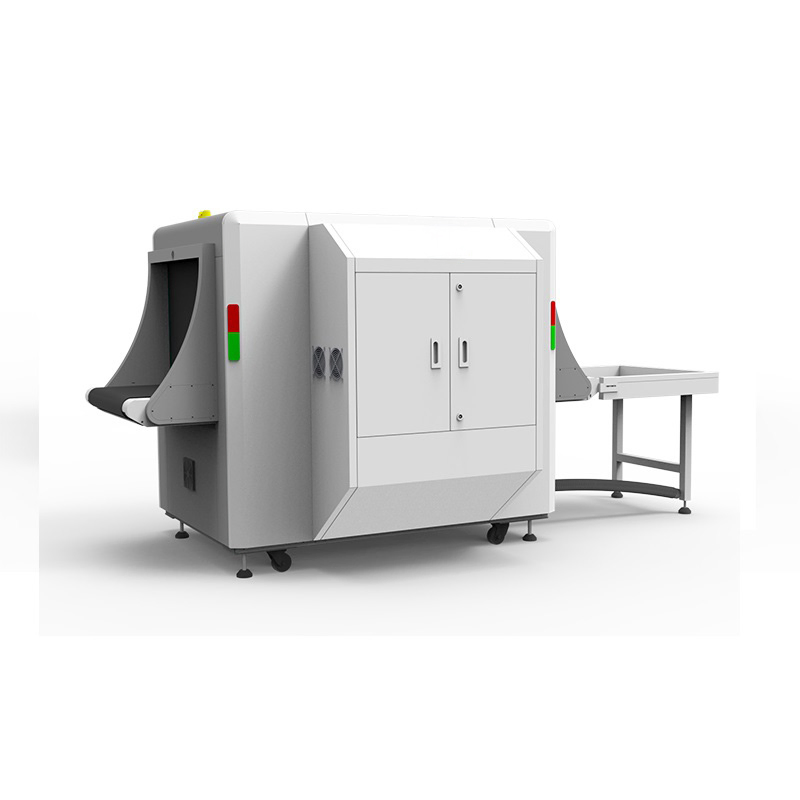

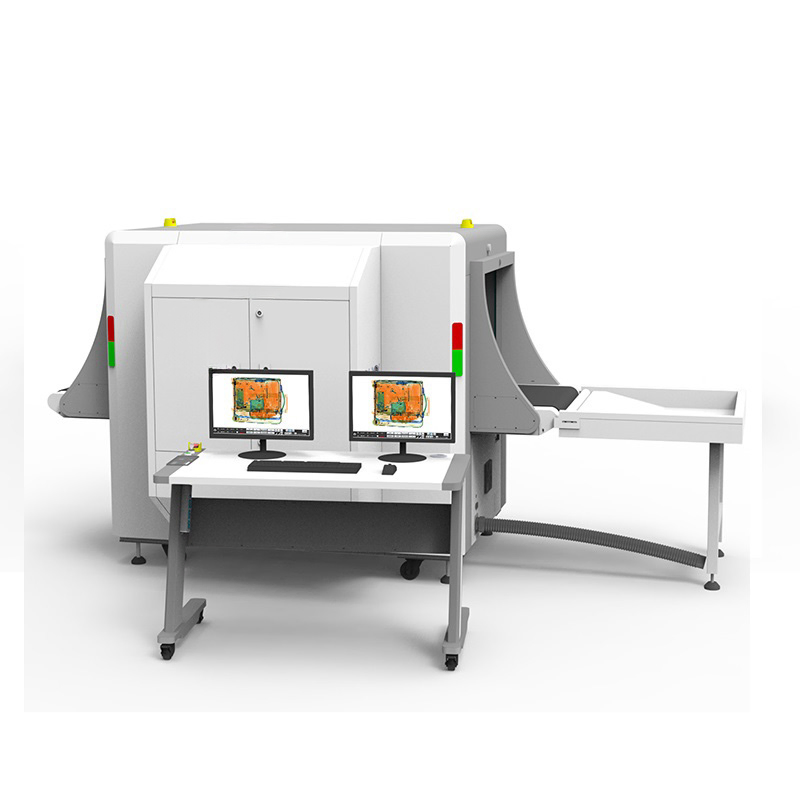

Security Inspection Machine 6550C

38mm Penetration Hotel Security Screening Baggage Suitcase X-Ray Machine: Optimal Protection for Guest Safety

Ensure the highest level of security at your hotel with our advanced X-ray machine. Designed for hospitality environments, it offers exceptional detection capabilities with 38mm steel penetration.

Key Features

✔

High Penetration: 38mm capacity detects well-concealed items.

✔

Clear Imaging: High-resolution images for accurate identification.

✔

User-Friendly: Intuitive touchscreen control panel.

✔

Automated Detection: Algorithms highlight suspicious items automatically.

✔

Compact Design: Fits seamlessly into hotel security checkpoints.

✔

Durable: Robust materials for high-traffic continuous use.

Applications

Hotel Checkpoints: Thorough screening of all baggage before entry.
Conference and Event Security: Extra layer of protection for hosted events.
VIP Protection: Safety for high-profile guests by preventing potential threats.

Accessories Configuration

Component	Specifications
Frame	Laser cutting processing, powder coating, anti-corrosion and rust-proof.
Receiving Rack	Standard exit rack, anti-pinch design for safe operation.
Motor	DC24V silent straight-line electric drum motor. Speed: 0-0.25m/s.
Main Unit	Embedded industrial control host, 500G hard drive (1.5 million images).
Monitor	19-inch LCD monitor, VGA interface, separate control desk.
X-ray Generator	Tube voltage 140KV, tube current 0.3mA; sealed oil + air cooling.
Lead Curtain	2 layers at front and back, staggered for efficient radiation protection.

Performance Indicators

Parameter	Value
Tunnel Size	65cm (W) * 50cm (H)
Conveyor Speed	0.23 m/s
Max. Load Cap.	100 kg
Penetrating	34mm steel plate
Line Resolution	Φ0.0787mm metal wire
Single Check Dose	Less than 1μGy
Leakage Radiation	Less than 1μSv/h (Compliant with GB15208.1-2018)

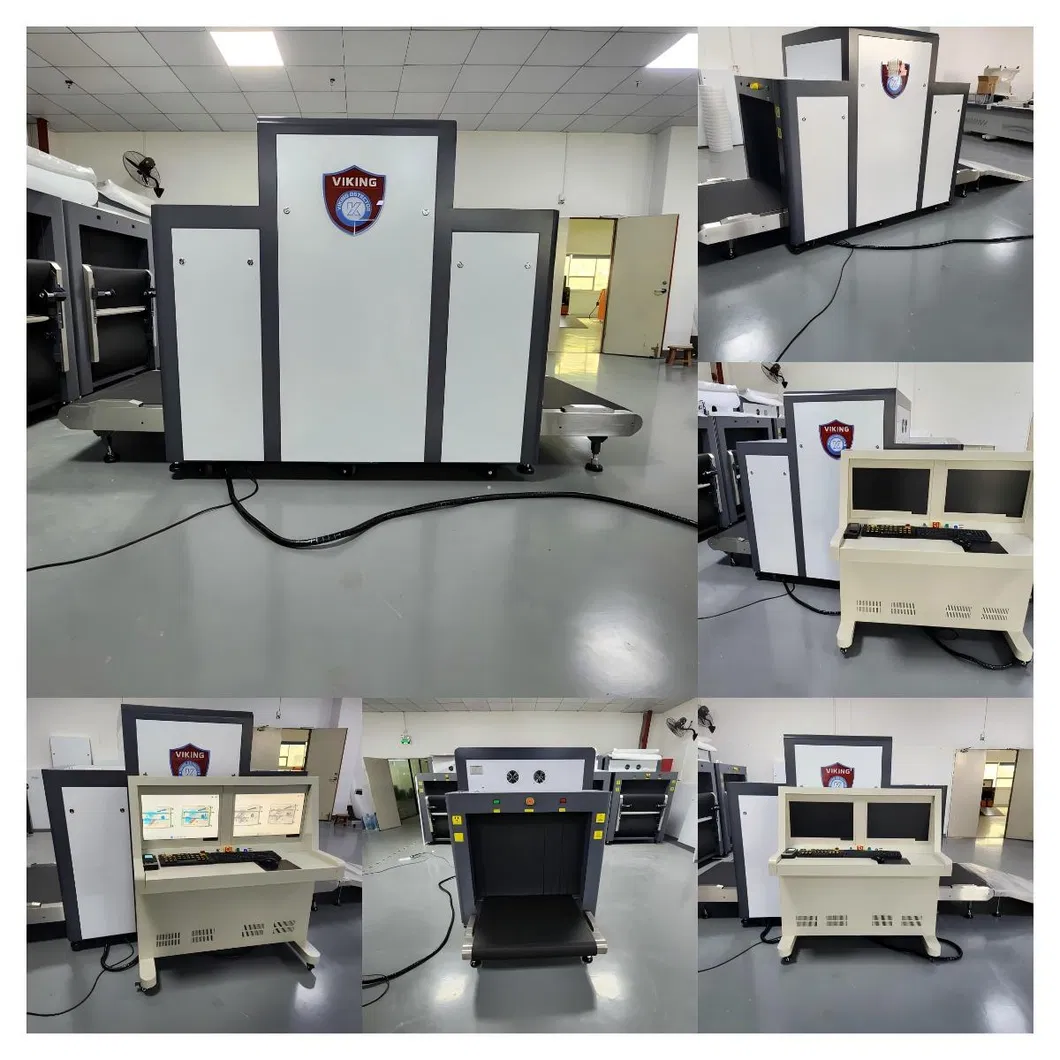

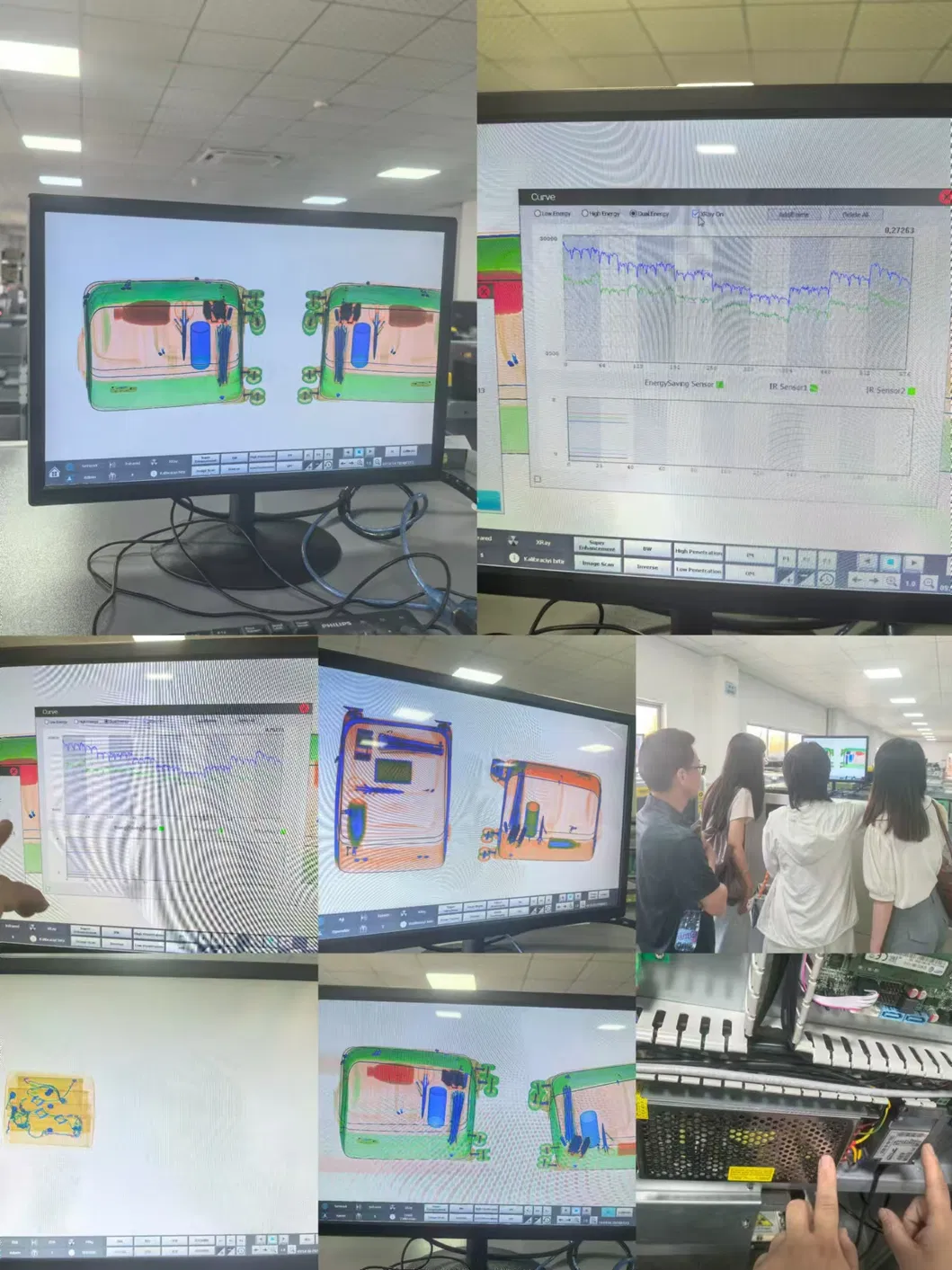

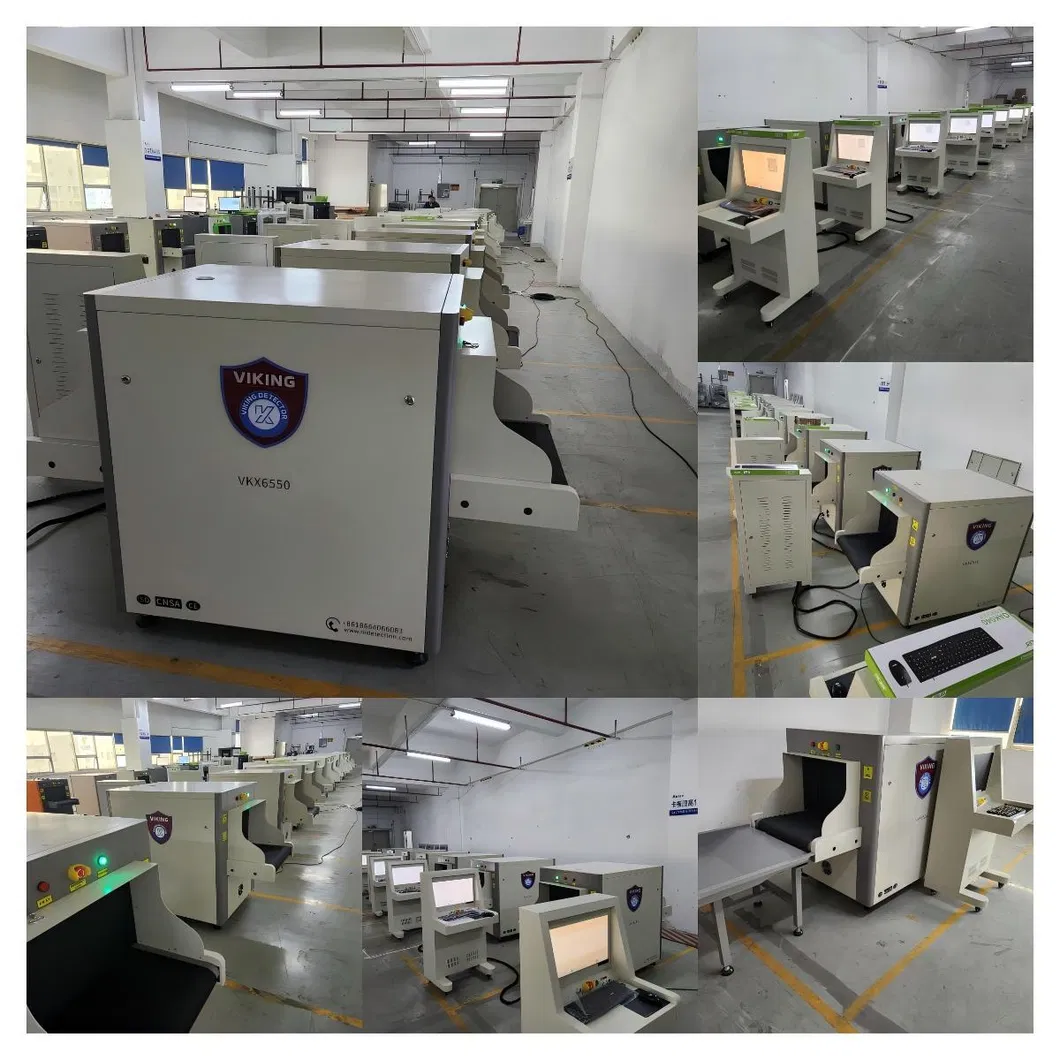

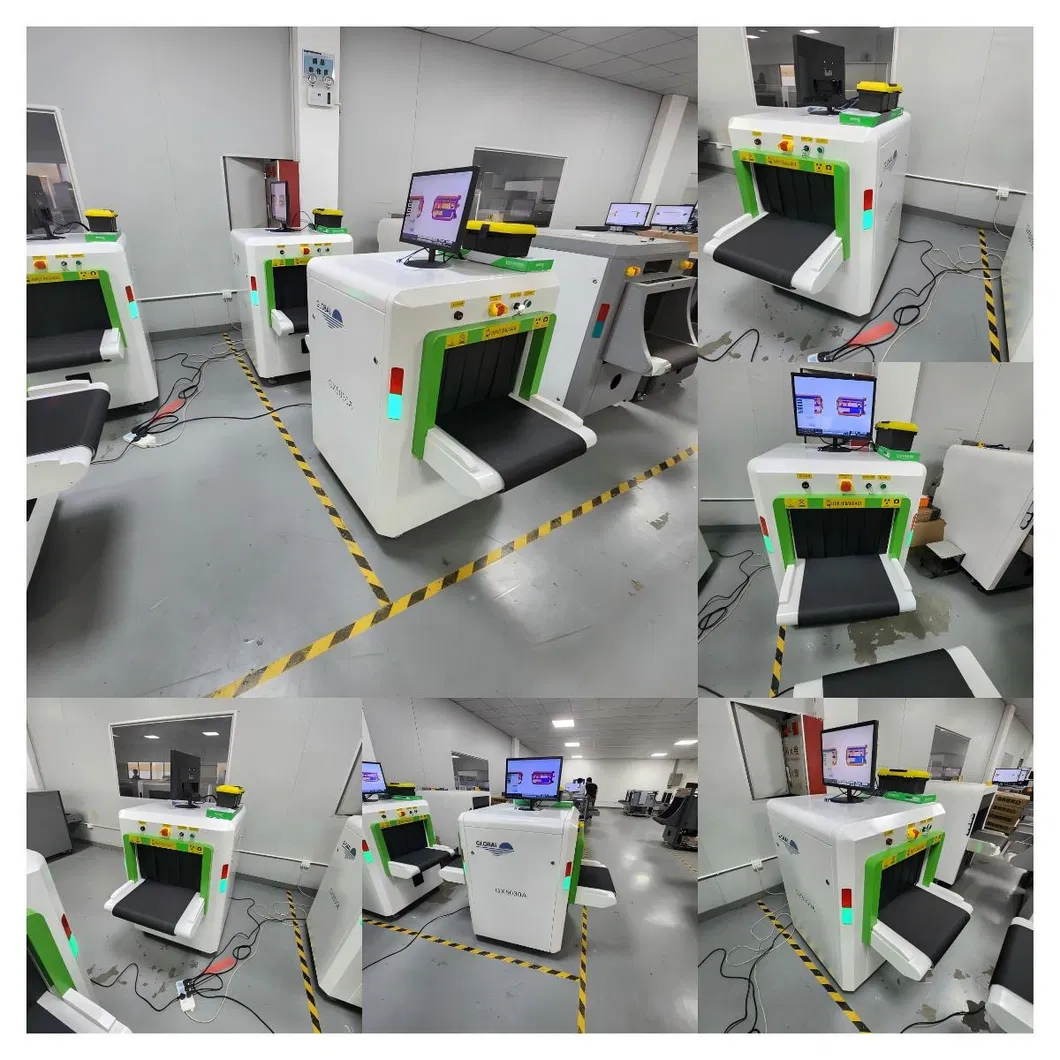

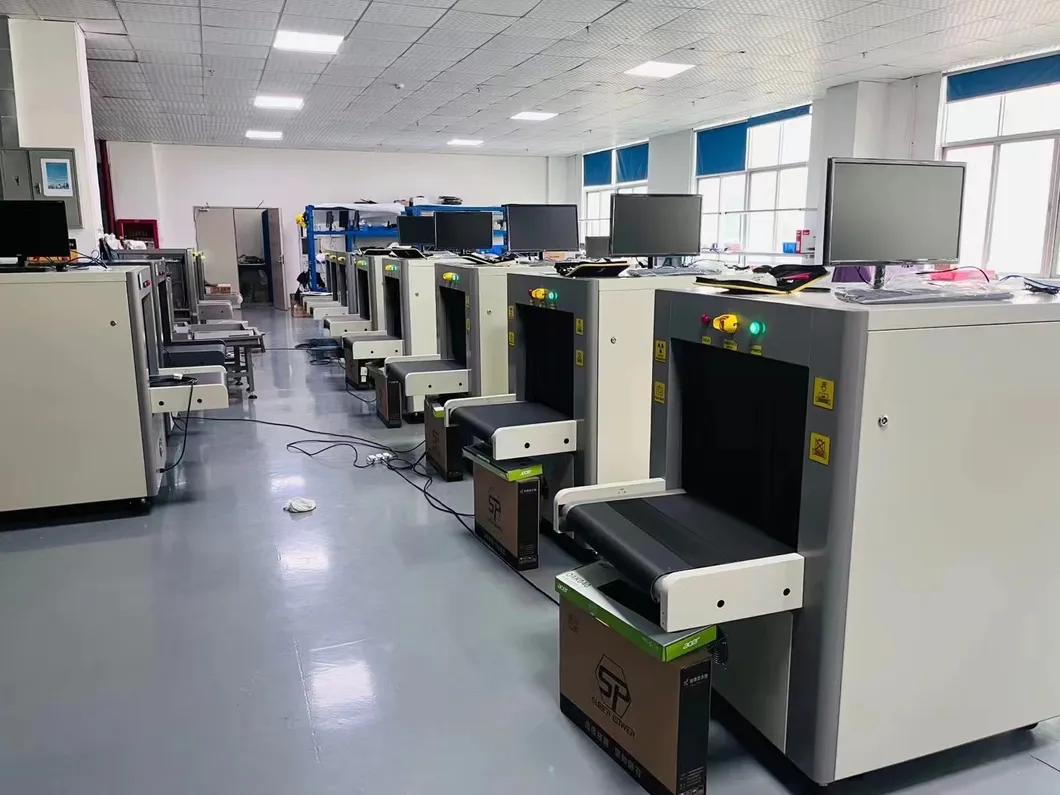

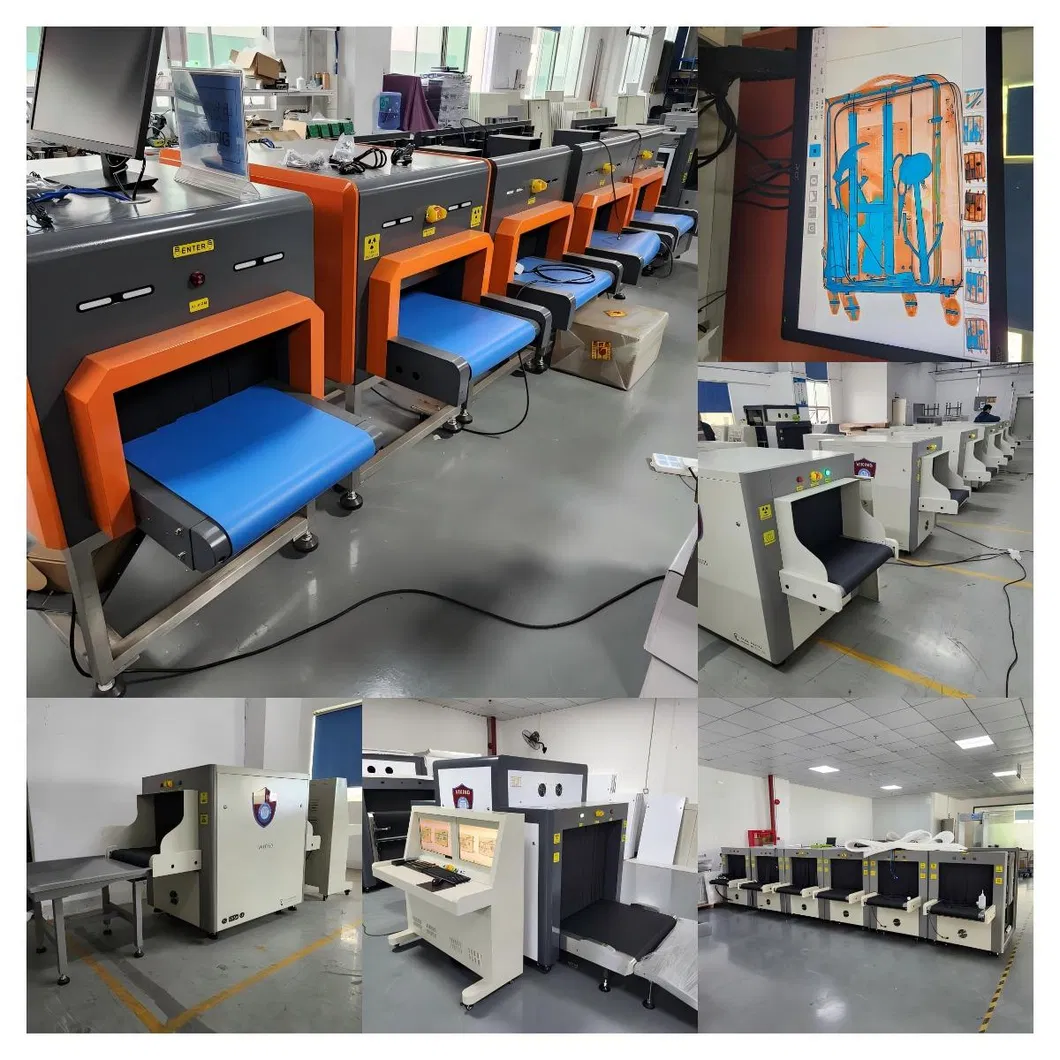

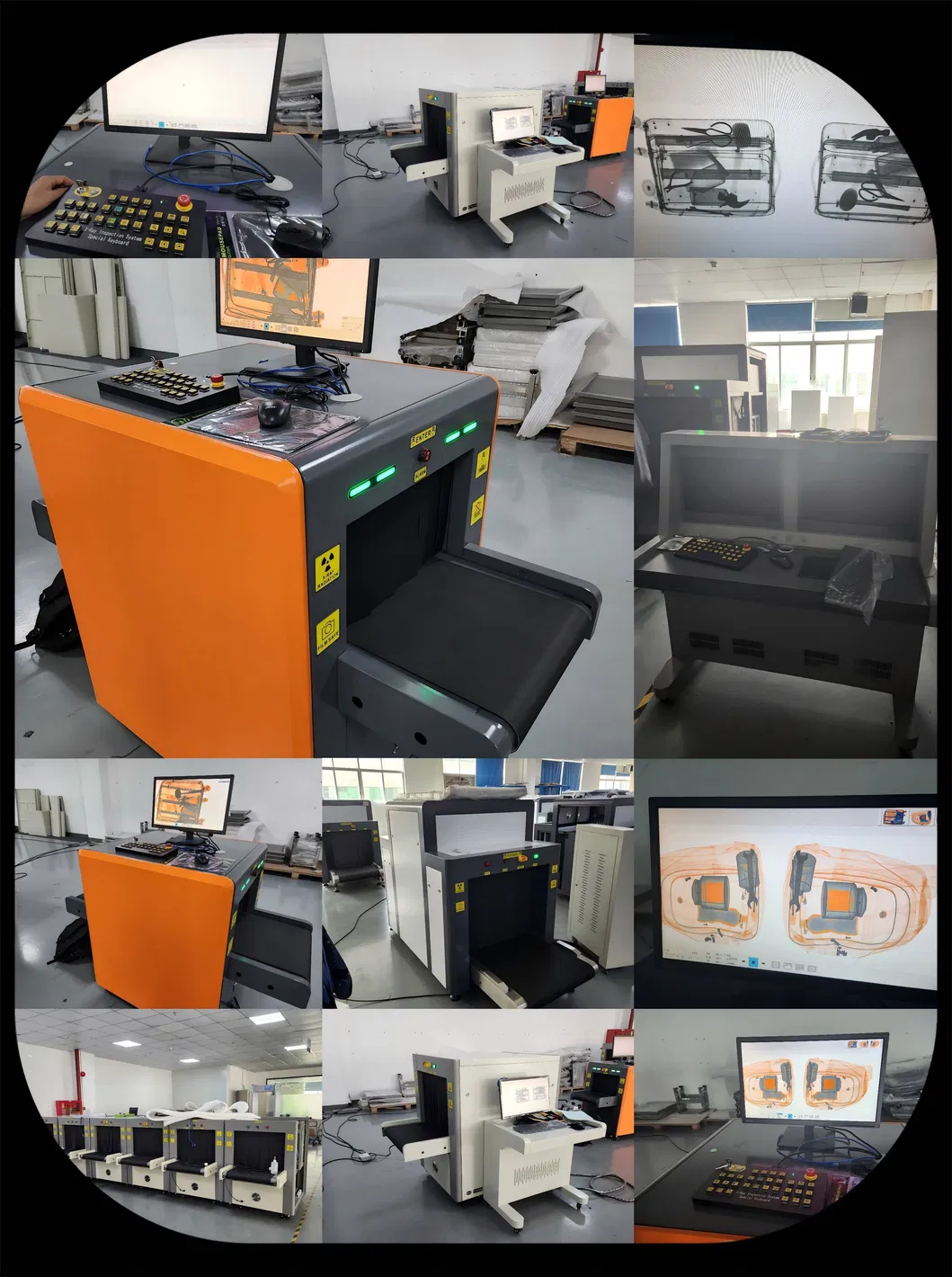

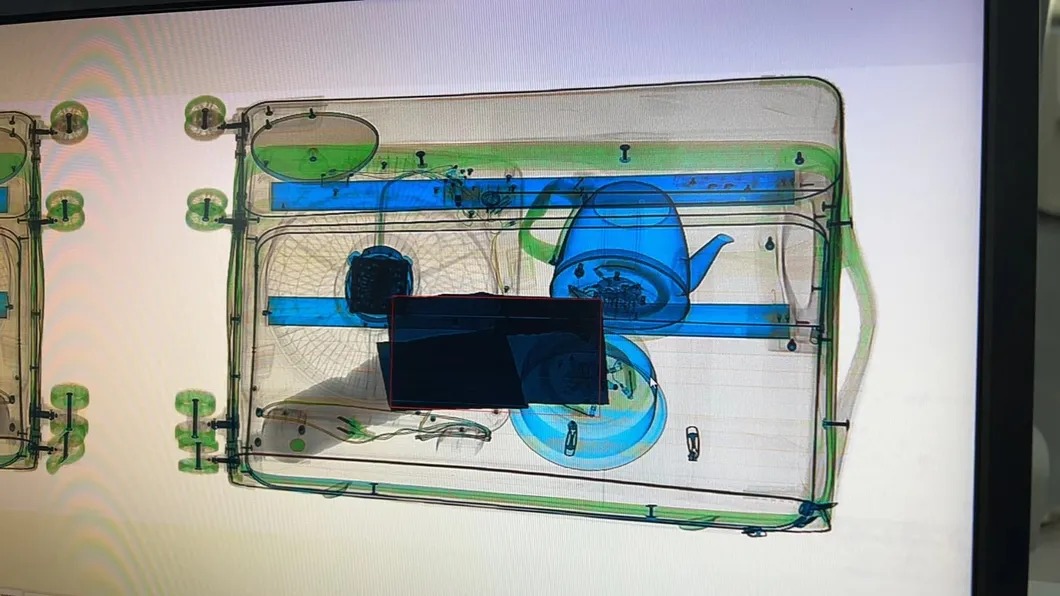

Detection Effect & Product Images

Product Size Diagrams

Frequently Asked Questions

What is the maximum penetration capability of this X-ray machine?

The machine features a high penetration capability of up to 38mm steel plate, allowing for thorough screening of dense baggage.

What are the tunnel dimensions for baggage entry?

The tunnel size is 65cm in width and 50cm in height, making it ideal for standard suitcases and hotel guest luggage.

Is the radiation leakage safe for operators and guests?

Yes, the leakage radiation dose rate is less than 1μSv/h at 10cm from the outer surface, which is well within the national safety standard GB15208.1-2018.

How many images can the system store?

The system is equipped with a 500G hard drive capable of storing over 1.5 million images, with support for up to 2.5 million in various formats.

Does the machine support automated threat detection?

Yes, it features advanced software algorithms that automatically highlight suspicious items, such as high-density materials or potential threats, to assist security personnel.

Can the conveyor speed be adjusted?

The silent straight-line electric drum motor allows for an adjustable speed range from 0 to 0.25m/s to suit different traffic requirements.
