AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device
AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device
AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device
AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device
AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device
1 / 5
AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device
AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device
AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device
AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device
AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device

AL-DR-250B Variable-frequency portable X-ray DR Imaging Device Roentgenogram test device

Customization: Available
After-sales Service: Online
Warranty: 1 Year
Send Inquiry

Product Description

■ Basic Information
Model NO.
AL-DR-250B
Max Diameter
1200mm
Mass Scope
1000kg
Type
Coating Thickness Gauge
Accuracy Grade
1
Load Way
Electronic Load
Display
Needle
Control
Computer Control
Power Source
AC220V
Tube Current
5mA
Focal Spot Size
2.5mm x 2.5mm
Sensitivity
≤1.5%
Package
Plywood Case
Origin
China
HS Code
9024800000
Capacity
200pieces/Month
■ System Performance & Features
✔ Strong penetration ability for a wider range of samples.
✔ Cost-effective solution for industrial inspection.
✔ Friendly user interface with simple operation procedures.
✔ Easy integration with tripods or custom fixing tools.
✔ Safety-compliant: No harmful or dangerous substances for easier transportation.
■ System Composition
● Variable frequency X-ray machine
● Digital flat panel detector
● Image processing system
● Specialized fixture set
■ Technical Specifications
Parameter Specification
Maximum Energy320kV
Other Available Models100kV, 160kV, 200kV, 250kV, etc.
Tube Current5mA
Focal Spot Size2.5mm x 2.5mm
Radiation Angle40°
Sensitivity≤1.5%
Detector TypeAmorphous Silicon
Effective Imaging Area13x13cm
Detector Pixel Pitch85μm
Spatial Resolution4LP/mm
A/D Conversion16-bit
■ Product Visuals

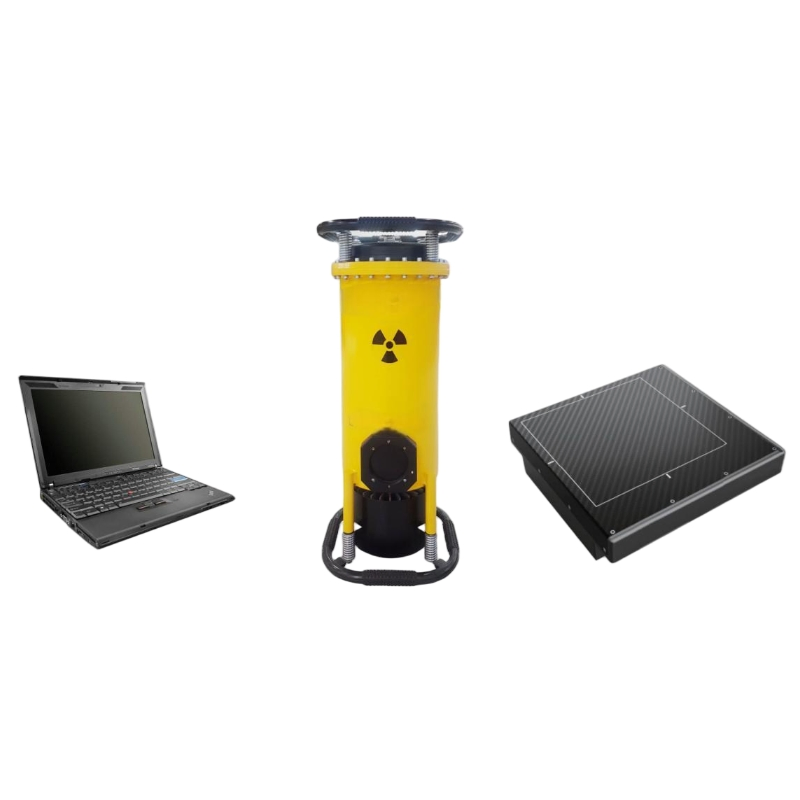

AL-DR-250B X-ray DR Imaging Device
AL-DR-250B Technical Details
Frequently Asked Questions
What are the primary applications for the AL-DR-250B?
This device is designed for portable X-ray DR imaging, suitable for testing and detecting defects in various workpieces with high penetration capability.
What software functions are included in the imaging system?
The software supports size measurement, image zooming, pseudo-color transformation, brightness/contrast adjustment, and image enhancement/sharpening.
Is the detector area customizable?
The standard detector effective imaging area is 13x13cm with a high spatial resolution of 4LP/mm.
What are the power and environmental requirements?
The system operates on an AC220V power source and is compatible with the Windows 7 software environment.
Does the device pose any transportation risks?
No, the device contains no harmful or dangerous substances, making it safe for standard logistics and international shipping.
What models are available besides the 320kV energy unit?
We offer various energy configurations including 100kV, 160kV, 200kV, and 250kV models to suit different penetration requirements.
