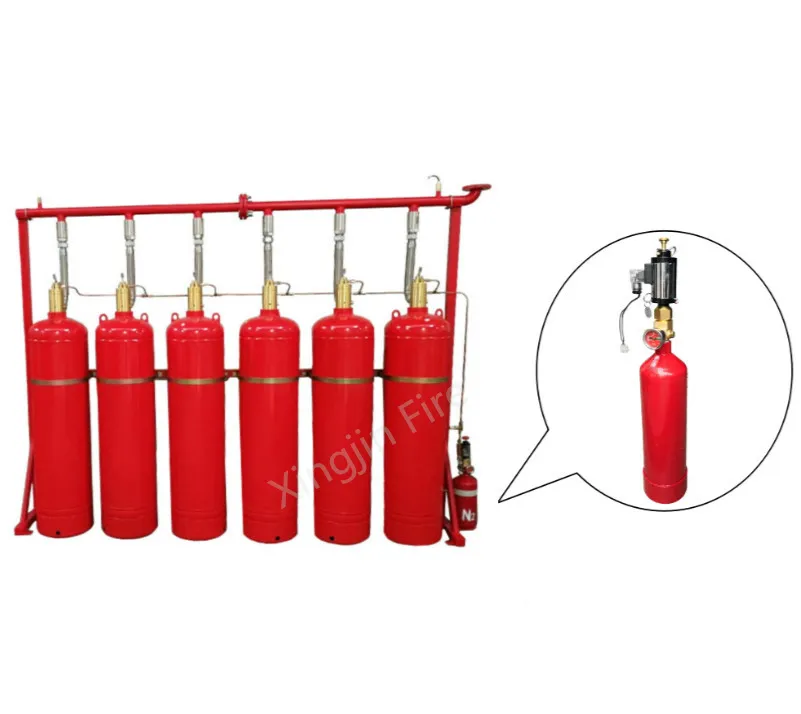

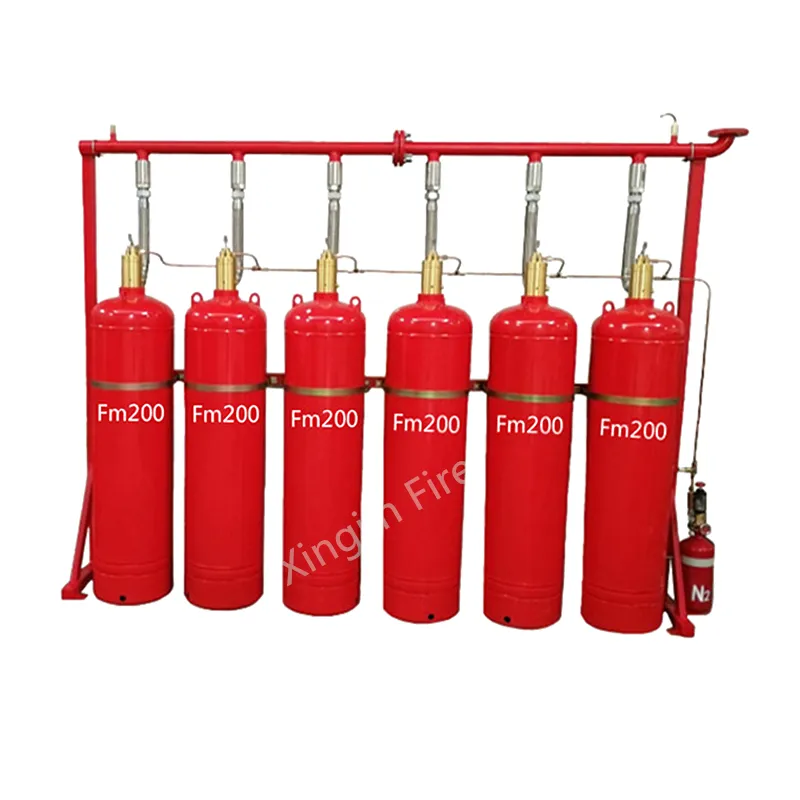

4.2MPa Pipe Network FM200 Fire Suppression System
💡 Description
Though FM200 is a modern part of gas fire-fighting, it has become increasingly popular worldwide. Known for being odorless, colorless, and non-toxic, the FM200 fire suppression system is considered the premier substitute for Halon-type systems. Most importantly, it has zero ozone depletion potential. While the architecture may appear sophisticated, the system is designed for straightforward installation. This equipment utilizes a total flooding method, making it ideal for occupied rooms and enclosed spaces.
📊 Basic Specifications
| Model NO. | 120L |
Agent | FM200 (HFC-227ea) |
| Pattern | Enclosed Flooding |
Working Pressure | 4.2MPa |
| Color | Red |
Discharge Time | ≤10s |
| Power | DC24V/1.6A |
Starting Mode | Automatic, Electrical Manual, Mechanical Emergency |
⚙️ Technical Parameters
| Specifications |
4.2Mpa System |
5.6Mpa System |
| Capacity |
40L, 70L, 100L, 120L, 150L, 180L |
70L, 90L, 120L |
| Max Filling Rate |
0.95kg/L |
1.08kg/L |
| Nitrogen Driving Device |
6.0±1.0Mpa |
| Storage Temp |
-10~50ºC (Humidity ≤97%) |
| Coverage Area/Vol |
≤800m² / ≤3600m³ |

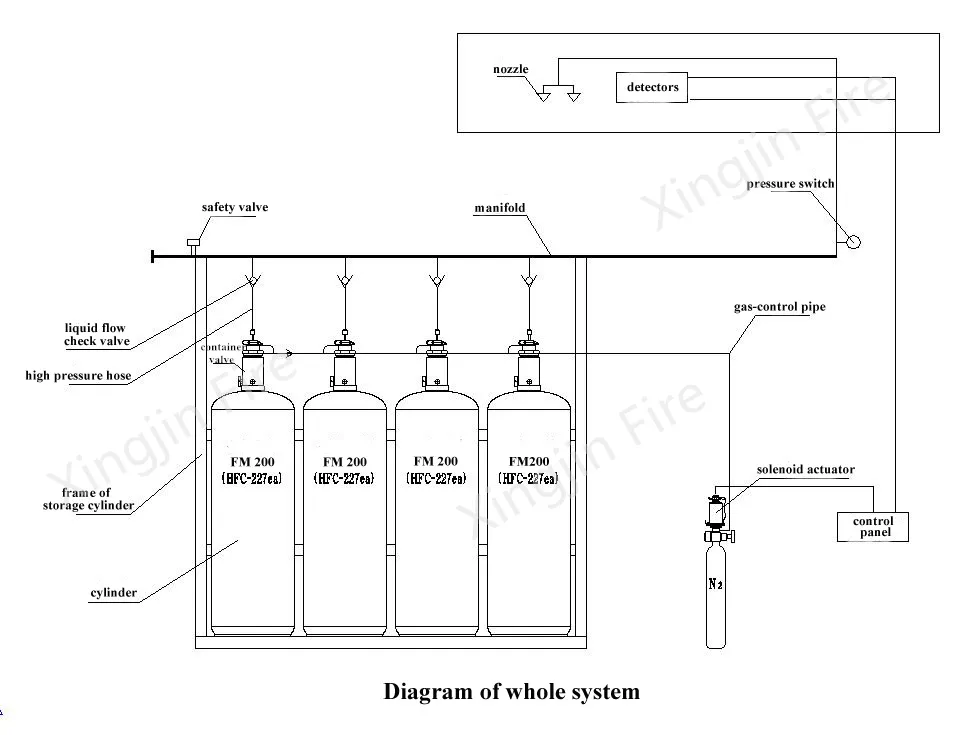

🔧 System Components

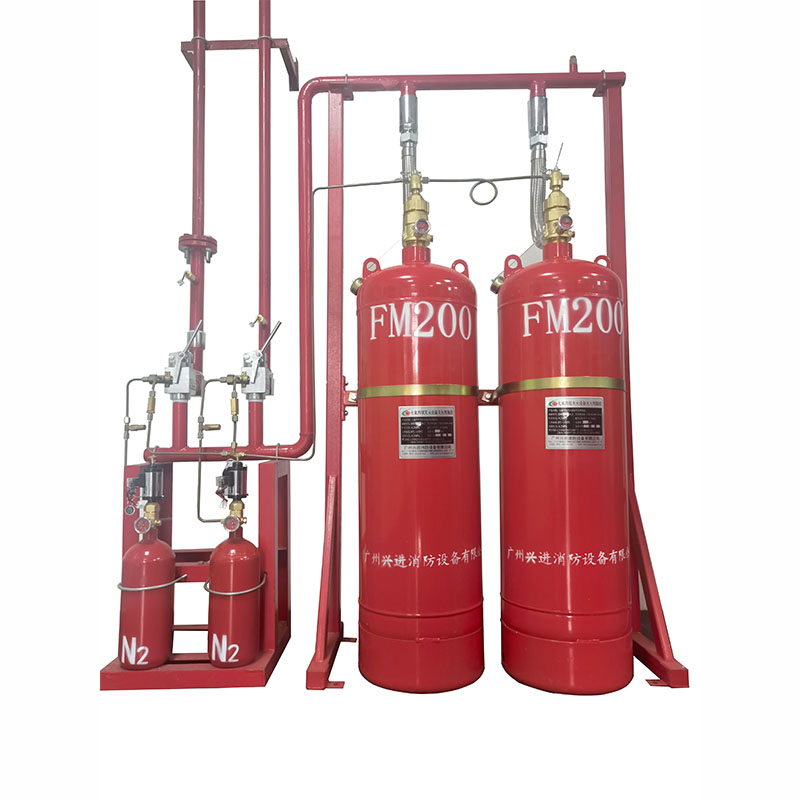

The system consists of three main segments: the pipe network, the fire fighting equipment, and the electrical elements.

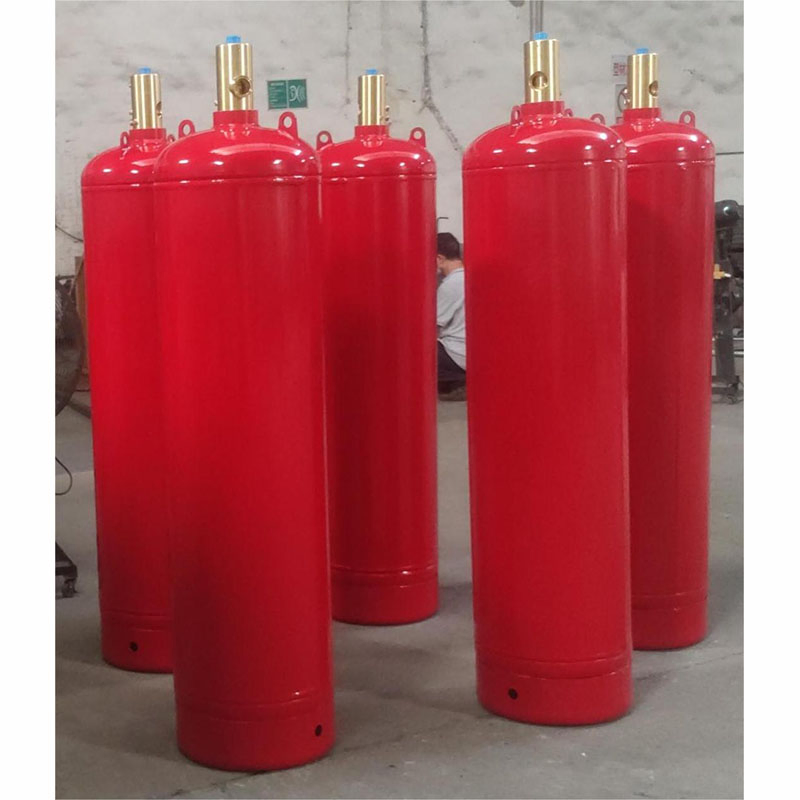

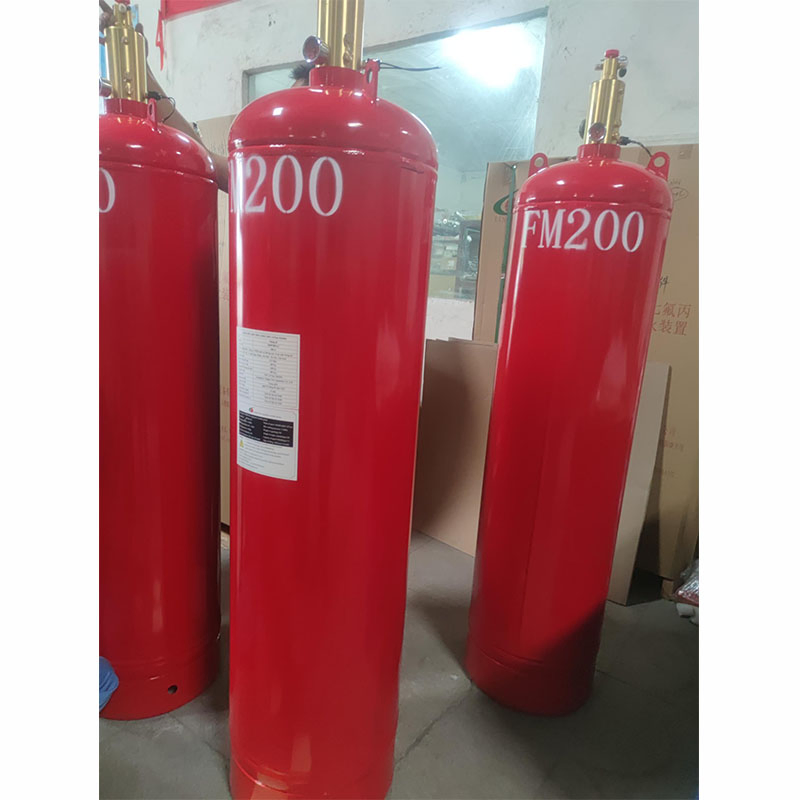

Core Components: FM200 cylinders, cylinder frames, nitrogen-pressure driving devices, container valves, flexible hoses, liquid/gas flow check valves, manifolds, safety valves, selective valves, and nozzles.
Electrical Elements: Control panels, manual buttons, discharge indicators, alarm bells, light sounders, smoke detectors, and heat detectors.
🏢 Applications

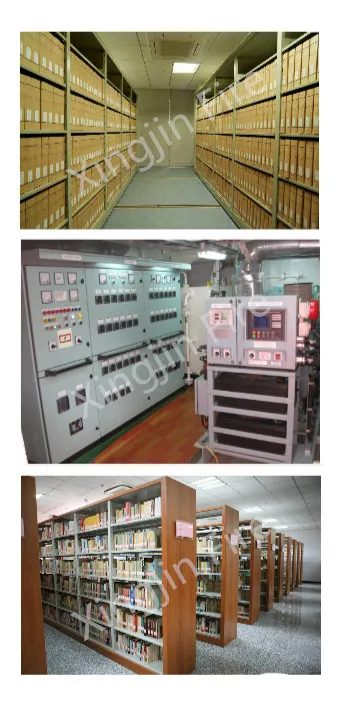

This system is highly suitable for high-value environments where water damage must be avoided:
- Telecommunications and Data Centers
- Switch Gear & Computer Rooms
- High-tech Medical Imaging Suites
- Archives and Reference Material Storage
- Chemical Laboratories
- Testing Facilities
📦 Packaging & Delivery
Products are first protected with polyfoam and then securely enclosed in professional wooden cases. Pallets are utilized when necessary to ensure maximum safety during international transit.
⭐ Why Choose Our Solutions
- 5-Year Quality Guarantee: Long-term assurance for your safety investment.
- High-Efficiency Management: Streamlined production and delivery systems.
- Professional Engineering: Advanced equipment and expert technical oversight.
- Technical Support: 8x6 hours of dedicated technical assistance and after-sales service.
❓ Frequently Asked Questions
Is FM200 safe for electronic equipment?
Yes, FM200 is a clean agent that is non-conductive and leaves no residue, making it safe for computers, telecommunications, and high-tech medical equipment.
How fast does the system discharge?
The system is designed to discharge the suppression agent completely within 10 seconds or less to rapidly extinguish fires.
What are the environmental impacts?
FM200 has zero ozone depletion potential (ODP) and is considered an environmentally friendly substitute for older Halon-based systems.
Are OEM services available for custom projects?
Yes, we welcome custom designs and drawings to meet specific project requirements and technical specifications.
What starting modes does the system support?
The system supports three starting modes: Automatic detection, Electrical Manual control, and Mechanical Emergency manual operation.
What is the maximum coverage area for a single system?
A single system can cover a maximum area of 800m² and a maximum volume of 3600m³.
