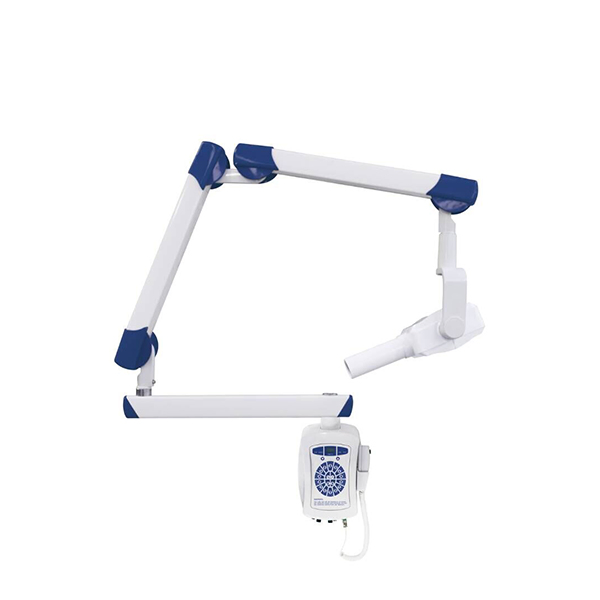

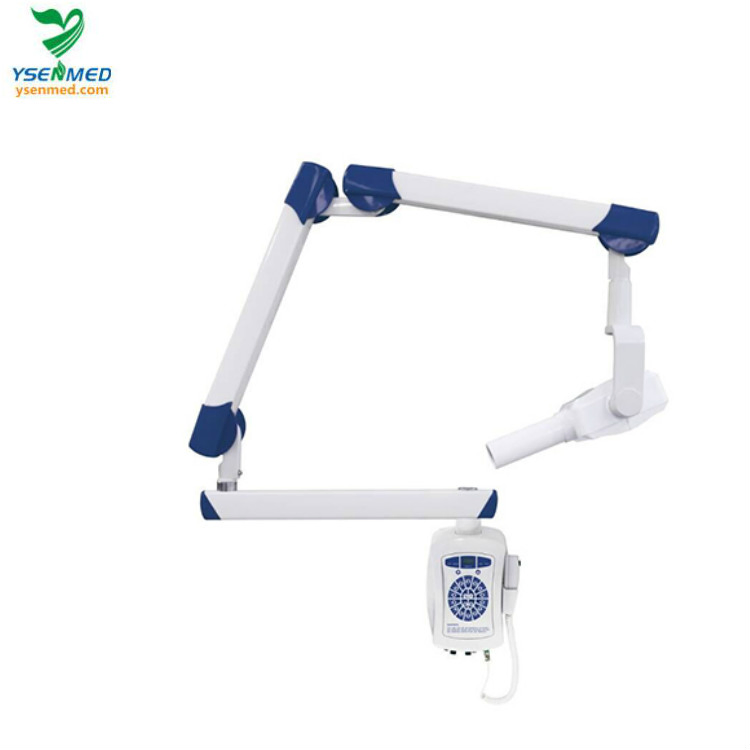

Dental Clinic Wall-Mounted Intra-Oral Dental X-ray Equipment YSX1007
Main Specifications:
- Tube voltage: 70kV ± 10%
- Focus size: 0.8mm
- Tube current: 8mA
- Total filtration: 2.5mmAL
- Leak radiation: Outside one meter ≤0.002Mg/h (Standard: 0.25Mg/h)
- Power: 480W
- Loading time: 0.2~4.0s
- Focal spot to image receptor distance: 210mm
- Horizontal rotating angle of arm: >80°
- Package size: 93*36*48(cm)
- Weight of the unit: 30Kg
| Power supply | AC220V, 50Hz, 1kVA |
| Tube voltage | 70kVp |
| Tube current | 8mA |
| Focus size | 0.8mm |
| Total filtration | 2.5mmAL |
| Exposure time | 0.2-4 sec |
❓ Frequently Asked Questions
What is the primary use of the YSX1007 Intra-Oral X-ray?
It is specifically designed for dental clinics to perform intra-oral X-ray imaging for diagnostic purposes across all age groups.
Is this X-ray unit portable or fixed?
This model is a wall-mounted unit, providing a stable and space-saving solution for dental treatment rooms.
What are the safety standards for radiation leakage?
The unit features a leak radiation level of ≤0.002Mg/h at one meter, which is significantly safer than the national standard of 0.25Mg/h.
What power supply is required for operation?
The equipment requires a standard AC 220V±10% power supply at 50Hz, with a 1kVA power capacity.
Does the equipment come with any certifications?
Yes, the equipment is fully certified with ISO13485 and CE marks, ensuring compliance with international medical device standards.
How much does the unit weigh for installation?
The total weight of the unit is approximately 30Kg, and it is shipped in a secure wooden box for protection.
