Home > Dental Imaging Equipment > Advanced Dental X-ray Imaging Equipment with 150 Kv Power
Advanced Dental X-ray Imaging Equipment with 150 Kv Power
Advanced Dental X-ray Imaging Equipment with 150 Kv Power
Advanced Dental X-ray Imaging Equipment with 150 Kv Power
Advanced Dental X-ray Imaging Equipment with 150 Kv Power
Advanced Dental X-ray Imaging Equipment with 150 Kv Power
1 / 5
Advanced Dental X-ray Imaging Equipment with 150 Kv Power
Advanced Dental X-ray Imaging Equipment with 150 Kv Power
Advanced Dental X-ray Imaging Equipment with 150 Kv Power
Advanced Dental X-ray Imaging Equipment with 150 Kv Power
Advanced Dental X-ray Imaging Equipment with 150 Kv Power

Advanced Dental X-ray Imaging Equipment with 150 Kv Power

Customization: Available
Condition: New
Certification: CE
Send Inquiry

Product Description

Basic Info.
Model NO.
Standard
Application
Adult
Nature
Specialized Equipment
Material
Metal
Focal Point
0.6 mm / 1.2 mm
Target Angle
12
Anode Heat Capacity
300 Khu
Kv
150 Kv
Filter out
2.4 mm Al
Fluoroscopy
40 ~ 150 Kv
Power Supply
380 VAC
Power
65 Kw
Photography
10 ~ 1000 Ma
Transport Package
Wooden Box
Origin
China
Product Description

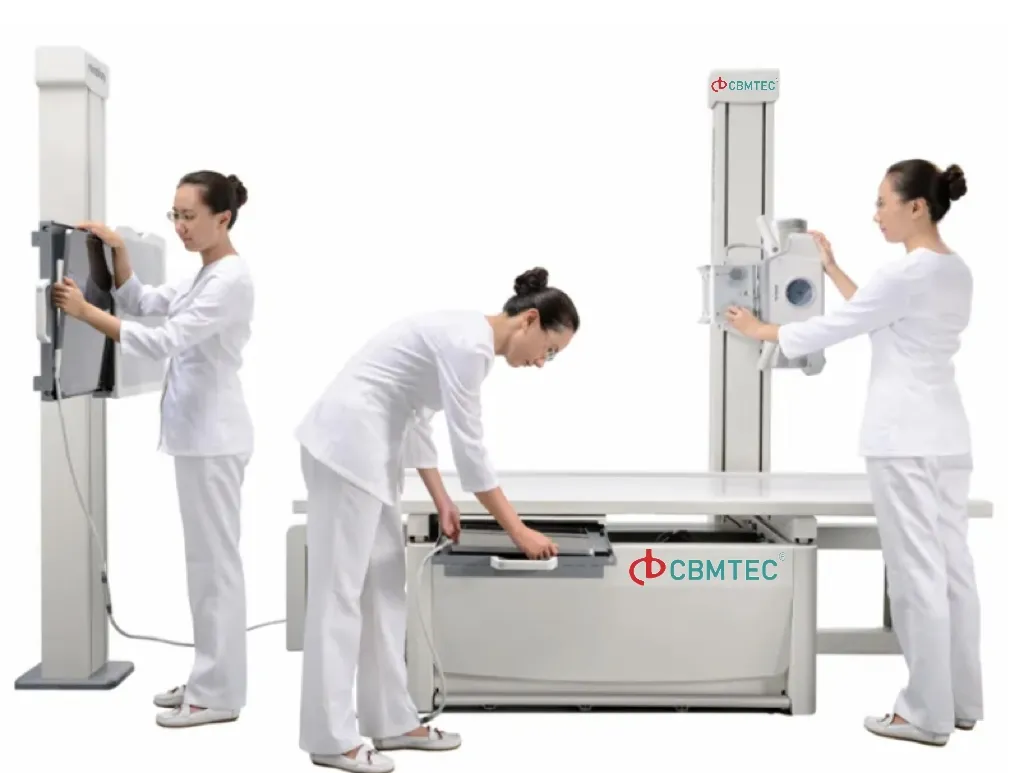

Advanced Dental X-ray Imaging Equipment

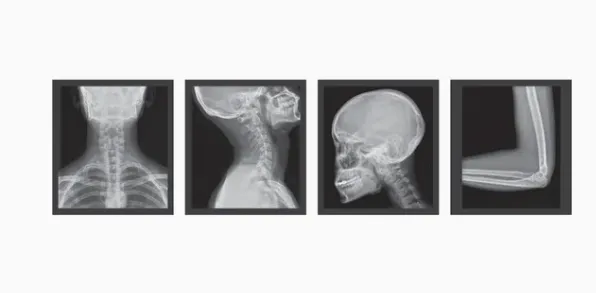

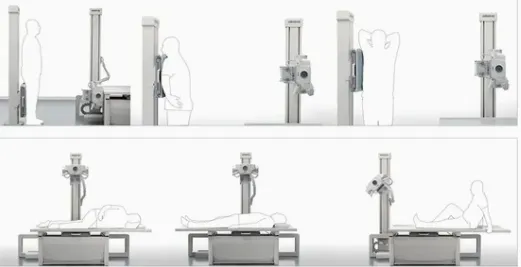

Imaging System Detail
Imaging System Detail
SY-D047A-3 Hospital Imaging DR X-Ray Machine System Medical 50kw High Frequency Digital X-ray Equipment for Radiography
Key Features:
High Frequency High Voltage X-ray Generator
X-ray Tube Assembly (Made-in-China)
Collimator
Digital Detector Rayence 1717SGC/SCC (Made-in-Korea)
DR Machine Frame
Radiography Table
Computer and LCD DCSM1F/ML2002
Synchronous box
High Voltage Cable 75kV (length: 8m)
Grid (Brand:JPI) 100cm and 180cm (Made-in-Korea)
Digital X-Ray Equipment's Generator Specification
Power AC380V ± 38V
Radiography Tube Voltage 40kV ~ 150kV
Radiography Tube Current 10mA ~ 630mA
Time 2ms ~ 6300ms
Allowed Internal Resistance 380V: 0.5Ω
Allowed Frequency Variation 50Hz/60Hz ± 1Hz
Working Frequency ≥30kHz

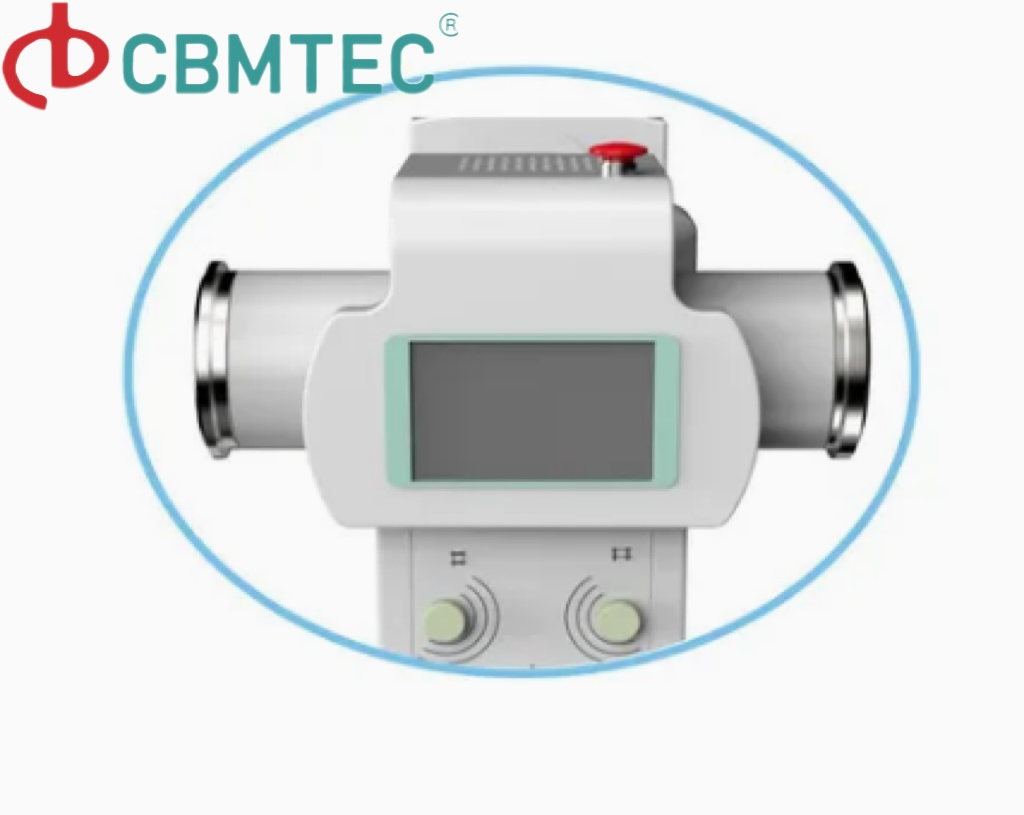

Digital X-Ray Equipment's Tube Specification
Focus0.6mm/1.2mm
Rotating Speed2800rpm
Peek Tube Voltage150kV
Small Focus20kW
Large Focus50kW

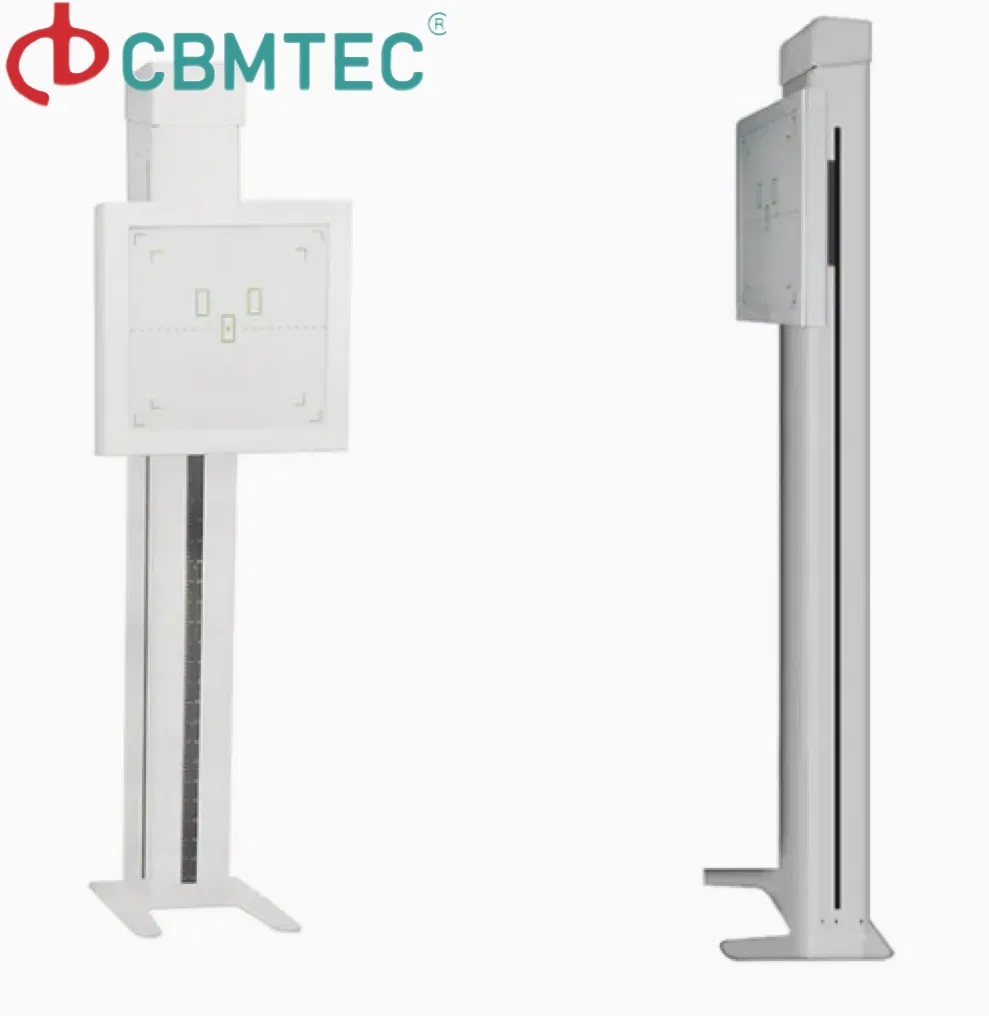

Digital X-Ray Equipment's Flat Panel Detector Specification
Scanning Area17 × 17 inches
Spatial Resolutionnot less than 3.9lp/mm
Total Pixel Matrix3,328(h) × 3,328(v)
Pexel Pitch127
Image Preview Timenot more than 2s
Product Show

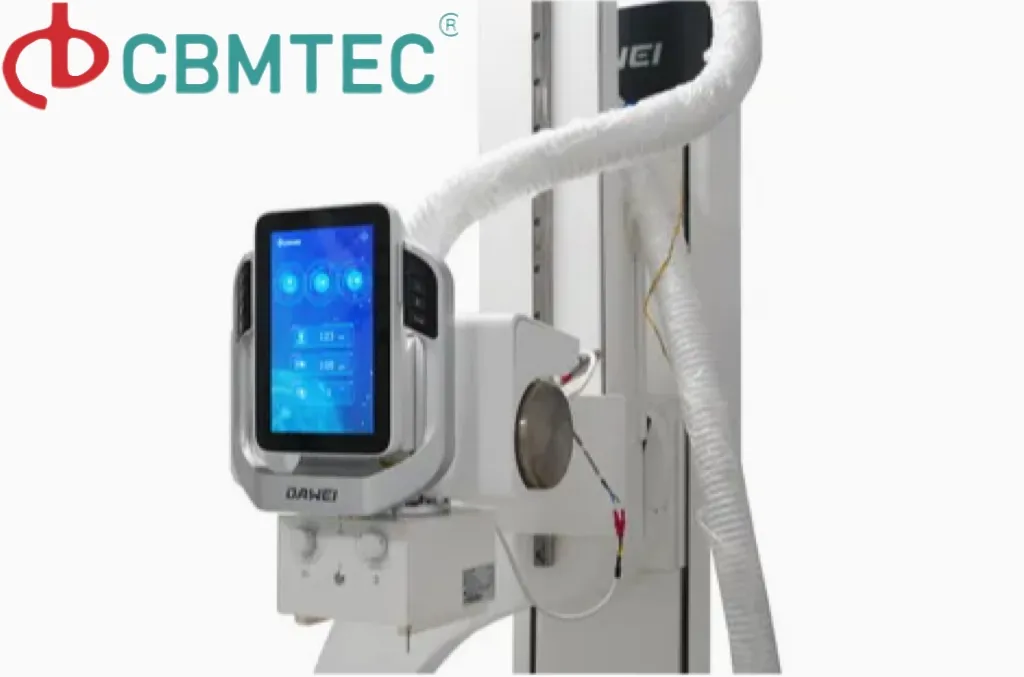

Product Show 1

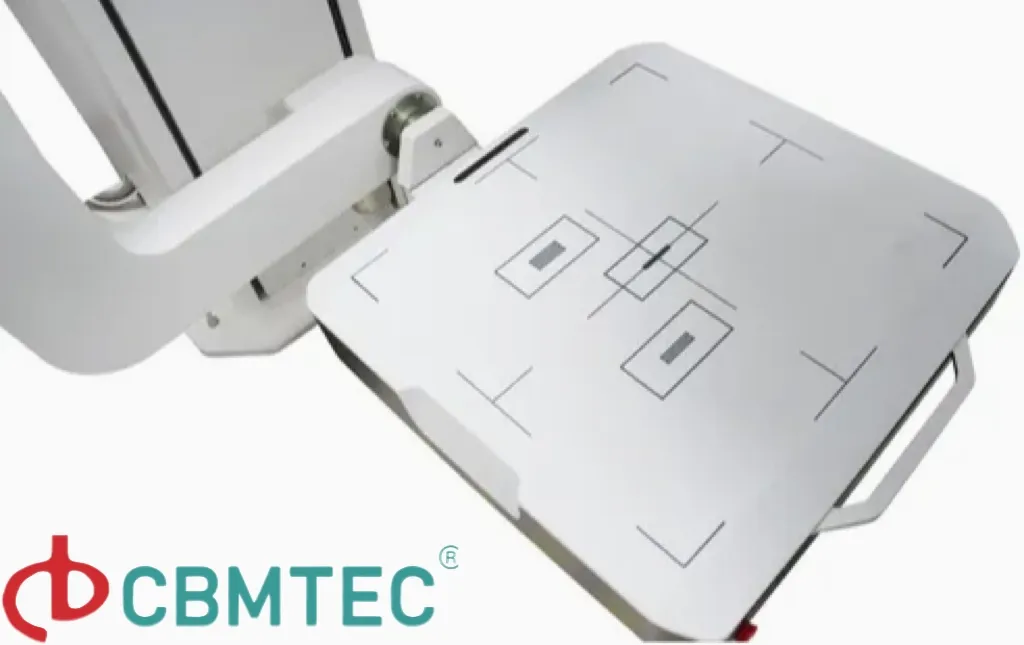

Product Show 2
Product Show 3
Product Show 4

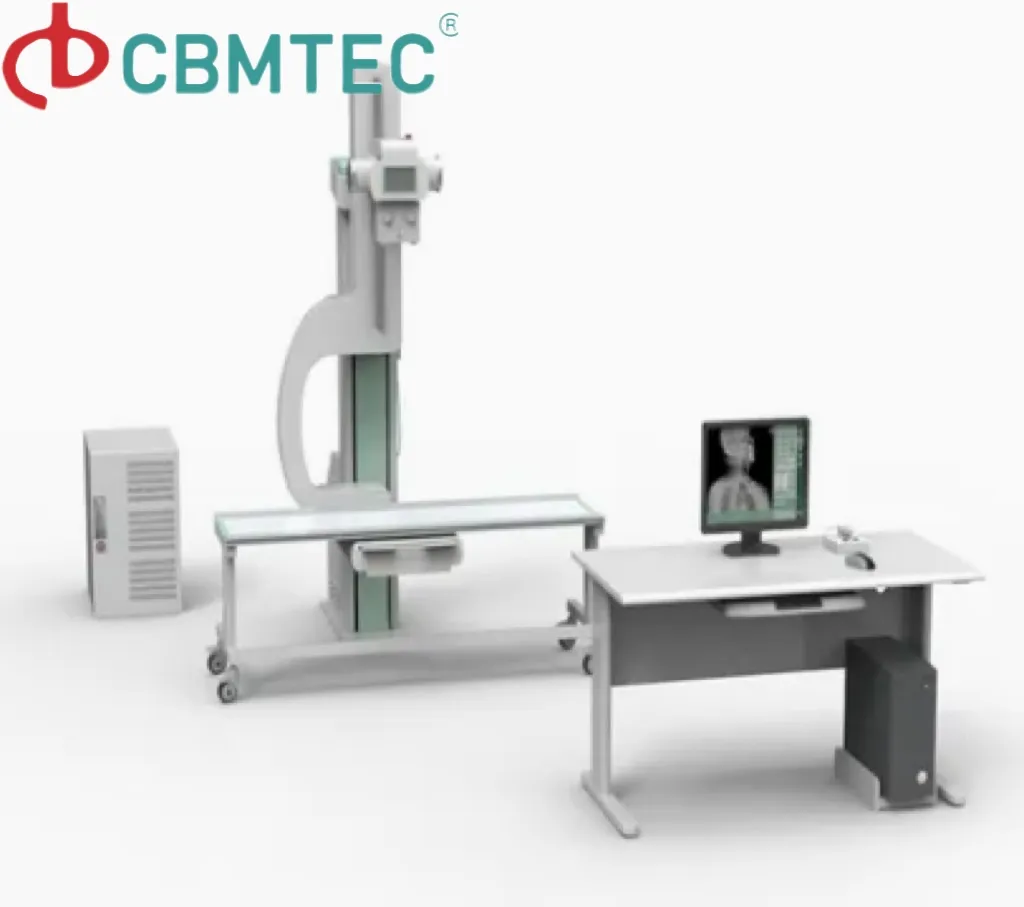

Product Show 5

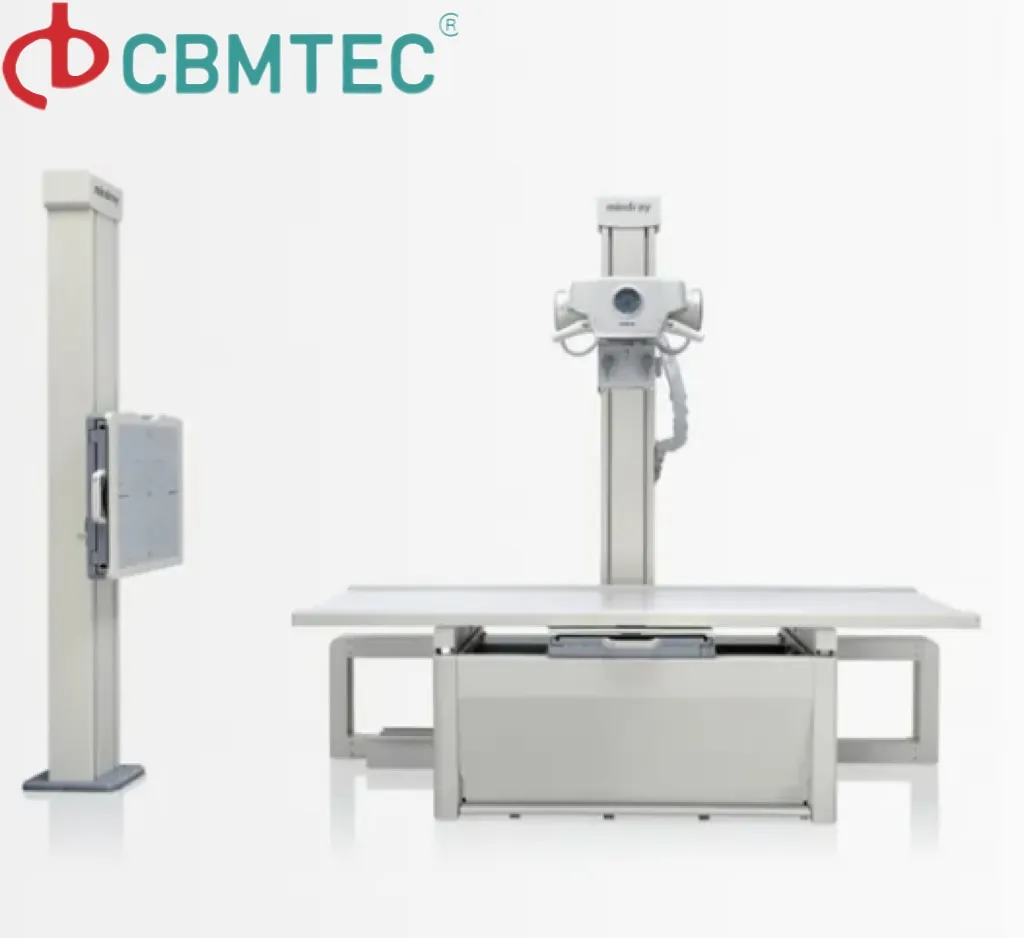

Product Show 6
Packing & Shipping
Packing Detail
Shipping Process 1
Shipping Process 2
Exhibition
Exhibition Display
Frequently Asked Questions
Q: What is the maximum tube voltage for this DR X-ray system?
A: The system supports a radiography tube voltage ranging from 40kV to 150kV.
Q: What are the focal point specifications for the X-ray tube?
A: The tube features a dual-focus design with 0.6 mm and 1.2 mm focal points.
Q: How large is the scanning area of the digital flat panel detector?
A: The detector provides a large scanning area of 17 × 17 inches, suitable for various radiography needs.
Q: What is the image preview time for the digital detector?
A: The image preview time is highly efficient, taking no more than 2 seconds.
Q: What type of power supply is required for operation?
A: The equipment requires a power supply of 380 VAC ± 38V with a frequency of 50Hz/60Hz.
Q: How is the equipment packaged for international transport?
A: The product is securely packed in a professional wooden box to ensure safety during transport.
