Smart3d Dental Hospital Medical Equipment High Frquency Digital Panoramic Imaging Cbct

1 / 5

Smart3d Dental Hospital Medical Equipment High Frquency Digital Panoramic Imaging Cbct

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

Smart3D

Certification

Tube Current

Min: 2 Max: 10 (60kv)

Tube Voltage

Min: 60 Max: 100 (6mA)

Focal Spot Size

0.5 (IEC336)

CT Sensor Type

CMOS Flat Panel Detector

Detector Size

13 X 13 cm

CT Field of View

15X9, 8X8, 5X5

Production Capacity

1000 Units/Month

Package

Wooden Case

⚙ Product Description

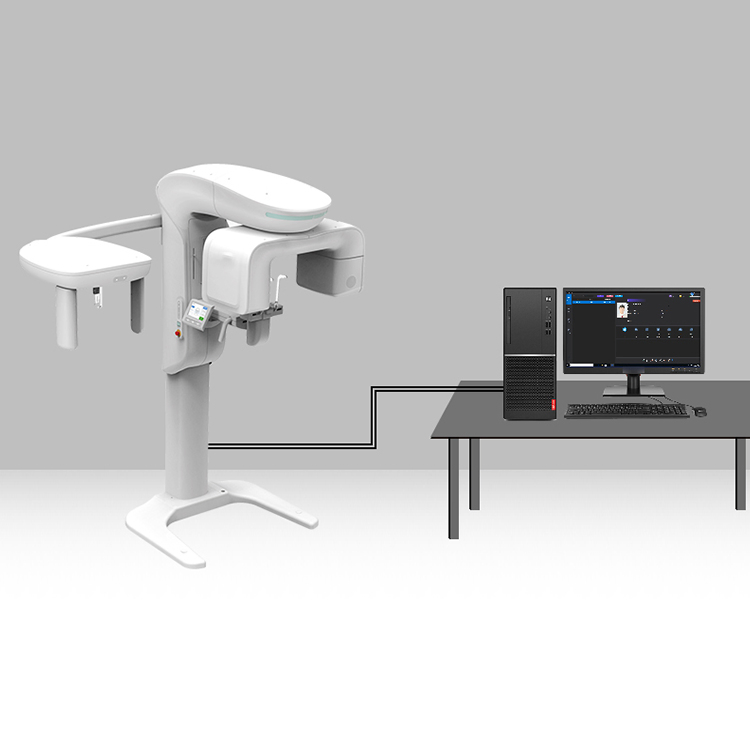

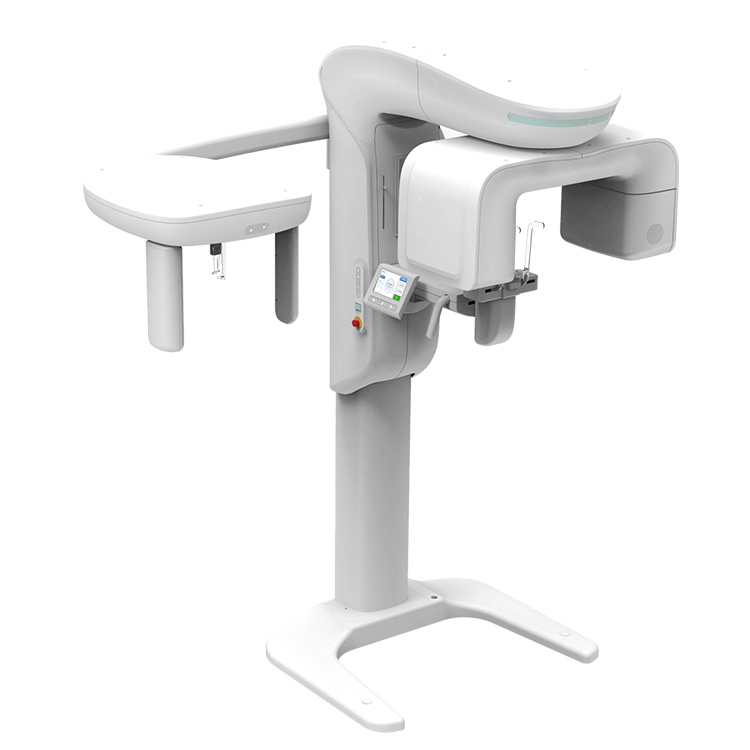

Smart3D Dental Hospital Medical Equipment High Frequency Digital Panoramic Imaging CBCT

✨ Clarity

CT 360° full angle accurate scanning
Advanced 0.5 mini focus X-ray tube

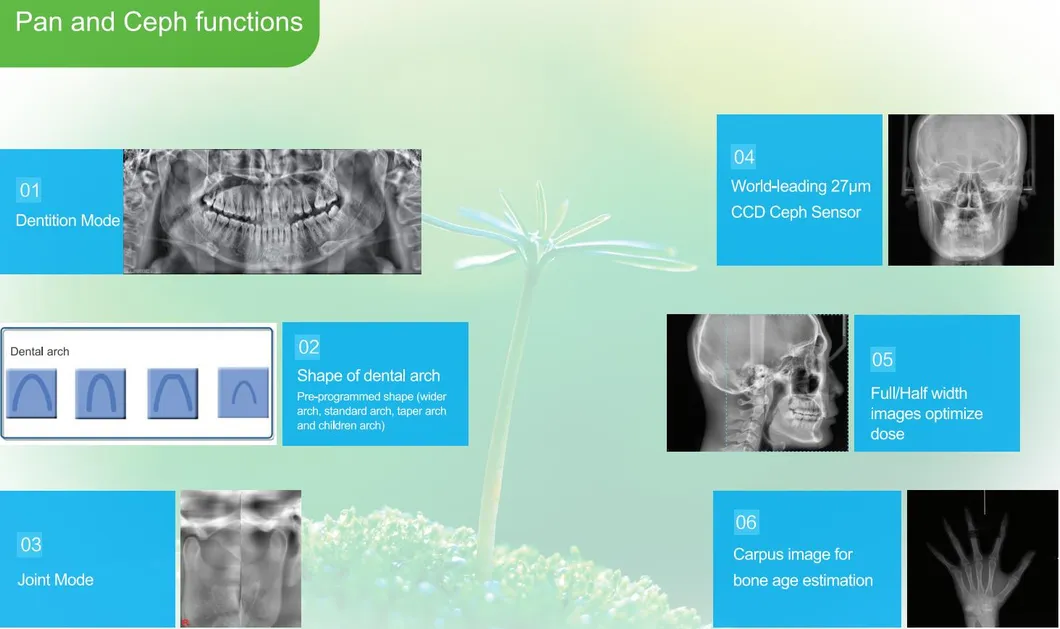

World-leading 27um CCD Ceph Sensor

🛡 Safety

Patent anti-collision indicating device
Six laser beams for easy positioning
Embedded Panoramic module, no requirement to dismantle

🚀 Flexibility

Integrated sensor for both panoramic and 3D images
Friendly touch screen interface
Pre-programmed scan modes for clinical needs

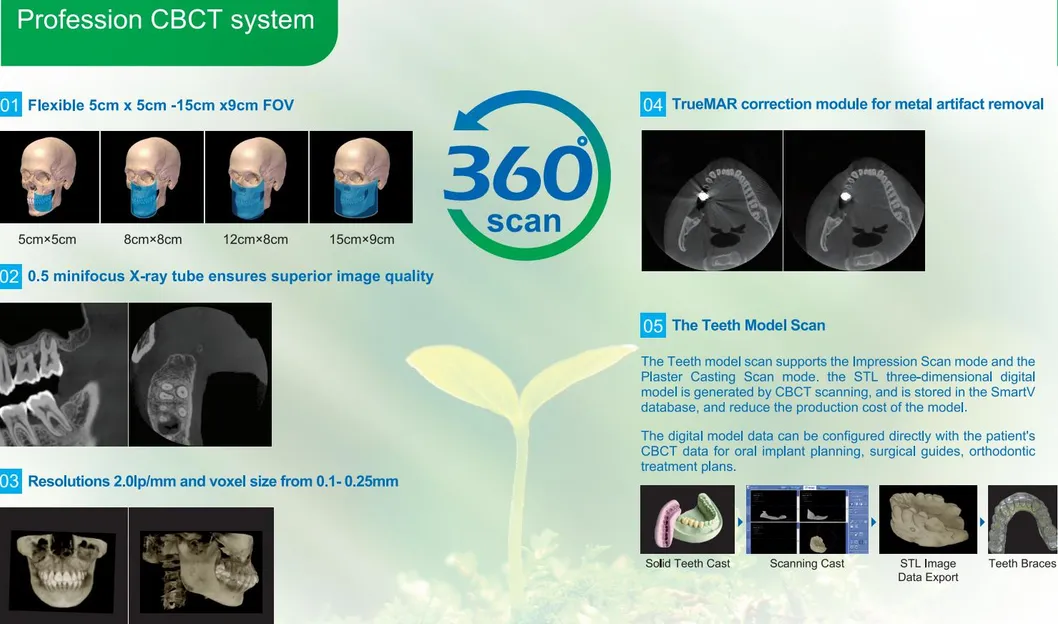

Three fields of view for all applications

📊 Technical Data Sheet

Parameter	Specification Details
Tube Current (mA)	min: 2, max: 10 (60kV)
Tube Voltage (kV)	min: 60, max: 100 (6mA)
Focal Spot Size	0.5 (IEC336)
CT Sensor Type	CMOS Flat Panel Detector
CT Field of View (cm)	15x9, 8x8, 5x5
CT Voxel Size (mm)	0.25 / 0.15 / 0.1
CT Scanning Time	13 seconds
CT Reconstruction Time	15 ~ 40 seconds
Pan Sensor Type	CMOS Flat Panel Detector
Pan Scanning Time	45461s (Standard Mode)
Ceph Sensor Type	CCD TDI Detector
Ceph Scanning Time	7 ~ 11 seconds
Weight (With Ceph)	335 kg
Unit Dimensions (mm)	1978 (W) x 1526 (D) x 1693~2393 (H)
Power Requirement	AC220V/230V ±10%, 10A, 50Hz

Frequently Asked Questions

❓ What are the available Fields of View (FOV) for this CBCT?

The Smart3D offers three fields of view to cater to various clinical applications: 15x9 cm, 8x8 cm, and 5x5 cm.

❓ How long does a standard CT scan take?

A standard CT scan with the Smart3D system takes approximately 13 seconds.

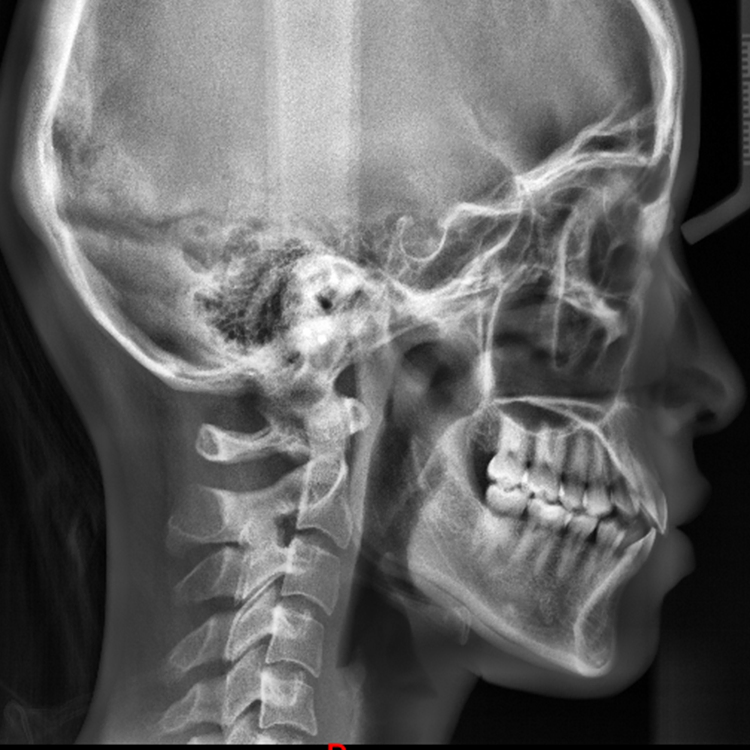

❓ Does the equipment include a Cephalometric sensor?

Yes, the system utilizes a world-leading 27um CCD TDI Detector specifically for Cephalometric imaging.

❓ What safety features are integrated into the positioning system?

The device features a patent anti-collision indicating device and six laser beams to ensure easy and safe patient positioning.

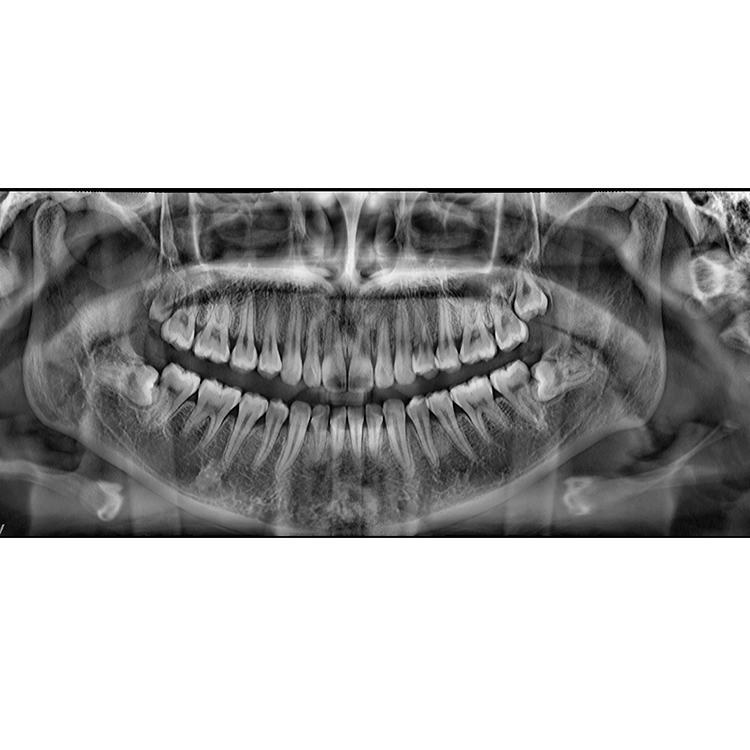

❓ Is the sensor shared between Panoramic and 3D imaging?

Yes, the Smart3D features an integrated sensor that handles both high-quality panoramic and 3D images for maximum flexibility.
