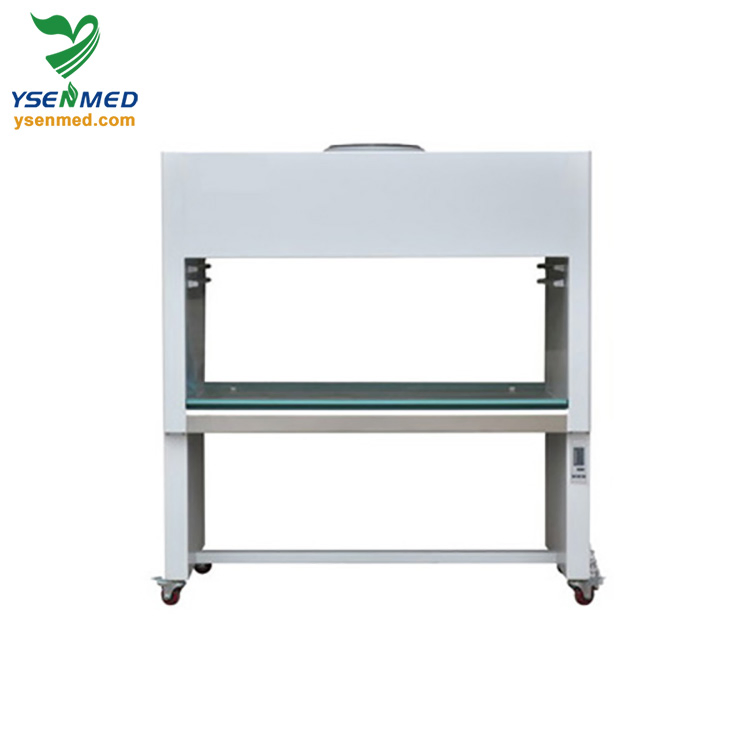

Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons
Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons
Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons
Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons
Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons
1 / 5
Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons
Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons
Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons
Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons
Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons

Medical Equipment Medical S-Vs-1300u Single Side Clean Work Station for Two Persons

Classification: Imaging Diagnostic Equipment
Type: Centrifuge
Certification: ISO13485
Send Inquiry

Product Description

Clean Work Station
📋 Basic Information
Model NO.
S-VS-1300U
Noise
≤62dB
Half Peak of Vibration
≤5μm
Illuminance
≥300lx
Power Supply
AC Single 220V 50Hz
Max. Power (W)
800
N.W./G.W. (Kg)
130/210
Work Room Dimension
112×65×72
Production Capacity
1000 PCS/Year
🚀 Key Features

Medical Equipment S-VS-1300U Single side clean work station for two persons

✔ Super-thin baffleless filter for optimal purification.
✔ Durable Stainless steel worktable for medical use.
✔ Glass lateral board ensures a well-lighted workroom environment.
✔ High efficiency steel case centrifugal fan with low noise operation.
✔ Spring type sliding door for easy access and safety.
✔ Aluminum air door to precisely control prefiltration inlet air flow.
📊 Technical Specifications
Model S-VS-840U S-VS-1300U
Clean grade100 @≥0.5μm (U.S.A Federal 209E)100 @≥0.5μm (U.S.A Federal 209E)
Bacteria flora numbers≤0.5/dish·hour (Φ90mm Petri dish)≤0.5/dish·hour (Φ90mm Petri dish)
Average air velocity0.3~0.6m/s (0.5m/s recommended)0.3~0.6m/s (0.5m/s recommended)
Noise≤62dB (A)≤62dB (A)
Half peak of vibration≤5μm≤5μm
Illuminance≥300Lx≥300Lx
Max. power (W)400800
N.W./G.W. (Kg)80/130130/210
Work room dimension (cm)68×65×57112×65×72
Outline dimension (cm)84×82.5×143130×76×175
Fluorescent lamp/UV lamp18W×/20W×20W×/20W×
Operators arrangement1 person/1 side2 persons/1 side
Specification Detail

📞 Pre-sales Service

  • Inquiry and consulting support
  • Sample testing support
  • Factory visit opportunities
  • Timely response to technical questions

🔧 After-sales Service

  • Equipment installation training
  • Machine operation training
  • Overseas machinery service support
  • 24/7 Online technical support
Product Quality
❓ Frequently Asked Questions
How many operators can use the S-VS-1300U?
The S-VS-1300U model is specifically designed for two persons working on a single side.
What is the cleanliness grade of this workstation?
It reaches Class 100 (U.S.A Federal 209E) for particles ≥0.5μm.
What kind of power supply is required?
The equipment requires an AC Single Phase 220V 50Hz power supply.
Does it feature UV protection for sterilization?
Yes, the workstation is equipped with UV lamps (20W) for sterilization purposes.
What is the noise level during operation?
The noise level is kept efficient and low, measured at ≤62dB (A).
Is technical training provided for new users?
Yes, our after-sales service includes training on how to install and operate the machine correctly.
