Hospital X-ray Unit Surgical Digital C Arm X-ray Machine Workstation Images

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

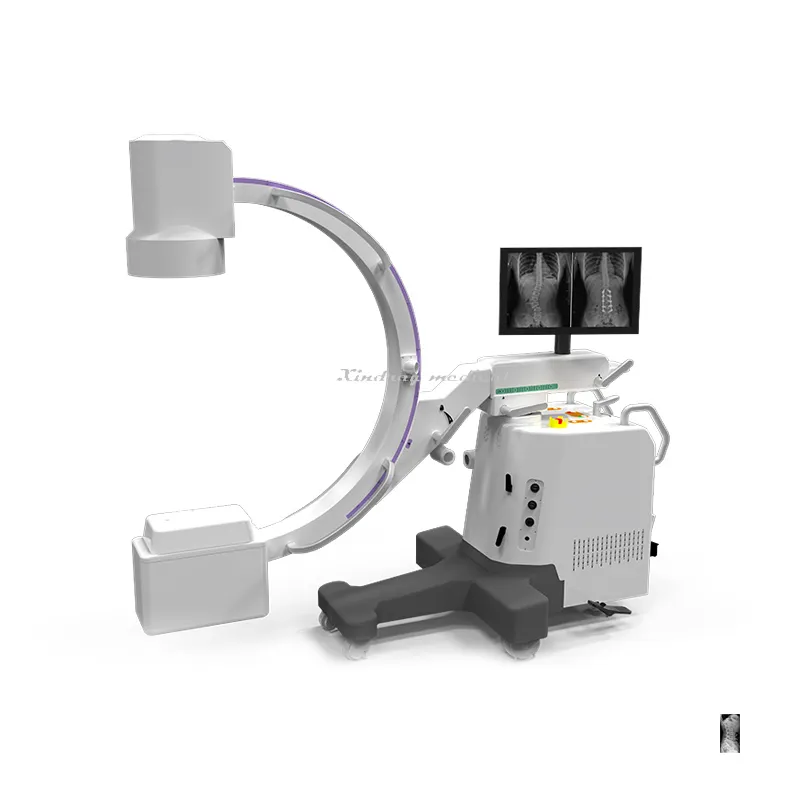

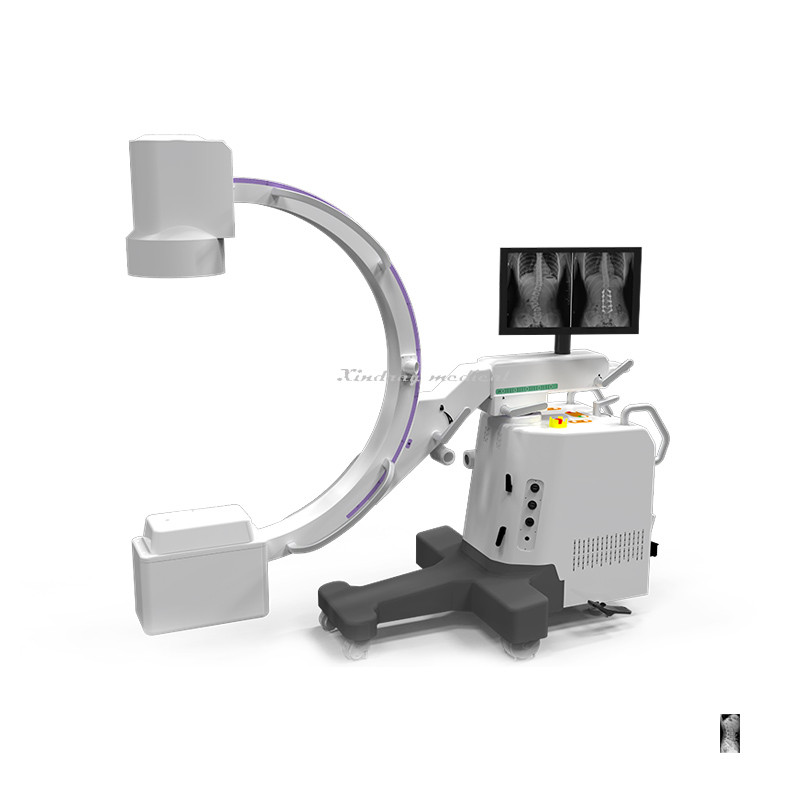

Hospital X-ray Unit Surgical Digital C Arm X-ray Machine

Basic Information

Model NO.

Xrx-C12C

Certification

CE, MSDS, ISO13485

Group

Middle-aged and Old

Output Power

5.0kw

Tube Current

50mA 100mA

Power Supply

220V, 50kHz

Dual Focus

Small: 0.3 / Large: 1.5 Mas

Tube Voltage

40-120kv

OEM/ODM

Available

Package

Wooden Case

Specification

2000mmx665mmx700mm

Origin

China

★

Product Features

Primary Usage:

Orthopaedics: osteopathy, diaplasis, nailing
Surgery: foreign body removal, cardiac catheter, pacemaker implantation
Interventional therapy, partial radiography, and local photography

Key Advantages:

Compact appearance, easy to operate
Unique base electric auxiliary support arm design for enhanced security
Hand-held controller design for convenient operation
High-quality knockdown X-ray generator to reduce radiation
Automatic KV and MA tracking for optimum image brightness
Toshiba image intensifier for stable, reliable clarity
Clinical Video system with 8 images storage volume
Installation of dense grain grids to enhance sharpness

📋

Technical Specifications

1. Fluoroscopic Capacity

Max rated capacity: Tube Current 4mA, Tube Voltage 120kV
Automatic Fluoroscopy: 40kV~120kV Adjust Automatically
Tube Current: 0.3mA~4mA Manually Settings
Pulse Fluoroscopy: 40kV~120kV / 4.1mA~8mA

2. Photography Capacity

Max rated capacity: 5 KW
Tube Voltage and Current Combination: 40kV~120kV (1~180 mAs)
Plate holder Size: 200mm×250mm or 250mm×300mm

3. X-ray Tube

Special for High Frequency; Fixed anode; Dual-focus: 1.5 / 0.3mm*0.3mm
Inverter Frequency: 40KHz; Thermal capacity: 35KJ

Parameter Item	Technical Data
Generator Power/Frequency	3.5KW/40KHz
Radiography KV	40-110 KV
Fluoroscopy mA	0.3-5 mA
Pulse Fluoroscopy	4-10 mA
Focus Size	1.51.5/0.60.6mm
SID (Focus to Intensifier)	1060 mm
C-arm Depth / Open	750 mm / 810 mm
C-arm arc Glide	130° (+90°~ -40°)
Monitor	15" High Resolution LED Monitor *2
Image Memory	100,000+ Images, DICOM 3.0

📷
