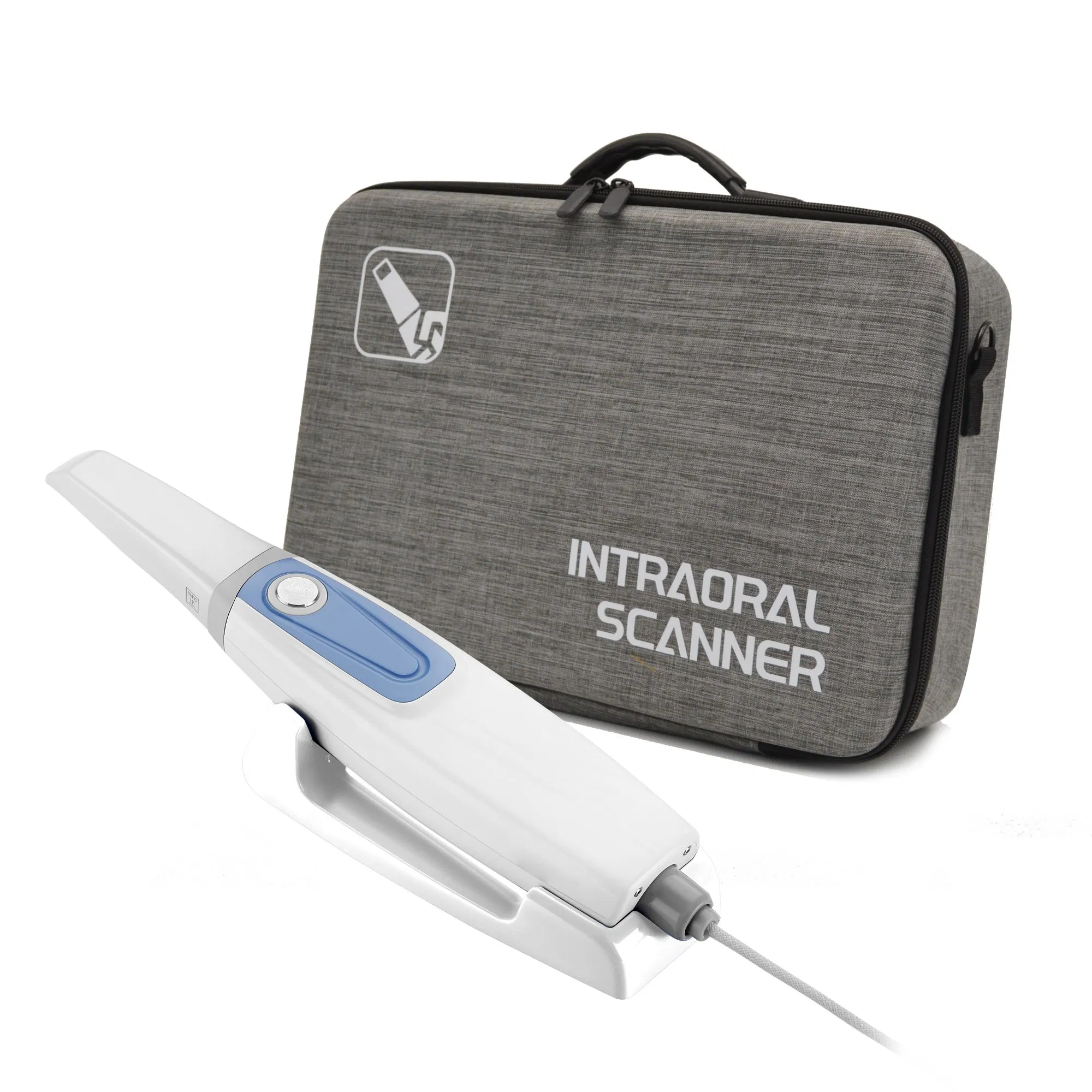

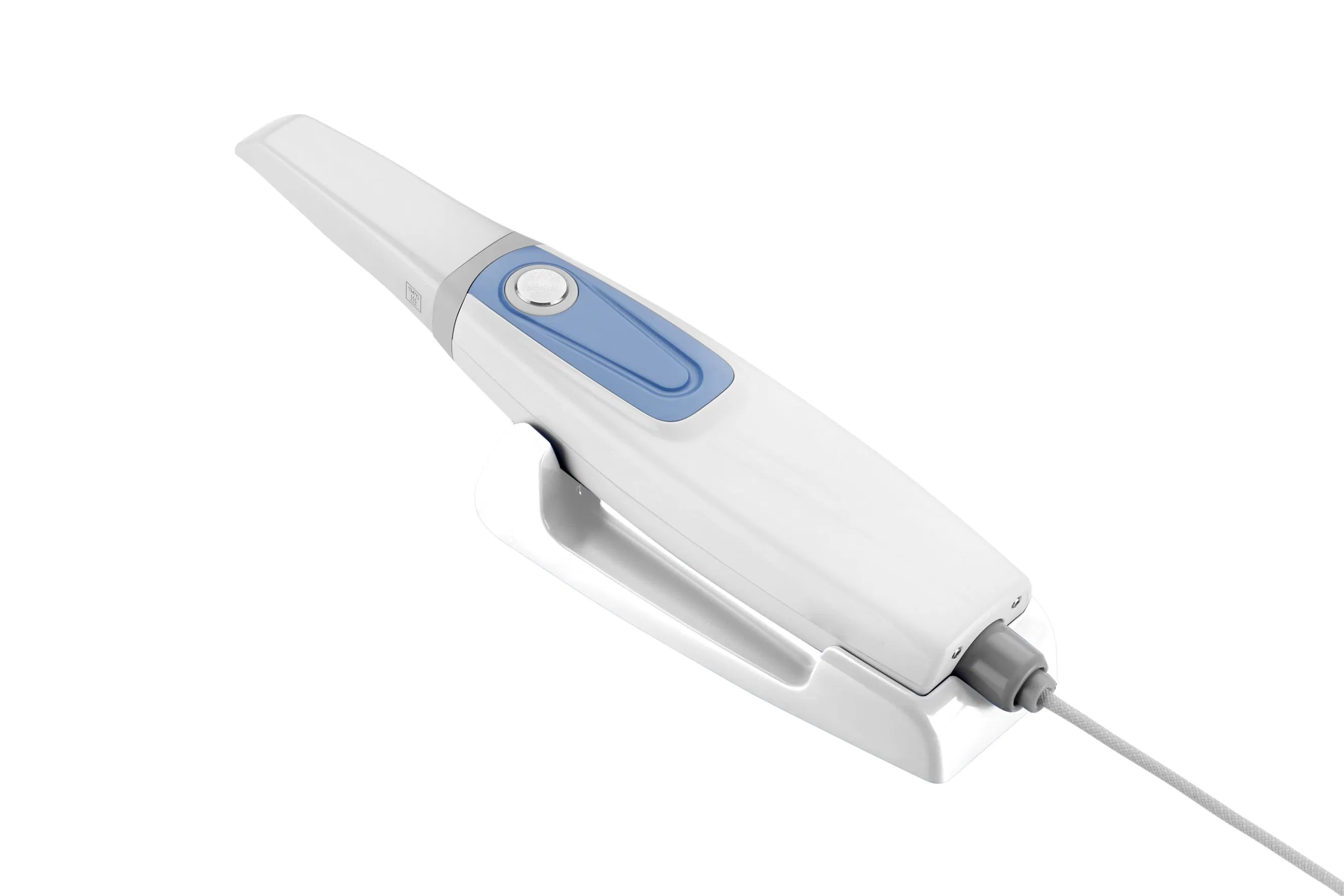

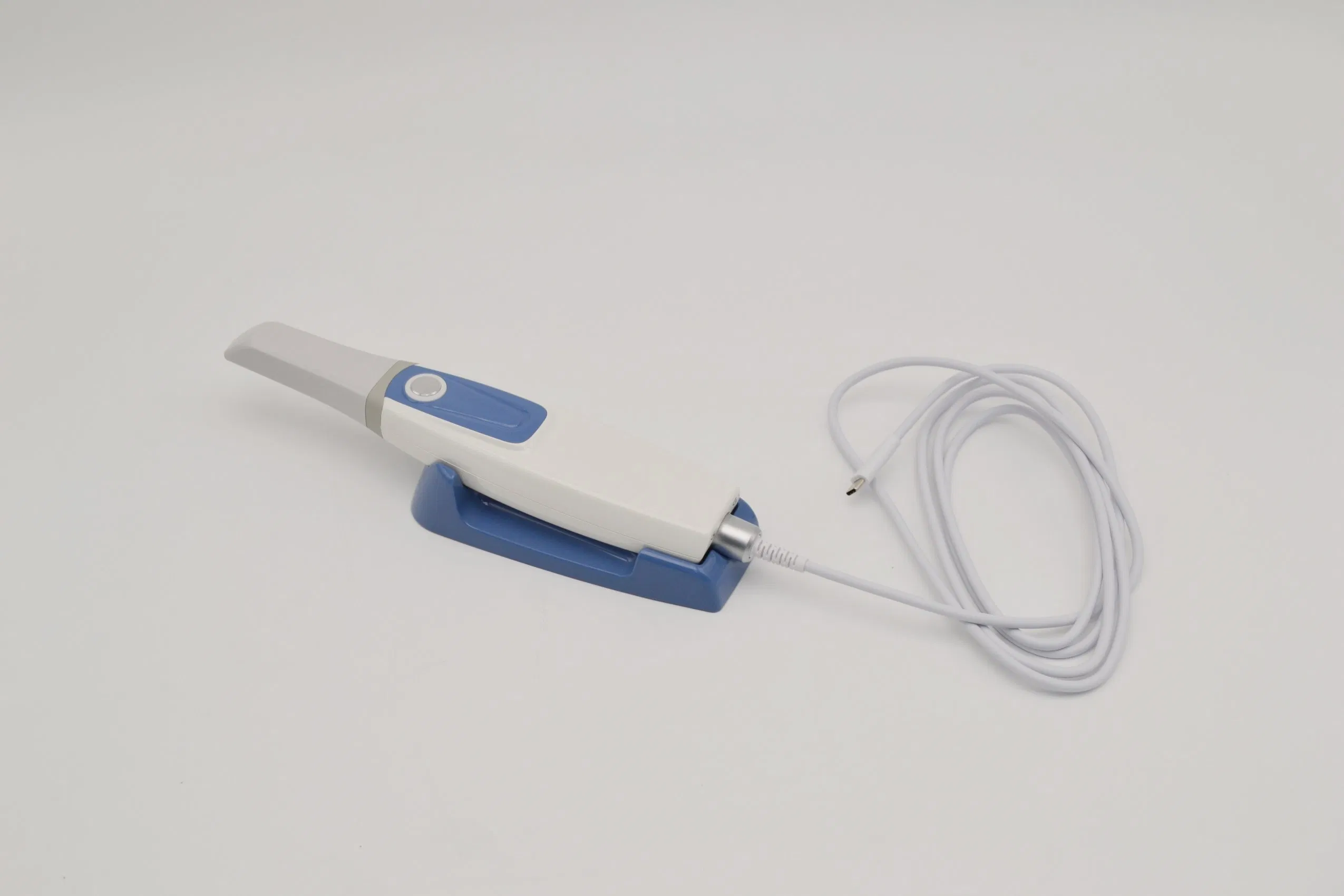

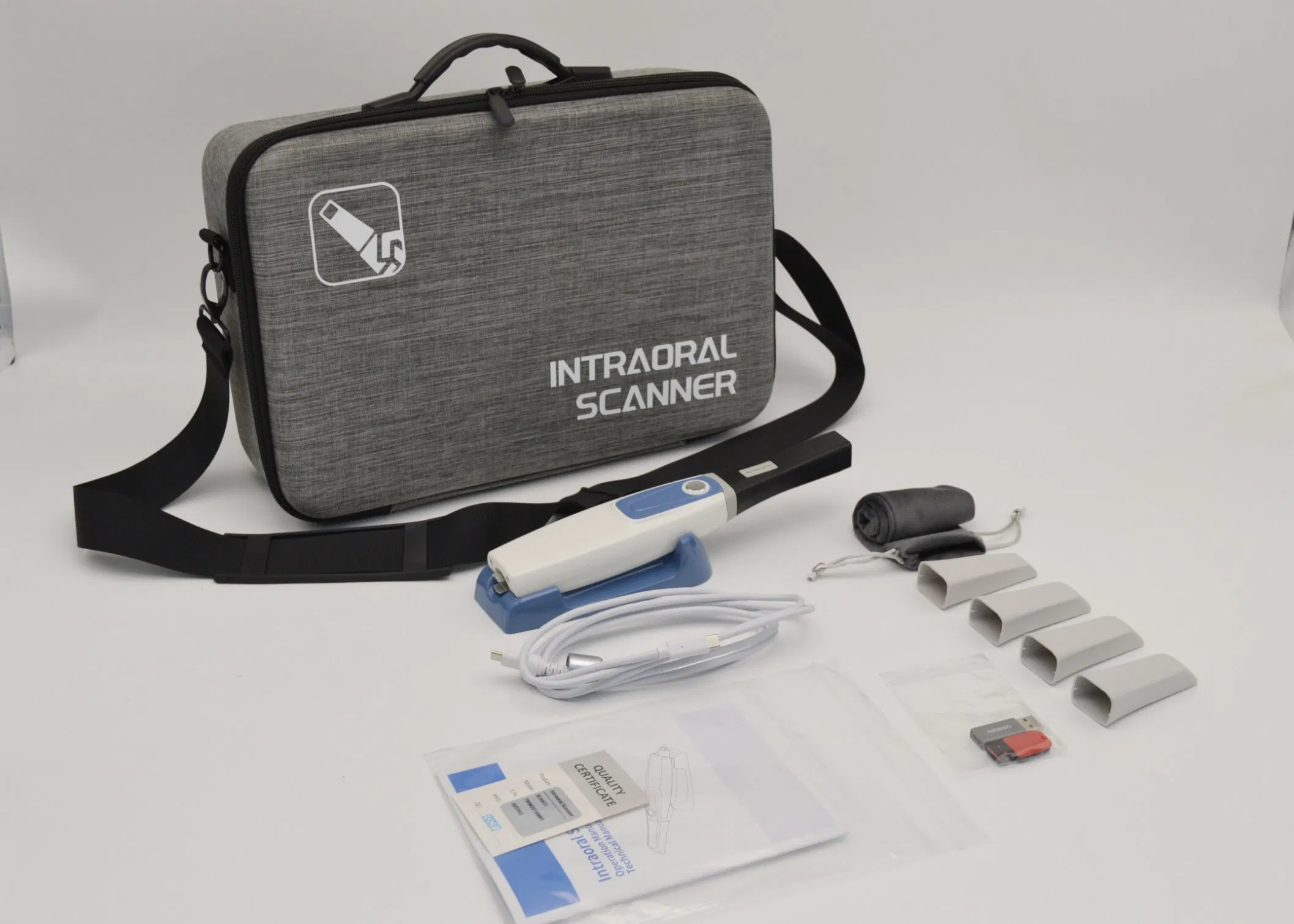

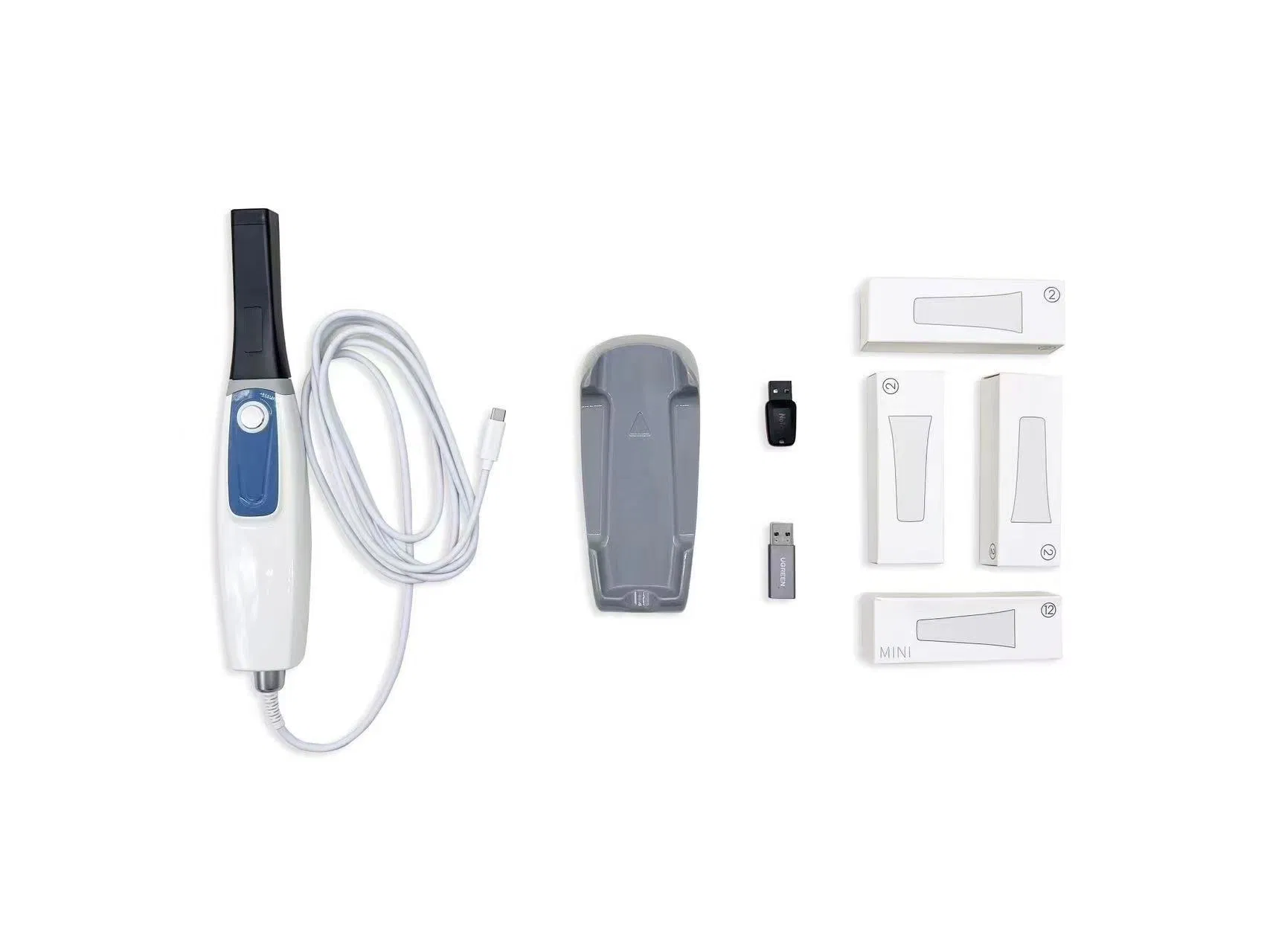

Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner
Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner
Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner
Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner
Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner
1 / 5
Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner
Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner
Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner
Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner
Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner

Cheapest Digital Dentist 3D Scanner Intra Oral Camera Dental Equipment Dental 3D Intraoral Scanner

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Scanner33
Type
Imaging System
Material
Aluminum
Certification
ISO 13485 (with CE)
Options
2.5X and 3.5X available
Transport Package
1PCS/Box
Specification
110-220V
Origin
China
HS Code
901849000
Production Capacity
200 PCS Per Day
Product Description
Wireless Handheld Panda S4 3D Intra Oral Scanner to IOS
Technical Specifications
Item Value
Scanning Distance0-15mm
Scanner Weight210g
Scanner Size240x49.5x30.5mm
Image Capture TechnologyOptical continuous video collection
FPS15
Scanner Light SourceLED
Imaging ModeSynchronous 3D video
FOV13x13mm
AccuracySingle crown < 10μm, single arch < 15μm, full arch < 20μm
Normal Scanner Tip Size79x19.7x15.8mm
Scan Area (Standard)15x15mm
Scan Area (Mini)12x12mm
Smaller Scanner Tip Size80x16x11mm
Depth of Field15mm
AutoclavableUp to 100 times (121°C 16 mins | 134°C 4 mins)
Single Arch Scan Time30s
Full Arch with Occlusion90s
BaseSmall base without cables connection
Operating Time>30000hrs
Remote Control FunctionYes
Quick ResetYes
CalibrationCalibration free
Export FileSTL, PLY, OBJ
Data OptimizationYes
Multilingual SystemChinese, English, French, Spanish, Russian, Portuguese, Italian, Greek, Polish, Romanian, Japanese, Korean, Turkish, Czech, German
Product Showcase

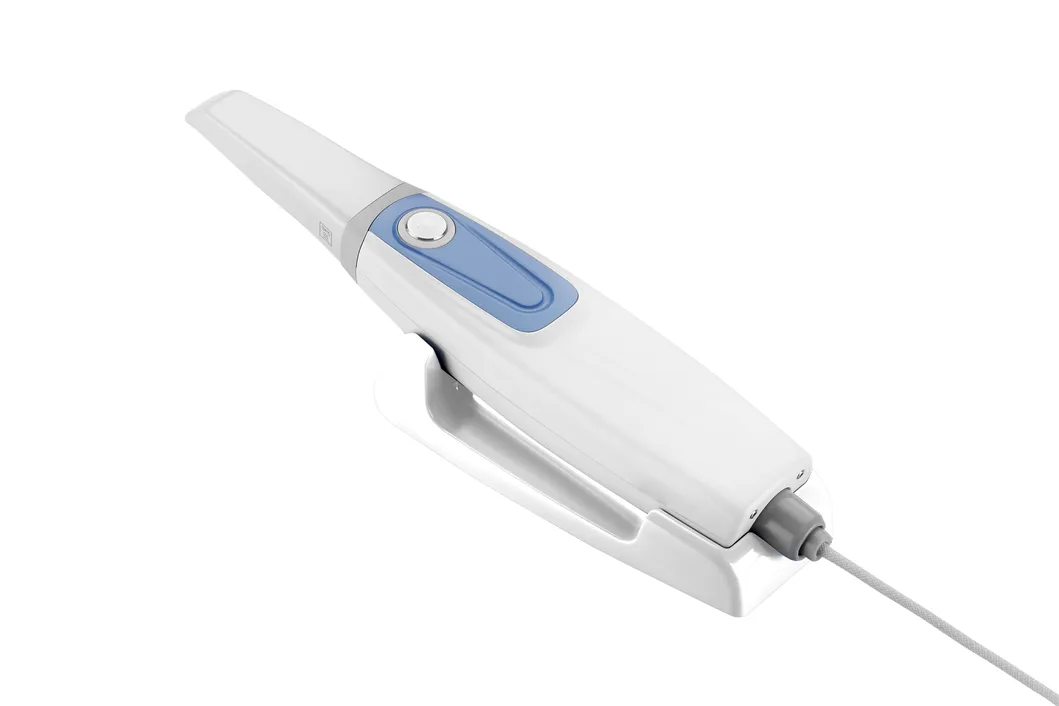

3D Intraoral Scanner Display
Dental Imaging Equipment
Wireless Handheld Scanner
Intra Oral Camera System
Digital Dentist Scanner

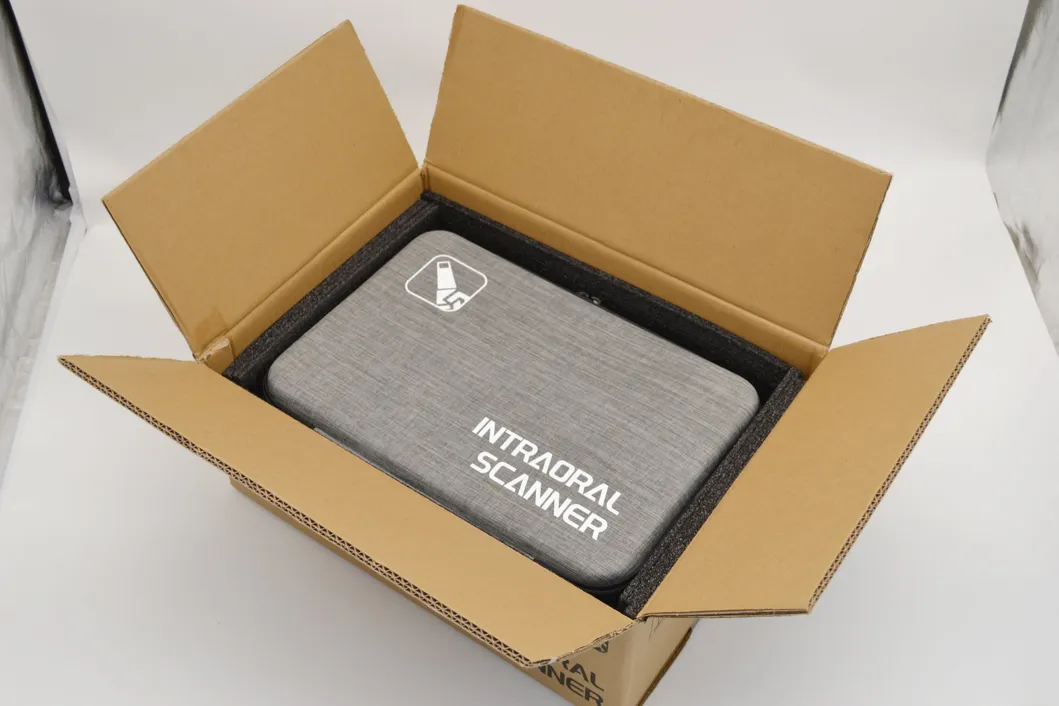

3D Scanning Technology
Product Detail 1
Product Detail 2
Product Detail 3
Product Detail 4
Product Detail 5
Frequently Asked Questions
What is the scanning accuracy of the Panda S4?
The scanner provides high precision with accuracy levels of <10μm for a single crown, <15μm for a single arch, and <20μm for a full arch.
Are the scanner tips sterilizable?
Yes, the scanner tips are autoclavable up to 100 times. They can be processed at 121°C for 16 minutes or 134°C for 4 minutes.
Which file formats can the scanner export?
The system supports universal 3D data formats including STL, PLY, and OBJ, ensuring compatibility with most dental CAD/CAM software.
How long does it take to scan a full arch?
A single arch scan takes approximately 30 seconds, while a full arch including occlusion can be completed in about 90 seconds.
Does the scanner require manual calibration?
No, the Panda S4 is designed to be calibration-free, which simplifies the clinical workflow and saves time.
How many languages does the operating system support?
The multilingual system supports over 15 languages, including English, Spanish, French, German, Russian, Chinese, Japanese, and Korean.
