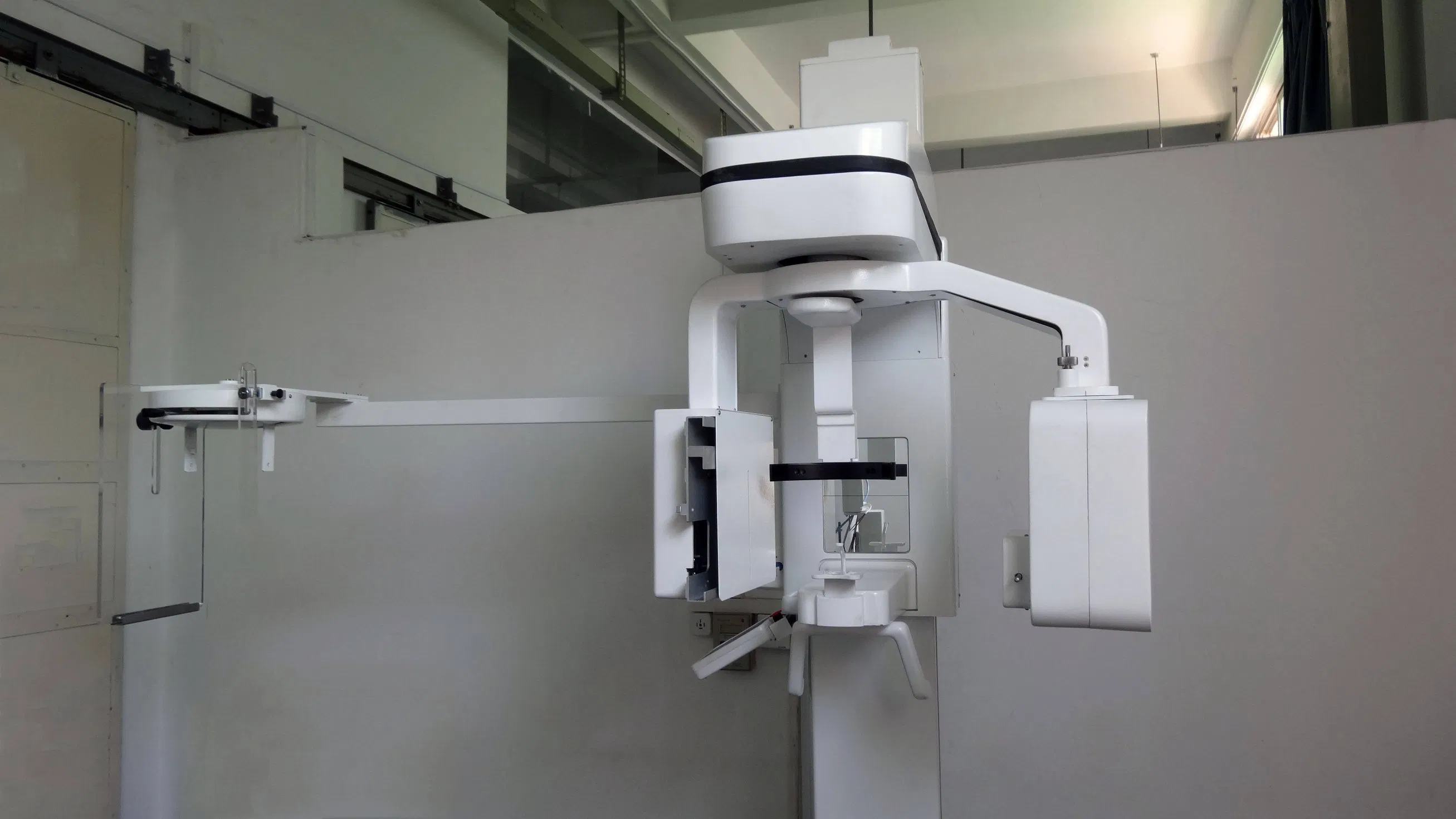

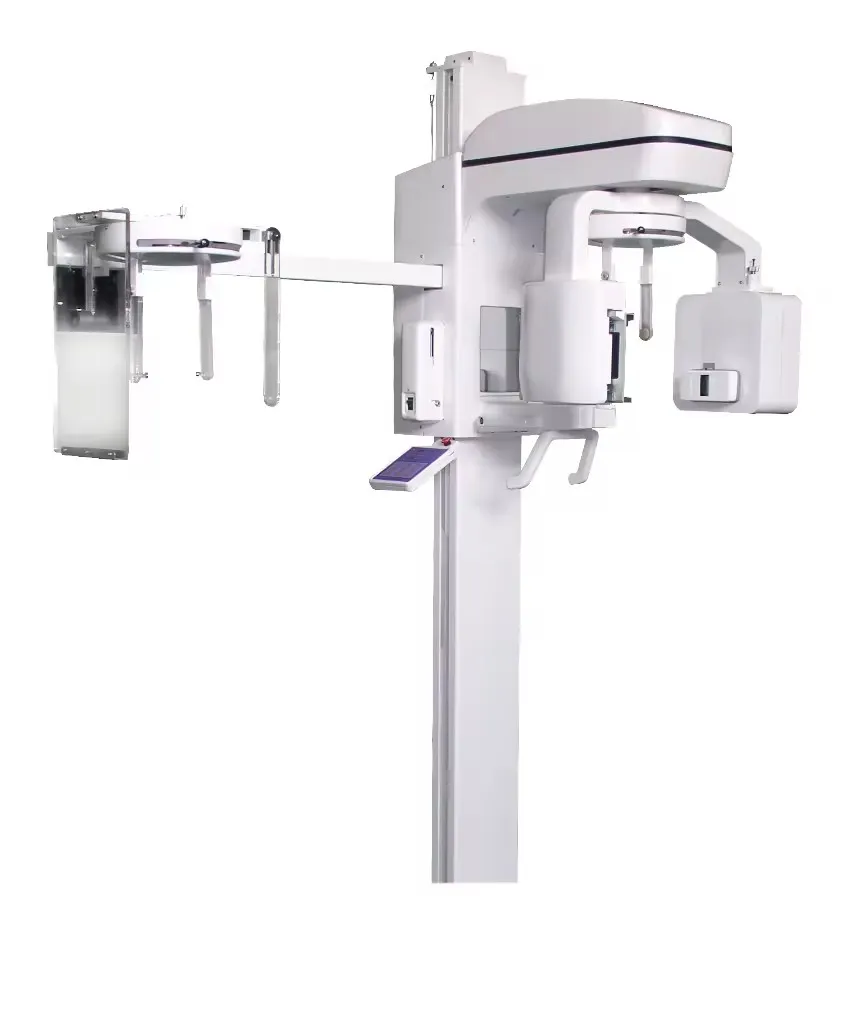

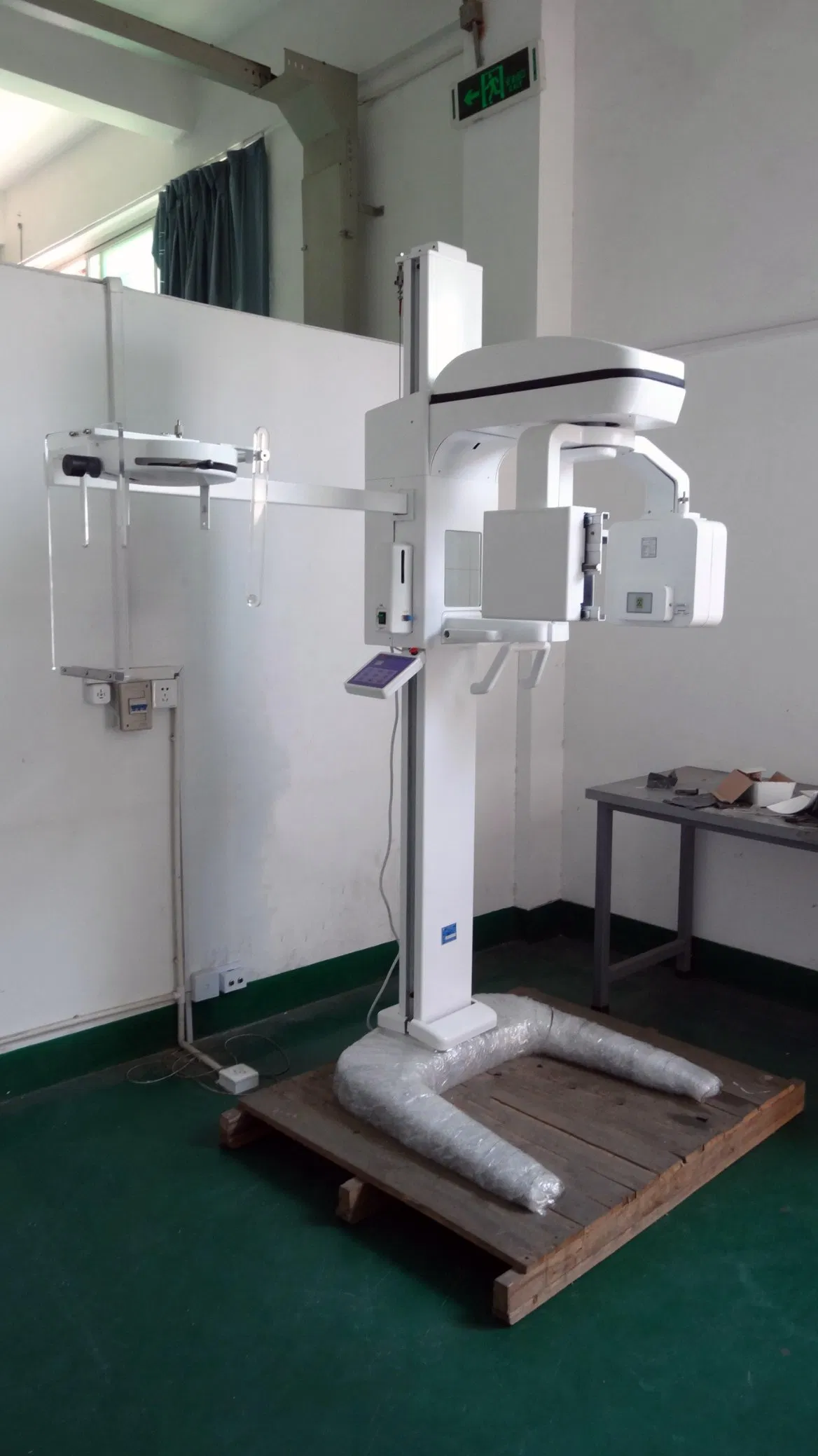

Experience the pinnacle of dental imaging with the High Quality Frequency Panoramic & CBCT Digital Dental X-ray Machine. This state-of-the-art equipment is designed for precision and excellence in dental imaging.

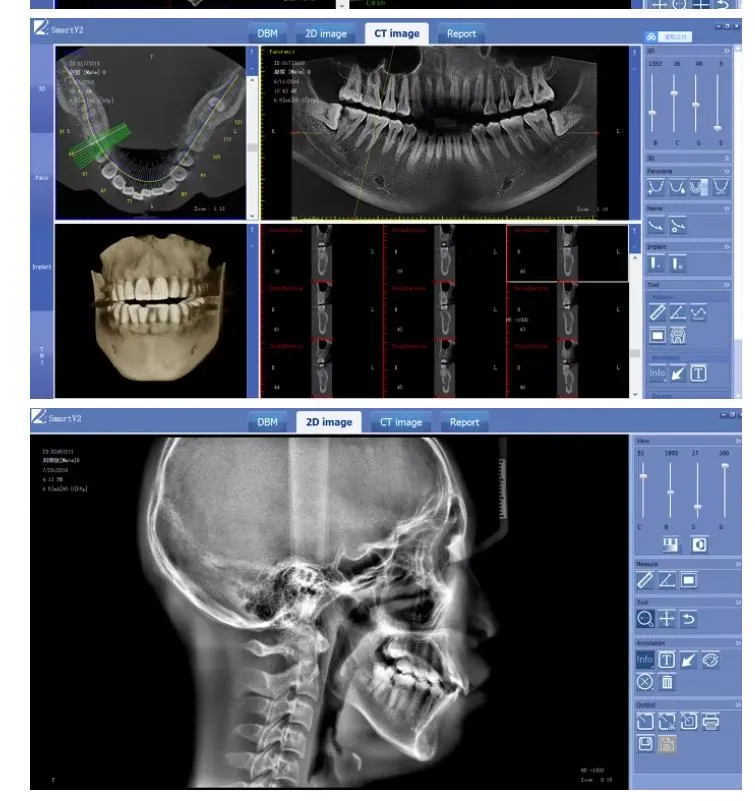

Utilized for capturing both dental panoramic and cephalometric images, this machine provides clear and precise digital images directly, enhancing diagnostic accuracy.
Customizable flexible field-of-view 2D imaging options for comprehensive diagnostics.
Equipped with top-tier configurations and cutting-edge technology to deliver superior quality images.
Incorporates a true MAR correction module to effectively remove metal artifacts.
Specially designed to minimize radiation doses, prioritizing patient safety.
Offers a robust data sharing function for seamless collaborative care.
| Parameter | Specification (MSLDX16) |
|---|---|
| X-ray Tube Voltage | 60-100kV |
| Power supply | AC 220V±10%, 50Hz, 1KVA |
| X-ray Tube Current | 2-10mA |
| Max Exposure Power | 600W |
| CT Sensor Type | CsI+CMOS Flat Panel Detector |
| CT Field of View (D * H) | 15cm x 8cm / 12cm x 8cm / 8cm x 8cm / 5cm x 5cm |
| CT Voxel Size | 0.25mm / 0.125mm / 0.1mm / 0.075mm |
| CT Spatial Resolution | 2.0 lp/mm |
| CT Scan Time | 15s |
| CT Reconstruction Time | 15s ~ 40s |
| Pan Sensor Pixel Size | 0.1mm |
| Pan Exposure Time | 6s ~ 11s |
