MYA010 Ultrasound B Scanner Box with 3D imaging, black & white scanner
| After-sale Service | Online technical support |

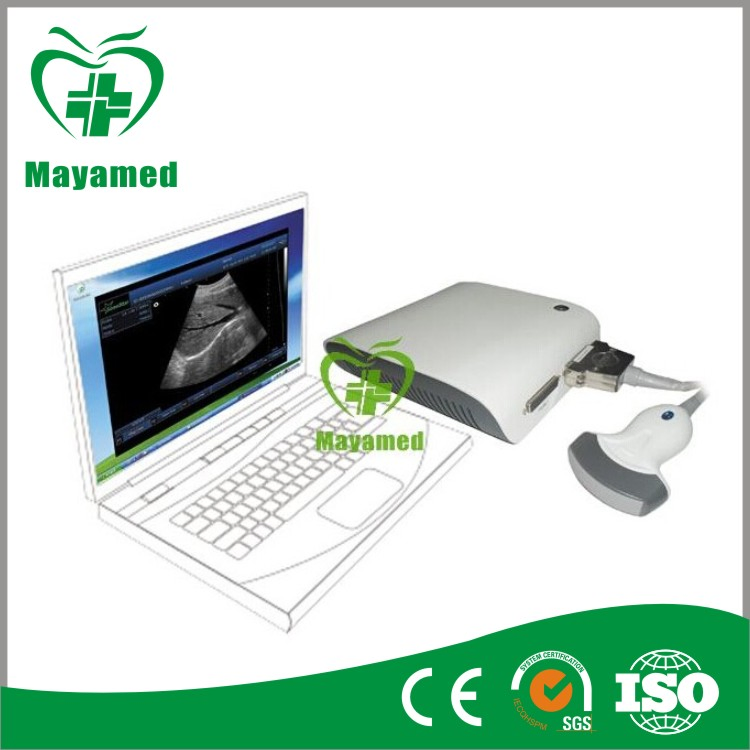

Instructions: MY-A010 Ultrasound Box is easy to use; simply connect it to a computer via USB cable and install the software. It transforms any computer into a professional Ultrasound B Scanner.
The system utilizes the computer keyboard. Through the software, you can define specific keys for certain functions. For example, the "Space" key can be set as the "Freeze" button, and the "+" or "-" keys can be used for value adjustments.
| Scanning Mode | B, 2B, B/M, M, 4B, 9B, ZOOM (Real-time zoom on B mode) |
| Zoom & Cine Loop | 10 ratios (1.5 to 6.0); Max. 1024 frames cine loop |
| Image Processing | Pre-processing, after-processing, dynamic range, frame rate, line average, edge enhancement, Black/White inversion, Gray scale adjustment, contrast, brightness, γ revision. |
| Human Measurement | B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram; M mode: heart rate, time, distance, slope and stenosis; Gynecology: Uterus, cervix, endometrium, L/R ovary; Obstetric: gestation age, fetal weight, AFI; Cardiology/Urology/Small parts: Comprehensive measurement packages included. |
| Veterinary Measurement | Cattle (BPD, CRL, TD), Horse (GA), Dog (GS), Cat (HD, BD), Sheep (BPD, CRL, TD) |
| Data & Storage | DICOM 3.0 support; Image storage via computer hard disk or USB disk |
Standard Configuration:
Optional Accessories:
Linear, Trans-vaginal, Micro-convex, Rectal Probe; Ultrasound keyboard; Computer; Battery; Bag.
