He-608p Electro-Hydraulic General Surgery Imaging Operating Table Multi Accessories

Customization: Available
Type: Operating Table
Kind: Orthopedics

Product Description

ℹ️ Basic Information
Model NO.HE-608PCertificationCE, ISO13485
GroupAdultMaterialCarbon Fiber
PowerElectricWarranty1 Year
Specification2470*520mmOriginChina
🩺 Product Description

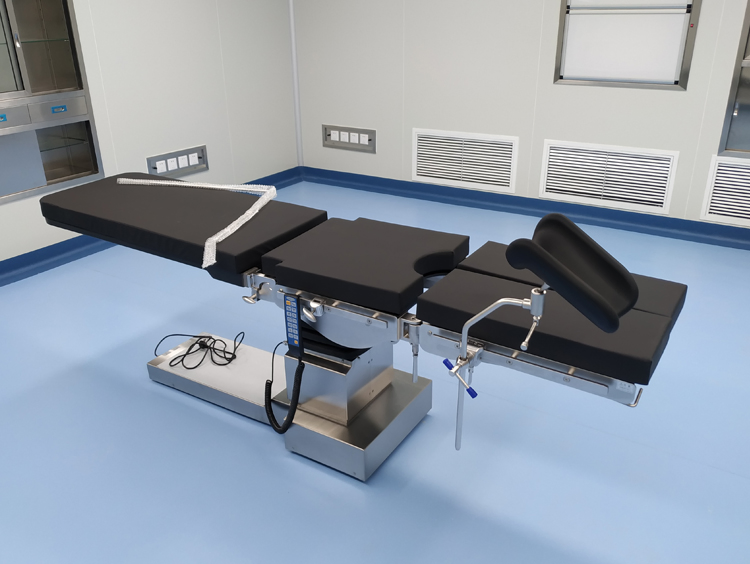

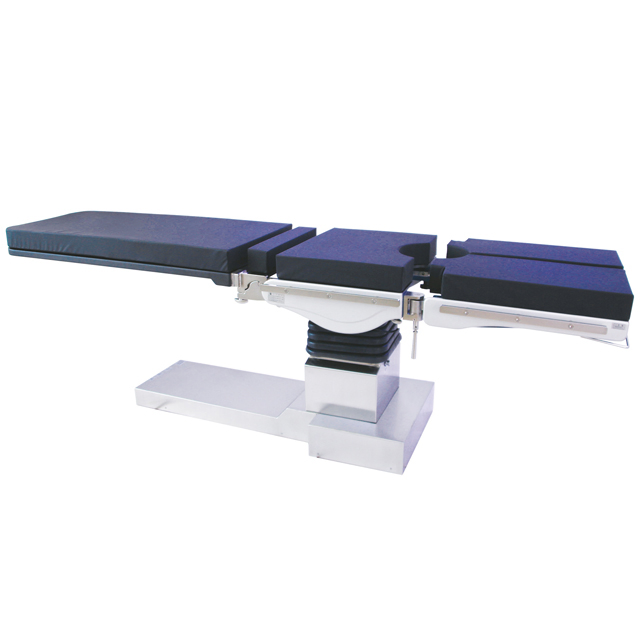

HE-608P Electro-Hydraulic General Surgery Imaging Operating Table

The HE-608P is a specialized electro-hydraulic operating table equipped with a full carbon fiber spine surgery system. It is designed to provide excellent fluoroscopy channels and optimize imaging effects during complex surgeries.

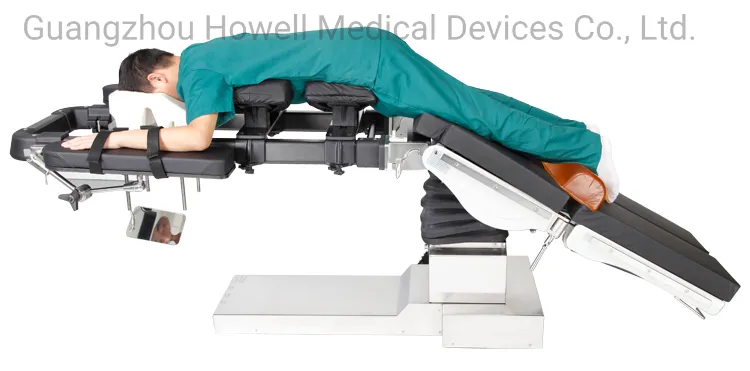

Operating Table Overview

The U-shaped spine surgery system (docking type) is specifically engineered to support various spine imaging procedures. The 1070mm metal-free frame allows for comprehensive anterior, posterior, lateral, and intraoperative tilted imaging views, making it compatible with most modern imaging equipment.

Table Advantages & Characteristics
Precision Rails: Imported linear guide rails ensure stable and smooth operation.
Durable Construction: Made of aluminum alloy and 304 stainless steel for impact and corrosion resistance.
Modular Design: Fully modular bed structure allows for quick matching with specific surgical action modules.
Optimized Imaging: Open U-shape design reduces vena cava compression and improves surgical site visualization.
Backup Power: Equipped with a battery and charging device to ensure uninterrupted operation during power failures.
Ergonomic Base: T-shaped base provides ample foot space for the surgical team and a stable center of gravity.

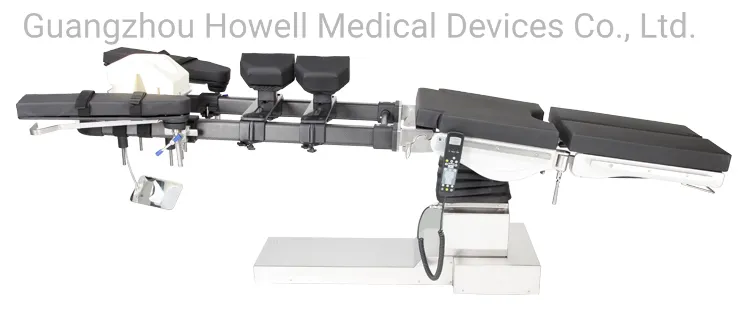

Detailed Feature View
🦴 Spine System Features

Supported Operations: Laminectomy, Spinal Fusion, Osteotomy, Posterior cervical approach, Vascular Surgery, and Pain management.

Trapezoidal Frame: Carbon fiber tube design optimizes imaging by eliminating shadow lines found in rectangular tubes.
Prone Position Benefits: Provides whole-body support with adjustable four-point medical pads for comfortable patient positioning.
Headrest Design: Disposable latex headrest protects the patient's eyes and face while allowing anesthesia monitoring.

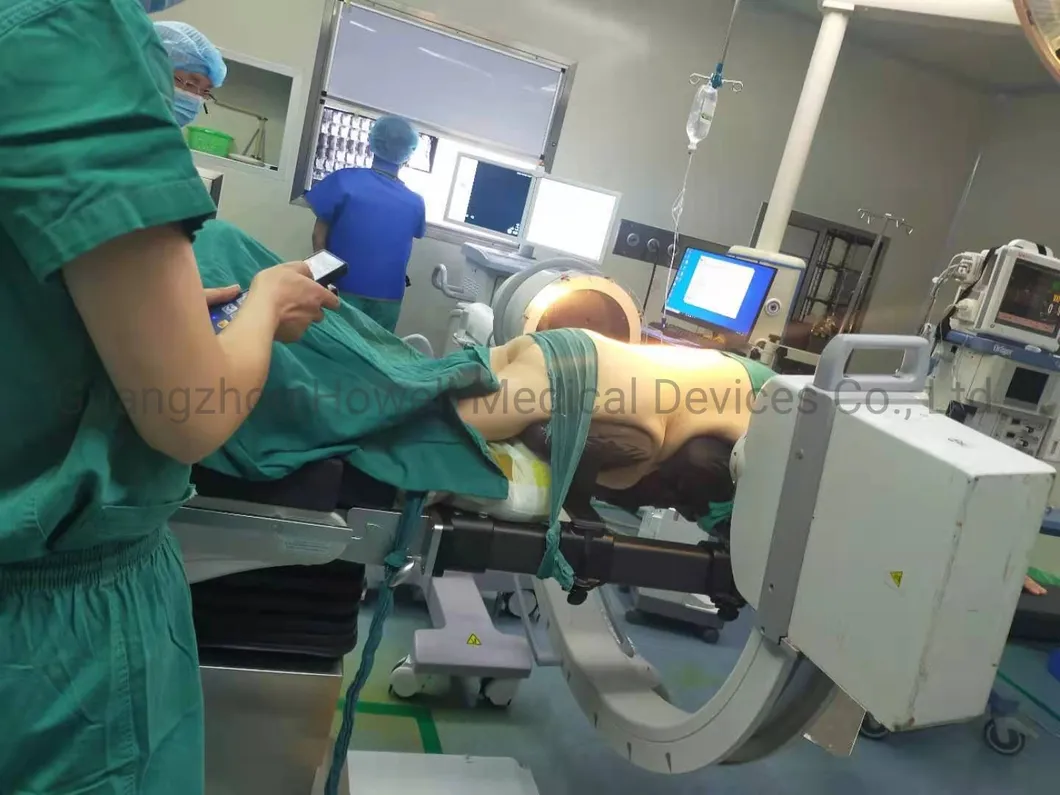

Hospital Application 1

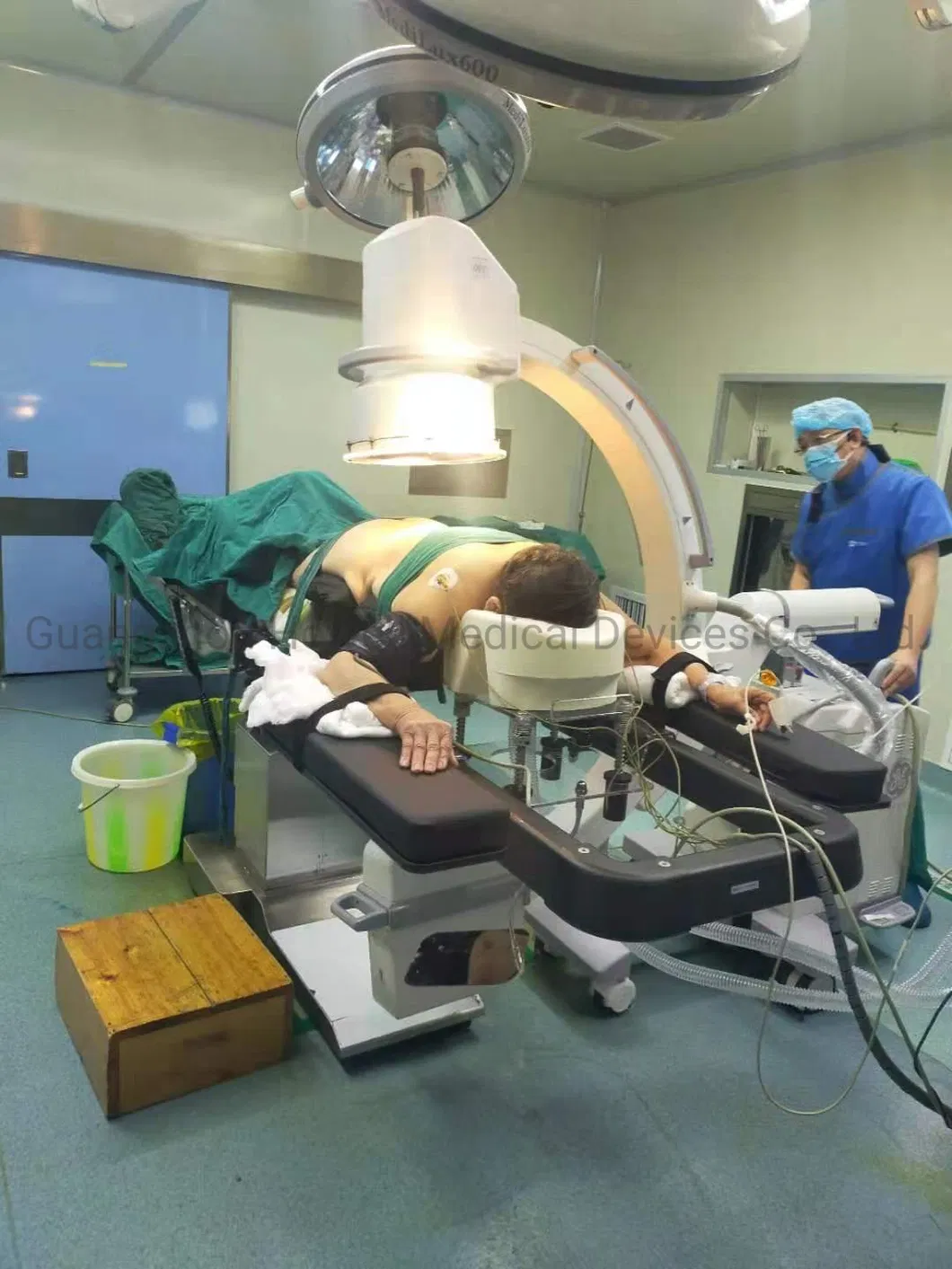

Hospital Application 2
📊 Technical Parameters
ParameterValue
Length / Width2000mm / 520mm
Longitudinal Slide300mm
Height Adjustment680mm - 980mm
Trendelenburg / Reverse30° / 30°
Lateral Tilt (L/R)20° / 20°
Leg Plate (Up/Down)50° / 90°
📦 Packaging & Quality
Certifications
Packaging

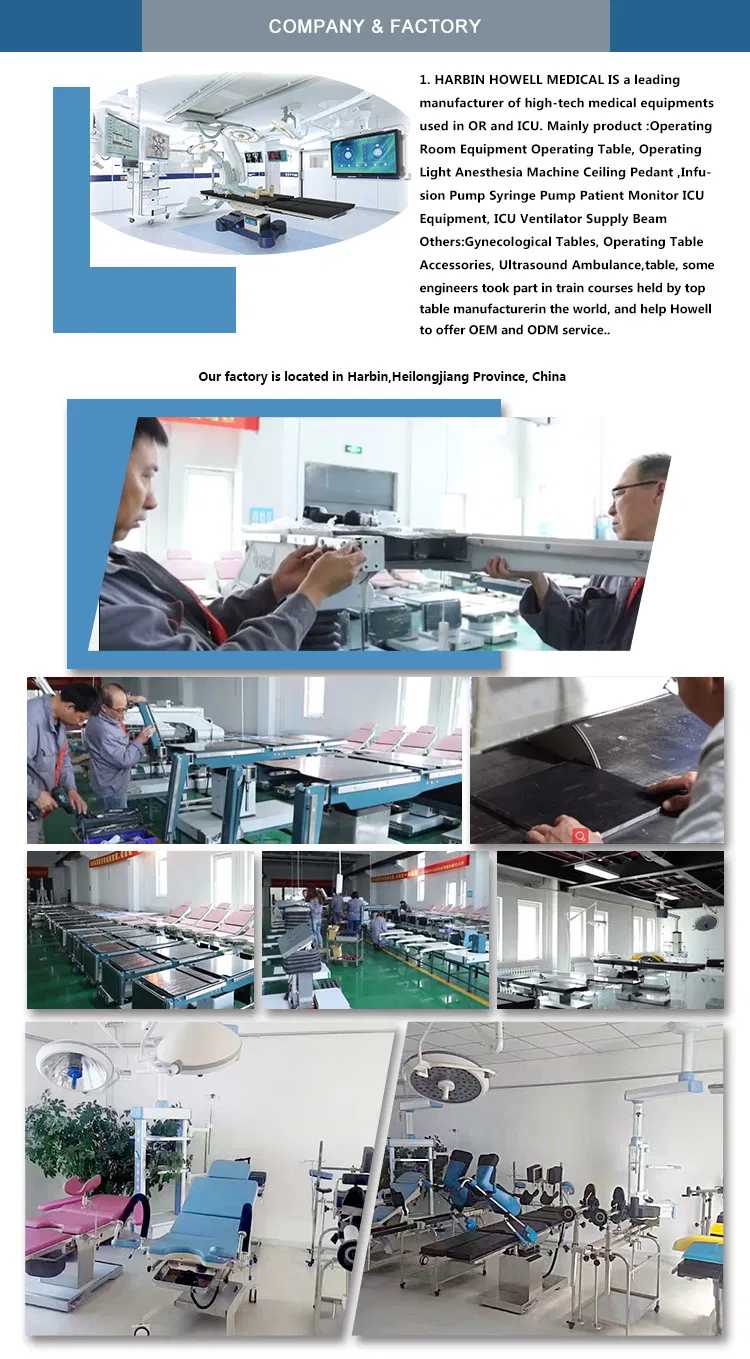

Production Facility
Frequently Asked Questions
How is the quality of the HE-608P ensured?
The product is manufactured under CE and ISO 13485 certification standards, with rigorous production inspection reports completed before packaging.
Is the operating table compatible with C-arm imaging?
Yes, the open U-shaped frame and carbon fiber materials are specifically designed to optimize interaction with C-arm, O-arm, and G-arm technology.
What happens if there is a power outage during surgery?
The table is equipped with an internal battery and charging system that automatically maintains operation if the AC power supply is interrupted.
What surgical positions are supported?
The table supports prone, supine, and lateral positions through various modular accessories and adjustable components.
Is installation support provided after purchase?
Professional installation videos and online technical support are provided to illustrate the setup and operation of the equipment.
Does the table allow for longitudinal shifting?
Yes, the table features a 300mm longitudinal slide to further enhance imaging accessibility without moving the patient.
