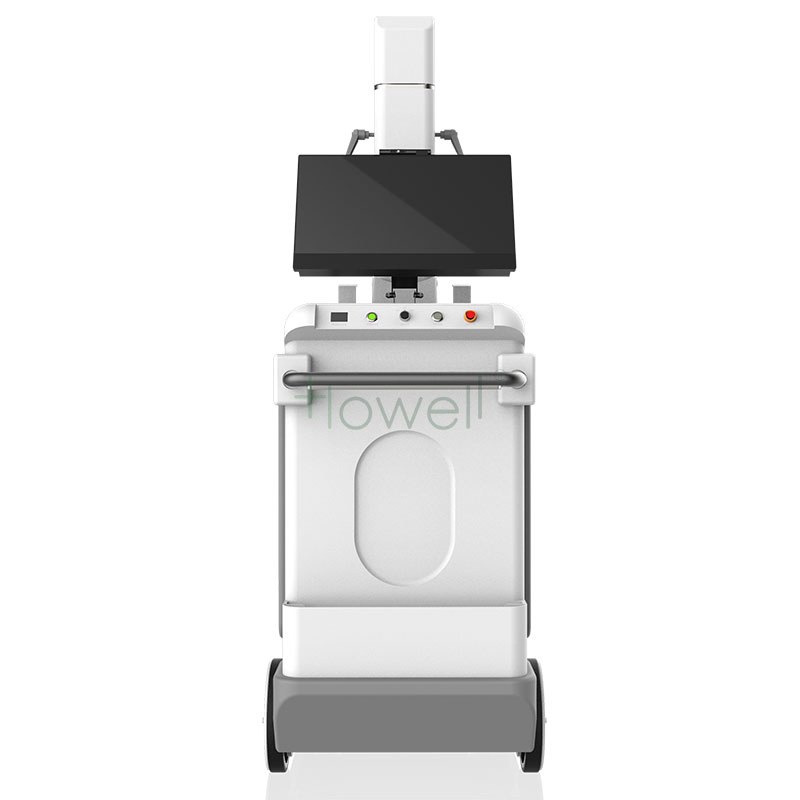

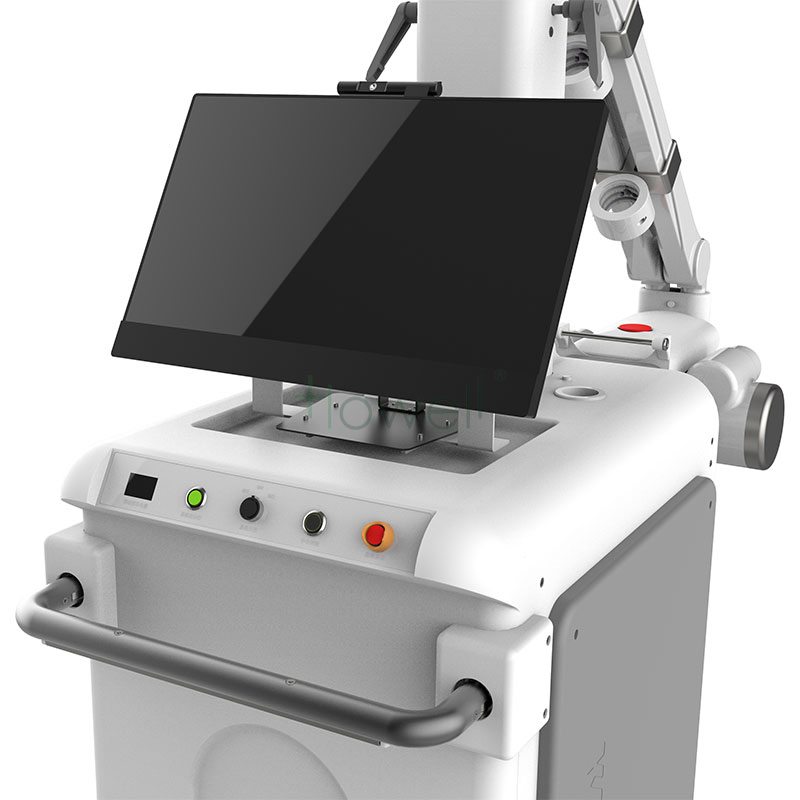

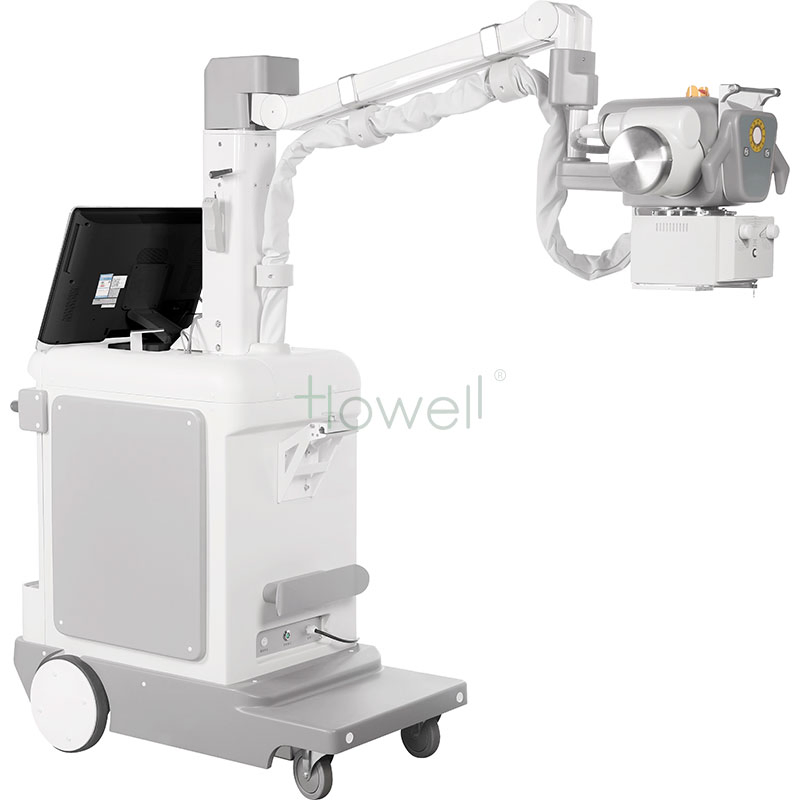

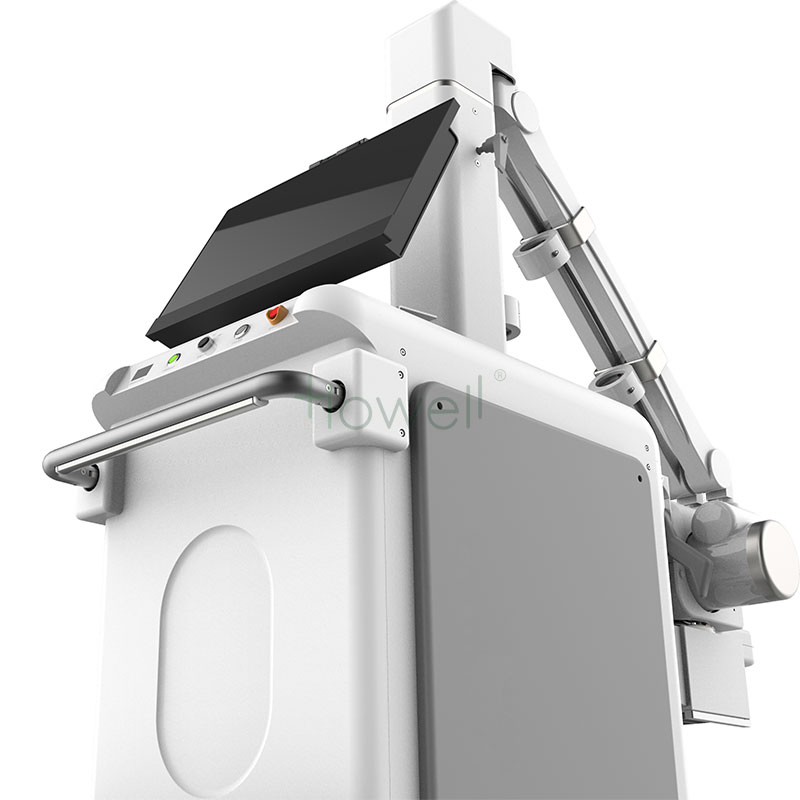

Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine
Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine
Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine
Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine
Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine
1 / 5
Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine
Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine
Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine
Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine
Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine

Portable Dr X-ray Digital Radiography System Digital Mobile X-ray Machine

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

Basic Information
Model NO.
HE-DRmc1(CE)-RayNova
Certification
CE, ISO13485
Warranty
1 Year
Transport Package
Wooden Case
Origin
China
Capacity
500 set/Year
Product Description

HE-DRmc1(CE)-RayNova

Digital mobile X-ray machine

◈
50KW high-power high-voltage generator, comparable to fixed DR
◈
Selection of Siemens 330KHUX ray tube
◈
17×17 inch wireless flat panel detector with 100-micron pixel size options
◈
Ergonomic folding arm mechanism for easy maneuverability
◈
Dual DC motor synchronization system with radar detection technology
◈
Polaris touch workstation system for intuitive and rapid radiology processes
◈
Advanced radar collision avoidance system
◈
19-inch high-definition capacitive screen
Detailed Gallery

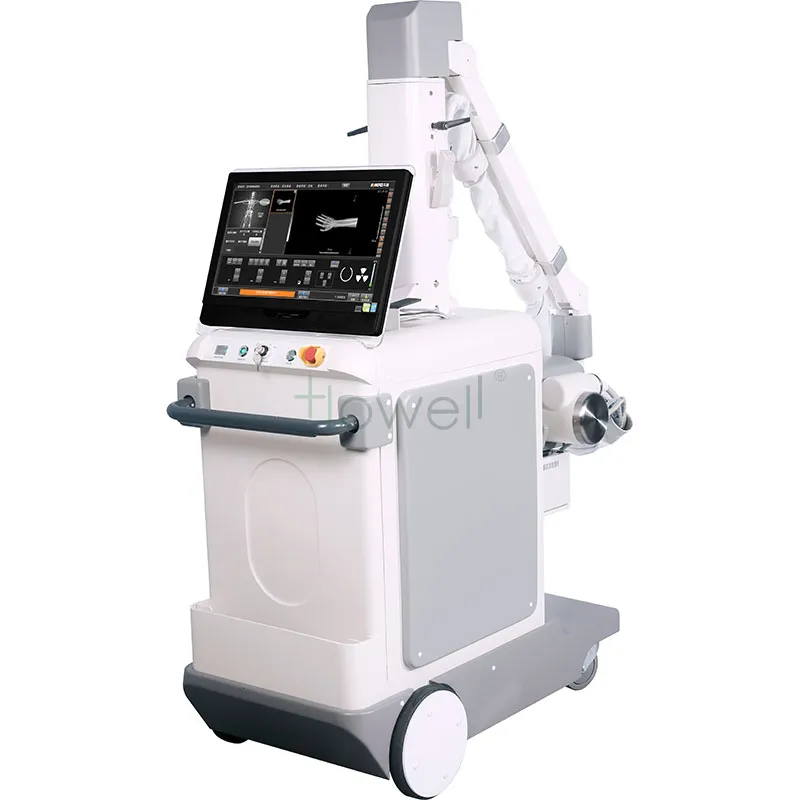

Mobile X-ray Front View
Mobile X-ray Side View
Digital Mobile X-ray Machine

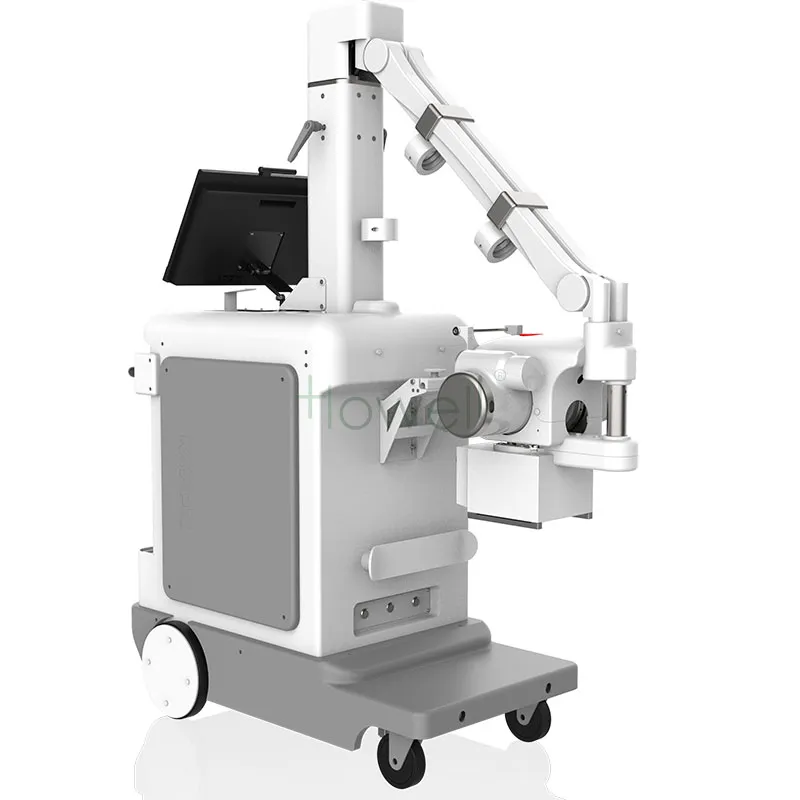

Mobile DR System

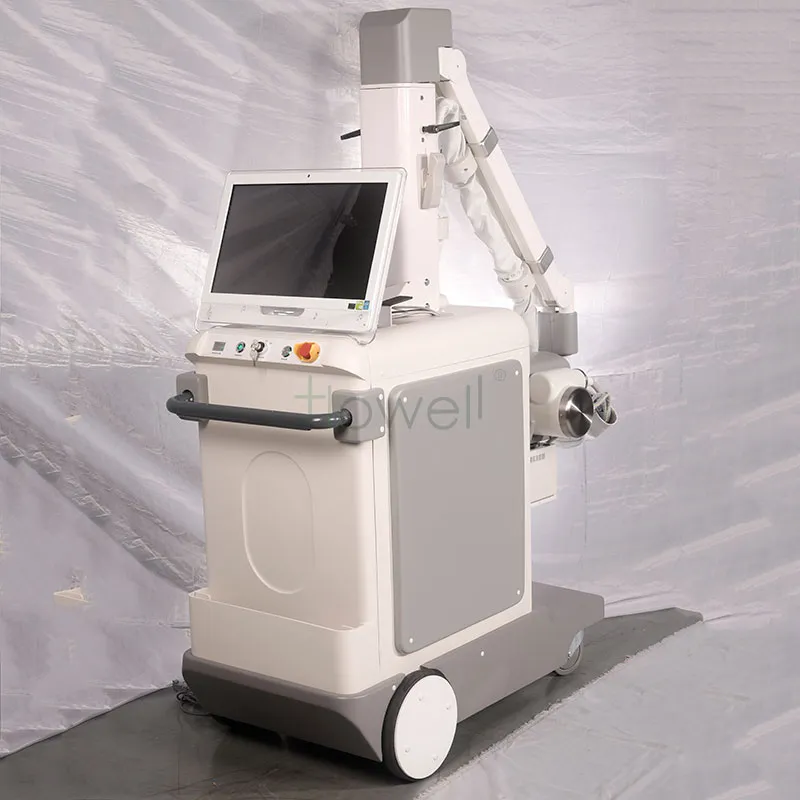

X-ray Equipment Components

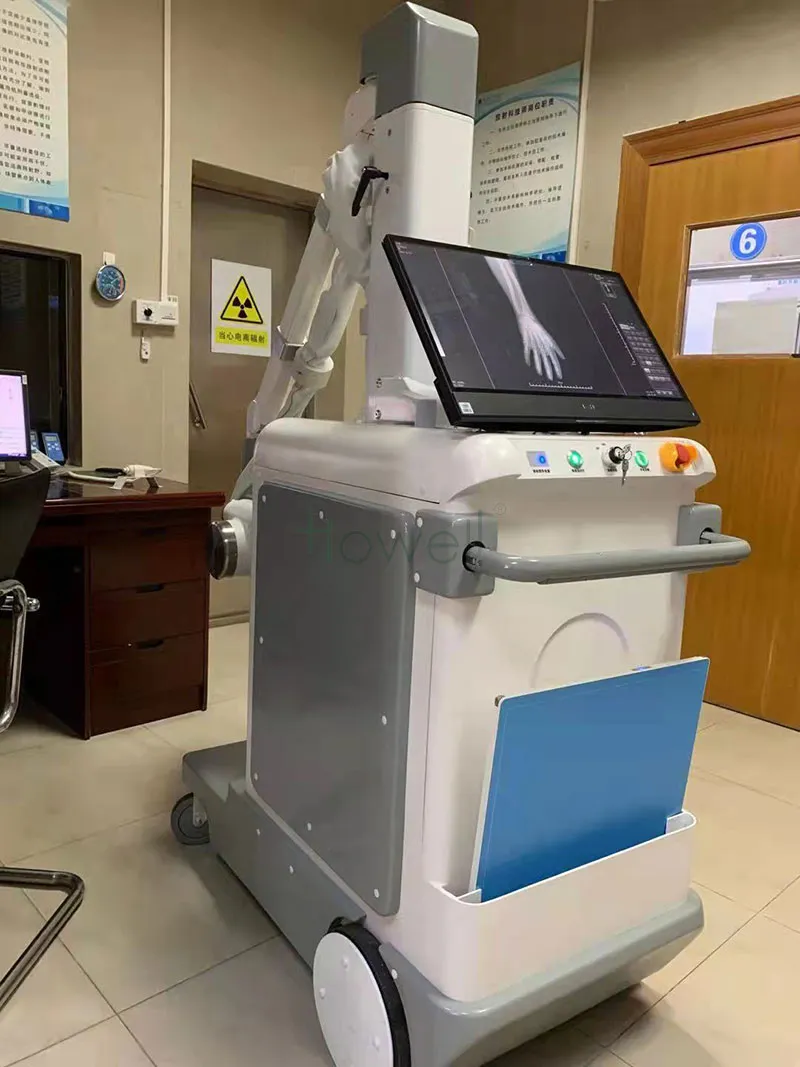

DR Radiography System

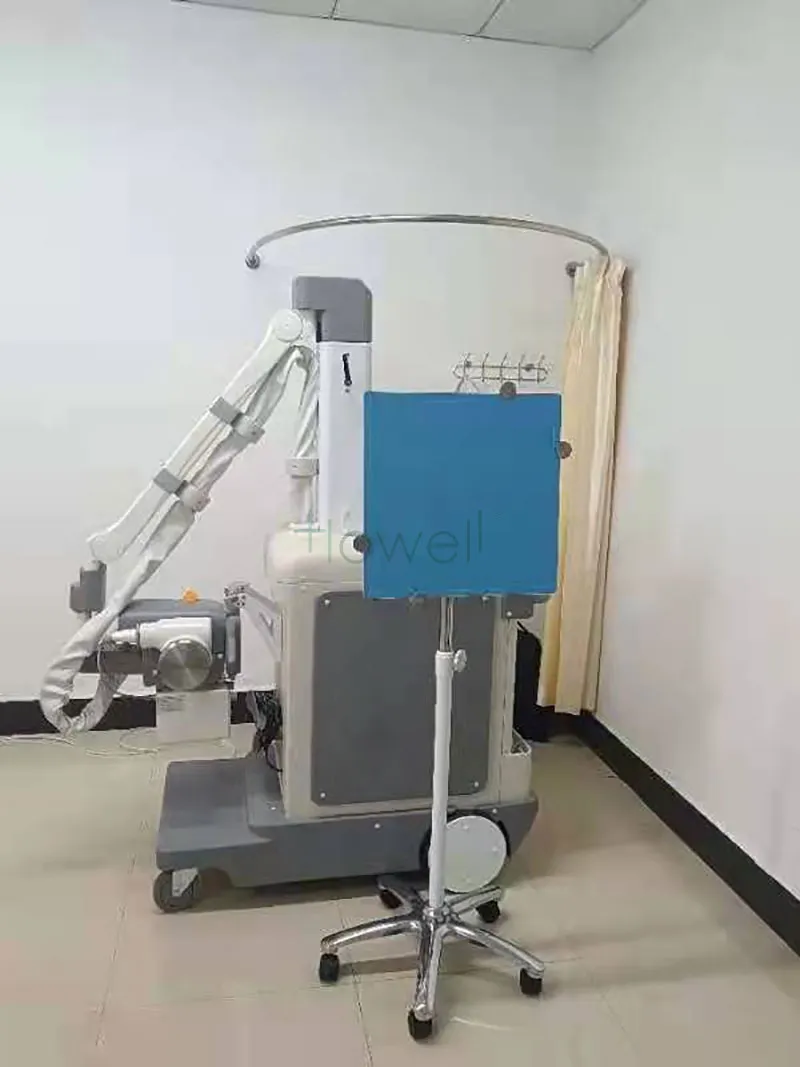

Mobile Unit Detail

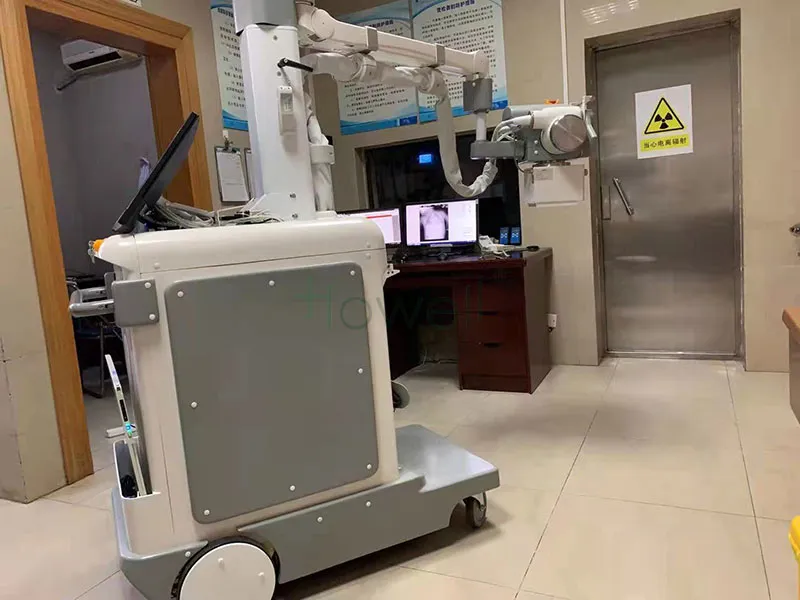

Clinical Mobile X-ray
Technical Parameters
Component Specification Data
High voltage generator Output power 50 kW
Max kV 150 kV
Max mA 630 mA
X-ray tube Focal Spot 0.6mm×1.0mm
Anode Heat Content 330kHU
Flat panel detector Scintillator Csl & a-Si
Pixel Pitch 139μm
Number of Pixels 3072×3072
Active Area 17×17 inch
Workstation Parameters CPU: Dual-core 3.8GHz | Memory: 4G | Hard disk: 1T | Display: 23.8 inches
Certifications
Product Certifications
Manufacturing Overview

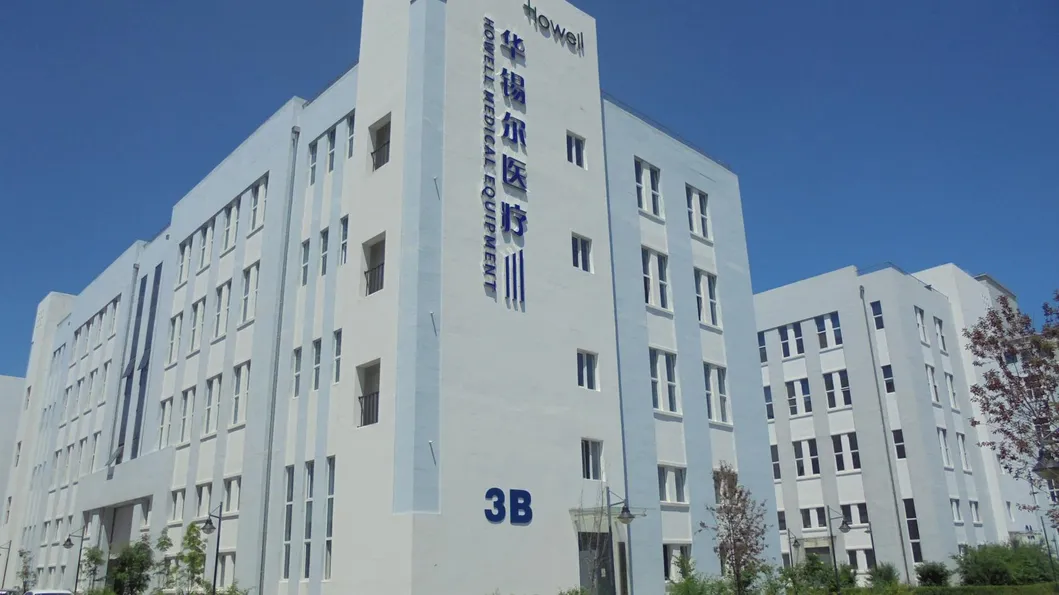

Production Facility
A leading manufacturer of high-tech medical equipments used in OR and ICU, specialized in Operating Room Equipment such as Operating Tables, Operating Lights, Anesthesia Machines, Ceiling Pendants, and Infusion Pumps. Our technical R&D team possesses over 10 years of experience, ensuring products meet international standards through continuous scientific innovation. By investing 10% of annual turnover into R&D, we maintain a leading position in the industry, aiming to provide high-quality medical solutions globally through OEM and ODM services.
Quality Control
Packaging & Shipping
Product Packaging
Frequently Asked Questions
What is the output power of the high-voltage generator?
The HE-DRmc1(CE)-RayNova features a 50 kW high-power generator, which provides performance comparable to fixed DR systems.
Does the machine include a safety system to prevent collisions?
Yes, it is equipped with radar collision avoidance technology and a dual DC motor synchronization system for safe and smooth movement.
What type of X-ray tube and detector are used?
The system utilizes a Siemens 330KHU X-ray tube and a 17x17 inch wireless flat panel detector with a 139μm pixel pitch.
Is the workstation easy to operate?
Absolutely. It uses the latest Polaris touch workstation system with a 19-inch capacitive screen, allowing all radiology inspection processes to be completed intuitively and quickly.
What is the warranty and packaging for international shipping?
The product comes with a 1-year warranty and is packed in professional wooden cases to ensure safety during sea or air transport.
What certifications does this mobile X-ray machine hold?
The machine is fully certified with CE and ISO13485 standards, ensuring it meets international quality and safety requirements for medical devices.
